Toyota Land Cruiser Prado
2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe
Supported model
Data version 2010-01

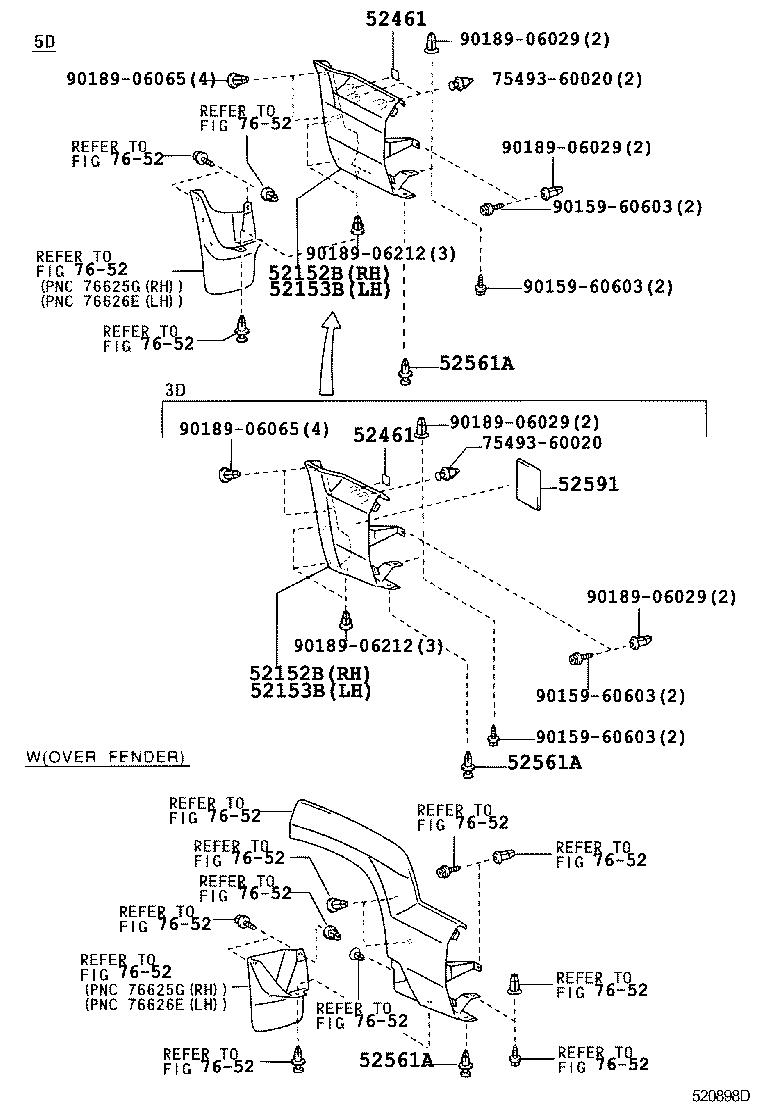

Rear Bumper & Bumper Stay
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52152B | Extension, Rear Bumper, RH |
| 52153B | Extension, Rear Bumper, LH |
| 52157A | Support, Rear Bumper Side, NO.2 RH |
| 52158C | Support, Rear Bumper Side, NO.2 LH |
| 52159 | Cover, Rear Bumper |
| 52161A | Piece, Rear Bumper, RH |
| 52161B | Piece, Rear Bumper |
| 52171A | Reinforcement, Rear Bumper, NO.1 |
| 52172B | Reinforcement, Rear Bumper, NO.2 |
| 52185B | Bracket, Rear Bumper Side Mounting, RH |
| 52186B | Bracket, Rear Bumper Side Mounting, LH |
| 52356 | Cushion, Rear Bumper Step |
| 52461 | Pad, Rear Bumper, Center |
| 52561A | Clip(FOR REAR BUMPER RETAINER) |
| 52562B | Retainer, Rear Bumper, Upper RH |
| 52563A | Retainer, Rear Bumper, Upper LH |
| 52591 | Seal, Rear Bumper Side, RH |
| 52615 | Absorber, Rear Bumper Energy |
| 58766A | Cover, Jack Box Hole |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
