Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe

Supported model Data version 2010-01

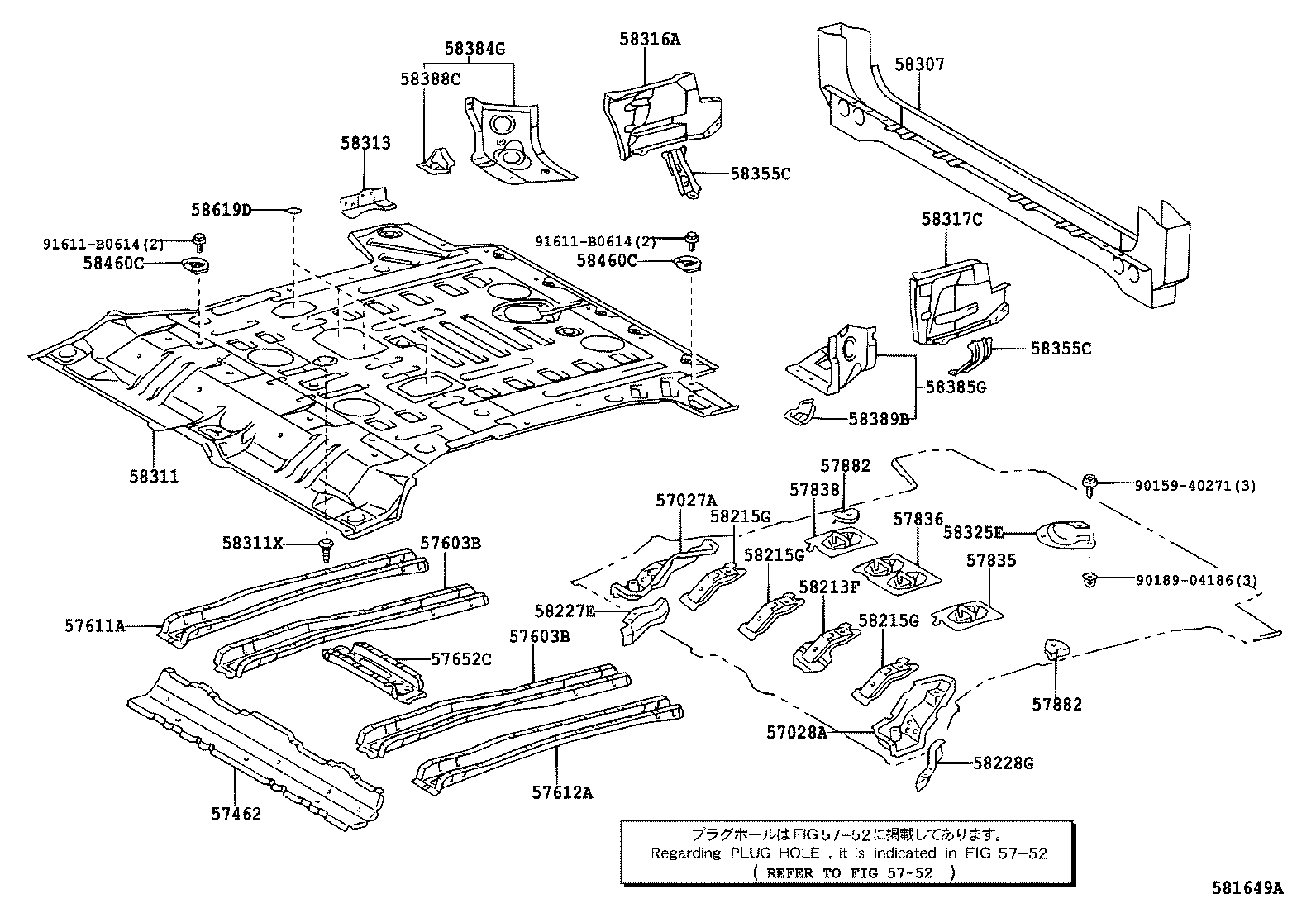

Rear Floor Panel & Rear Floor Member

37 part groups · 2 illustrations

PNC	Description
57027A	Bracket Sub-assy, Body Mounting, NO.4 RH
57028A	Bracket Sub-assy, Body Mounting, NO.4 LH
57405C	Member Sub-assy, Center Floor Cross, Rear
57462	Member, Center Floor Cross, NO.2
57603A	Member Sub-assy, Rear Floor Side, Rear RH
57603B	Member Sub-assy, Rear Floor Side Rear, Center
57604A	Member Sub-assy, Rear Floor Side, Rear LH
57611A	Member, Rear Floor Side, RH
57612A	Member, Rear Floor Side, LH
57652C	Member, Rear Floor Cross, NO.1
57835	Reinforcement, Rear NO.1 Seat Leg, Rear NO.1
57836	Reinforcement, Rear NO.1 Seat Leg, Rear NO.2
57837	Reinforcement, Rear NO.1 Seat Leg, Rear NO.3
57838	Reinforcement, Rear NO.1 Seat Leg, Rear NO.4
57882	Reinforcement, Belt Anchor, NO.4
58211J	Pan, Center Floor
58213F	Reinforcement, Center Floor Panel
58215G	Bracket, Rear Seat Mounting, NO.1
58216D	Bracket, Rear Seat Mounting, LH
58227E	Plate, Front Floor Panel Side, RH
58228G	Plate, Floor Panel Side, LH
58275C	Bracket, Wire Harness Protector
58307	Panel Sub-assy, Body Lower Back
58311	Pan, Rear Floor
58311X	Bolt, Rear Floor Weld
58313	Panel, Rear Floor Side, RH
58314	Panel, Rear Floor Side, LH
58316A	Extension, Rear Floor Side Panel, Rear RH
58317C	Extension, Rear Floor Side Panel, Rear LH
58325E	Cover, Rear Floor Service Hole
58355C	Bracket, Rear Bumper Arm
58384G	Gusset, Lower Back, Upper RH
58385G	Gusset, Lower Back, Upper LH
58388C	Plate, Body Lower Back Reinforcement, RH
58389B	Plate, Body Lower Back Reinforcement, LH
58460C	Striker Assy, Luggage Hold Belt
58619D	Sheet, Center Floor Silencer Sub

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
