Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

26 part groups · 3 illustrations

Illustrations

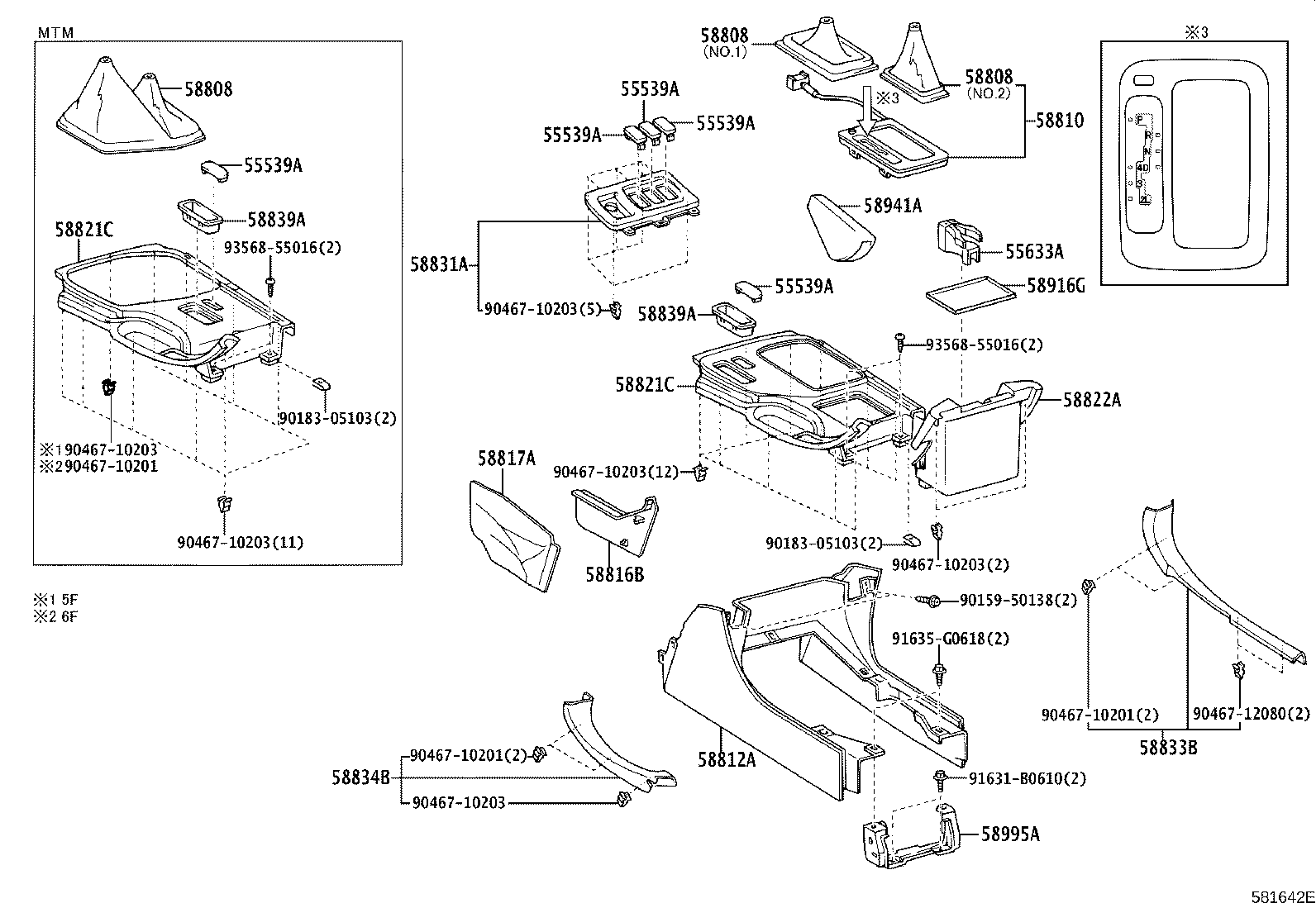

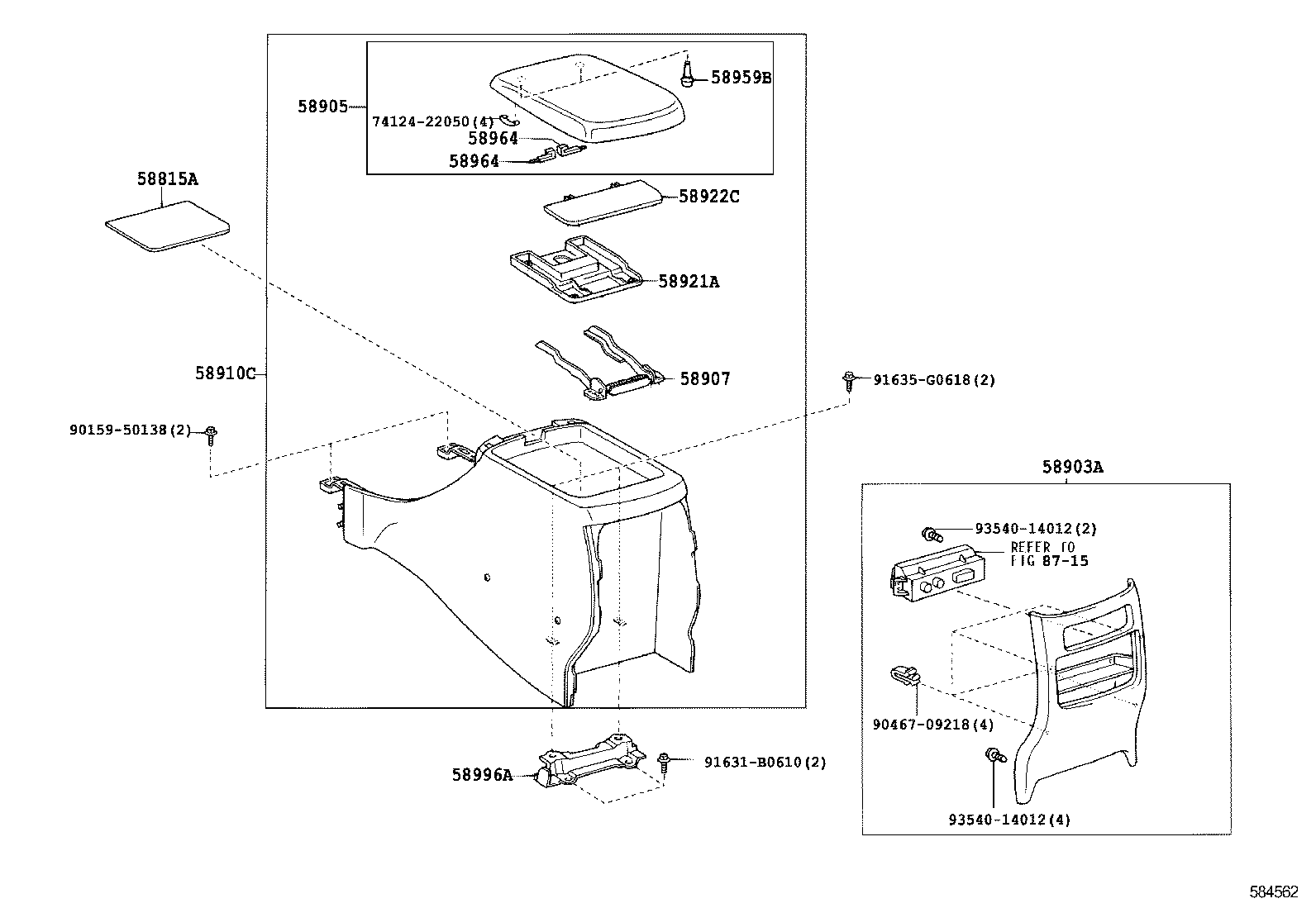

Figure 581641G 581641G 2002-09 → — Figure 581642E 581642E 2002-09 → — Figure 584562 584562 2002-09 → —

Part groups

PNCDescription
55539A Cover, Spare Switch Hole
55633A Support, Instrument Panel Cup Holder, NO.1
58808 Cover Sub-assy, Shifting Hole
58810 Console Assy
58812A Box, Console, Lower
58815A Carpet, Console Box
58816B Insert, Console Box
58817A Insert, Console Box, Front NO.2
58821C Panel, Console, Upper
58822A Panel, Console, Upper Rear
58831A Garnish, Console Upper Panel, Front
58833B Garnish, Console Upper Panel, NO.1
58834B Garnish, Console Upper Panel, NO.2
58839A Cover, Console Box Hole
58903A Panel Sub-assy, Console Rear End
58905 Door Sub-assy, Console Compartment
58907 Hinge Sub-assy, Console Compartment Door
58910C Box Assy, Console, Rear
58916G Mat, Box Bottom, NO.2
58921A Panel, Rear Console, Upper
58922C Plate, Box, Upper NO.2
58941A Cover, Parking Brake Hole
58959B Cushion, Console Compartment Door
58964 Stopper, Console Compartment Door, NO.1
58995A Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
