Toyota Land Cruiser Prado
2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe
Supported model
Data version 2010-01
Inside Trim Board

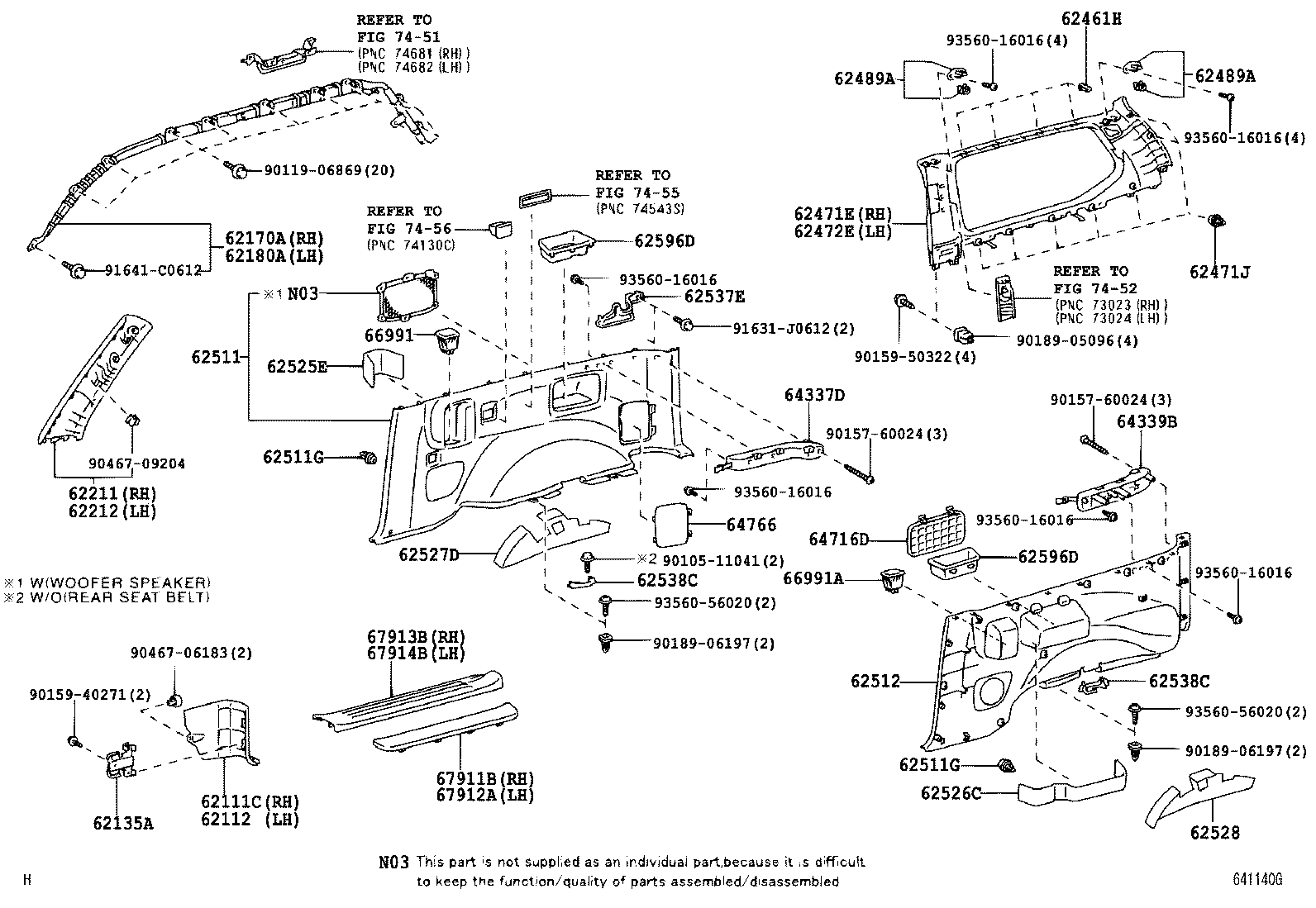

58 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62111C | Board, Cowl Side Trim, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62135A | Retainer, Cowl Side Cover |
| 62155C | Bracket, Curtain Shield Airbag, RH |
| 62156B | Bracket, Curtain Shield Airbag, LH |
| 62170A | Airbag Assy, Curtain Shield, RH |
| 62180A | Airbag Assy, Curtain Shield, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62221P | Spacer, Front Pillar, NO.1 RH |
| 62222E | Spacer, Front Pillar, NO.1 LH |
| 62411 | Garnish, Center Pillar, RH |
| 62412 | Garnish, Center Pillar, LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62413C | Clip (FOR CENTER LOWER GARNISH) |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62435D | Pad, Roof Side Rail Garnish, RH |
| 62436D | Pad, Roof Side Rail Garnish, LH |
| 62461H | Clip (FOR ROOF SIDE INNER GARNISH) |
| 62471E | Garnish, Roof Side, Inner Upper RH |
| 62471J | Clip (FOR ROOF SIDE GARNISH) |
| 62472A | Garnish, Roof Side, Inner LH |
| 62472E | Garnish, Roof Side, Inner Upper LH |
| 62475F | Pad, Roof Side Inner Garnish, NO.1 |
| 62489A | Clip, Roof Side Inner Garnish |
| 62498B | Pad, Roof Side Inner Garnish, NO.2 |
| 62511 | Board, Quarter Inside Trim, RH |
| 62511G | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 62512 | Board, Quarter Inside Trim, LH |
| 62525E | Pad, Quarter Trim, Upr |
| 62526C | Pad, Quarter Trim, Upper LH |
| 62527D | Pad, Quarter Trim, Lower RH |
| 62528 | Pad, Quarter Trim, Lower LH |
| 62537E | Lid, Quarter Trim Belt Hole, RH |
| 62538C | Cover, Quarter Trim, Hole |
| 62596D | Tray, Quarter Trim Pocket |
| 64337D | Garnish, Package Tray Trim, RH |
| 64339B | Garnish, Package Tray Trim, LH |
| 64716D | Cover, Deck Trim, Rear |
| 64737B | Pad, Deck Trim Side RH Silencer |
| 64766 | Cover Sub-assy, Quarter Trim Jack |
| 64931D | Hanger, Tonneau Cover, RH |
| 64932C | Hanger, Tonneau Cover, LH |
| 66413E | Spacer, Side Rail, Front RH |
| 66423C | Spacer, Side Rail, Front LH |
| 66991 | Holder, Quarter Trim Cup, RH |
| 66991A | Holder, Quarter Trim Cup, LH |
| 67911B | Plate, Front Door Scuff, Outside, RH |
| 67912A | Plate, Front Door Scuff, Outside LH |
| 67913B | Plate, Front Door Scuff, RH |
| 67914B | Plate, Front Door Scuff, LH |
| 67915 | Plate, Rear Door Scuff, Outside RH |
| 67916 | Plate, Rear Door Scuff, Outside LH |
| 67917C | Plate, Rear Door Scuff, RH |
| 67918E | Plate, Rear Door Scuff, LH |
| 73298E | Cover, Quarter Trim Belt Hole, NO.1 |
| 74681F | Retainer, Assist Grip, RH |
| 74682A | Retainer, Assist Grip, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
