Toyota Land Cruiser Prado
2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe
Supported model
Data version 2010-01

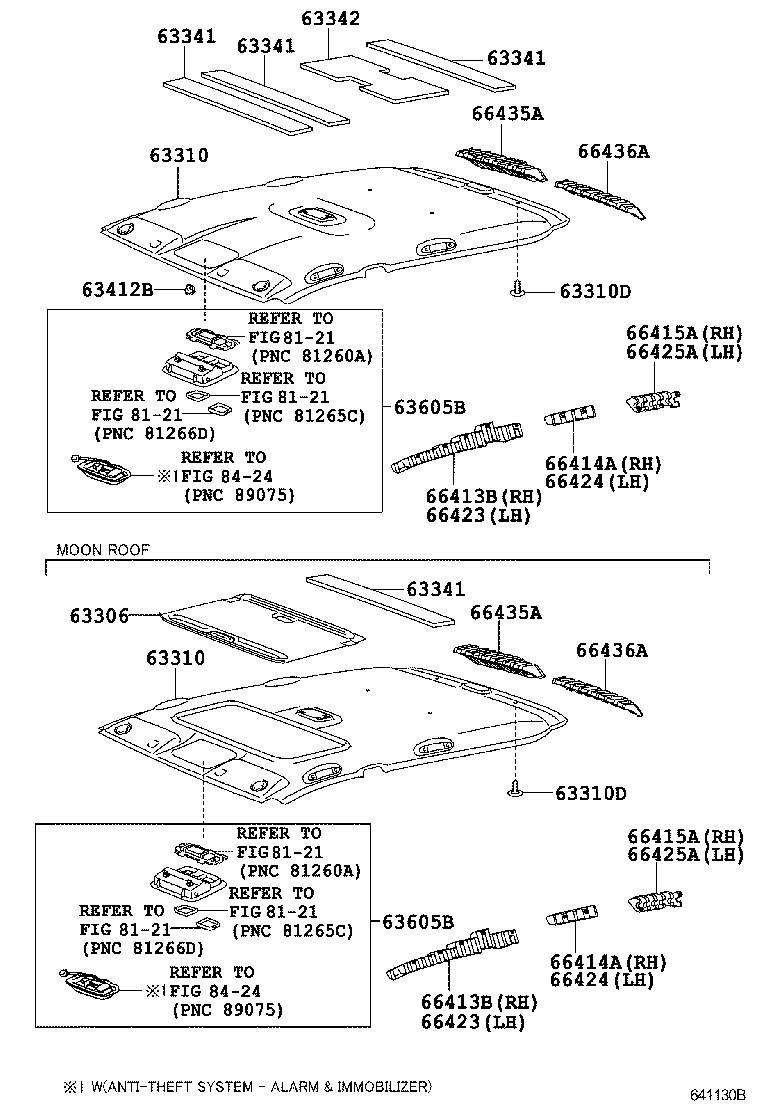

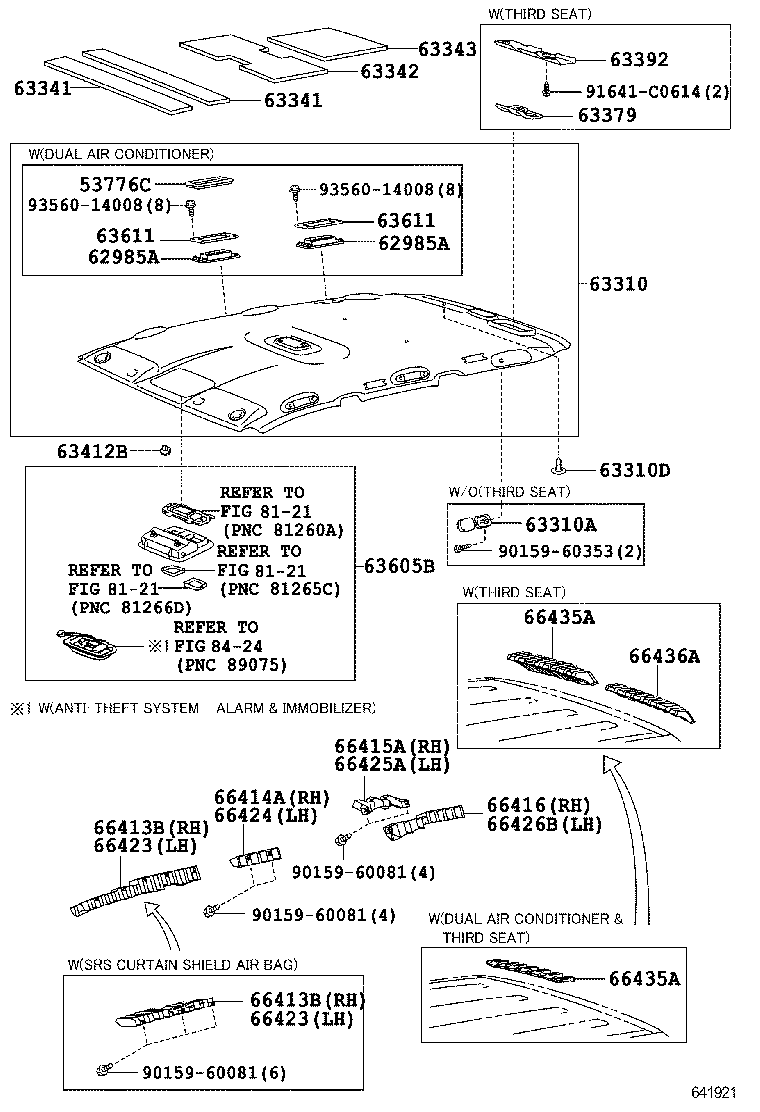

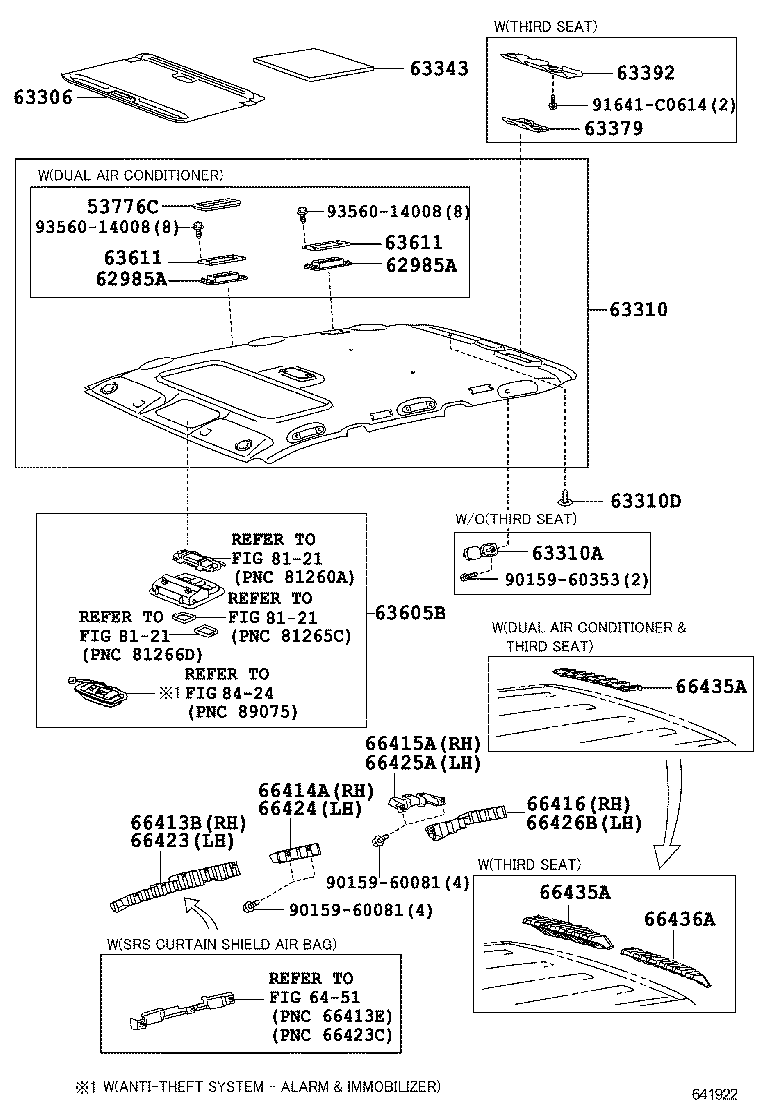

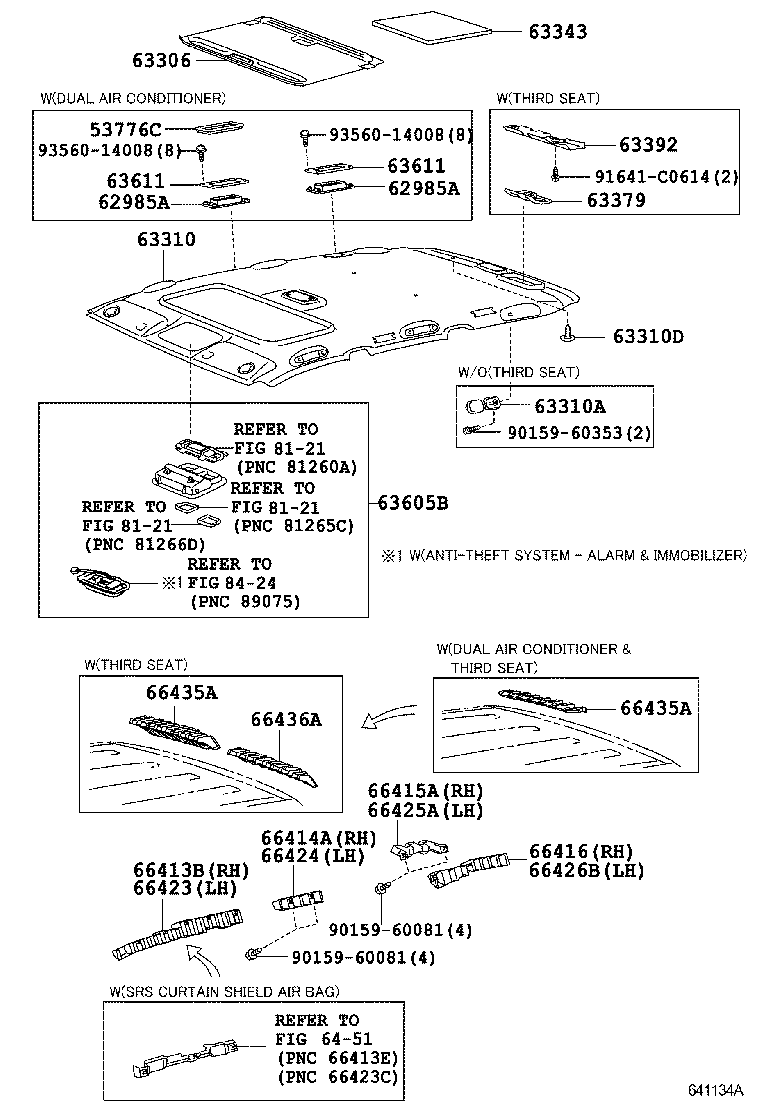

Roof Headlining & Silencer Pad
24 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 53776C | Bracket, Cool Air, NO.2 |
| 62985A | Register, Roof Side Air Outlet |
| 63306 | Trim Sub-assy, Sunshade |
| 63310 | Headlining Assy, Roof |
| 63310A | Plug, Hole(FOR ROOF HEADLINING ASSY) |
| 63310D | Clip, Roof Headlining |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63343 | Pad, Roof Silencer, NO.3 |
| 63379 | Cover, Roof Headlining Rear Trim, LH |
| 63392 | Trim, Roof Headlining, Rear |
| 63412B | Retainer, Roof Console |
| 63605B | Box Sub-assy, Roof Console |
| 63611 | Bracket, Rear Cooler, NO.1 |
| 66413B | Spacer, Side Rail, Front RH |
| 66414A | Spacer, Side Rail, Rear RH |
| 66415A | Spacer, Side Rail, Rear NO.2 RH |
| 66416 | Spacer, Side Rail, Rear NO.3 RH |
| 66423 | Spacer, Side Rail, Front LH |
| 66424 | Spacer, Side Rail, Rear LH |
| 66425A | Spacer, Side Rail, Rear NO.2 LH |
| 66426B | Spacer, Side Rail, Rear NO.3 LH |
| 66435A | Pad, Side Rear Step, RH |
| 66436A | Pad, Side Rear Step, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
