Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

23 part groups · 2 illustrations

Illustrations

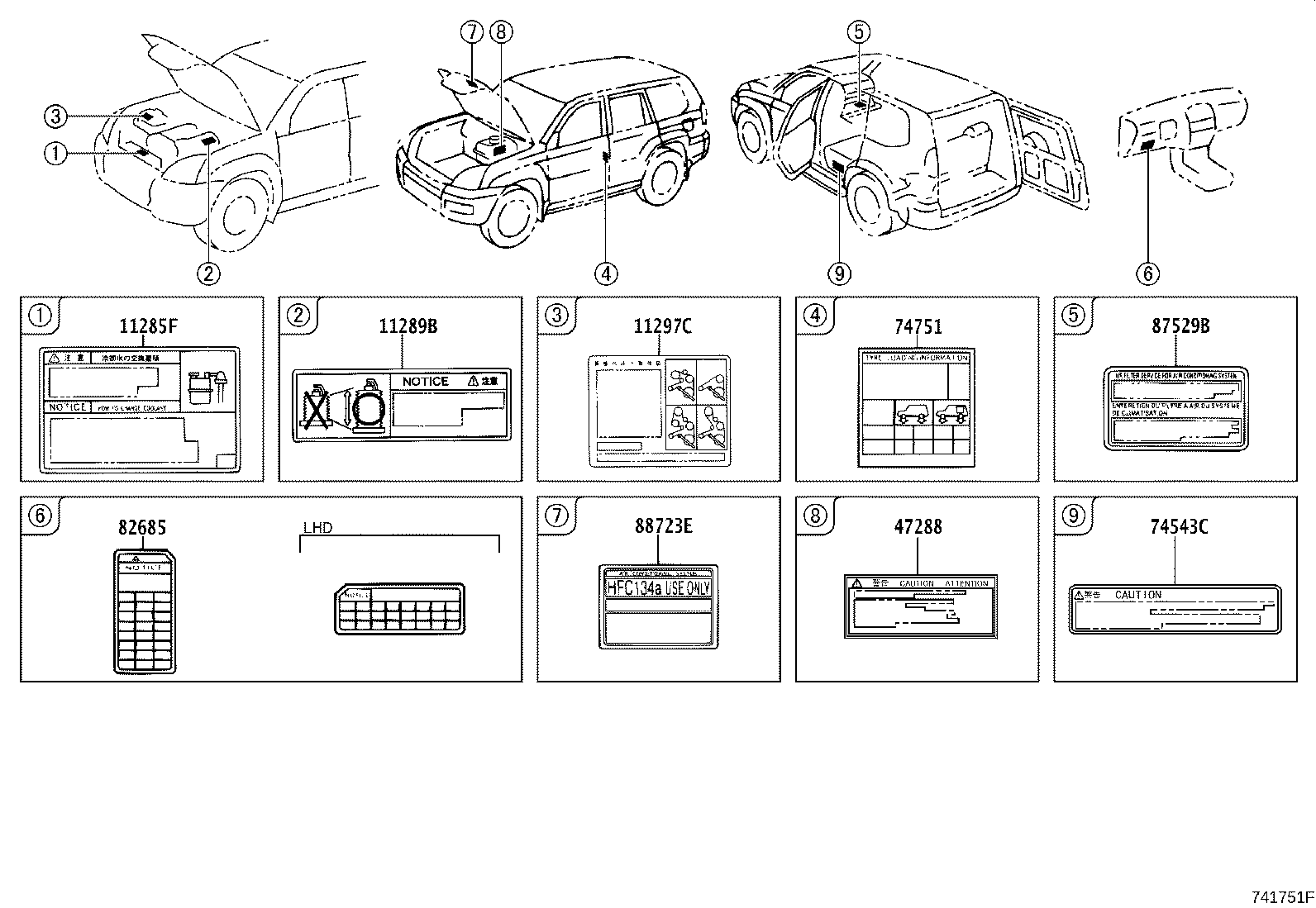

Figure 741144H 741144H 2002-09 → — Figure 741751F 741751F 2002-09 → —

Part groups

PNCDescription
11285F Label, Coolant System Caution
11289B Label, Spark Plug Notice
11296C Label, Engine Service Information
11297C Label, Engine Service Information, NO.2
36369 Label, Transfer Information
41991A Plate, Caution
47288 Label, Brake Fluid Notice
47939A Plate, Load Sensing Valve Marking
48969 Label, Jack UP Caution
74511F Label, Name (IDENTIFICATION LASER LABEL)
74515A Plate, Theft Warning
74529 Plate, Child Proof OR Child Protector Lock Caution
74542 Plate, Rear Window Mark
74543C Label, Rear Seat Information
74543S Label, Automatic Belt Caution, NO.3
74559A Plate, Fuel Caution
74559B Label, Fuel Information
74567A Plate, E.C.E Approved Number
74596A Label, Side Airbag Caution
74751 Label, Tire Pressure Information
82685 Plate, Caution
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
