Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Moulding

24 part groups · 2 illustrations

Illustrations

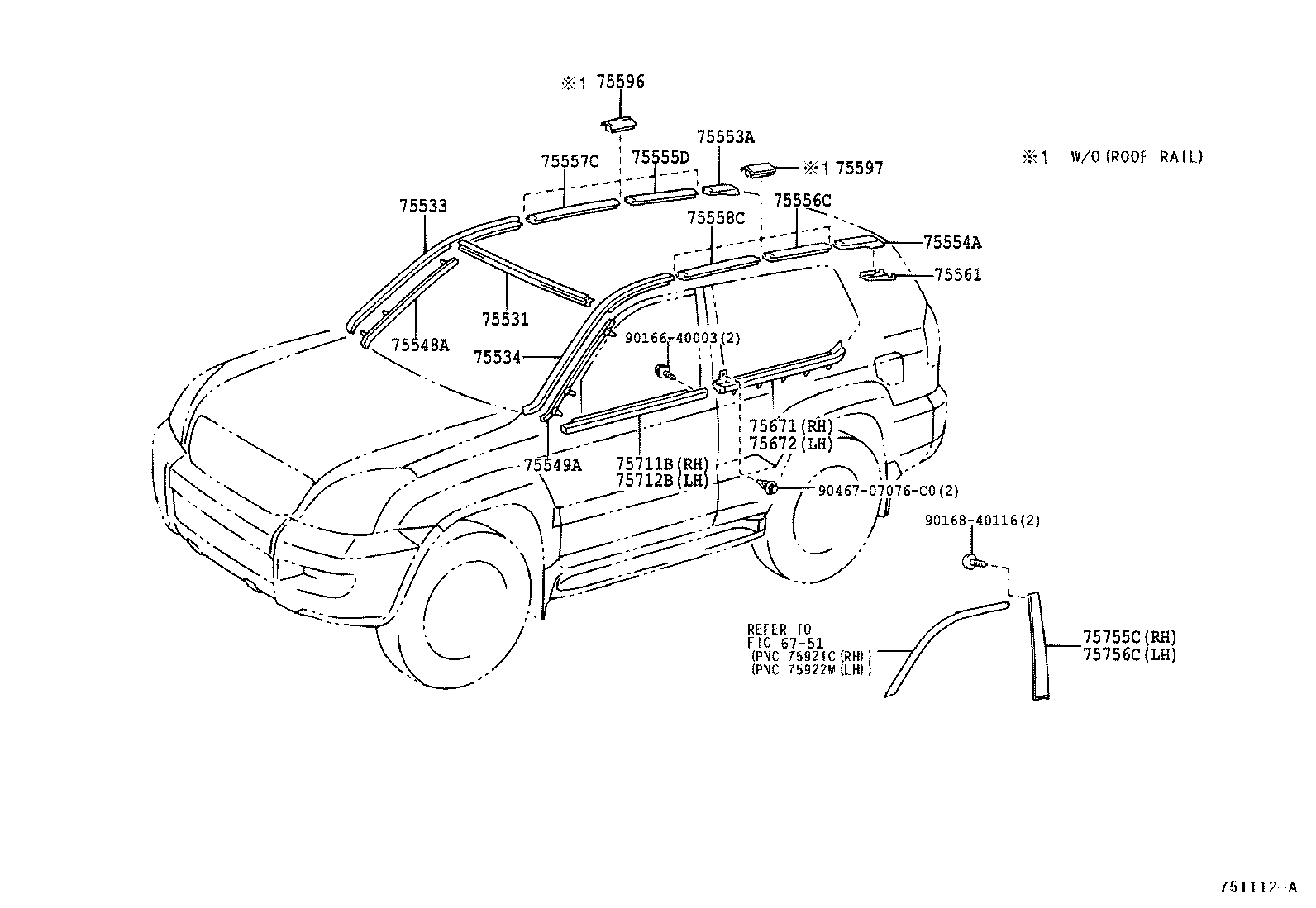

Figure 751239D 751239D 2002-09 → — Figure 751112A 751112A 2002-09 → —

Part groups

PNCDescription
75531 Moulding, Windshield, Outer Upper
75533 Moulding, Windshield, Outside RH
75534 Moulding, Windshield, Outside LH
75548A Fastener, Windshield Outside Moulding, NO.1
75549A Moulding, Windshield Outside Sub
75553A Moulding, Roof Drip Side Finish, Rear RH
75554A Moulding, Roof Drip Side Finish, Rear LH
75555D Moulding, Roof Drip Side Finish, Center RH
75556C Moulding, Roof Drip Side Finish, Center LH
75557C Moulding, Roof Drip Side Finish, Center NO.2 RH
75558C Moulding, Roof Drip Side Finish, Center NO.2 LH
75561 Clip, Roof Drip Side Finish Moulding, NO.1
75596 Cover, Roof Drip Side Finish Moulding Joint, RH
75597 Cover, Roof Drip Side Finish Moulding Joint, LH
75671 Moulding, Quarter Belt, RH
75672 Moulding, Quarter Belt, LH
75711B Moulding, Front Door Belt, RH
75712B Moulding, Front Door Belt, LH
75721A Moulding, Rear Door Belt, RH
75722A Moulding, Rear Door Belt, LH
75755C Moulding, Front Door Window Frame, Rear RH
75756C Moulding, Front Door Window Frame, Rear LH
75761A Moulding, Rear Door Window Frame, Front RH
75762A Moulding, Rear Door Window Frame, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
