Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

17 part groups · 3 illustrations

Illustrations

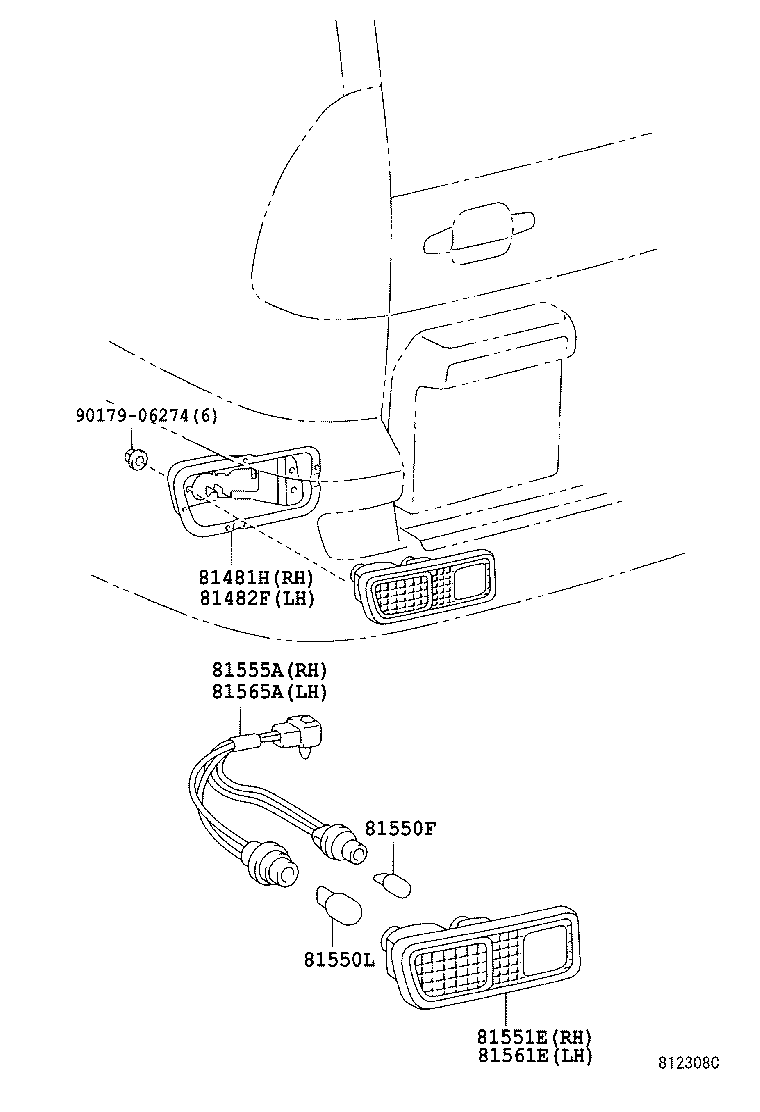

Figure 812307E 812307E 2002-09 → — Figure 812308C 812308C 2002-09 → — Figure 812290C 812290C 2002-09 → —

Part groups

PNCDescription
81481H Bracket, Rear Fog Lamp
81482F Bracket, Rear Combination Lamp, LH
81496 Guide, Rear Combination Lamp
81550B Bulb(FOR REAR COMBINATION LAMP)
81550F Bulb, Taillamp
81550J Socket, Tail & Stop Lamp
81550L Bulb, Rear Turn Signal Lamp
81550M Socket, Rear Turn Signal Lamp
81550P Socket, Back UP Lamp
81551D Lens & Body, Rear Combination Lamp, RH
81551E Lens & Body, Rear Combination Lamp, NO.2 RH
81555A Socket & Wire Sub-assy, Rear Combination Lamp, RH
81561D Lens & Body, Rear Combination Lamp, LH
81561E Lens & Body, Rear Combination Lamp, NO.2 LH
81565A Socket & Wire Sub-assy, Rear Combination Lamp, LH
81580D Lamp Assy, Rear, RH
81590A Lamp Assy, Rear, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
