Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear License Plate Lamp

9 part groups · 2 illustrations

Illustrations

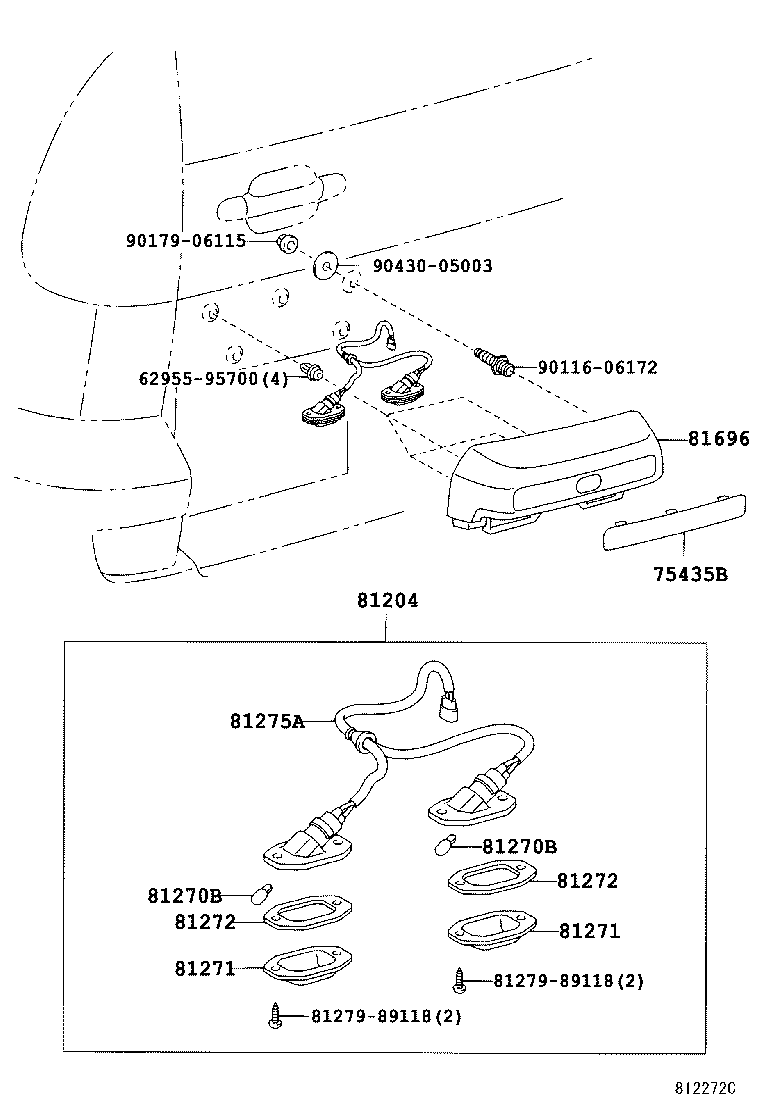

Figure 812271 812271 2002-09 → — Figure 812272C 812272C 2002-09 → —

Part groups

PNCDescription
75435B Ornament, Back Door
81204 Lamp Unit, License Plate
81270 Lamp Assy, License Plate
81270B Bulb (FOR LICENSE PLATE LAMP)
81271 Lens, License Plate Lamp
81272 Gasket, License Plate Lamp Lens
81275 Socket And Wire, License Plate Lamp
81275A Cord, License Plate Lamp
81696 Cover, License Plate Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
