Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

46 part groups · 14 illustrations

Illustrations

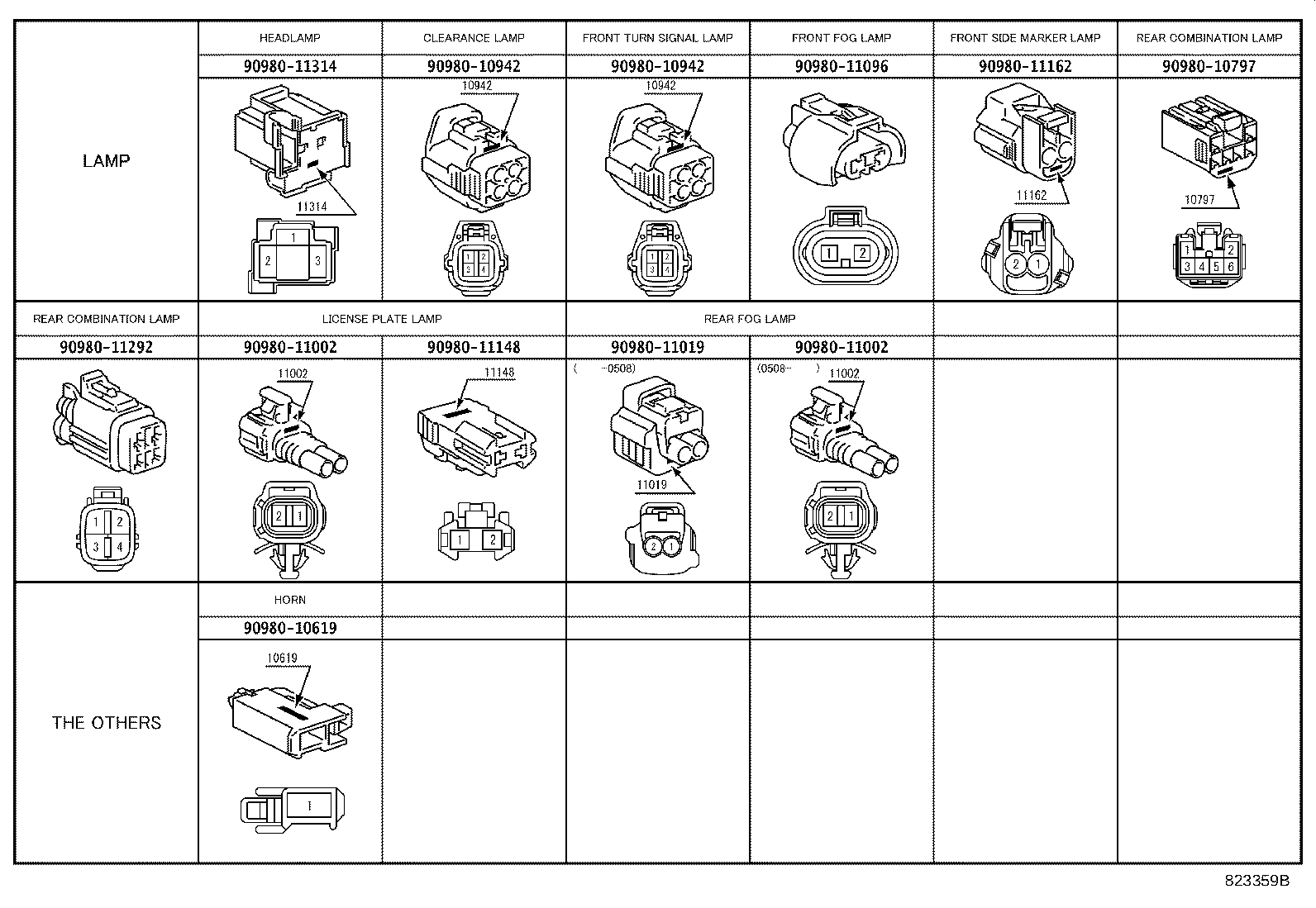

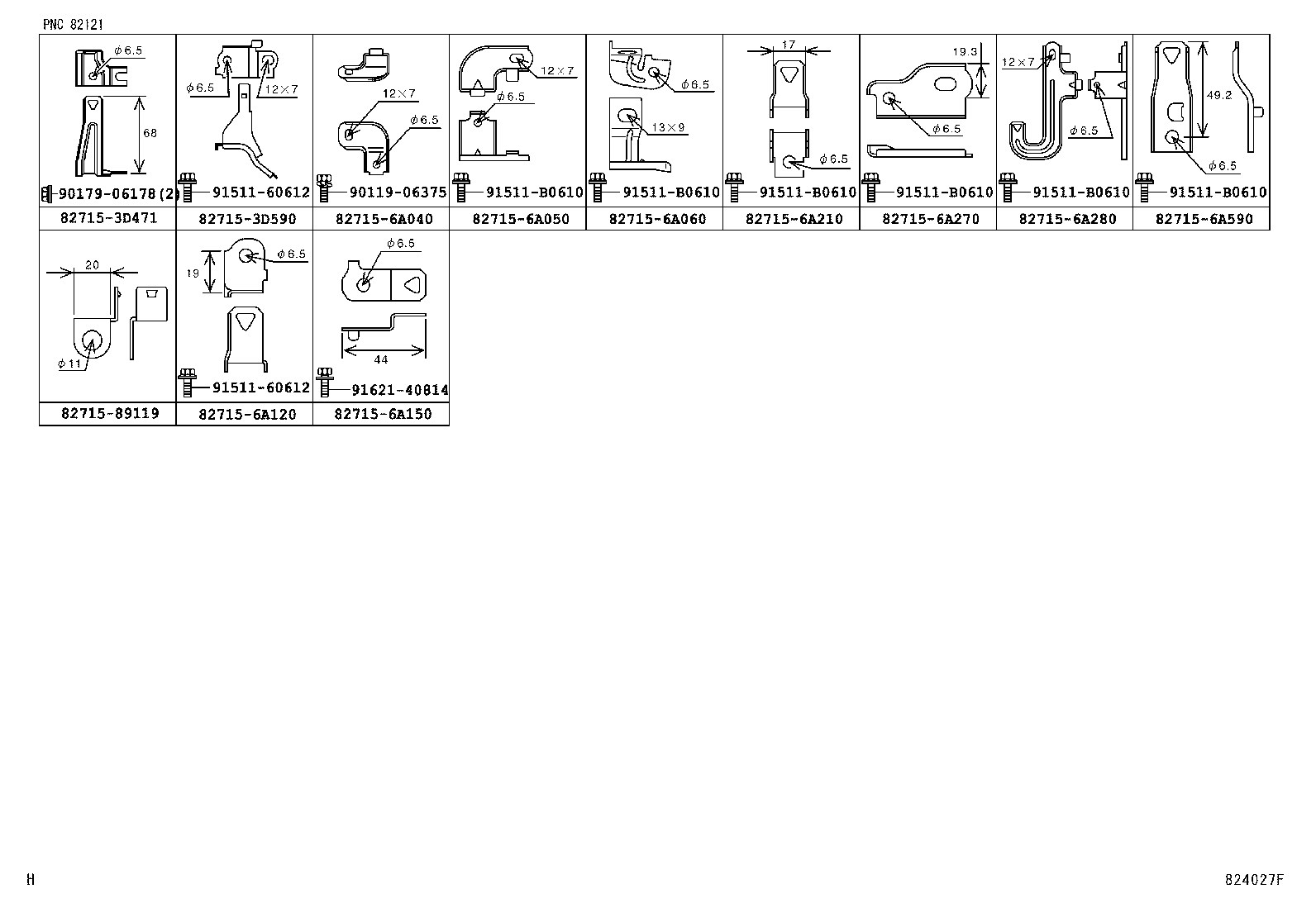

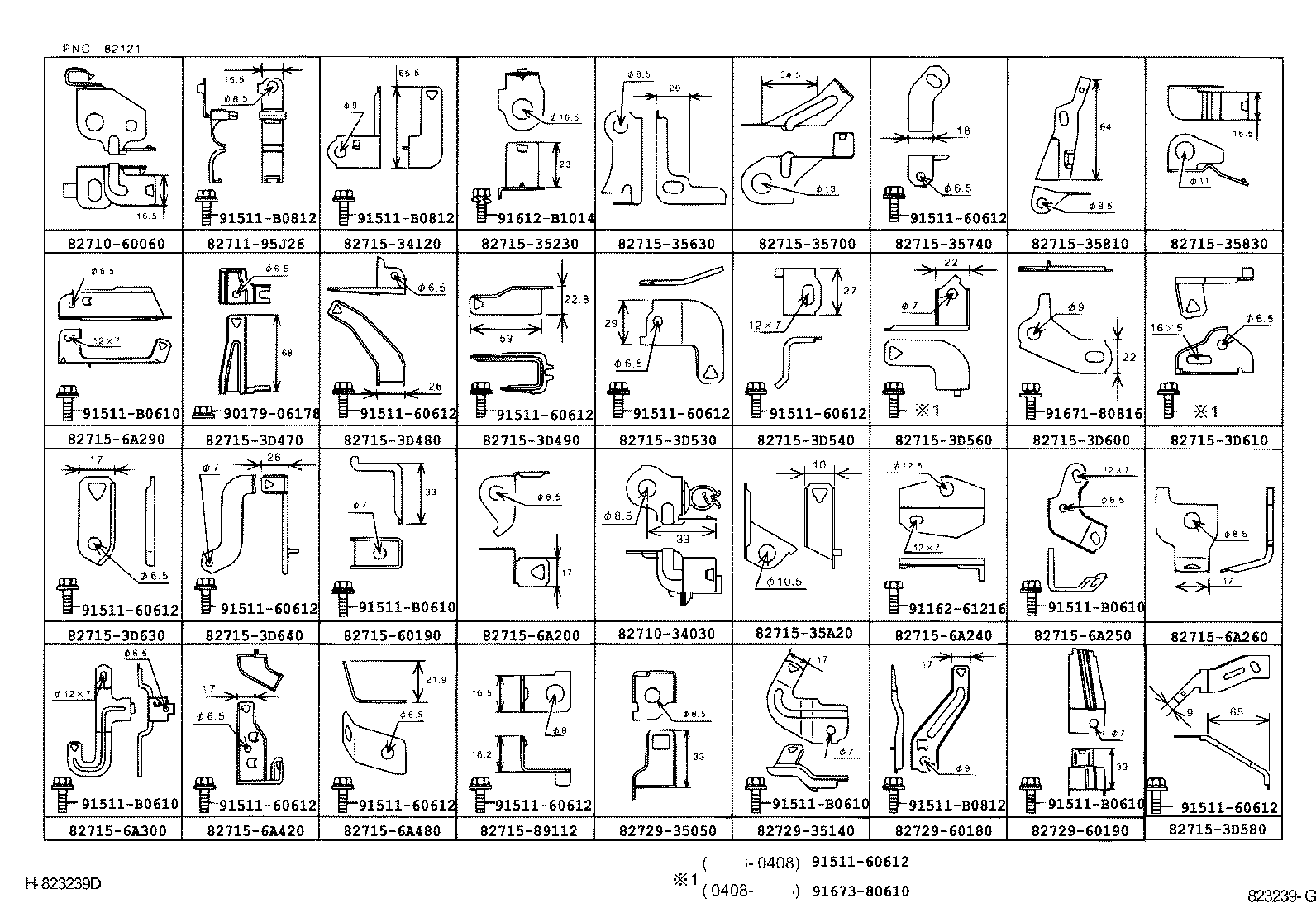

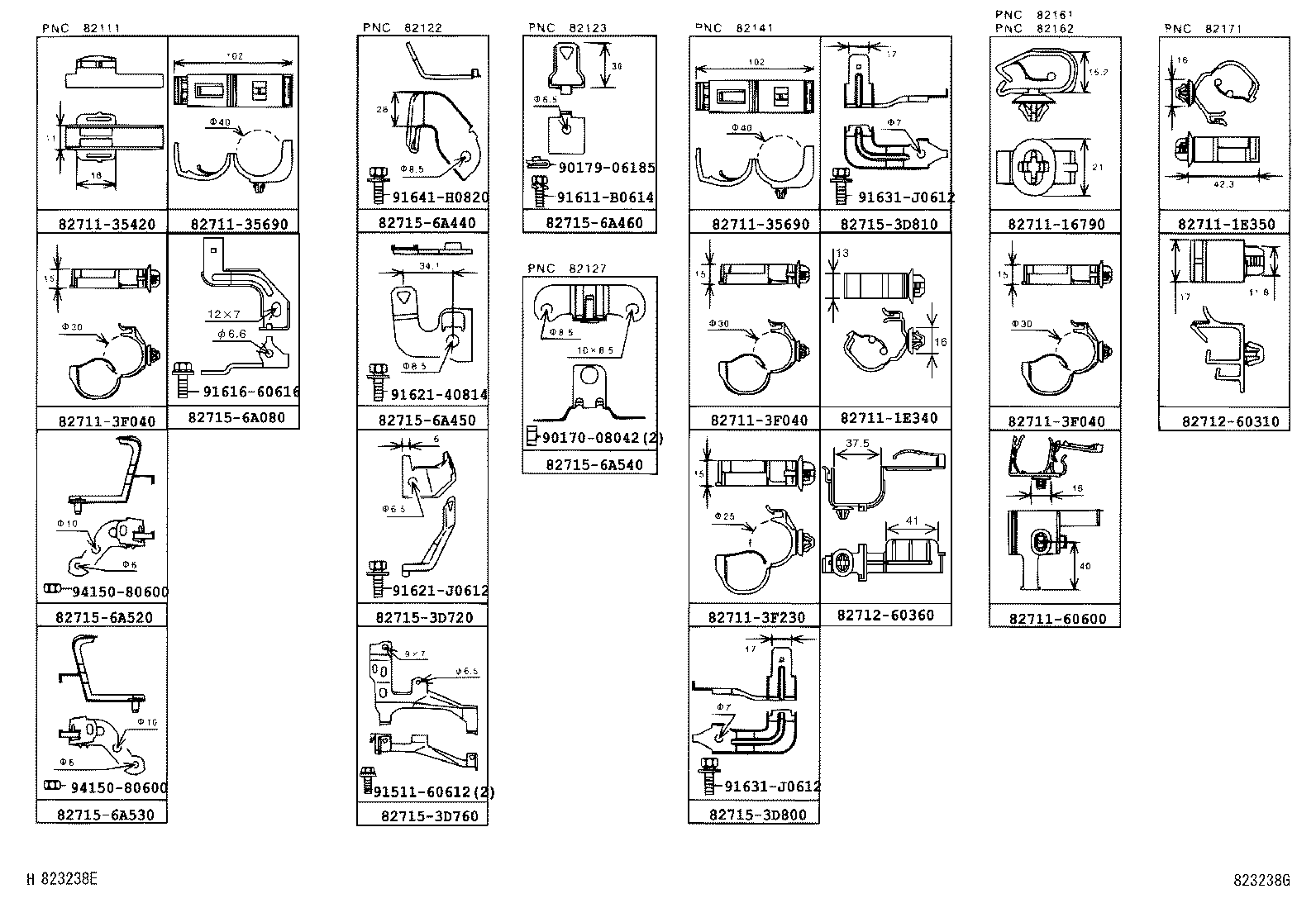

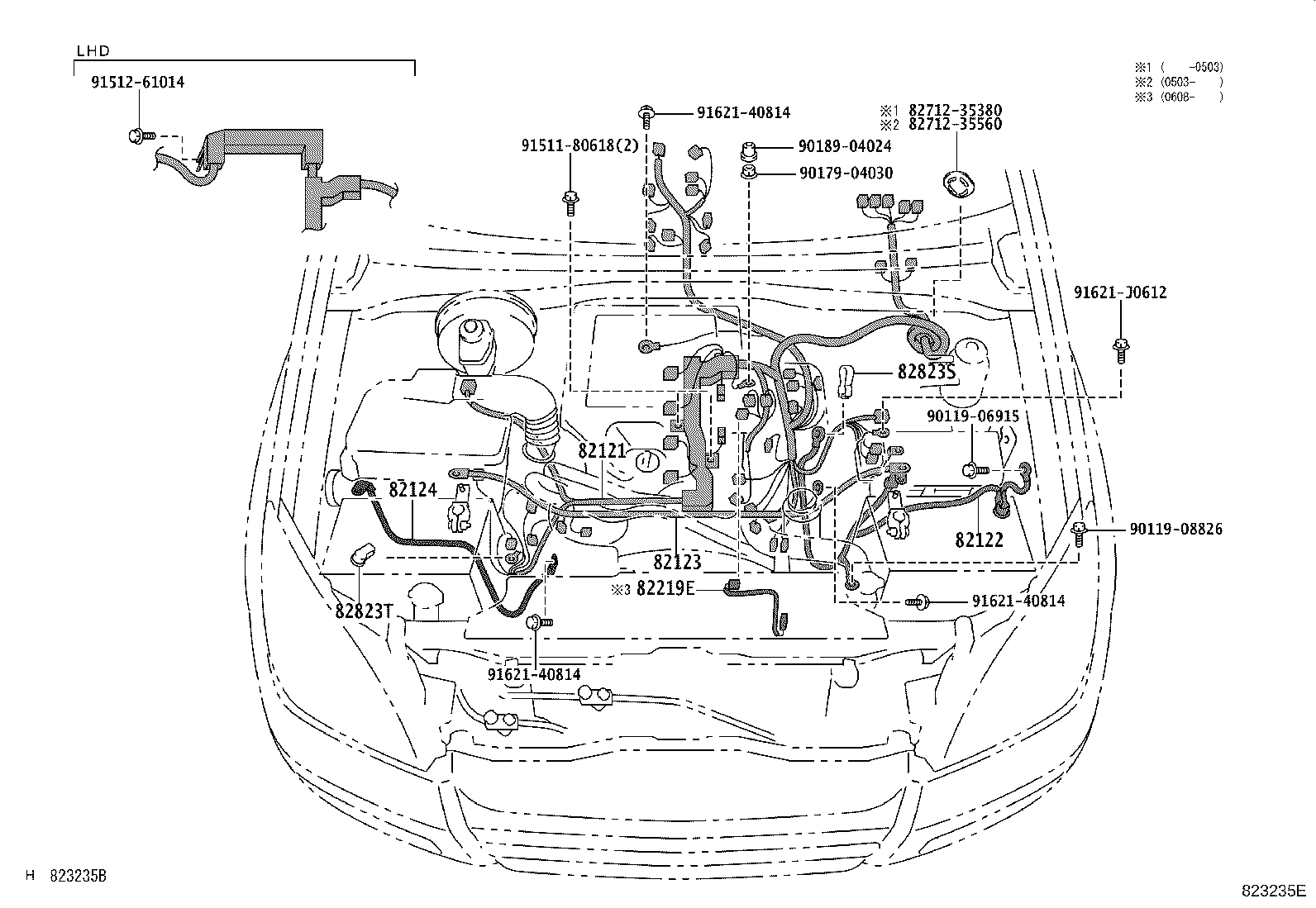

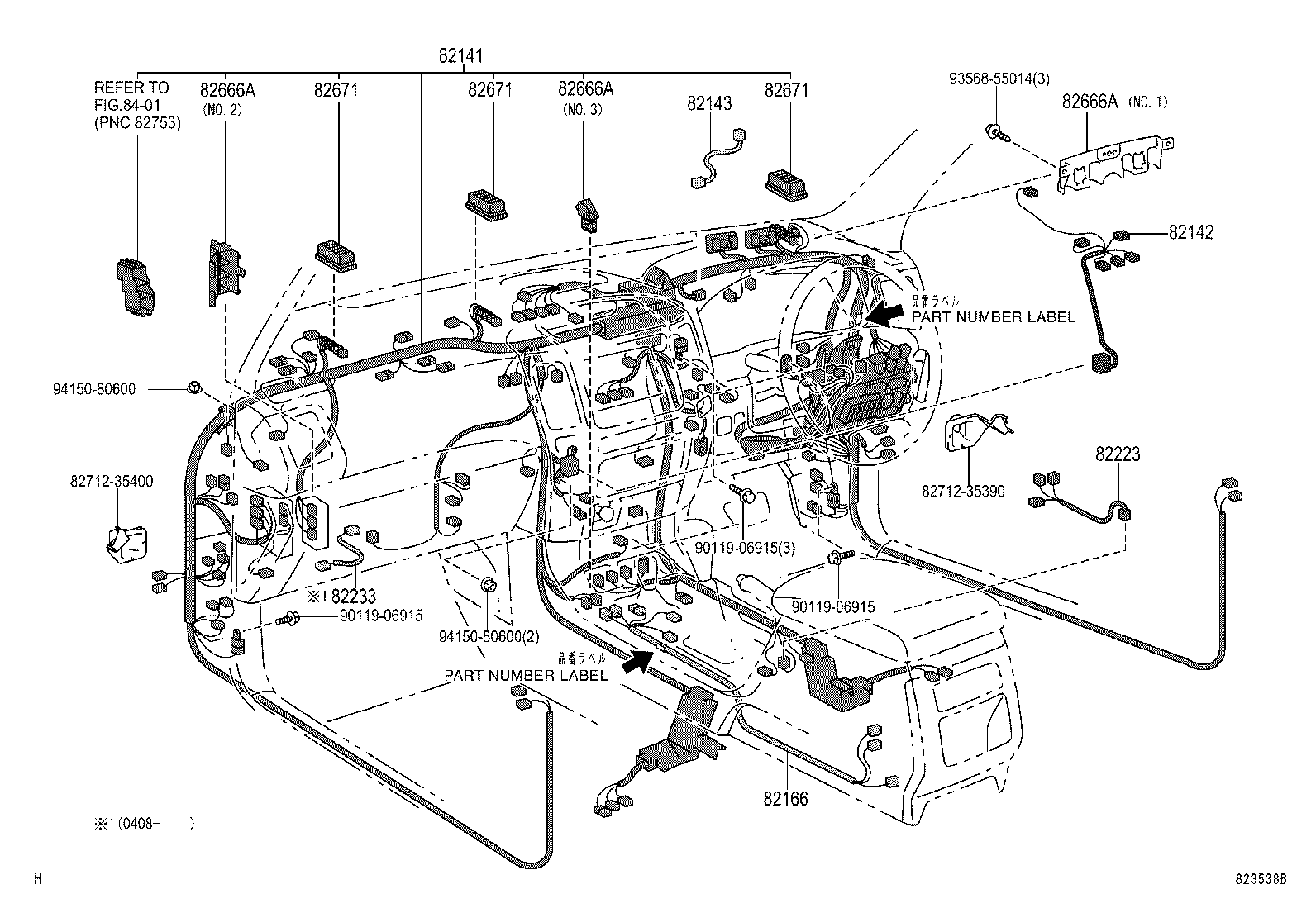

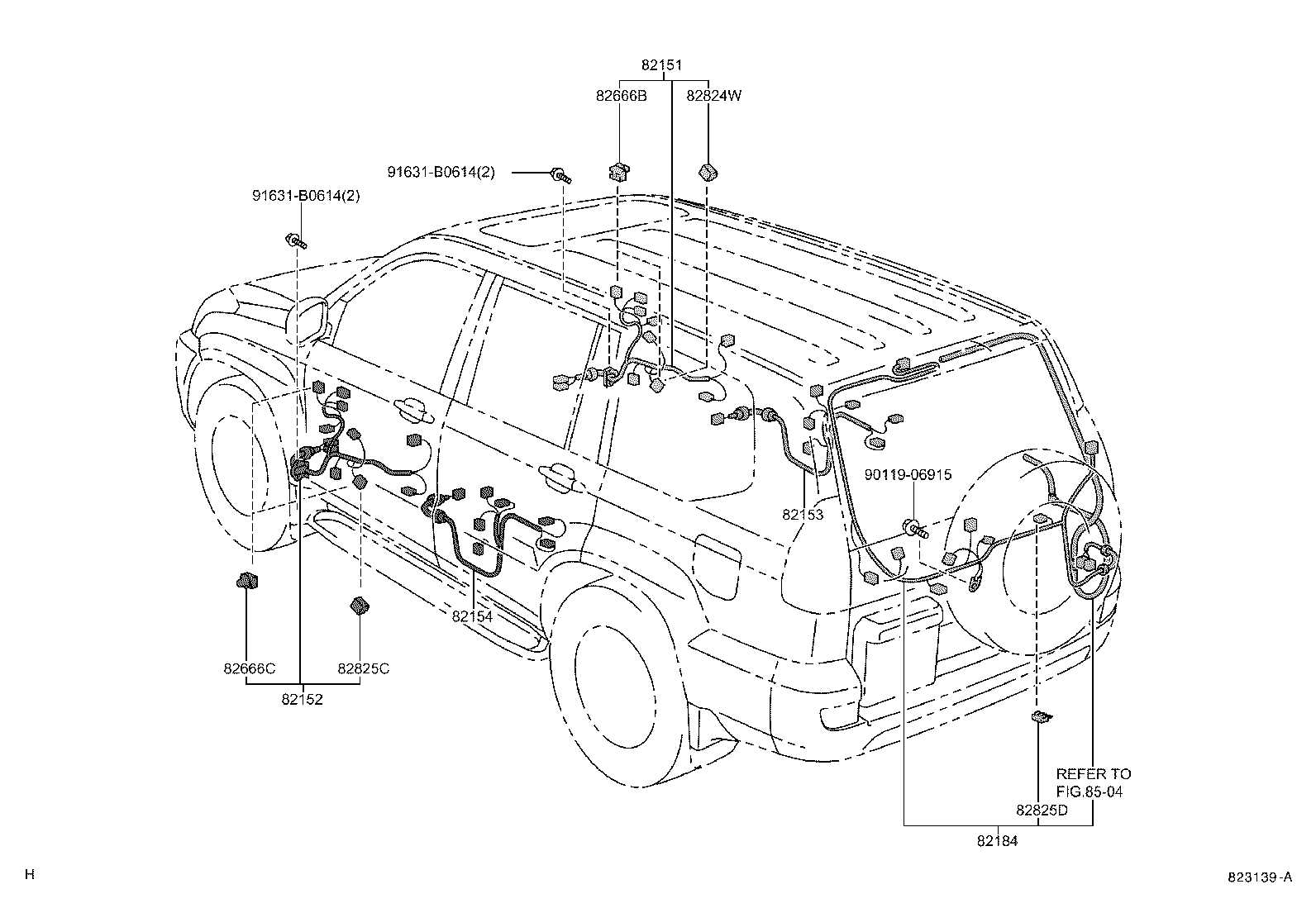

Figure 823234E 823234E 2002-09 → — Figure 823235E 823235E 2002-09 → — Figure 823399G 823399G 2003-01 → — Figure 823538B 823538B 2002-09 → — Figure 823236C 823236C 2002-09 → — Figure 823139A 823139A 2002-09 → — Figure 823237F 823237F 2002-09 → — Figure 823270D 823270D 2002-09 → — Figure 824669 824669 2002-09 → — Figure 823238G 823238G 2002-09 → — Figure 823239G 823239G 2002-09 → — Figure 824027F 824027F 2002-09 → — Figure 823400B 823400B 2003-01 → — Figure 823359B 823359B 2002-09 → —

Part groups

PNCDescription
82046A Wire Sub-assy, Body Ground, NO.1
82111 Wire, Engine Room Main

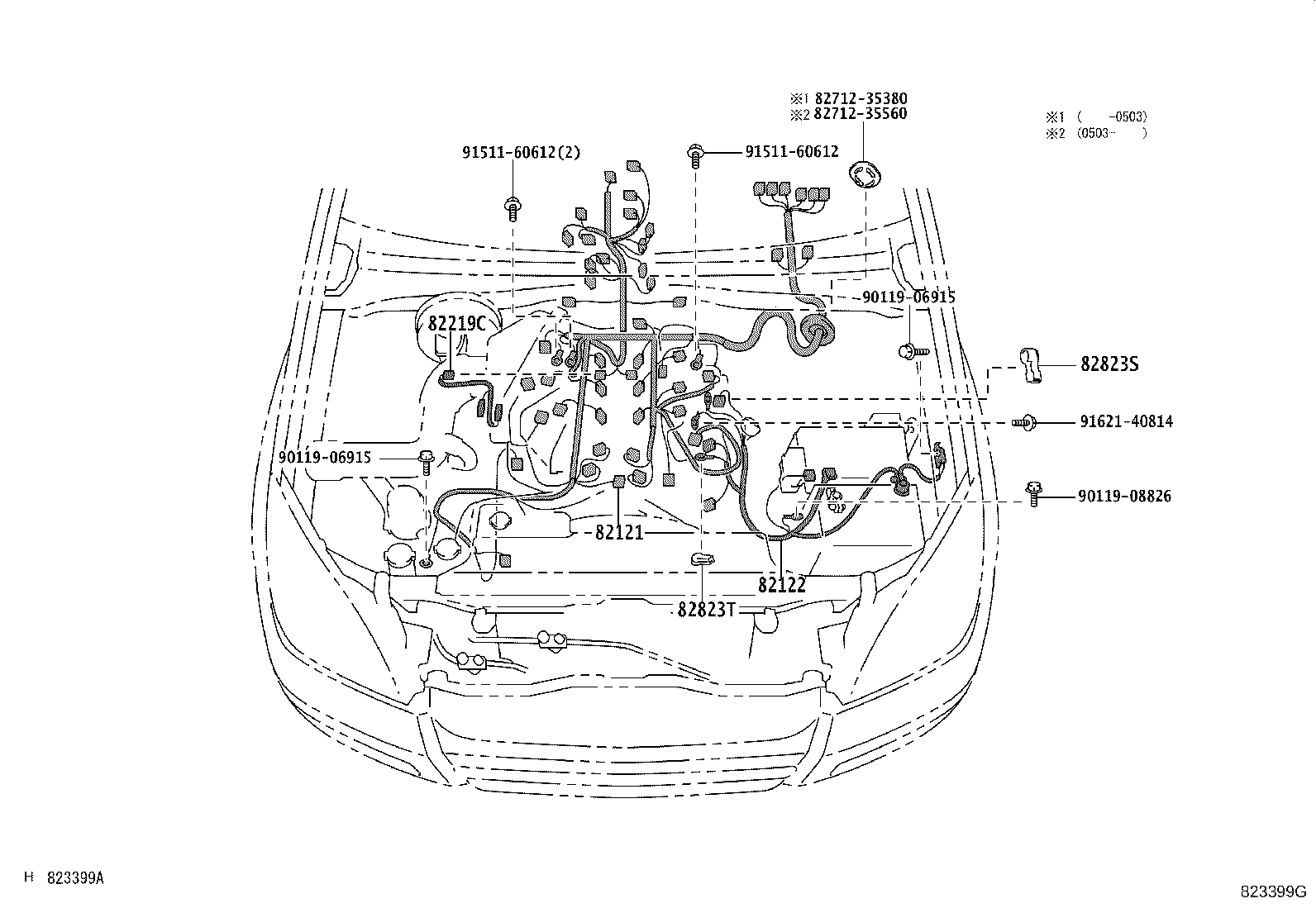

82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82127 Wire, Differential

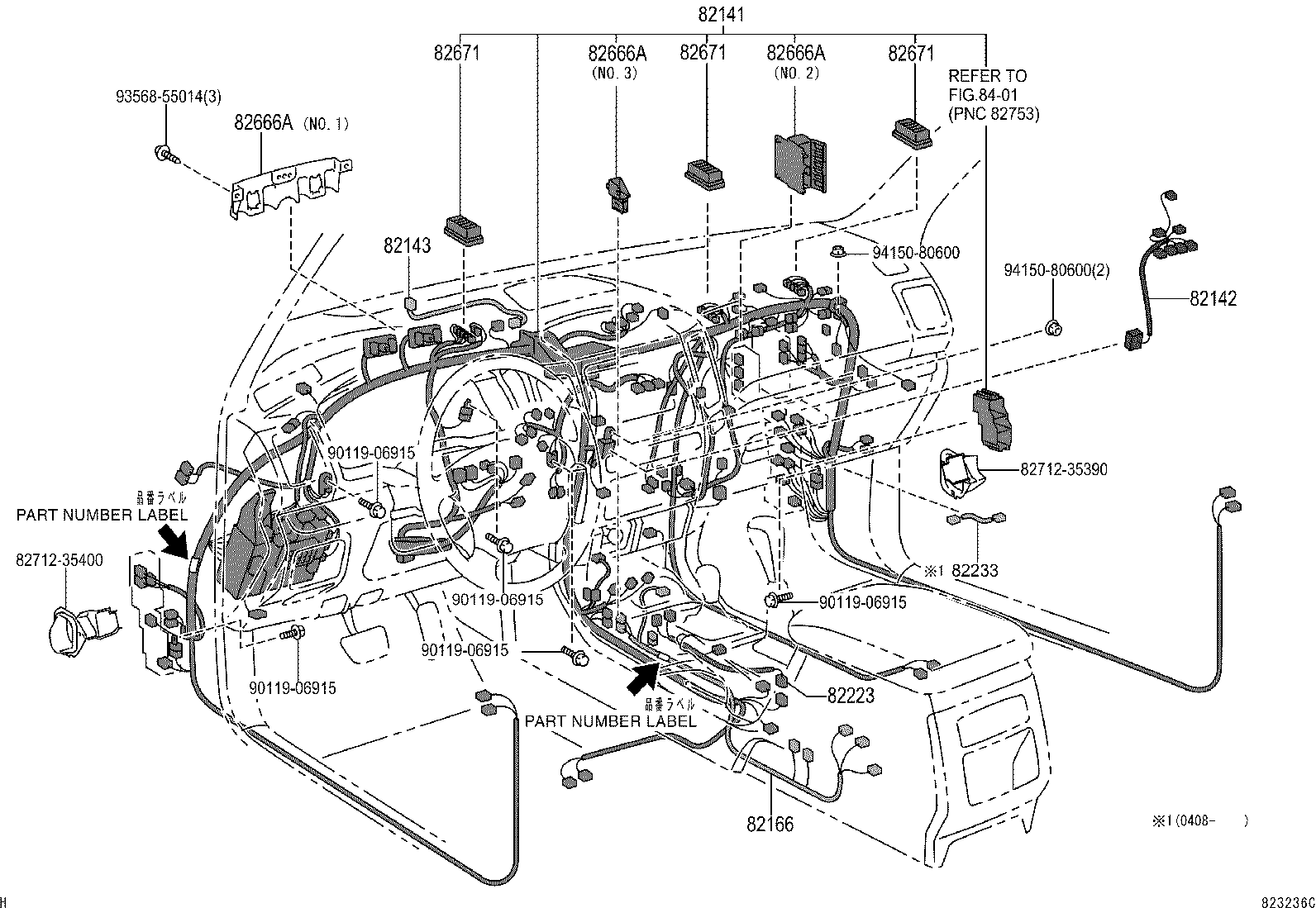

82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2

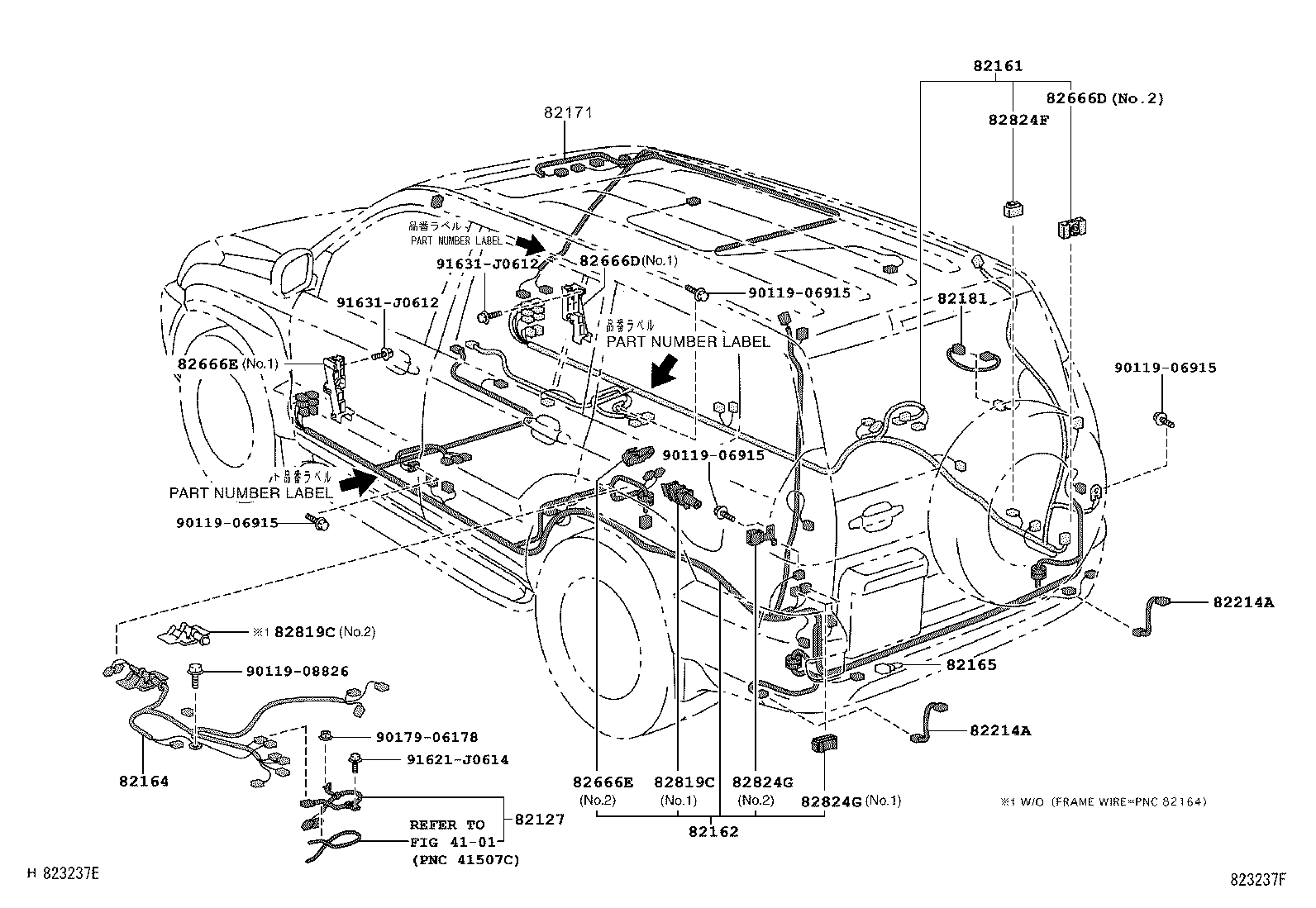

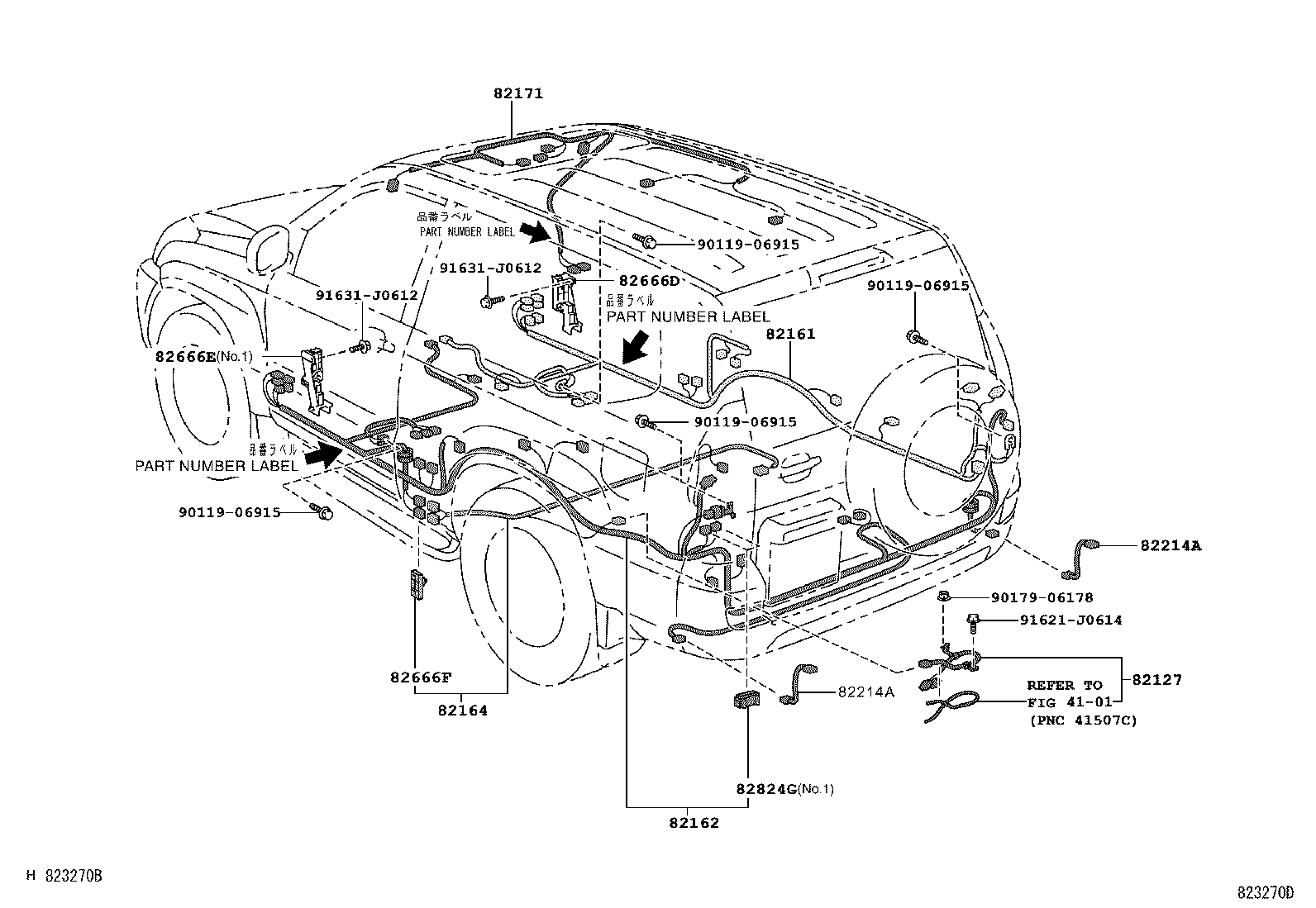

82161 Wire, Floor
82162 Wire, Floor, NO.2
82164 Wire, Frame
82165 Wire, Frame, NO.2
82166 Wire, Console Box

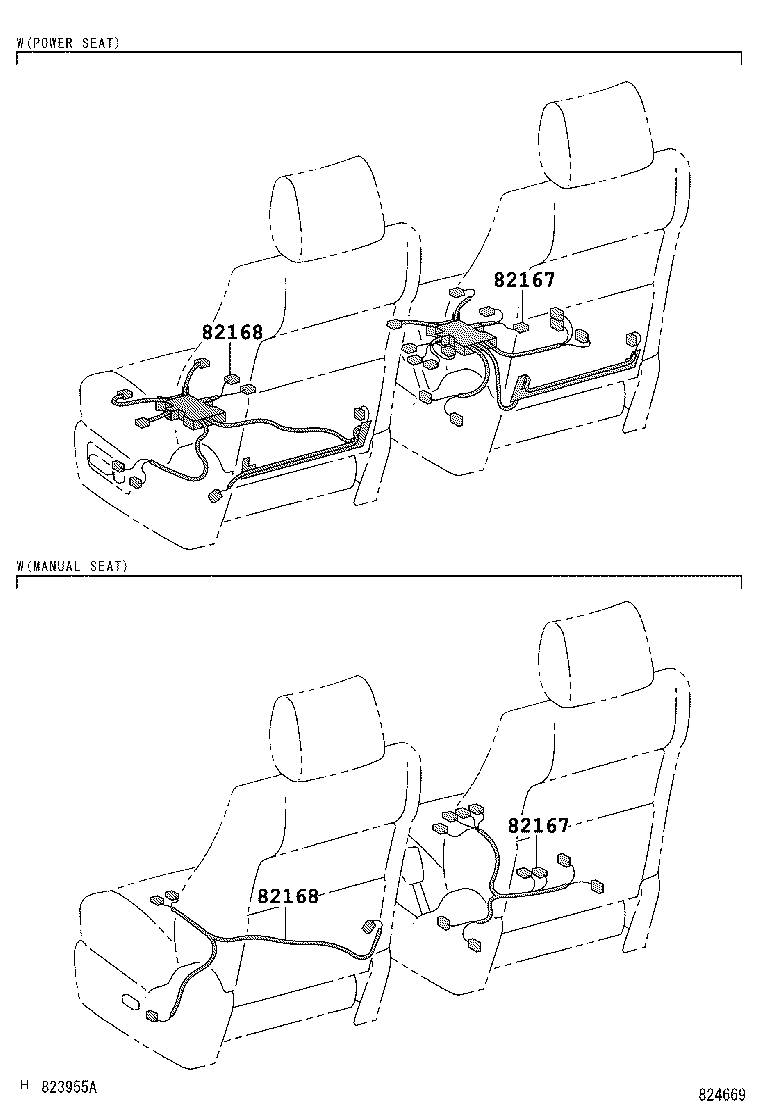

82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82184 Wire, Back Door, NO.1
82214A Wire, Lamp
82219A Wire, Sensor
82219C Wire, Sensor
82219E Wire, Sensor
82223 Wire, Switch
82233 Wire, Computer
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82671 Block, Junction
82817 Protector, Wiring Harness, NO.1
82819C Grommet, Wiring Harness
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824F Connector, Wiring Harness
82824G Connector, Wiring Harness
82824W Connector, Wiring Harness
82825C Connector, Wiring Harness
82825D Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
