Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

7 part groups · 6 illustrations

Illustrations

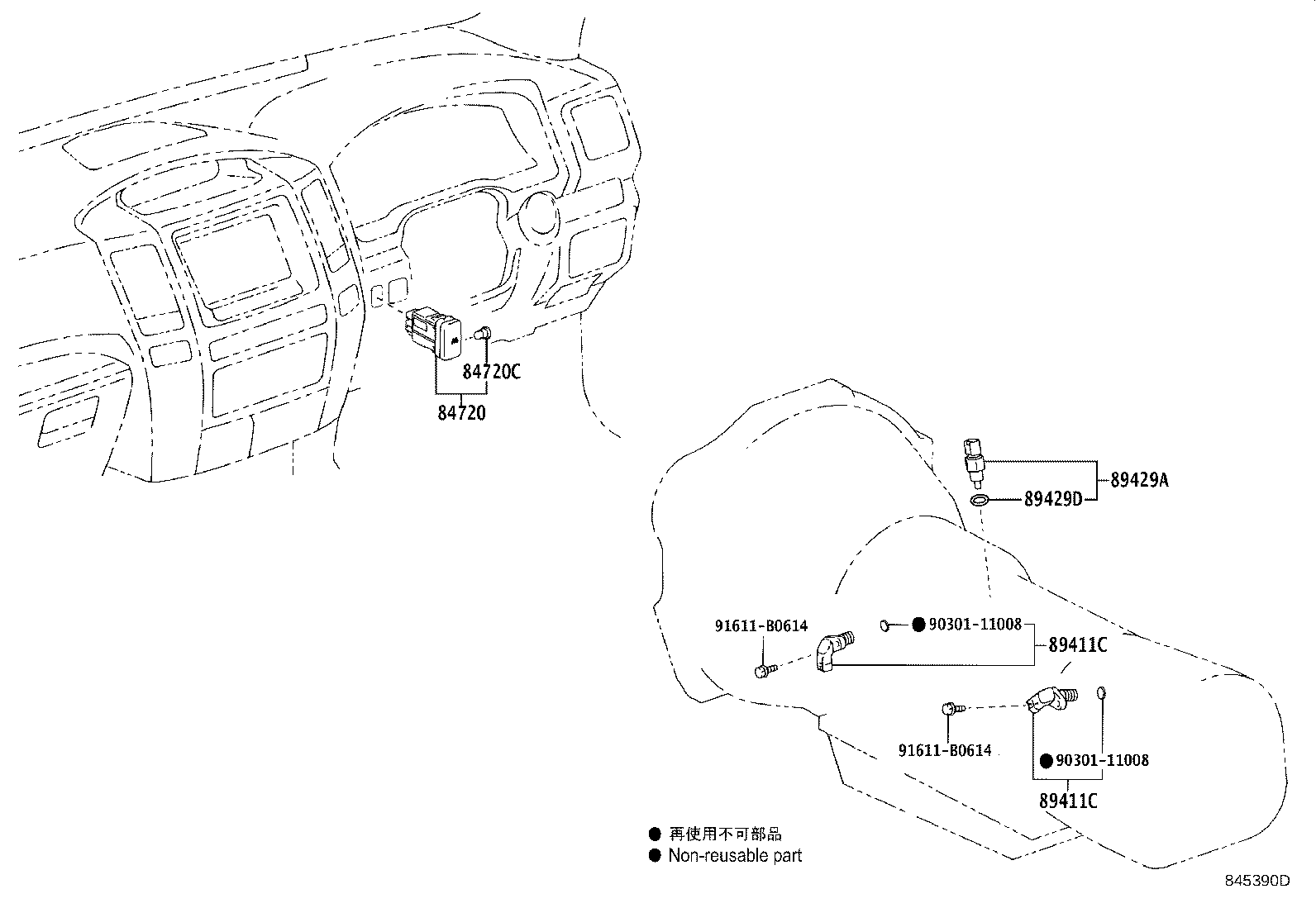

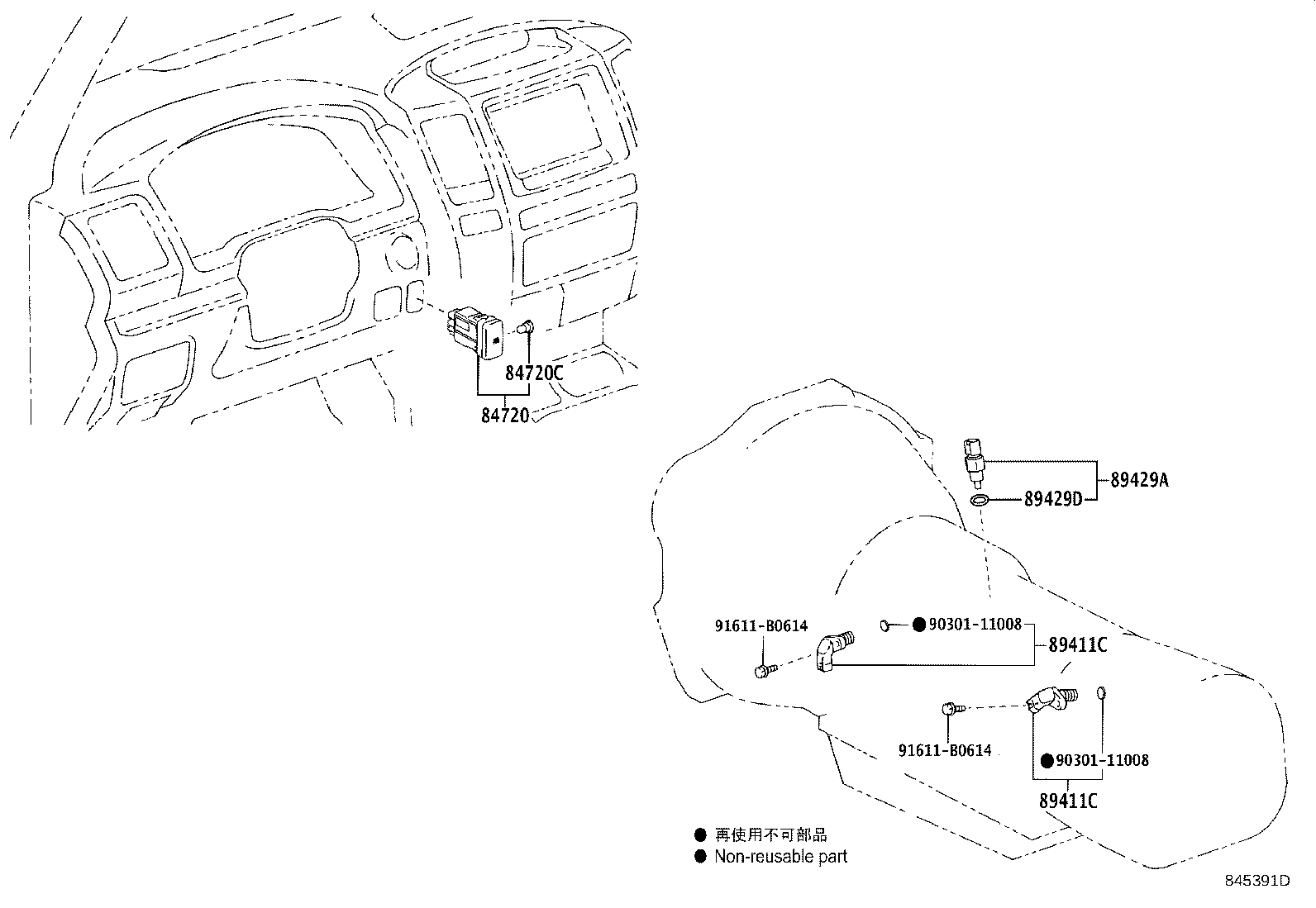

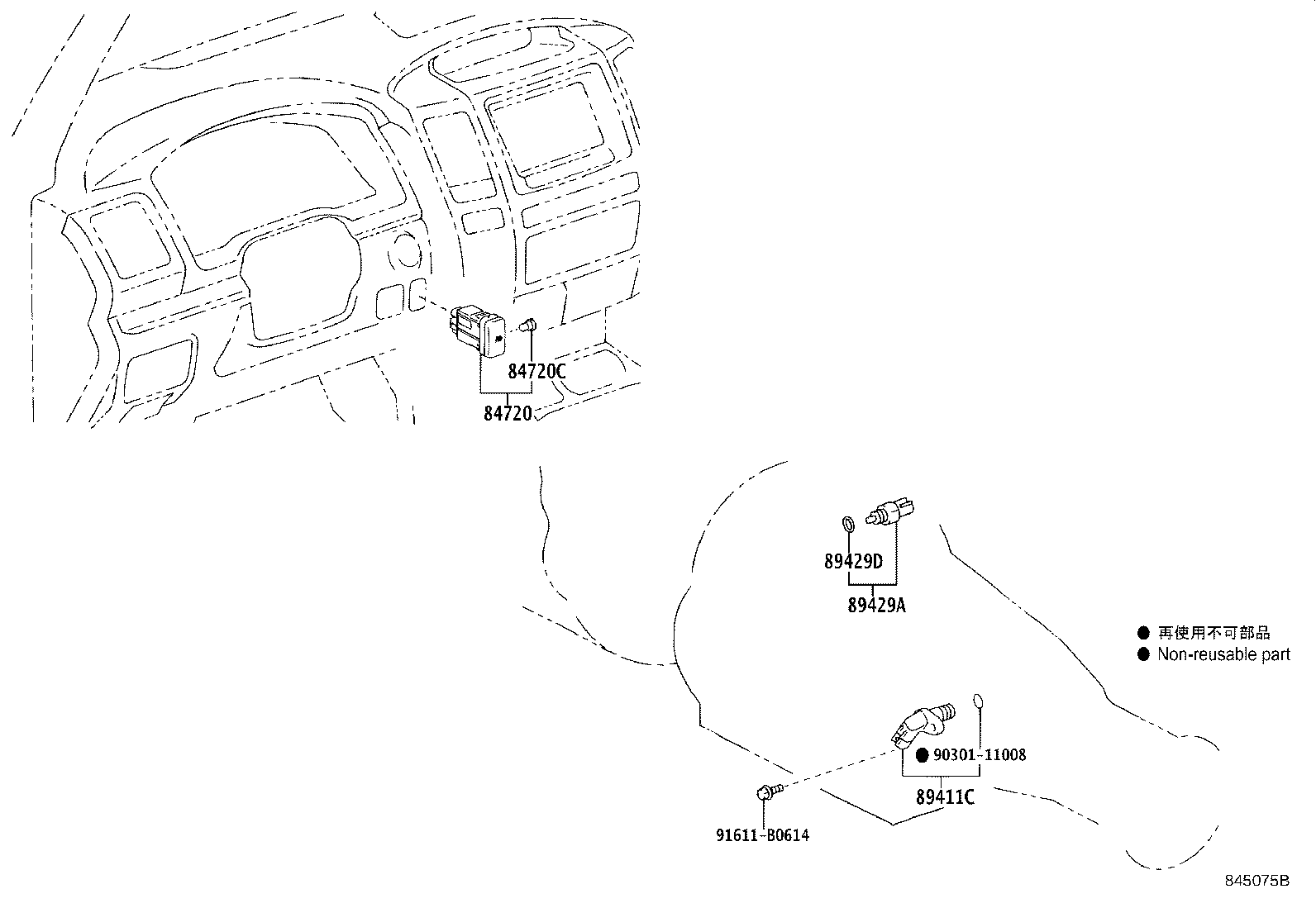

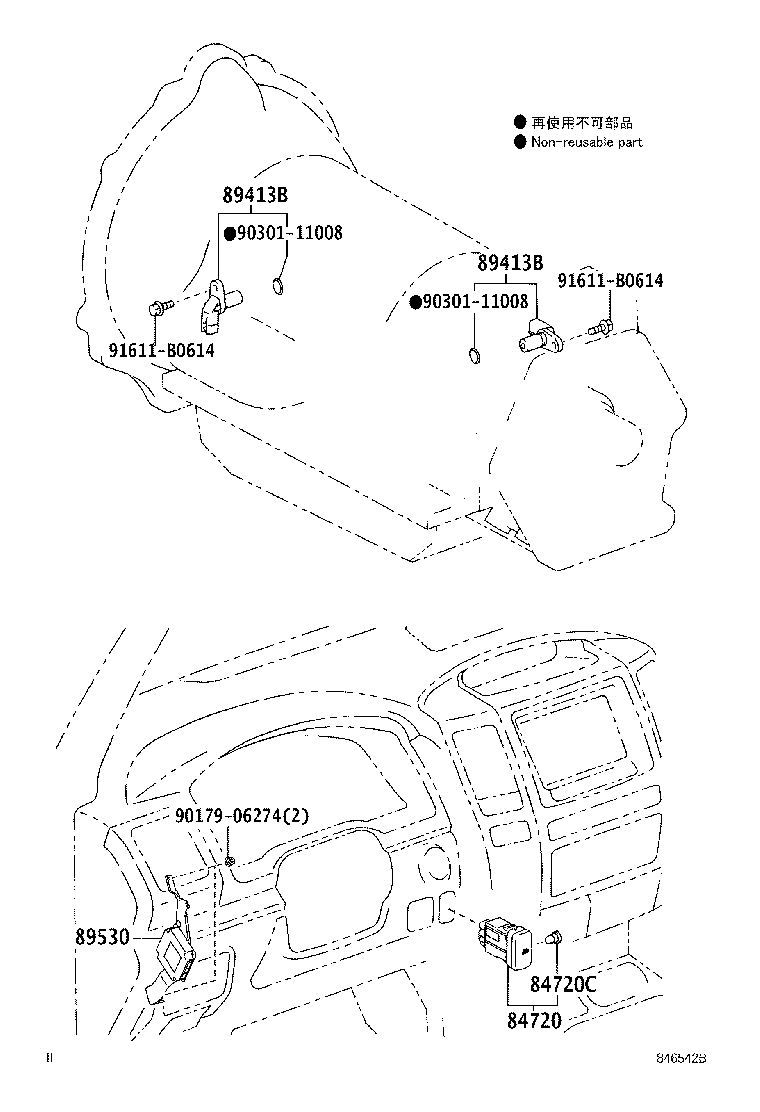

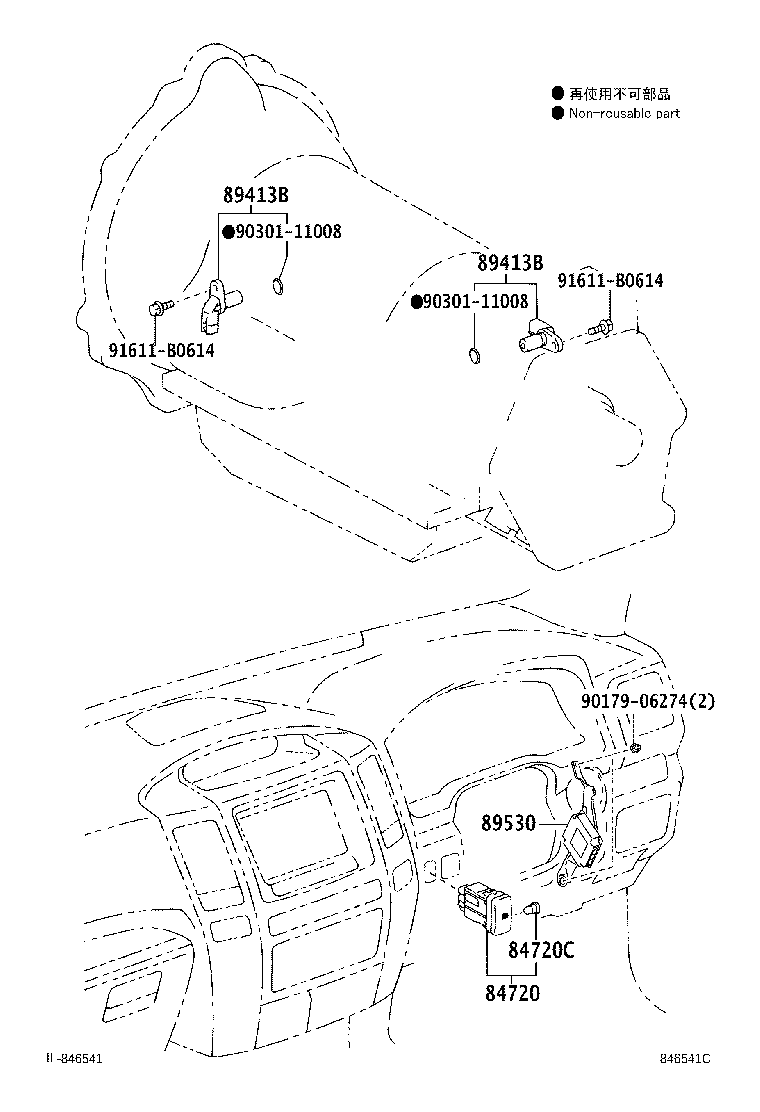

Figure 845074B 845074B 2002-09 → 2004-08 Figure 845075B 845075B 2002-09 → 2004-08 Figure 845390D 845390D 2003-01 → 2004-08 Figure 845391D 845391D 2003-01 → 2004-08 Figure 846541C 846541C 2004-08 → — Figure 846542B 846542B 2004-08 → —

Part groups

PNCDescription
84720 Switch Assy, Pattern Select
84720C Bulb(FOR PATTERN SELECT SWITCH)
89411C Sensor, Speed
89413B Sensor, Transmission Revolution
89429A Sensor, Temperature
89429D Ring, O(FOR TEMPERATURE SENSOR)
89530 Computer Assy, Transmission Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
