Toyota Land Cruiser Prado
2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe
Supported model
Data version 2010-01
Abs & Vsc

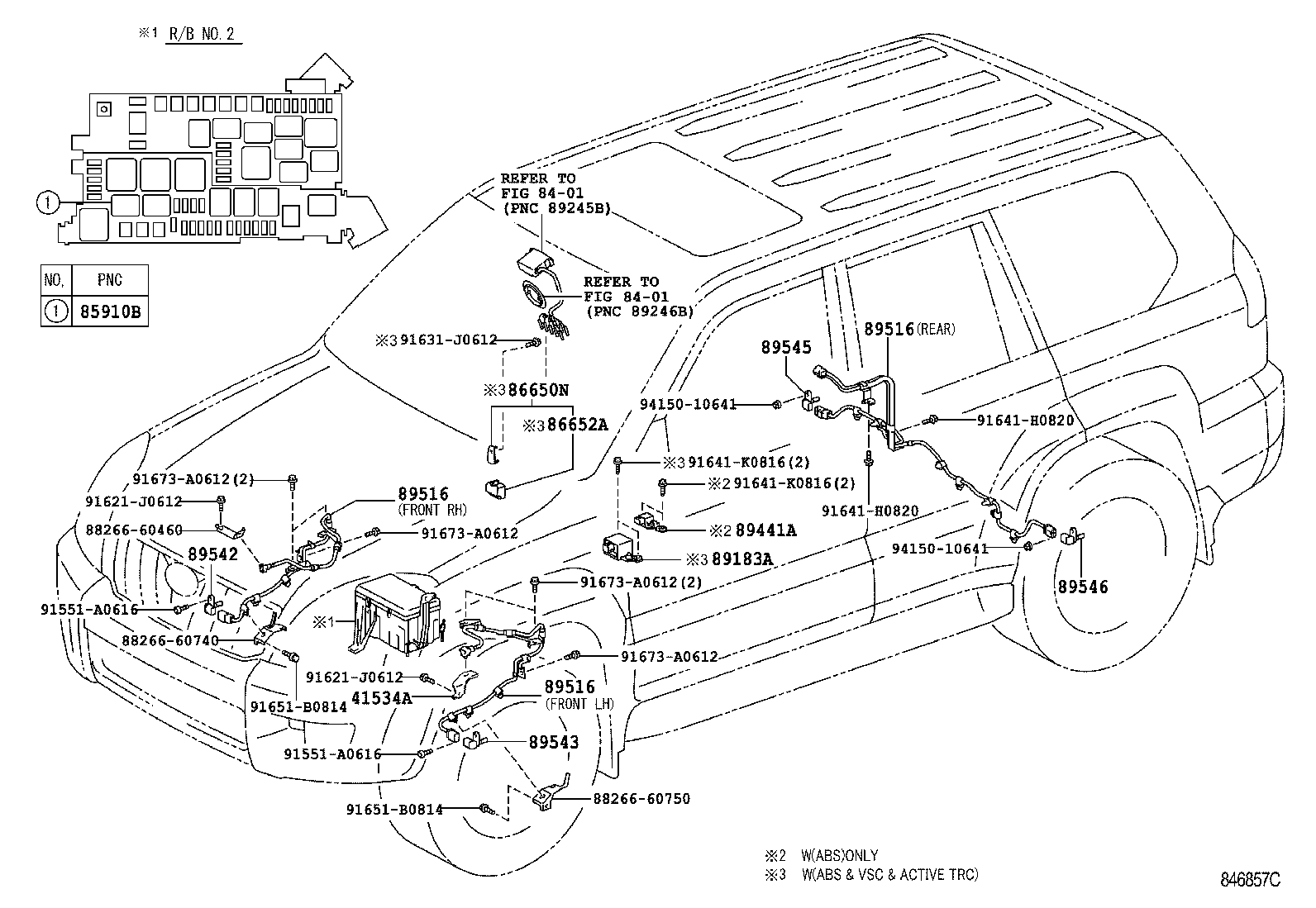

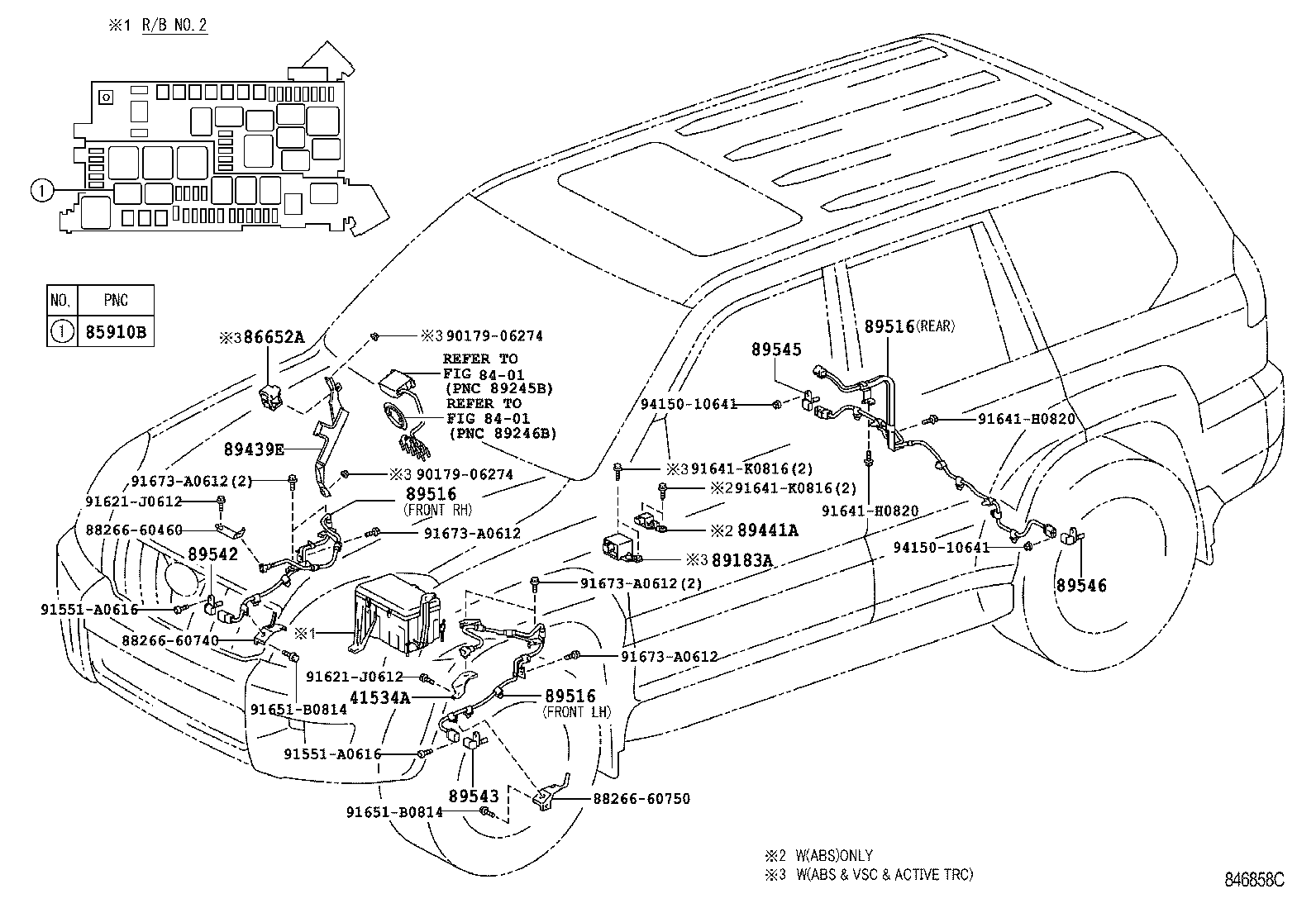

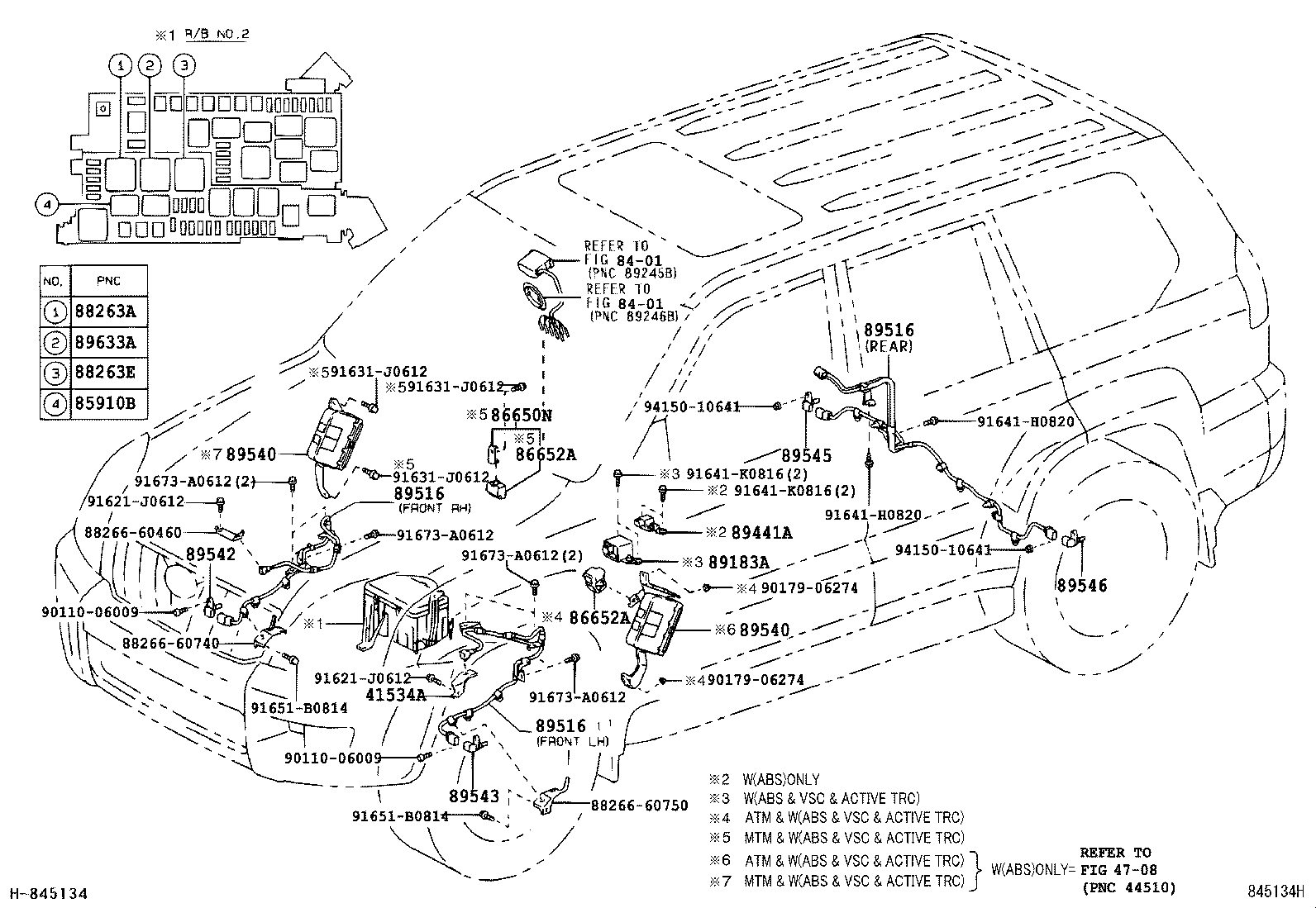

16 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 41534A | Bracket, Front Differential Breather |
| 85910B | Relay Assy, Circuit Opening (FOR ESC) |
| 86650N | Buzzer Assy |
| 86652A | Buzzer Assy, Skid Control |
| 88263A | Relay, Skid Control |
| 88263E | Relay, Skid Control NO.2 |
| 89183A | Sensor, Yawrate |
| 89439E | Bracket, Sensor, NO.2 |
| 89441A | Sensor, Deceleration |
| 89516 | Wire, Skid Control Sensor |
| 89540 | Computer Assy, Skid Control |
| 89542 | Sensor, Speed, Front RH |
| 89543 | Sensor, Speed, Front LH |
| 89545 | Sensor, Speed, Rear RH |
| 89546 | Sensor, Speed, Rear LH |
| 89633A | Relay, Traction Control OR Vsc |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
