Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

6 part groups · 2 illustrations

Illustrations

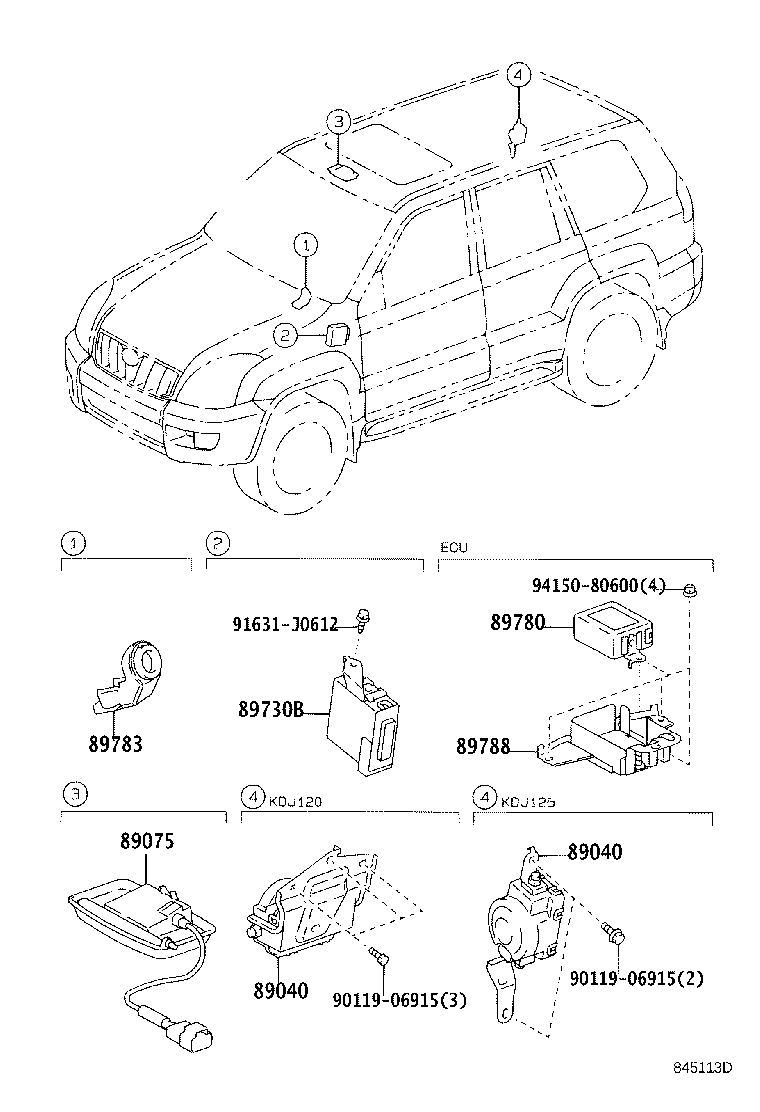

Figure 845112D 845112D 2002-09 → 2009-08 Figure 845113D 845113D 2002-09 → 2009-08

Part groups

PNCDescription
89040 Siren Assy, Theft Warning
89075 Sensor Sub-assy, Theft Warning
89730B Computer Assy, Theft Warning
89780 Computer Assy, Transponder Key
89783 Amplifier, Transponder Key
89788 Bracket, Transponder Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
