Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

11 part groups · 3 illustrations

Illustrations

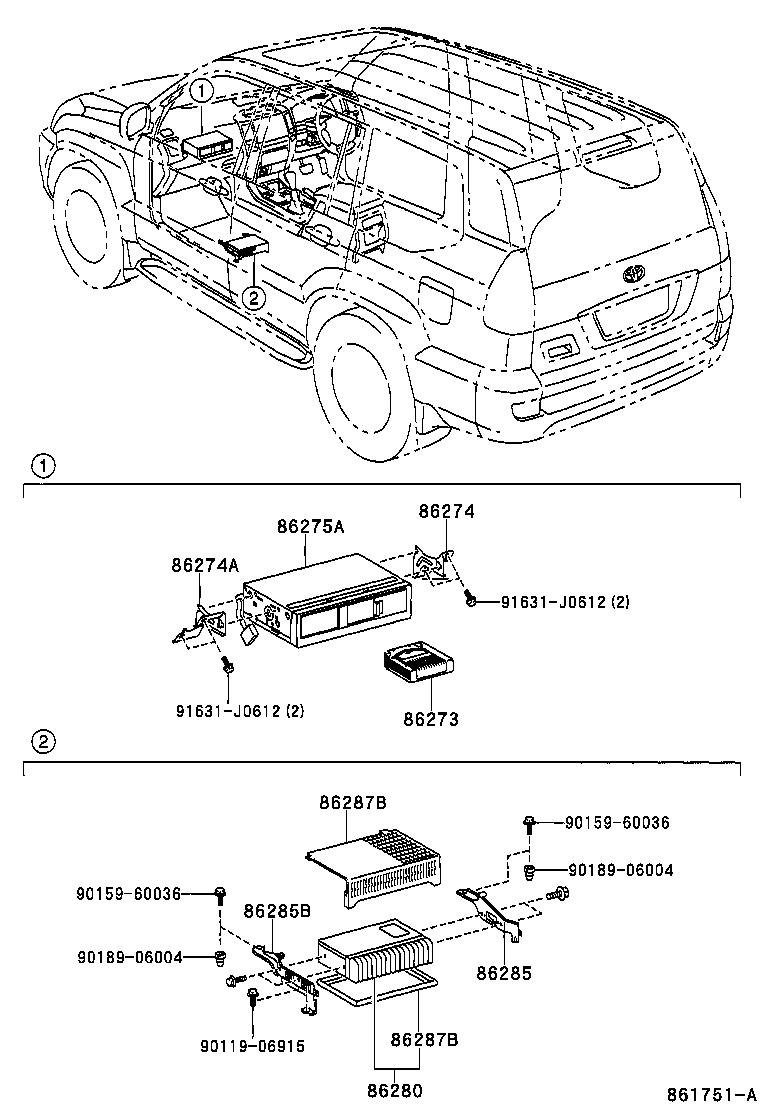

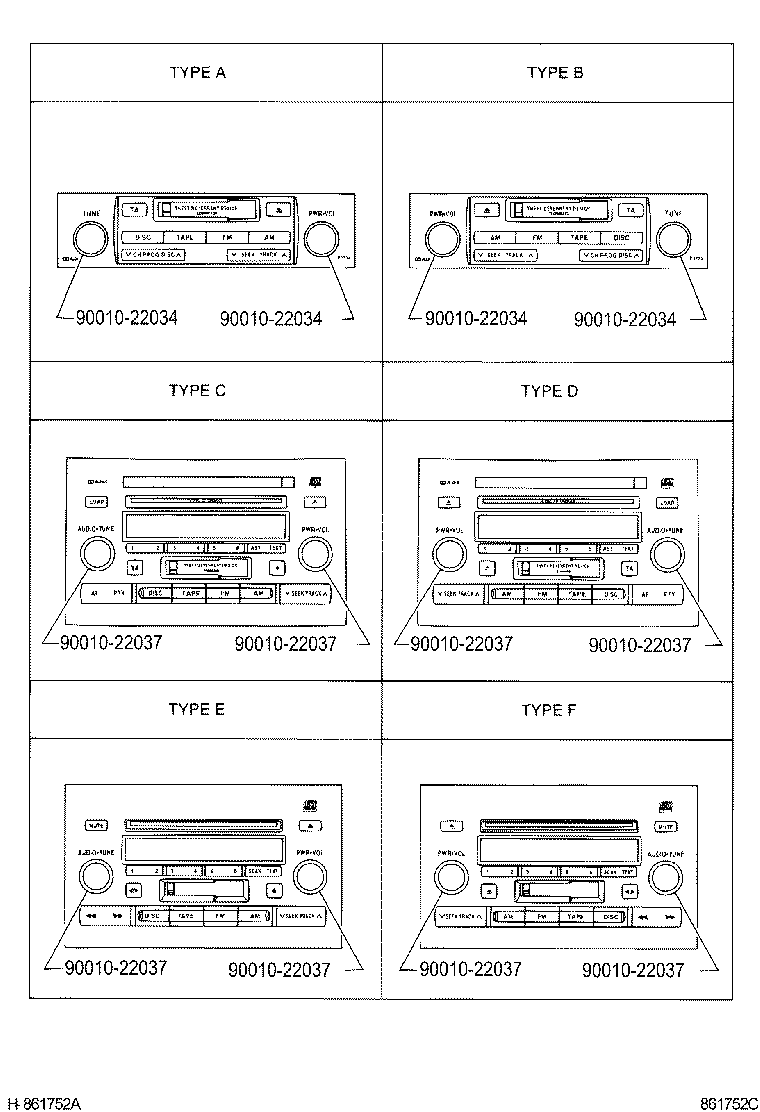

Figure 861750 861750 2002-09 → — Figure 861751A 861751A 2002-09 → — Figure 861752C 861752C 2002-09 → —

Part groups

PNCDescription
86120 Receiver Assy, Radio
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86273 Magazine, Disc Player
86274 Bracket, Disc Player
86274A Bracket, Disc Player
86275A Changer, Disc Player
86280 Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86285B Bracket, Amplifier, NO.1
86287B Cover, Amplifier
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
