Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

4 part groups · 6 illustrations

Illustrations

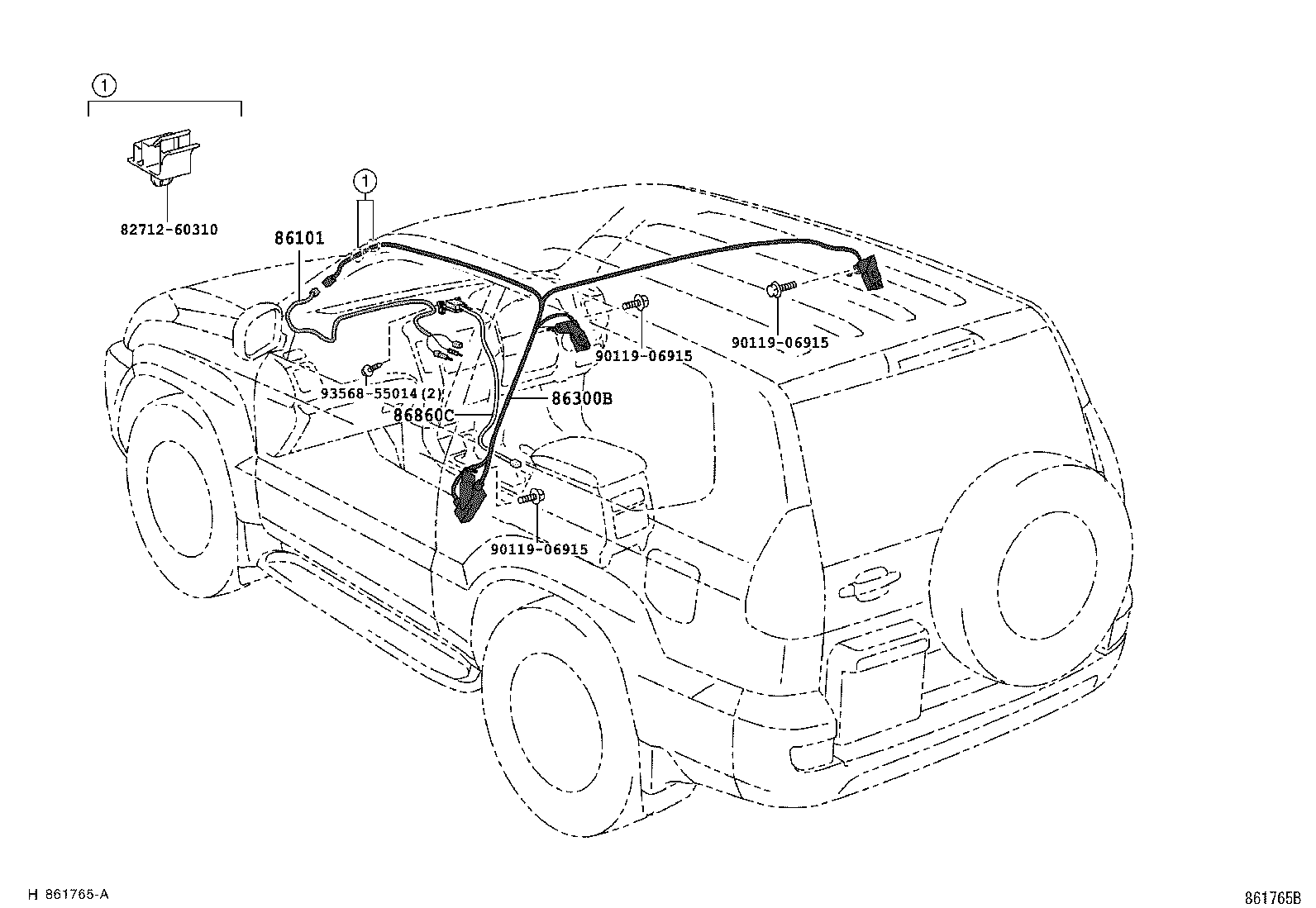

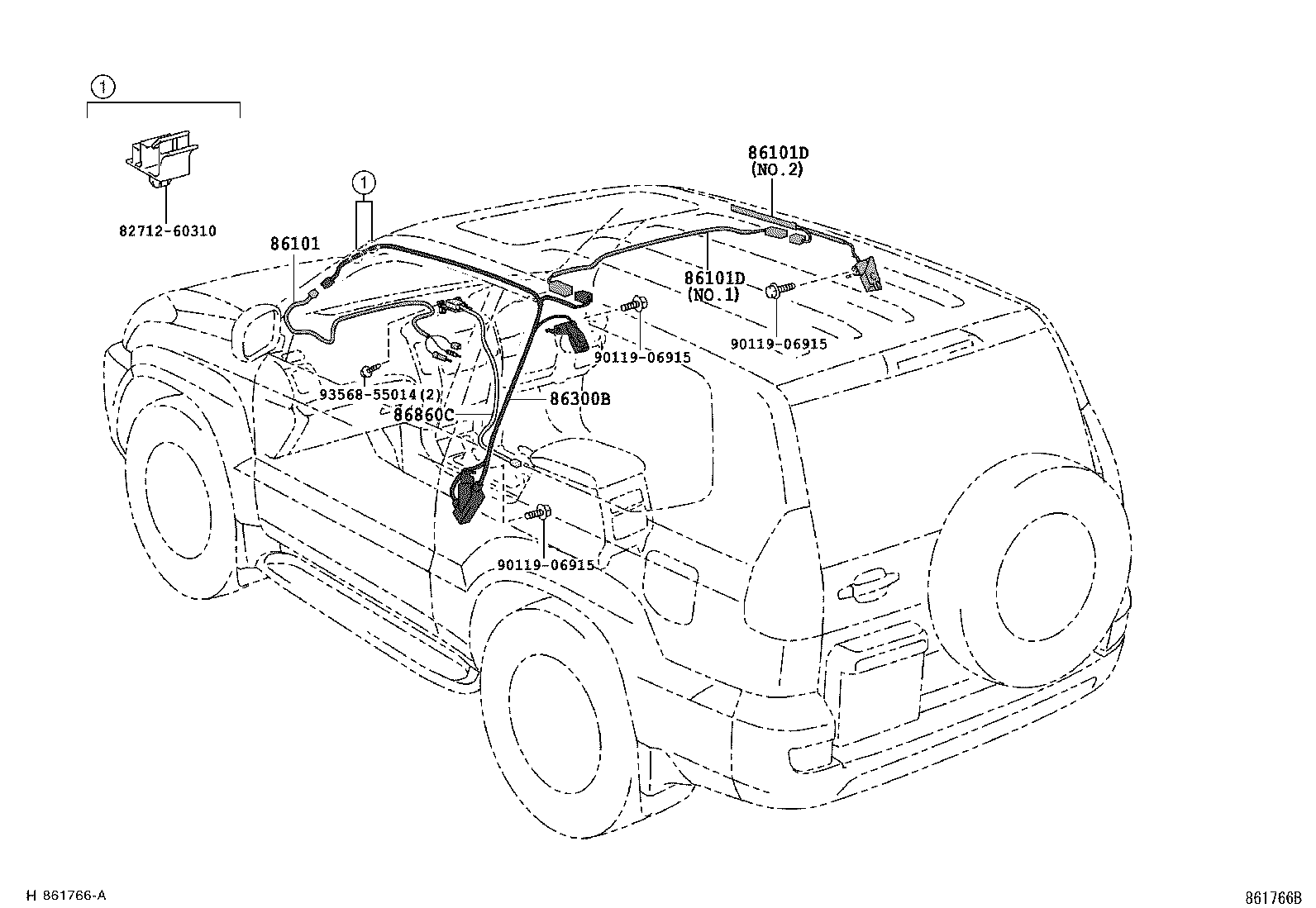

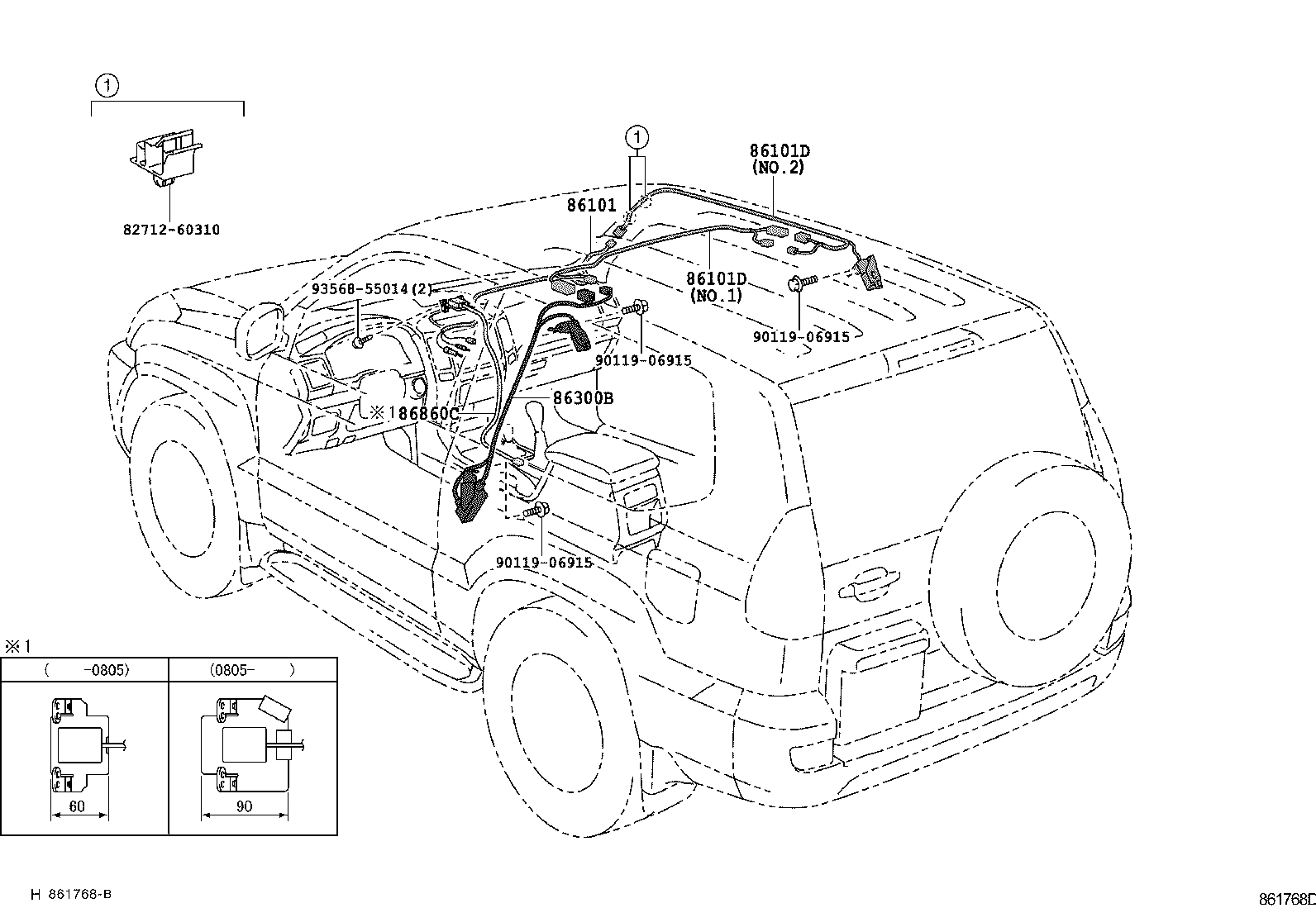

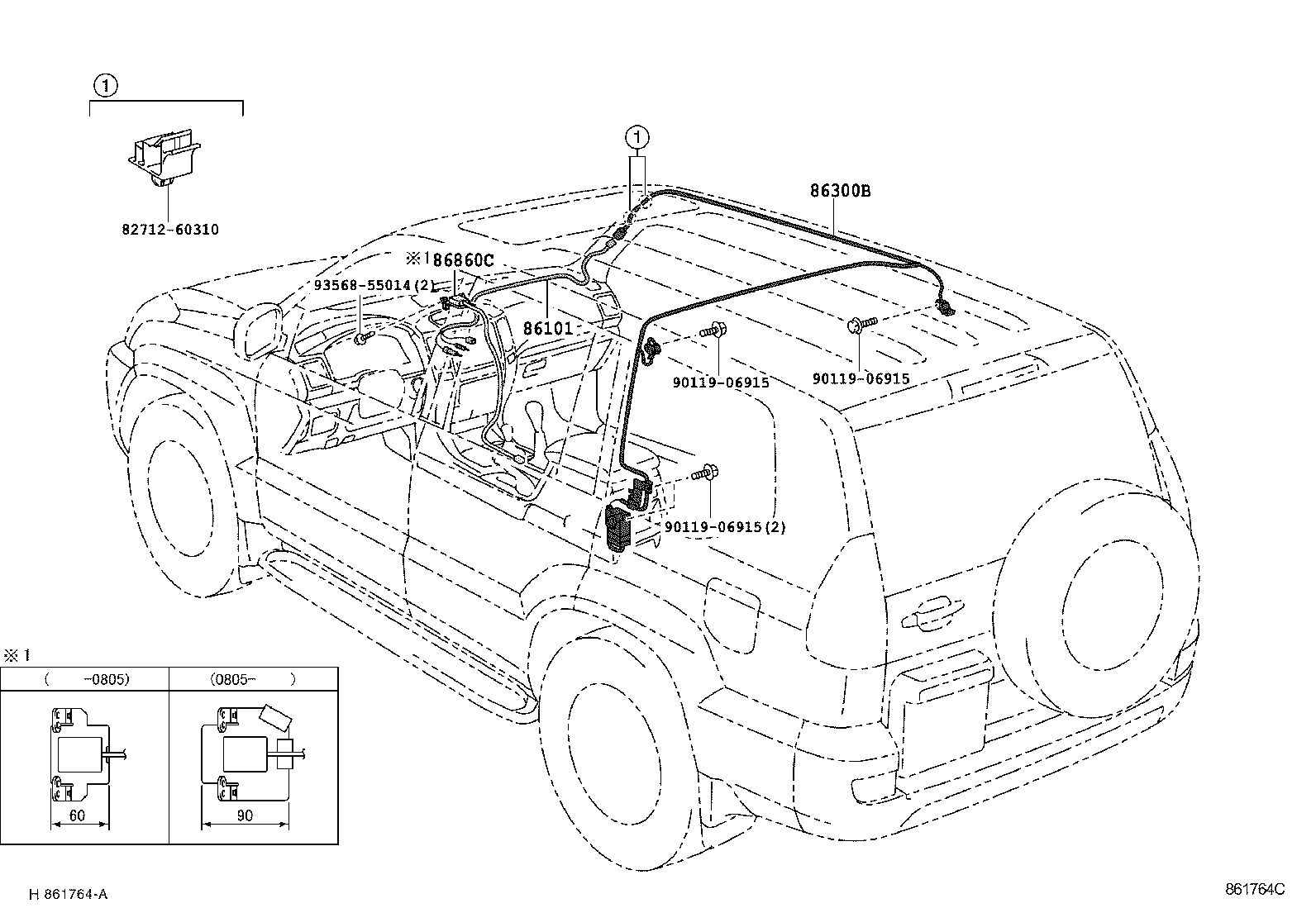

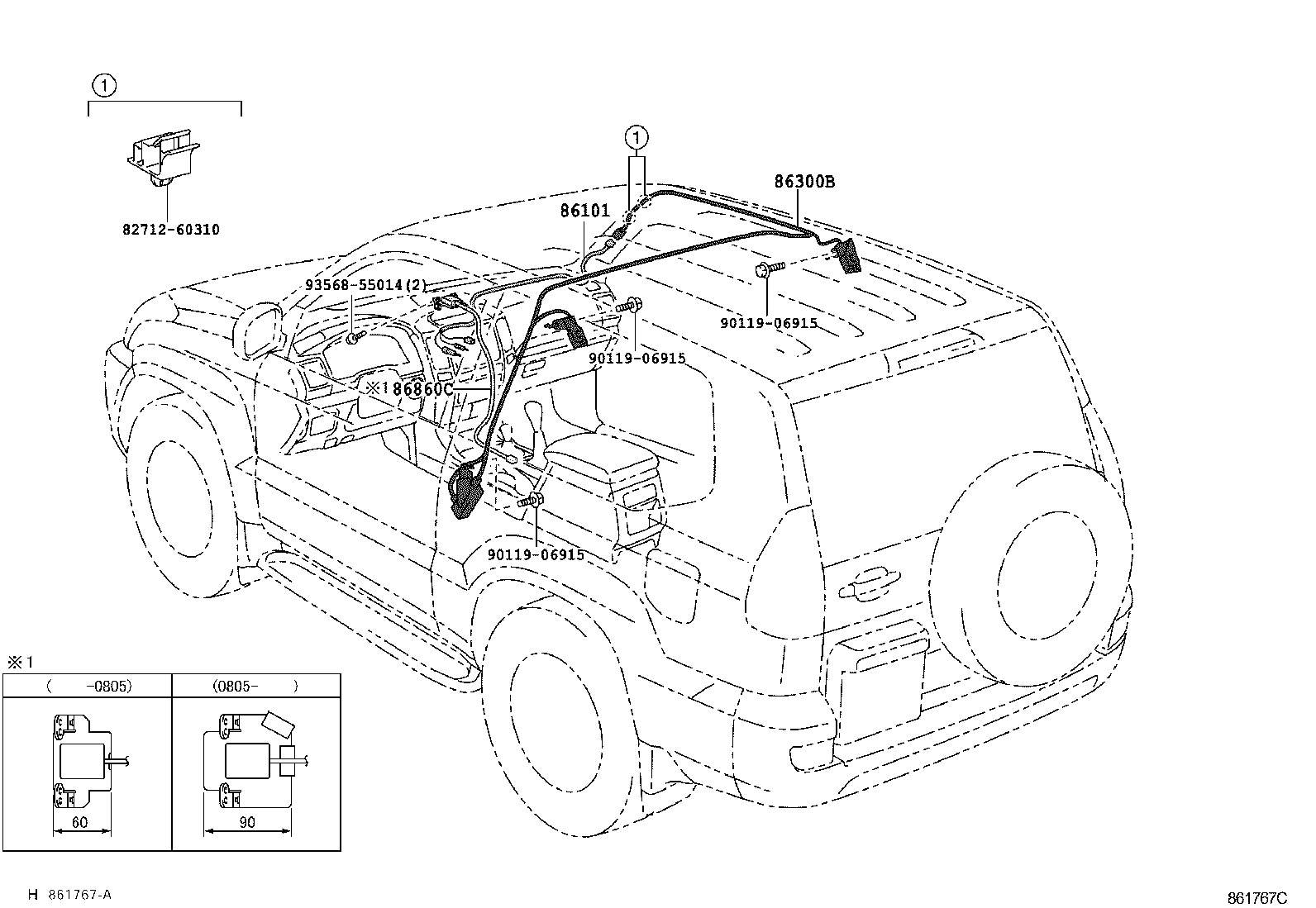

Figure 861763B 861763B 2002-09 → — Figure 861764C 861764C 2002-09 → — Figure 861765B 861765B 2002-09 → — Figure 861766B 861766B 2002-09 → — Figure 861767C 861767C 2002-09 → — Figure 861768D 861768D 2002-09 → —

Part groups

PNCDescription
86101 Cord Sub-assy, Antenna
86101D Cord Sub-assy, Antenna, NO.3
86300B Antenna Assy, Amplifier, NO.1
86860C Antenna Assy, Navigation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
