Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

35 part groups · 8 illustrations

Illustrations

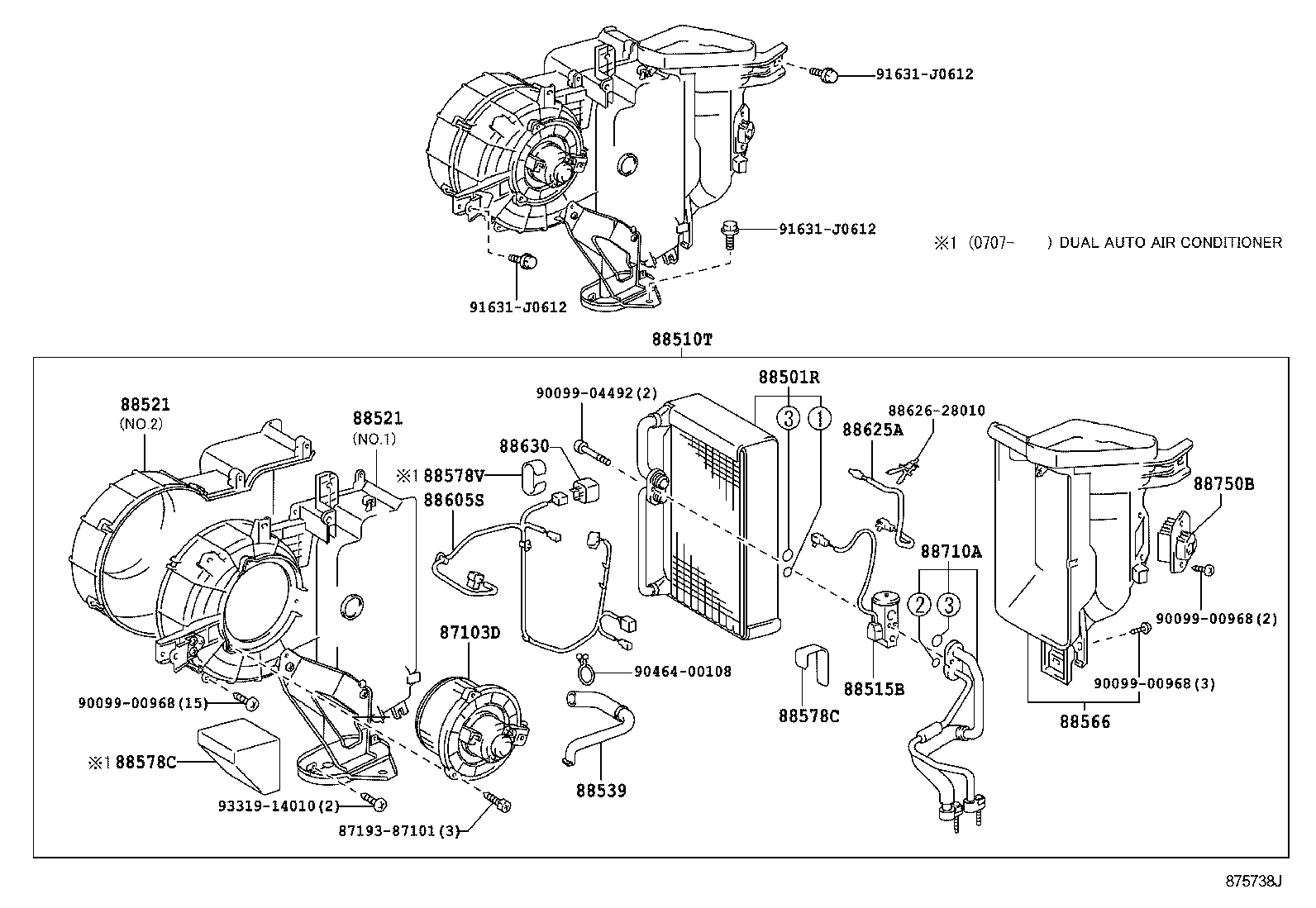

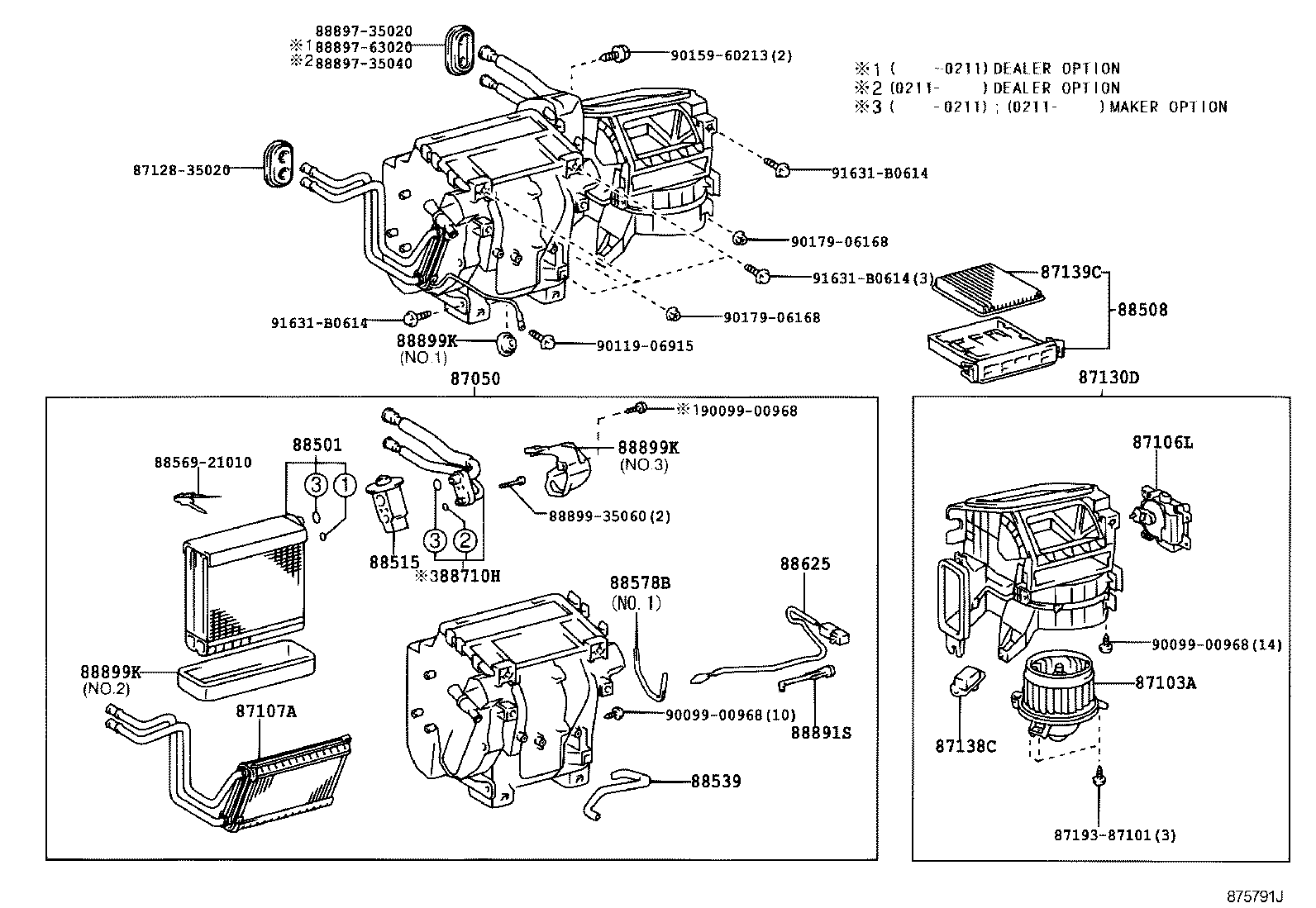

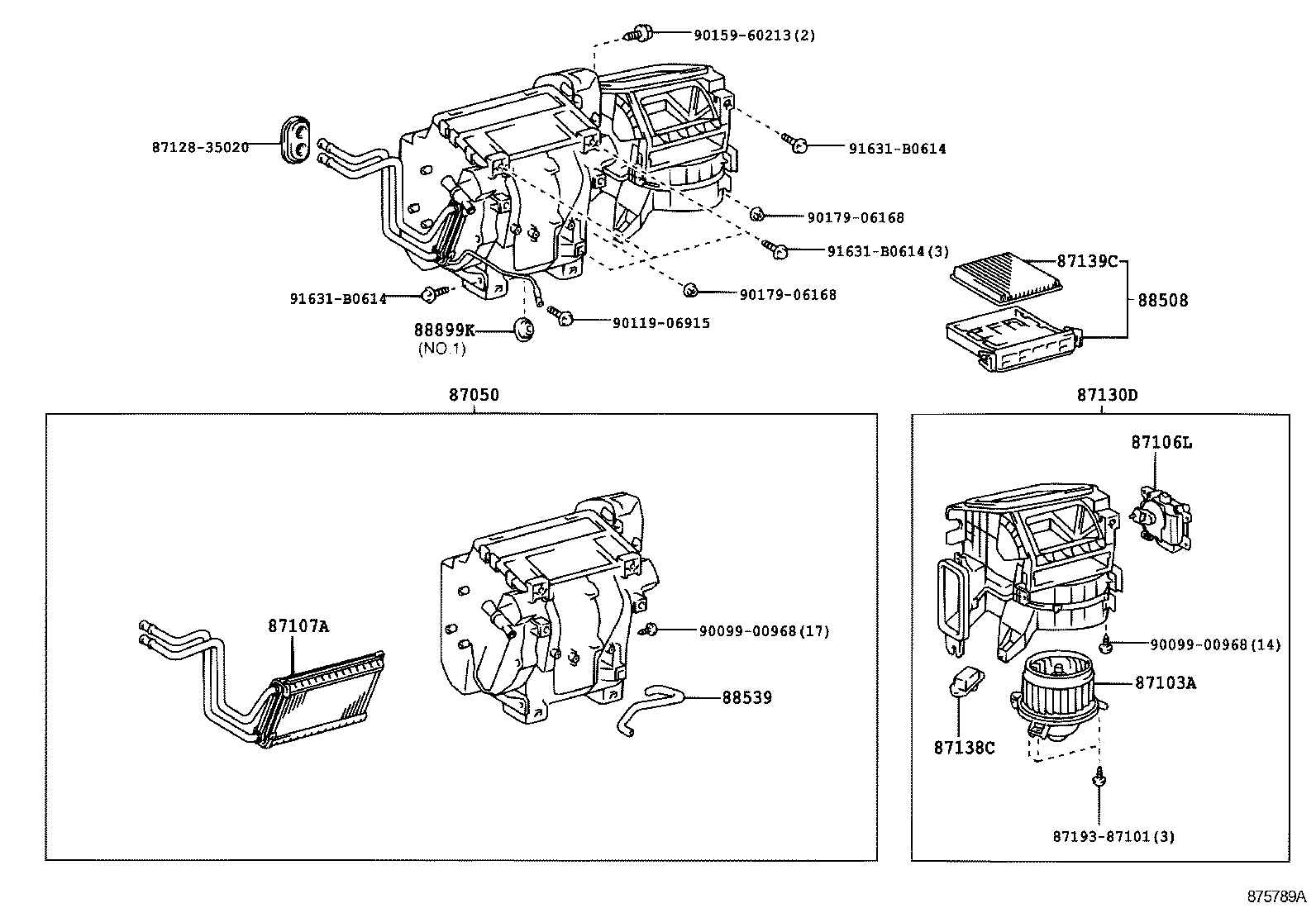

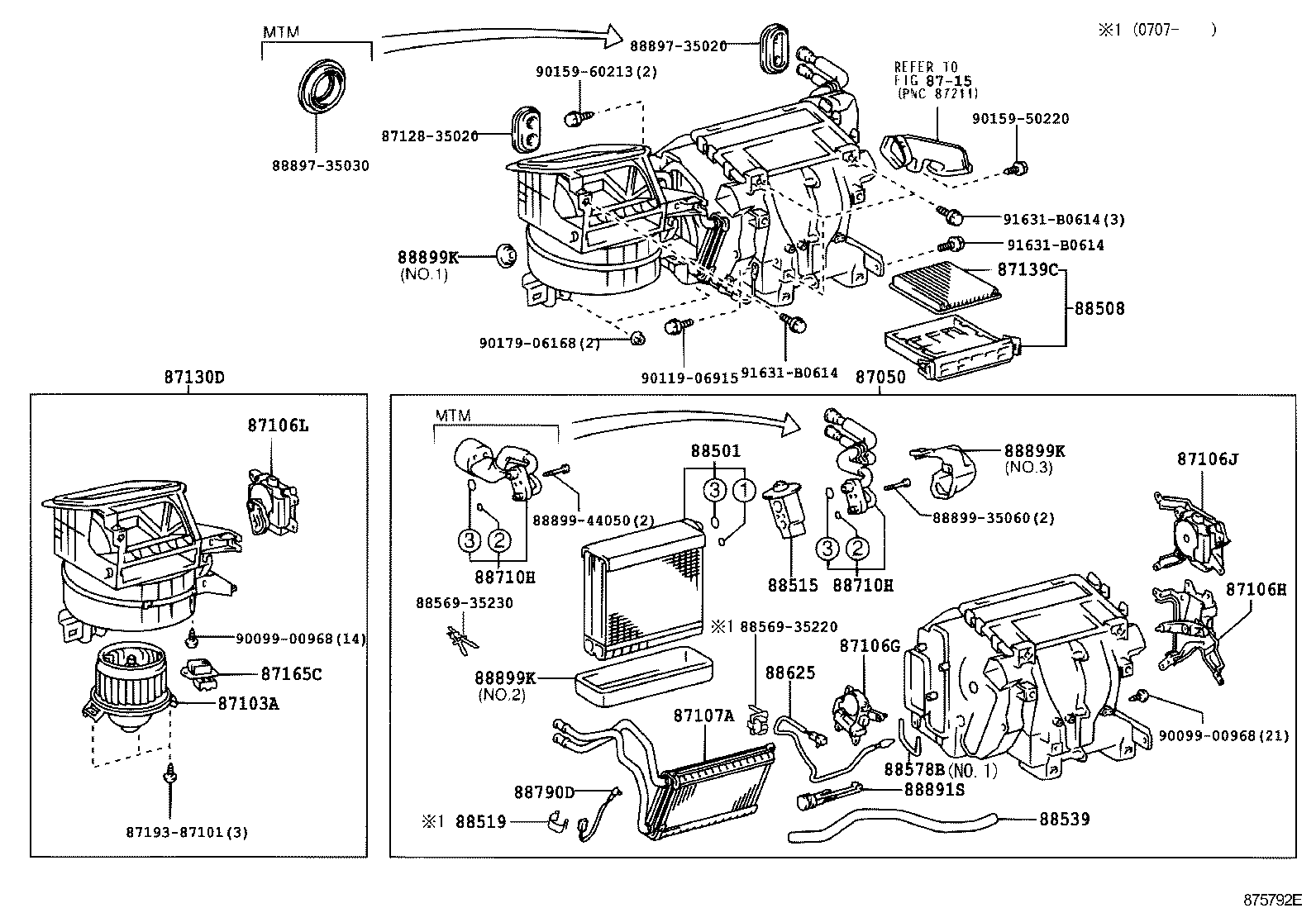

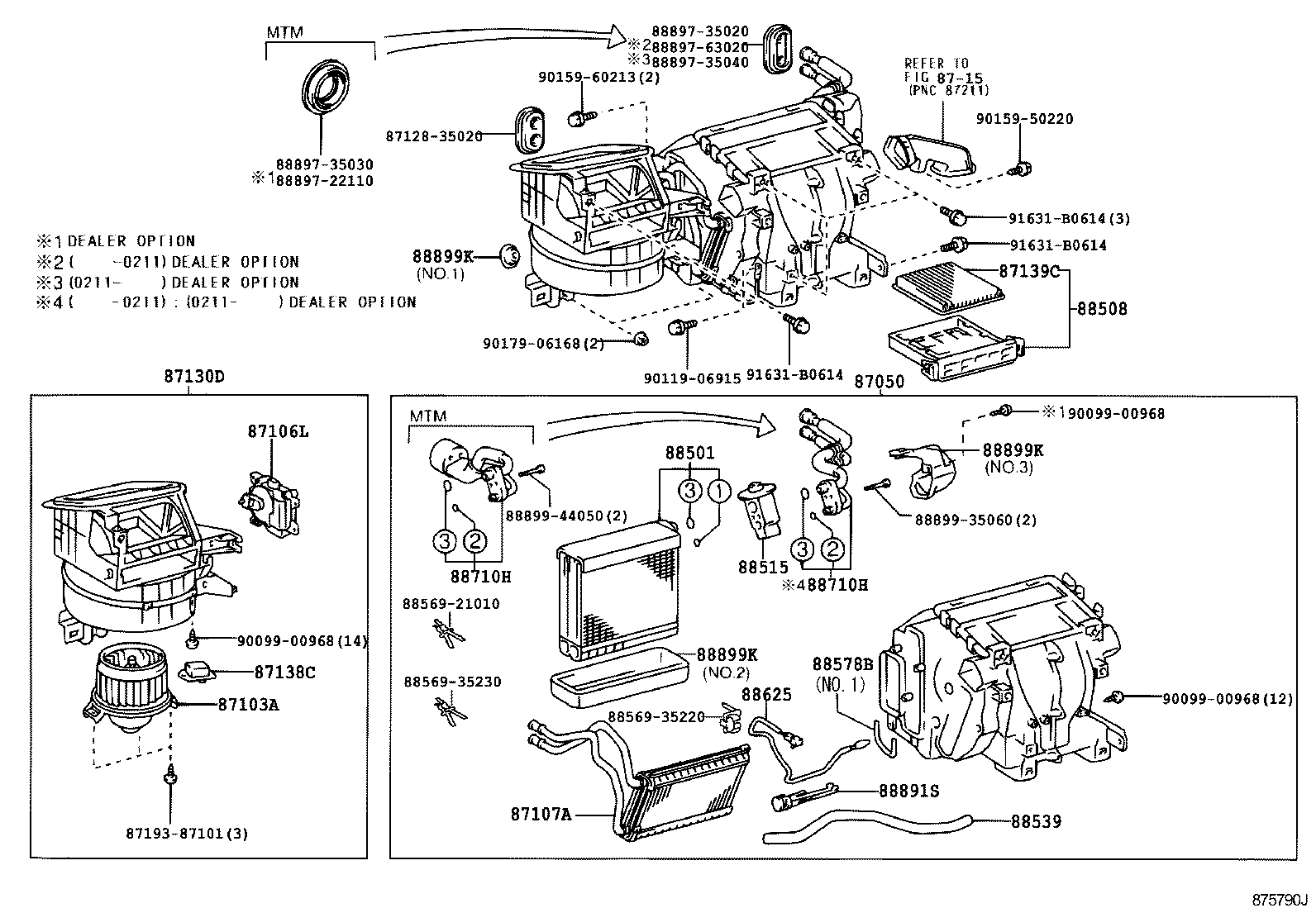

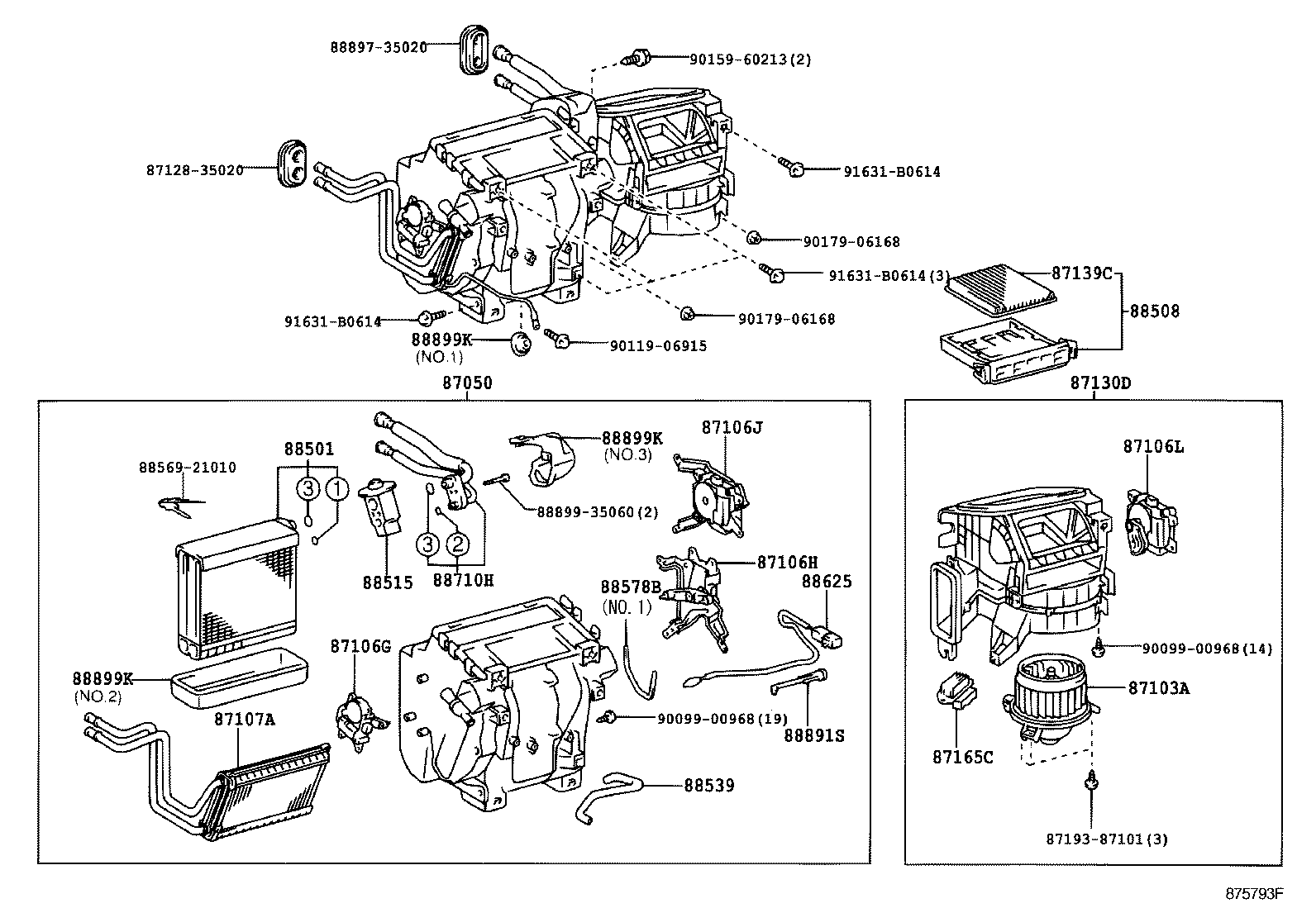

Figure 875788A 875788A 2002-09 → — Figure 875789A 875789A 2002-09 → — Figure 875790J 875790J 2002-09 → — Figure 875791J 875791J 2002-09 → — Figure 875792E 875792E 2002-09 → — Figure 875793F 875793F 2002-09 → — Figure 875738J 875738J 2002-09 → — Figure 875787A 875787A 2002-09 → —

Part groups

PNCDescription
87050 Radiator Assy, Air Conditioner
87103A Motor Sub-assy, Cooling Unit, W/Fan
87103D Motor Sub-assy, Blower W/Fan(FOR REAR)
87106G Servo Sub-assy, Damper(FOR BLOWER)
87106H Servo Sub-assy, Damper(FOR AIRMIX)
87106J Servo Sub-assy, Damper(FOR MODE)
87106L Servo Sub-assy, Damper
87107A Unit Sub-assy, Heater Radiator
87130D Blower Assy
87138C Resistor, Blower
87139C Filter, Clean Air
87165C Control, Blower Motor
88501 Evaporator Sub-assy, Cooler, NO.1
88501R Evaporator Sub-assy (REAR)
88508 Filter Sub-assy, Clean Air
88510T Unit Assy, Cooling (REAR)
88515 Valve, Cooler Expansion
88515B Valve, Rear Cooling Unit Expansion
88519 Holder, Remote Bulb
88521 Case, Cooler Unit
88539 Hose, Cooler Unit Drain, NO.1
88566 Duct, Cooler Air, NO.1
88578B Packing, Cooling Unit, NO.1
88578C Packing, Cooling Unit, NO.2
88578V Packing, Cooling Unit, NO.3
88605S Harness Sub-assy, Wiring Air Conditioner
88625 Thermistor, Cooler, NO.1
88625A Thermistor, Cooler NO.2
88630 Relay Assy, Cooler
88710A Tube Assy, Air Conditioner
88710H Tube & Accessory Assy, Air Conditioner
88750B Transistor Assy, Blower Resistor
88790D Thermistor Assy
88891S Cover, Cooler, NO.1
88899K Plate, Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
