Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

40 part groups · 8 illustrations

Illustrations

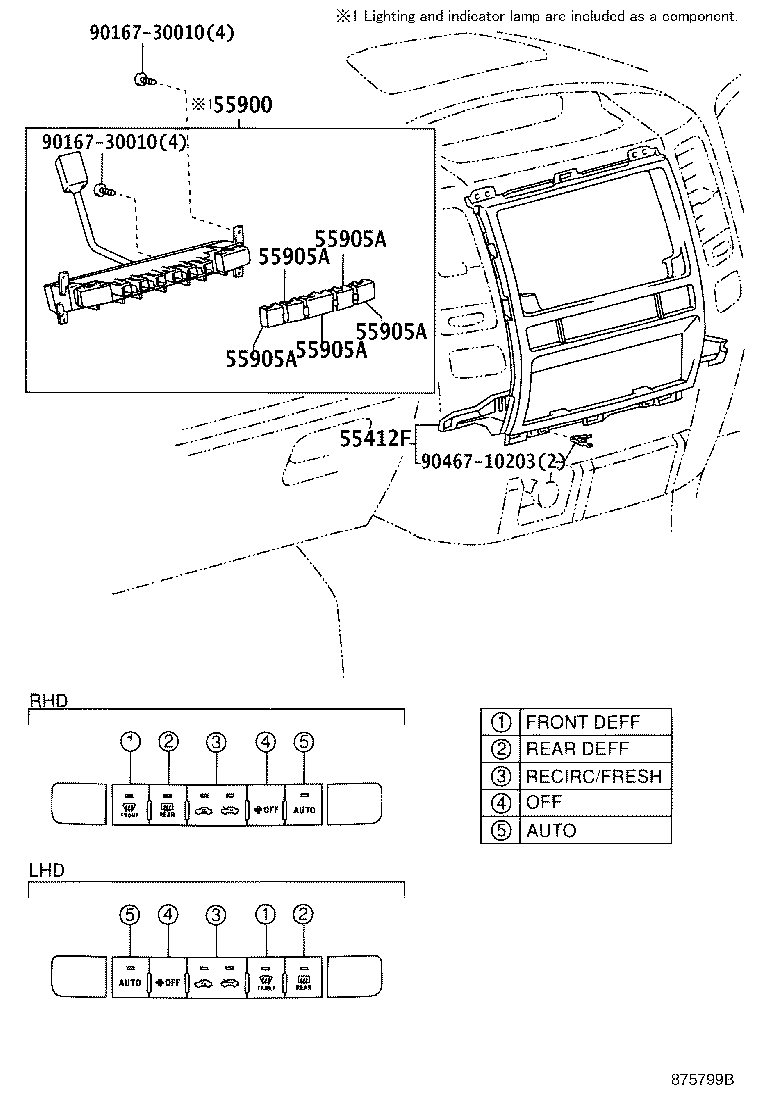

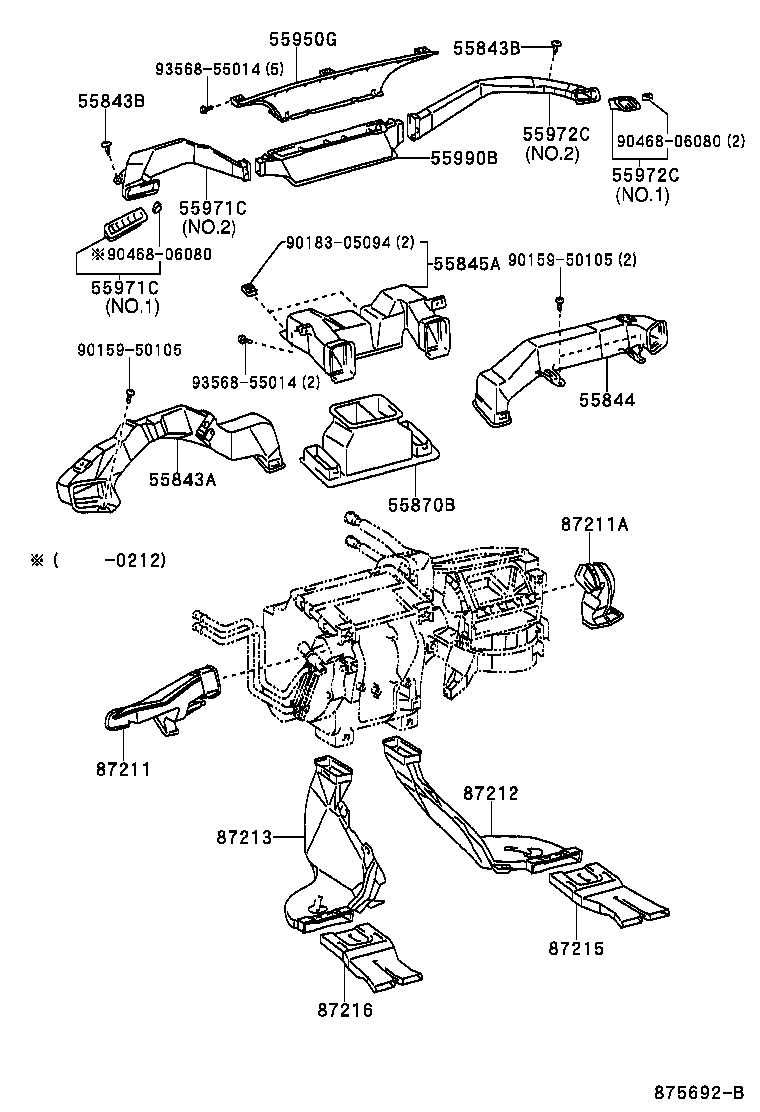

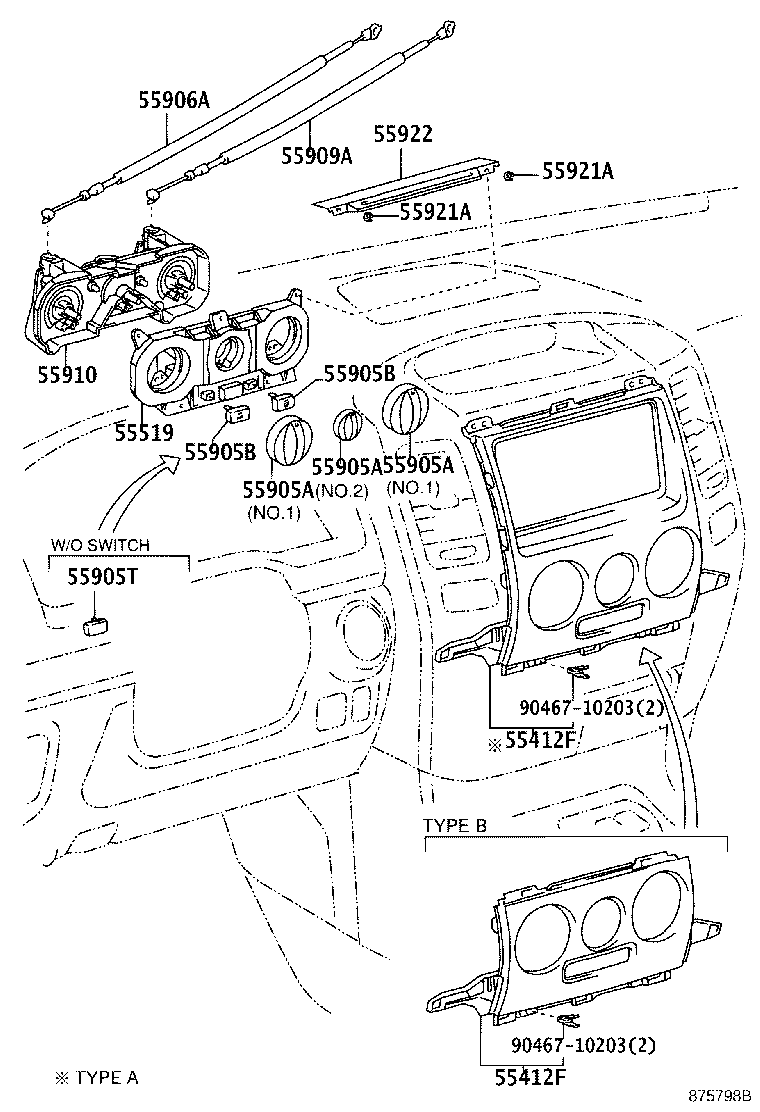

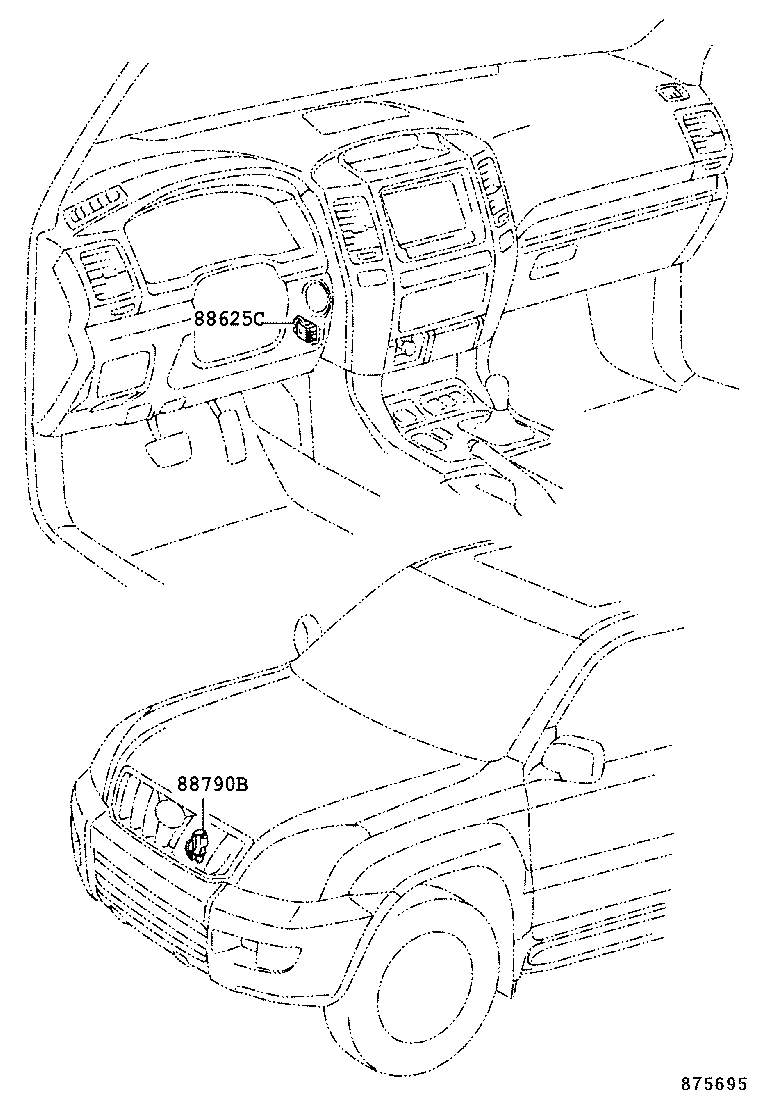

Figure 875797E 875797E 2002-09 → — Figure 875798B 875798B 2002-09 → — Figure 875799B 875799B 2002-09 → — Figure 875800B 875800B 2002-09 → — Figure 875693B 875693B 2002-09 → — Figure 875692B 875692B 2002-09 → — Figure 875694 875694 2002-09 → — Figure 875695 875695 2002-09 → —

Part groups

PNCDescription
55412F Panel, Instrument Cluster Finish, Center
55519 Plate, Heater Control Name
55843A Duct, Heater TO Register, NO.1
55843B Clip, Heater TO Register Duct
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55870B Duct Assy, Heater TO Register
55900 Control Assy, Air Conditioner
55900B Bulb, Air Conditioner Control
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55905T Cover, Switch Hole, NO.1
55906A Cable Sub-assy, Defroster Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55912A Housing, Heater Control
55921A Retainer, Heater Control
55922 Bracket, Heater Control Base
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
55990B Nozzle Assy, Defroster, Lower
81942A Sheet, Heater Control Name, NO.1
83911E Ornament, Clock
84010A Control & Panel Assy, Integration
84014E Board Sub-assy, Printed Wire Integration
84661A Knob, Cooler Control Switch
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87215 Duct, Air, Side NO.1 LH
87216 Duct, Heater Interior Air (TO REAR)
88566A Duct, Cooler Air, NO.1
88566B Duct, Cooler Air, NO.2
88566C Duct, Cooler Air, NO.3
88566D Duct, Cooler Air, NO.4
88625C Thermistor, Cooler
88650B Amplifier Assy, Airconditioner
88790B Thermistor Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
