Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

10 part groups · 6 illustrations

Illustrations

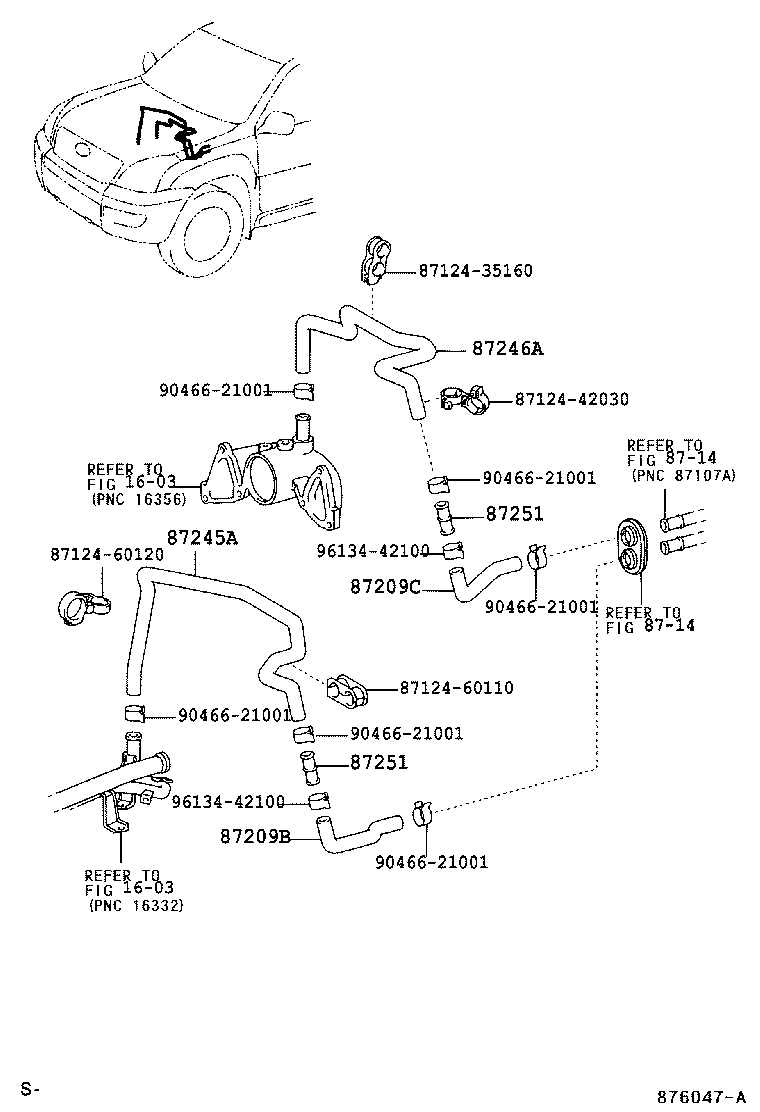

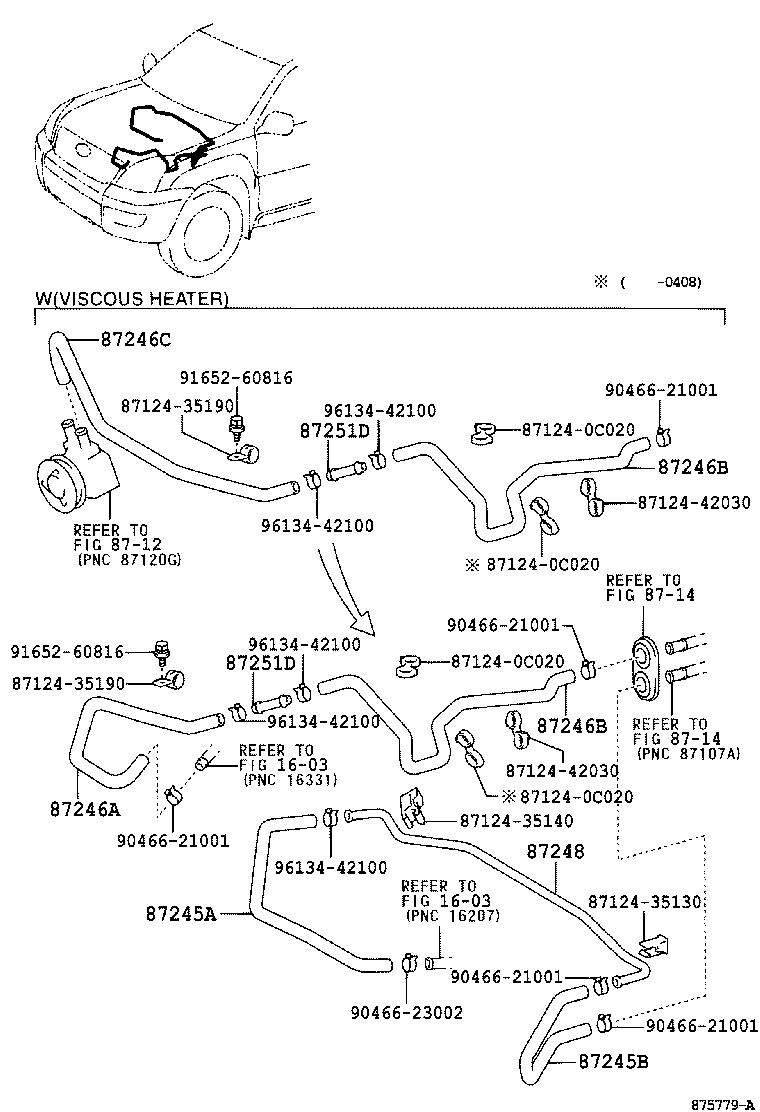

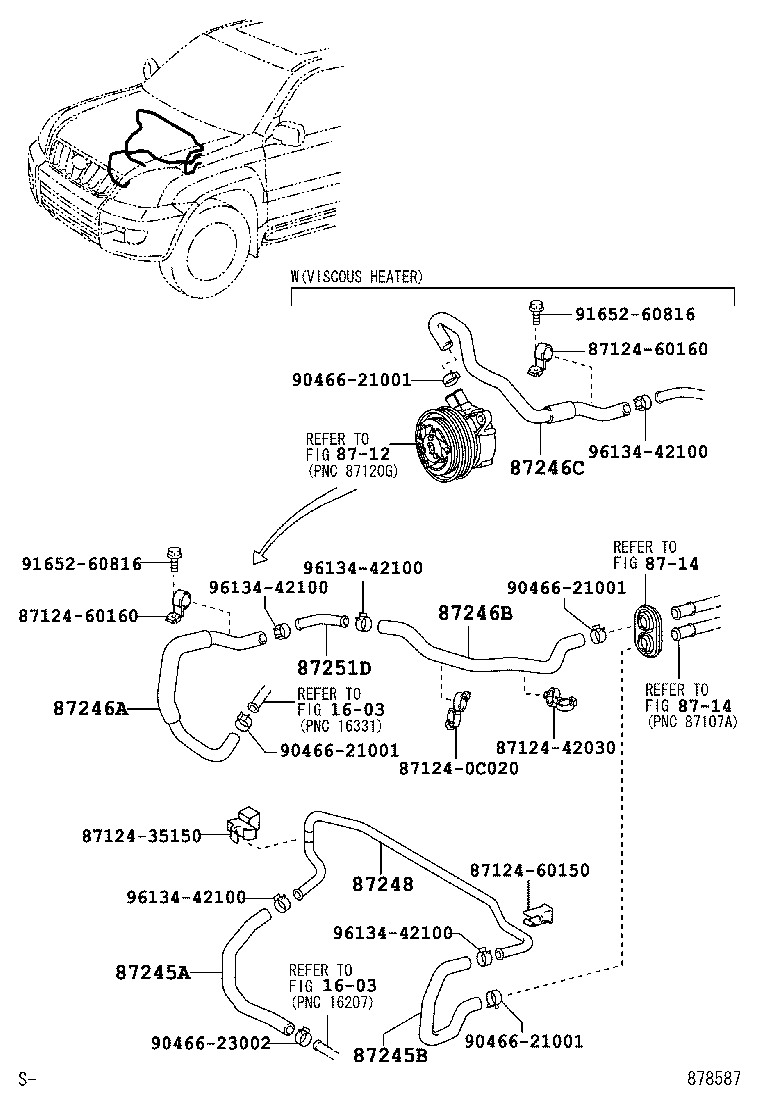

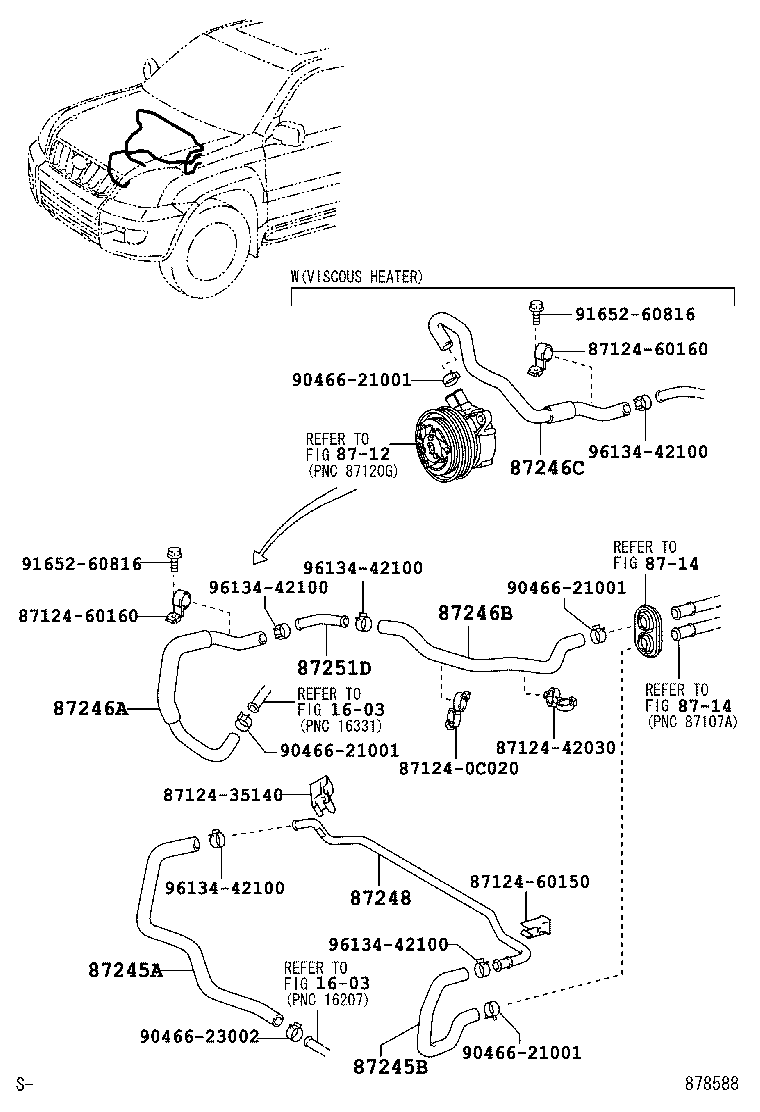

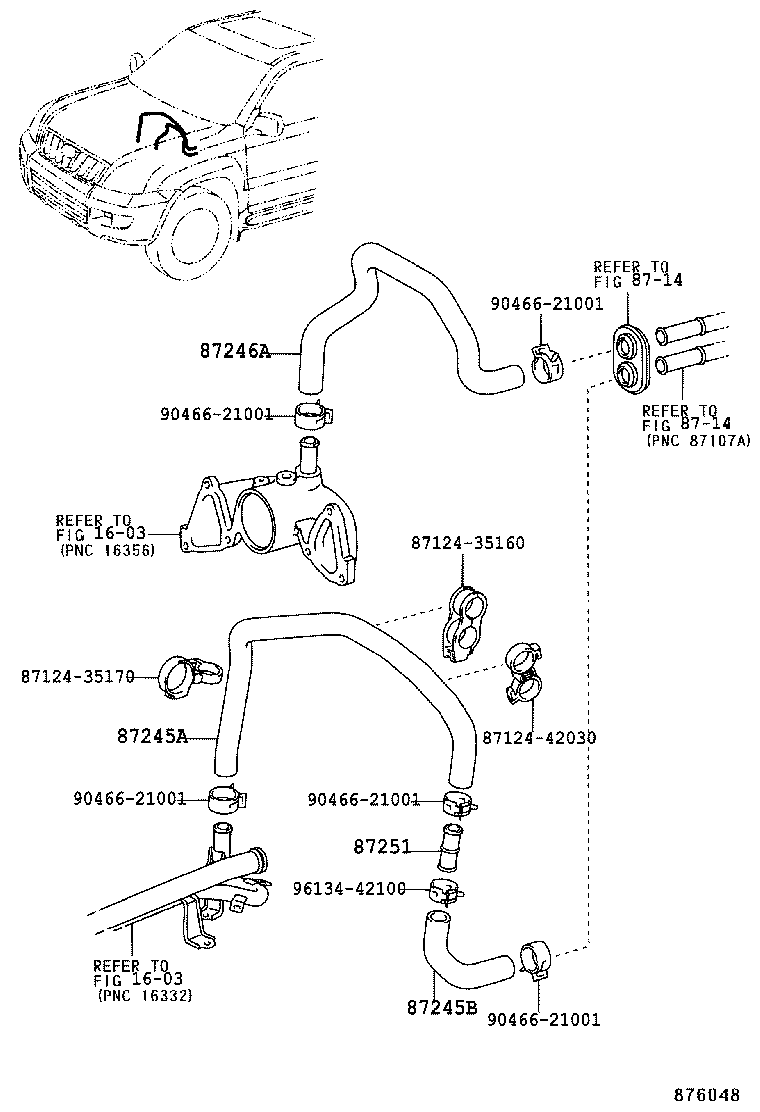

Figure 875778A 875778A 2002-09 → 2006-08 Figure 878587 878587 2006-08 → — Figure 875779A 875779A 2002-09 → 2006-08 Figure 878588 878588 2006-08 → — Figure 876047A 876047A 2003-01 → — Figure 876048 876048 2003-01 → —

Part groups

PNCDescription
87209B Hose Sub-assy, Water, B
87209C Hose Sub-assy, Water, C
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87248 Pipe Sub-assy, Water
87251 Joint OR Union, Water Hose Through
87251D Joint, Water, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
