Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

24 part groups · 6 illustrations

Illustrations

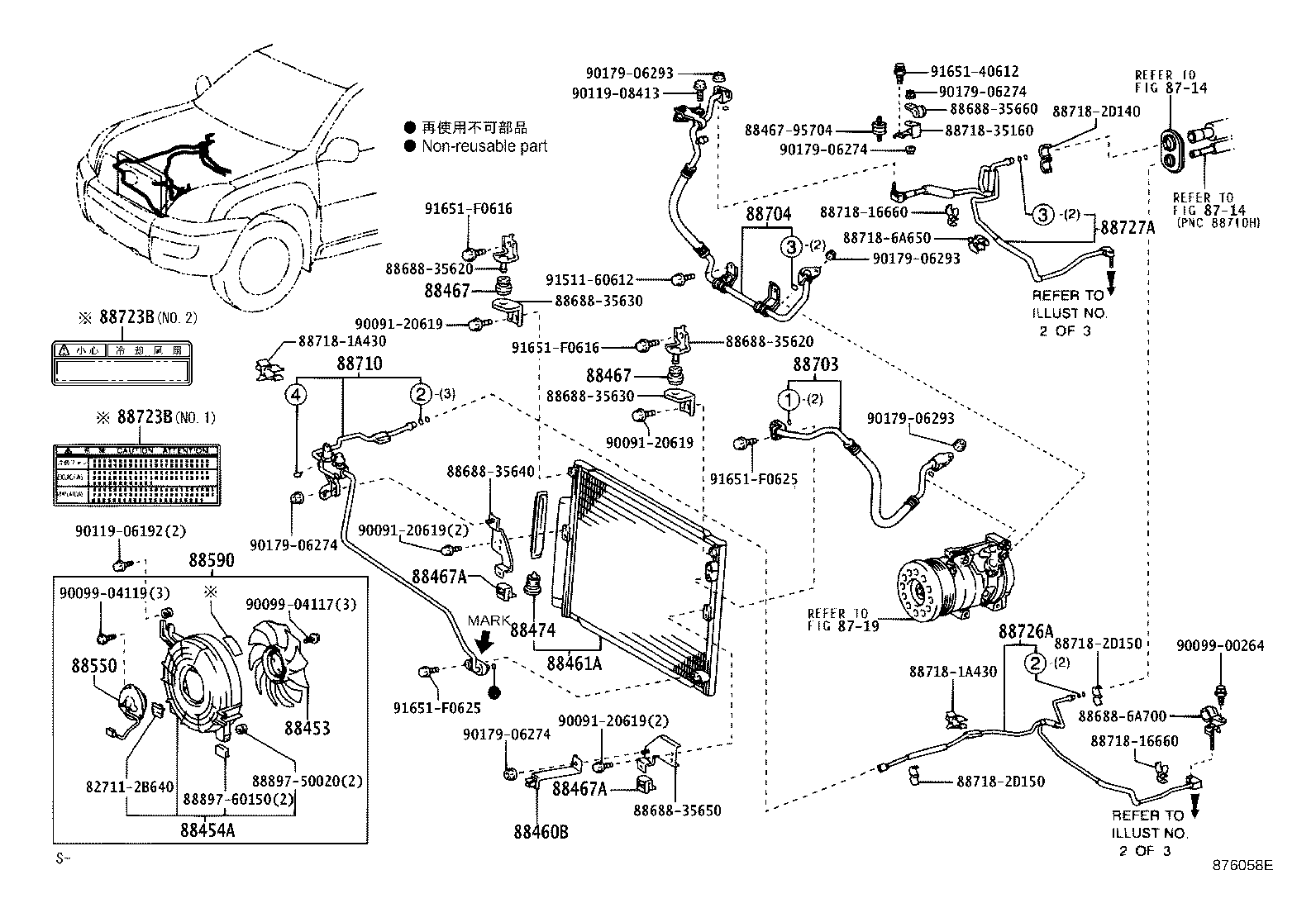

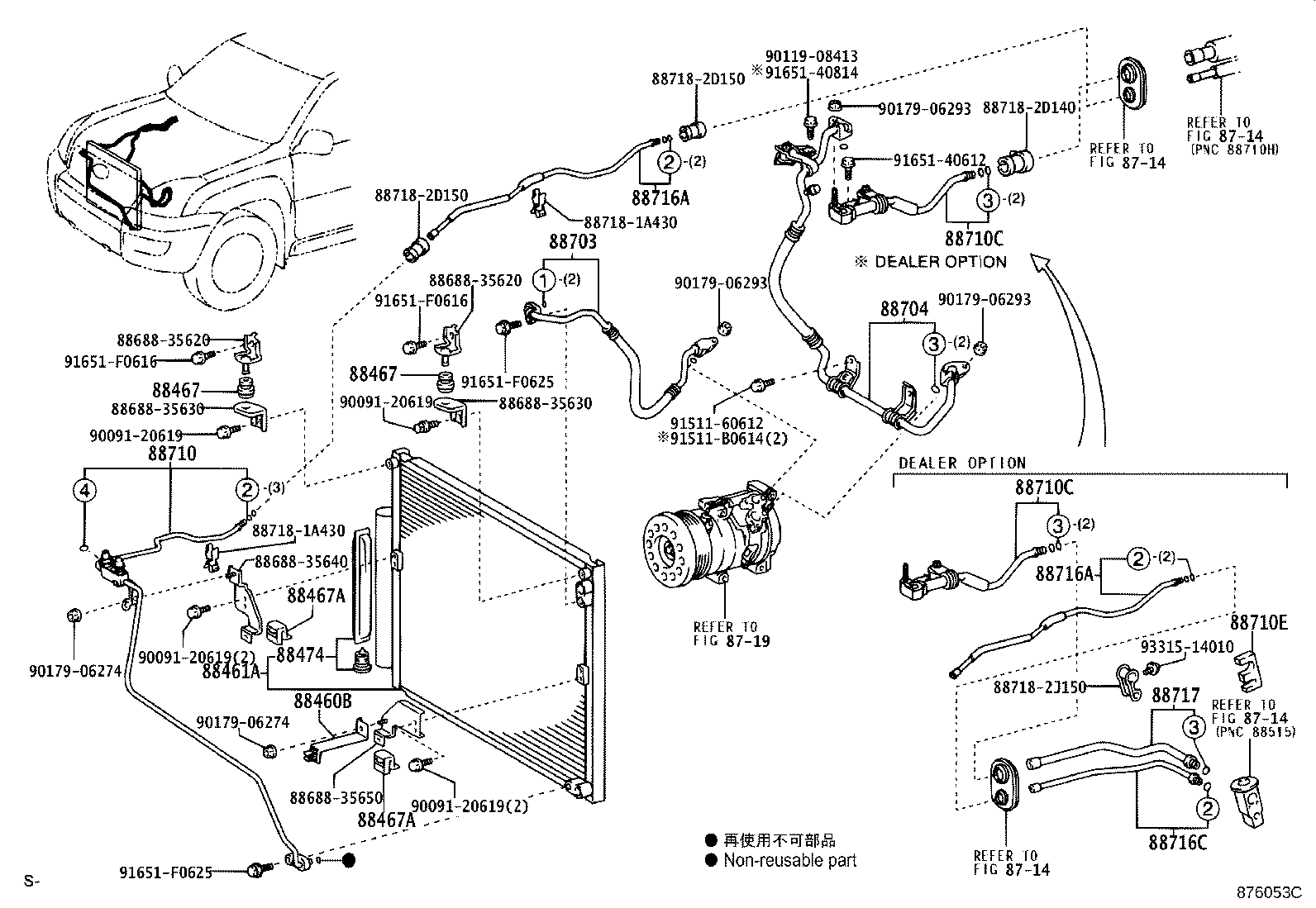

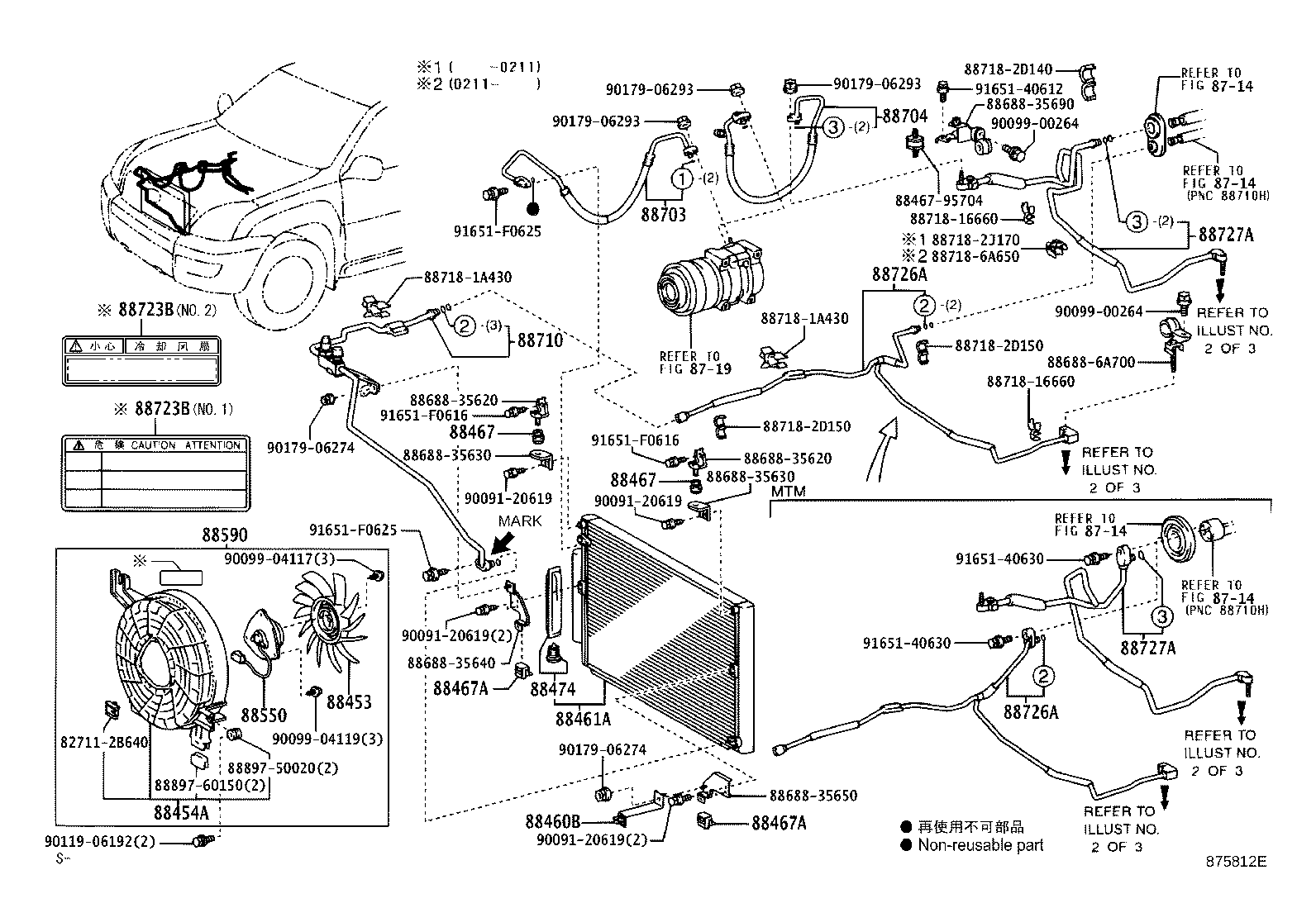

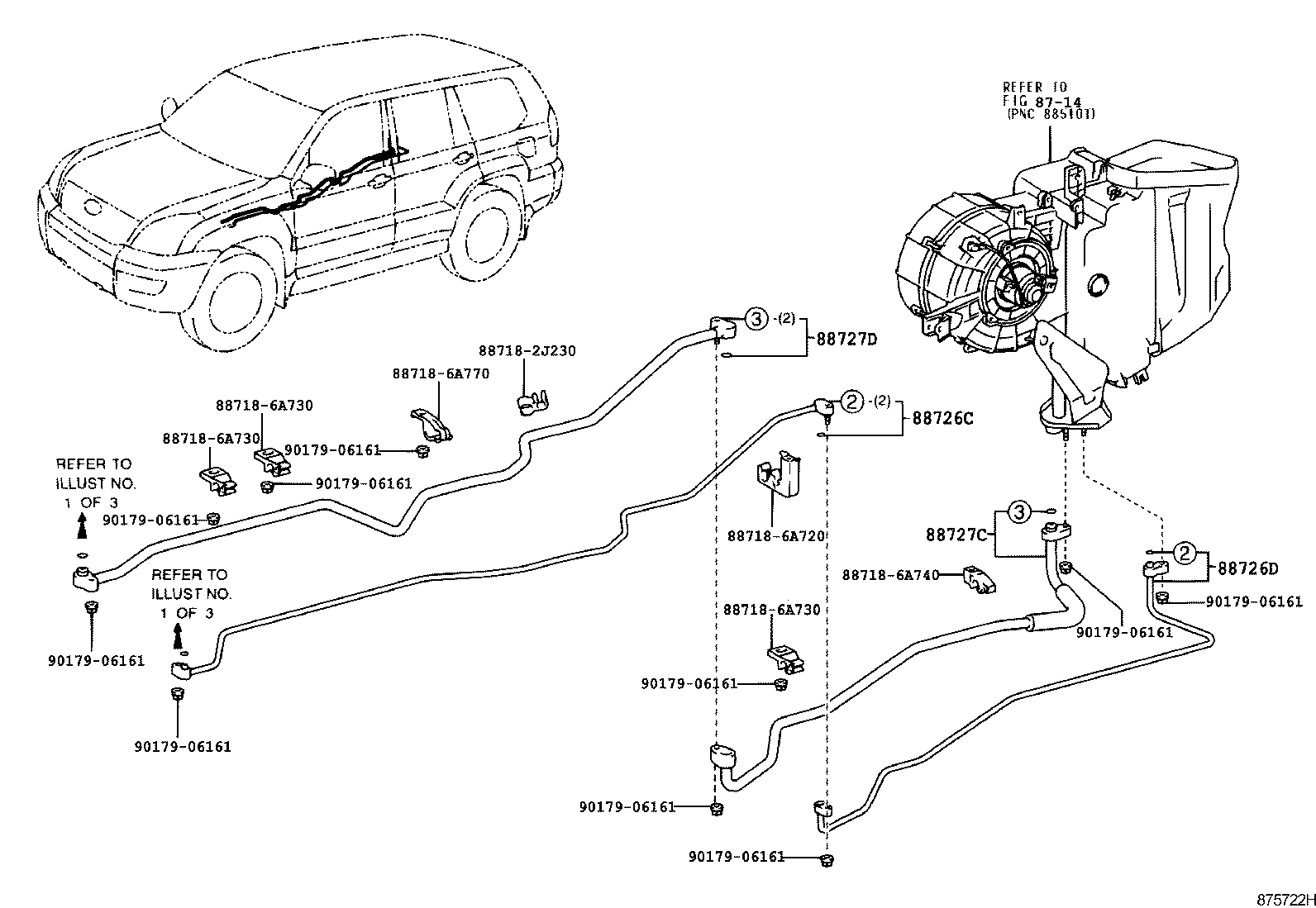

Figure 875811F 875811F 2002-09 → — Figure 875812E 875812E 2002-09 → — Figure 876053C 876053C 2003-01 → — Figure 876058E 876058E 2003-01 → — Figure 875722H 875722H 2002-09 → — Figure 875787B 875787B 2002-09 → —

Part groups

PNCDescription
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88460B Bracket, Cooler Condenser, NO.1
88461A Core, Cooler Condenser
88467 Cushion, Cooler Condenser, NO.1
88467A Cushion, Cooler Condenser, NO.2
88474 Dryer, Cooler
88550 Motor Assy, Blower (FOR CONDENSER)
88590 Blower Assy, W/Shroud
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88710 Tube Assy, Air Conditioner
88710C Tube Assy, Air Conditioner
88710E Tube & Accessory Assy, Air Conditioner
88716A Pipe, Cooler Refrigerant Liquid, A
88716C Pipe, Cooler Refrigerant Liquid, C
88717 Pipe, Cooler Refrigerant Suction, NO.1
88723B Label, Cooler Service Caution
88726A Pipe, Cooler Refrigerant Liquid, A
88726C Pipe, Cooler Refrigerant Liquid, C
88726D Pipe, Cooler Refrigerant Liquid, D
88727A Pipe, Cooler Refrigerant Suction, A
88727C Pipe, Cooler Refrigerant Suction, C
88727D Pipe, Cooler Refrigerant Suction, D
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
