Toyota Land Cruiser Prado

2009-08 → 2017-08 · chassis GDJ15#,GRJ150,KDJ15# · catalogue 781560 · Europe

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 16 illustrations

Illustrations

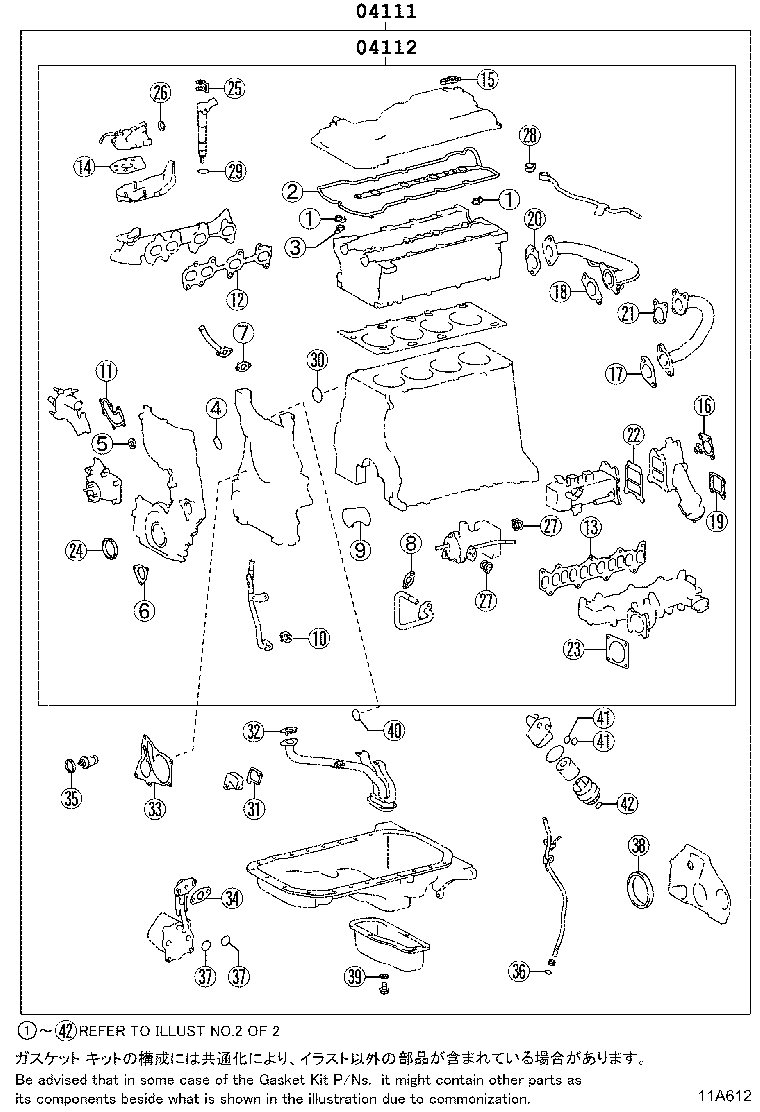

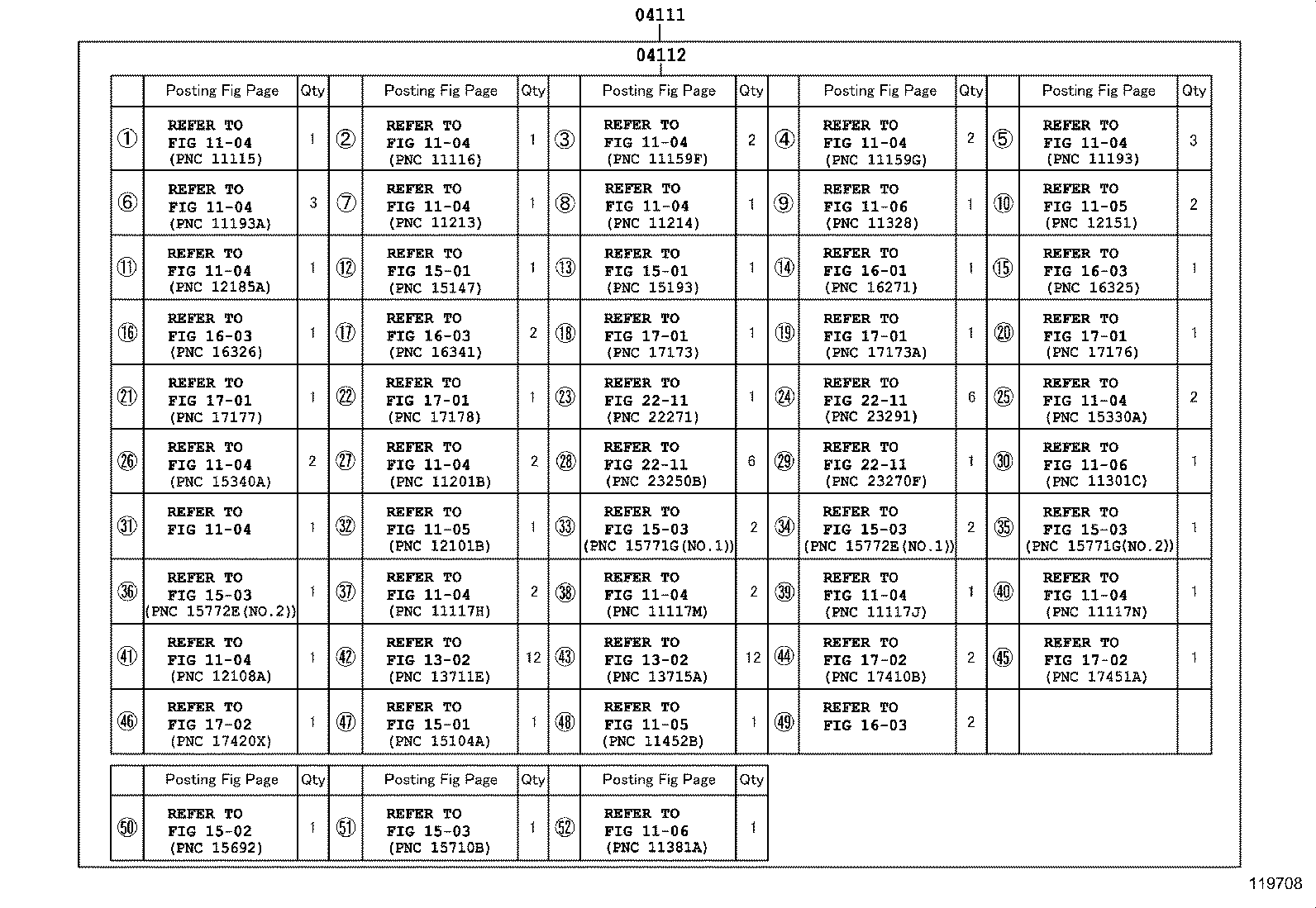

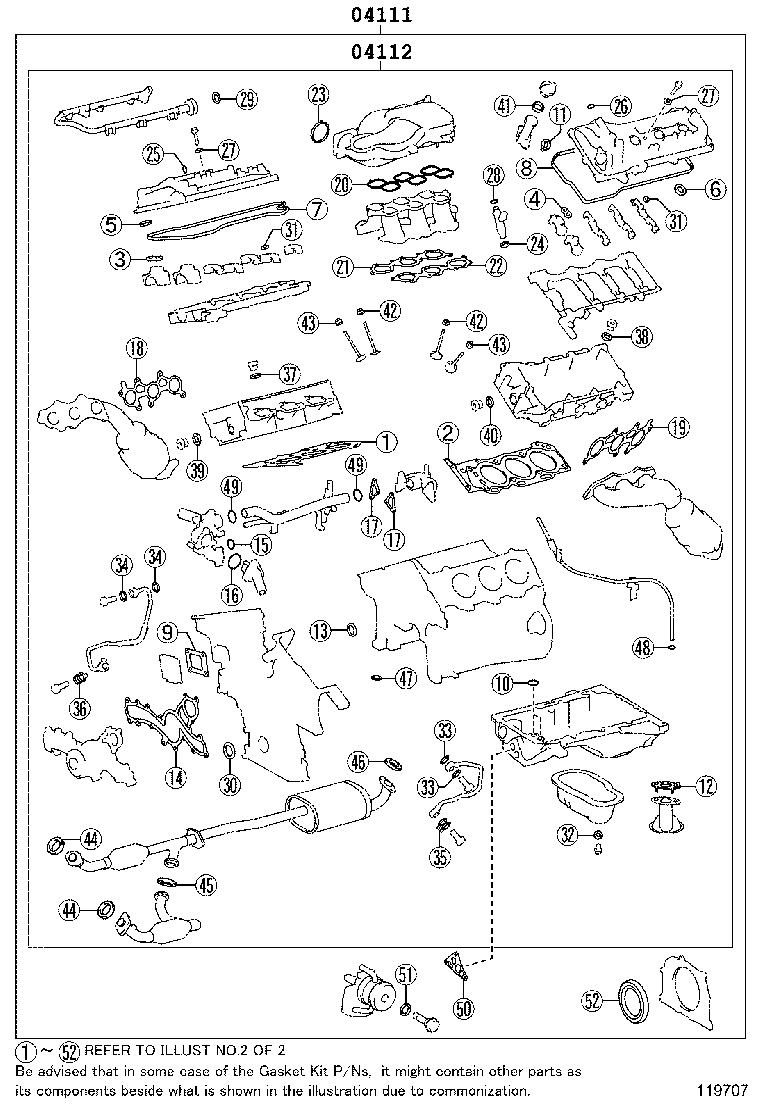

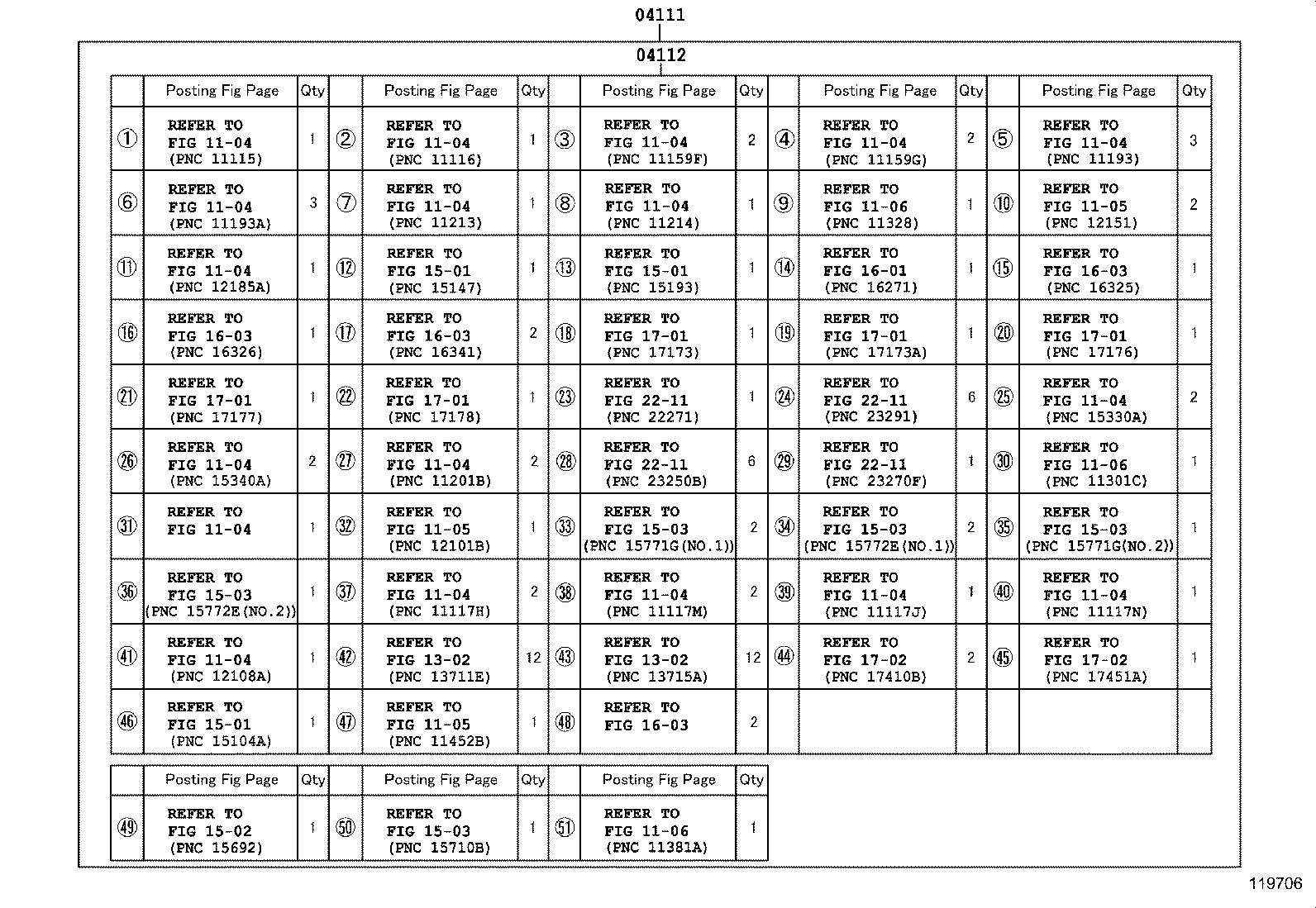

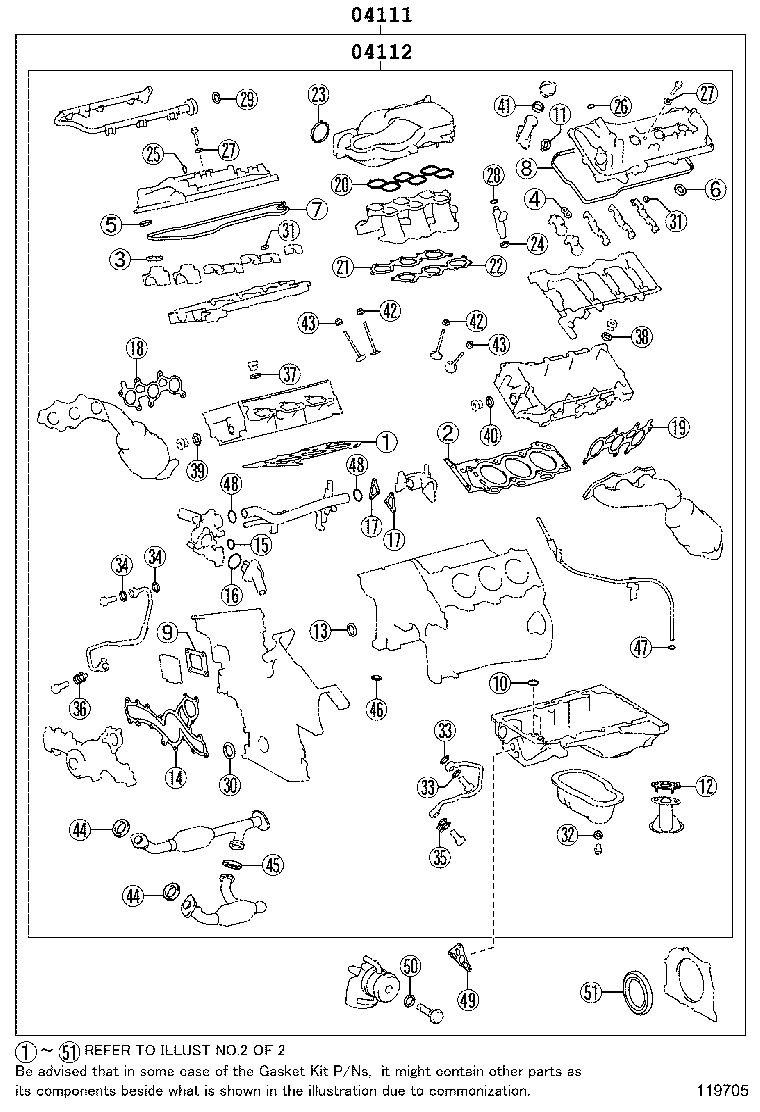

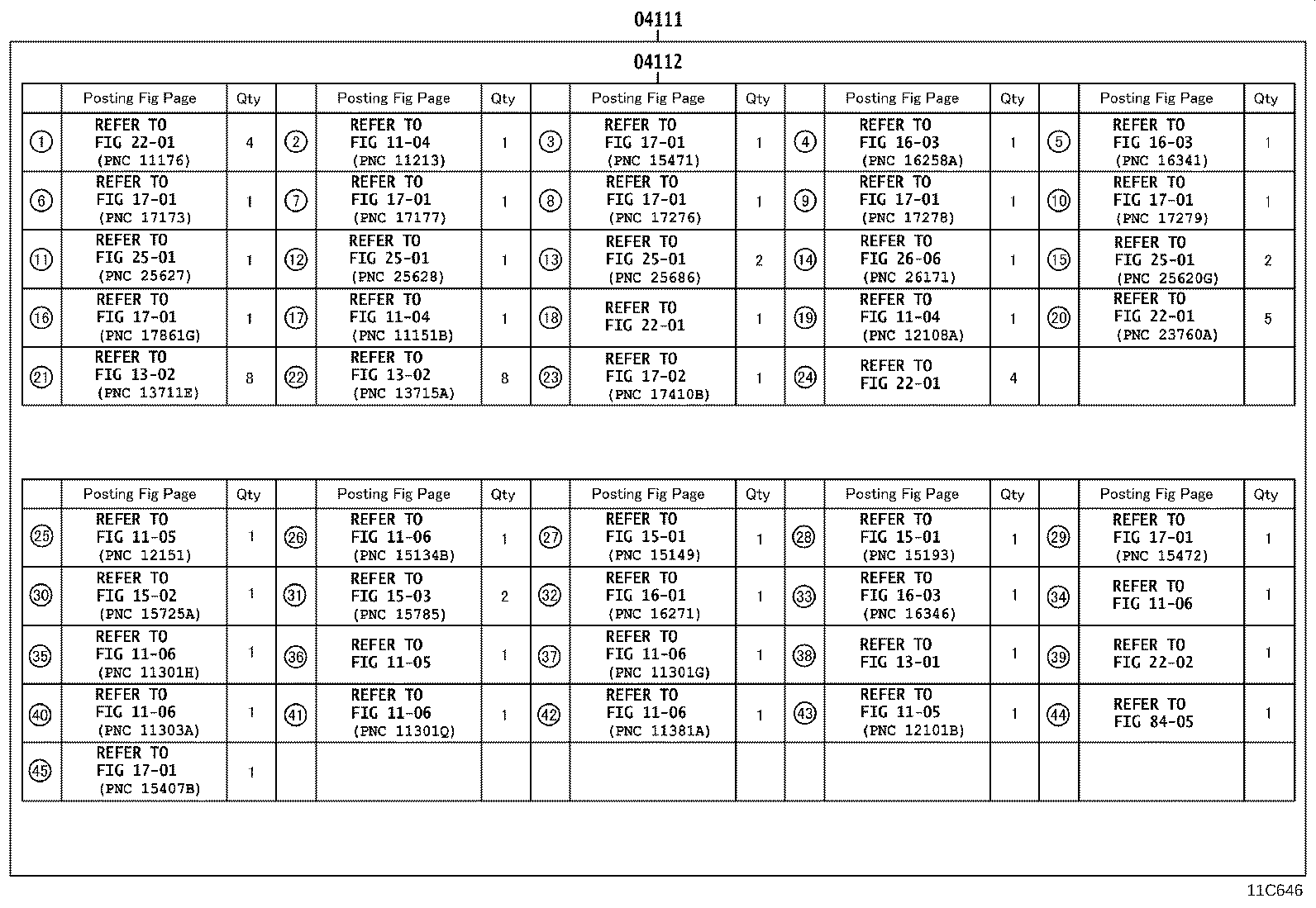

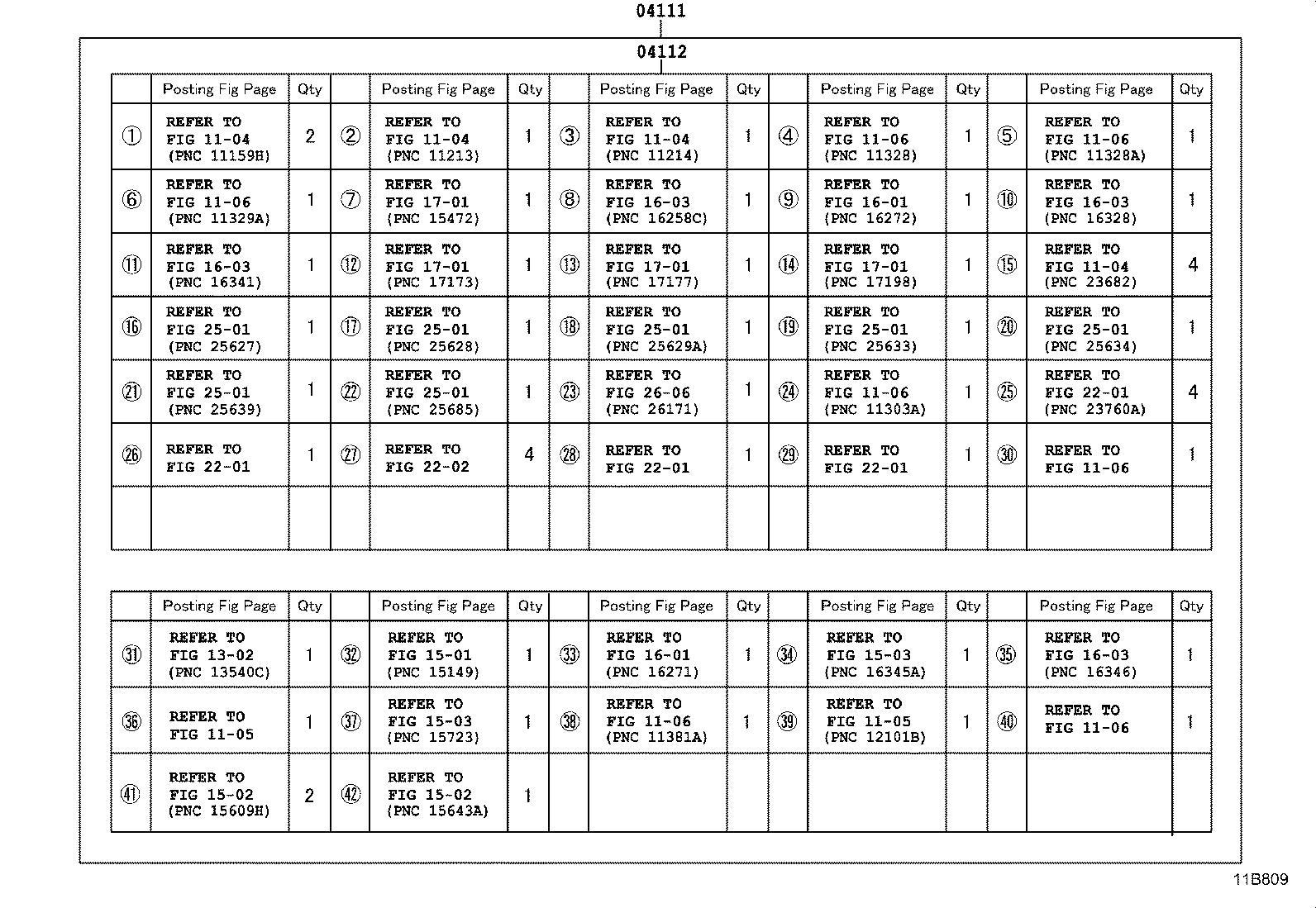

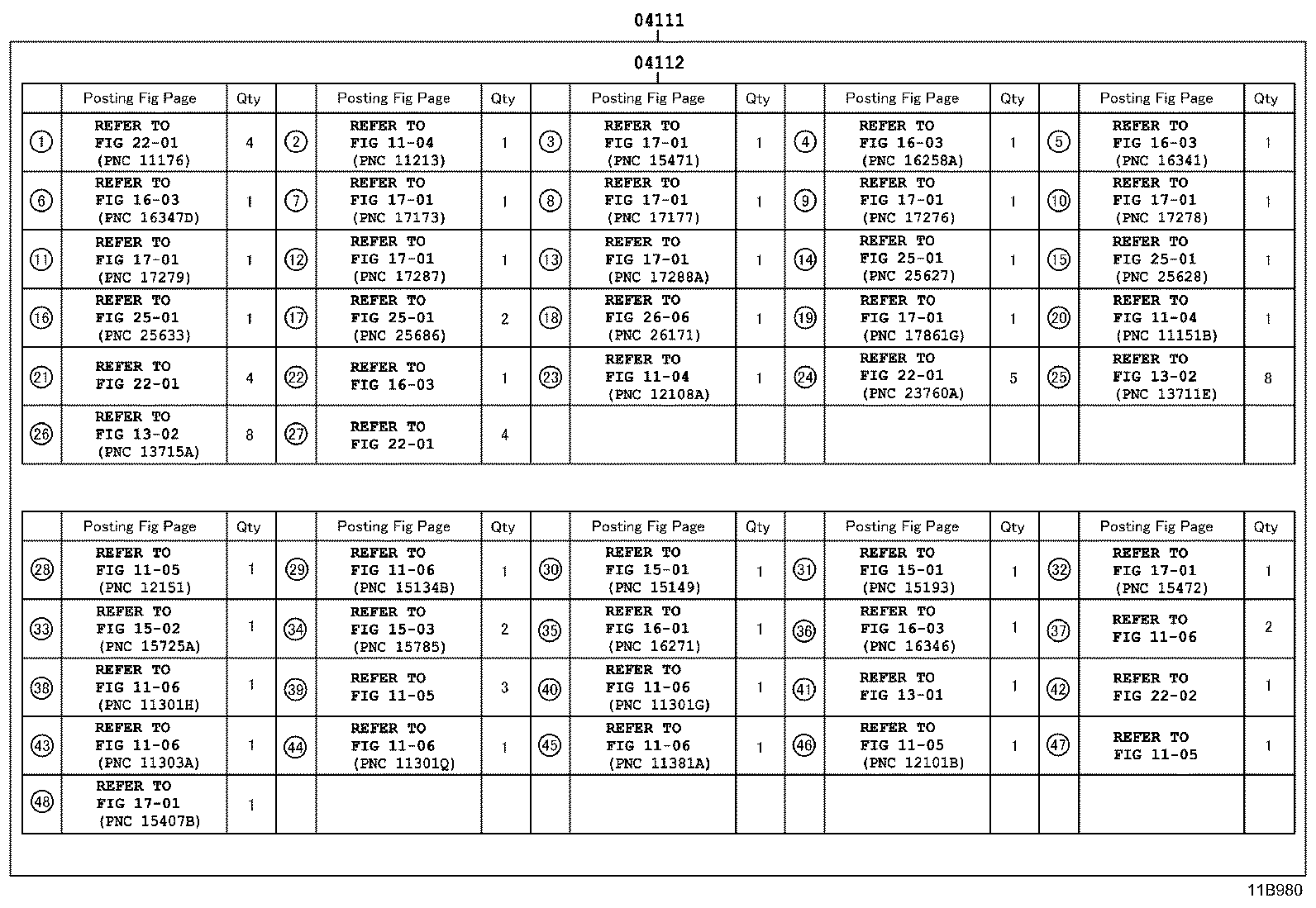

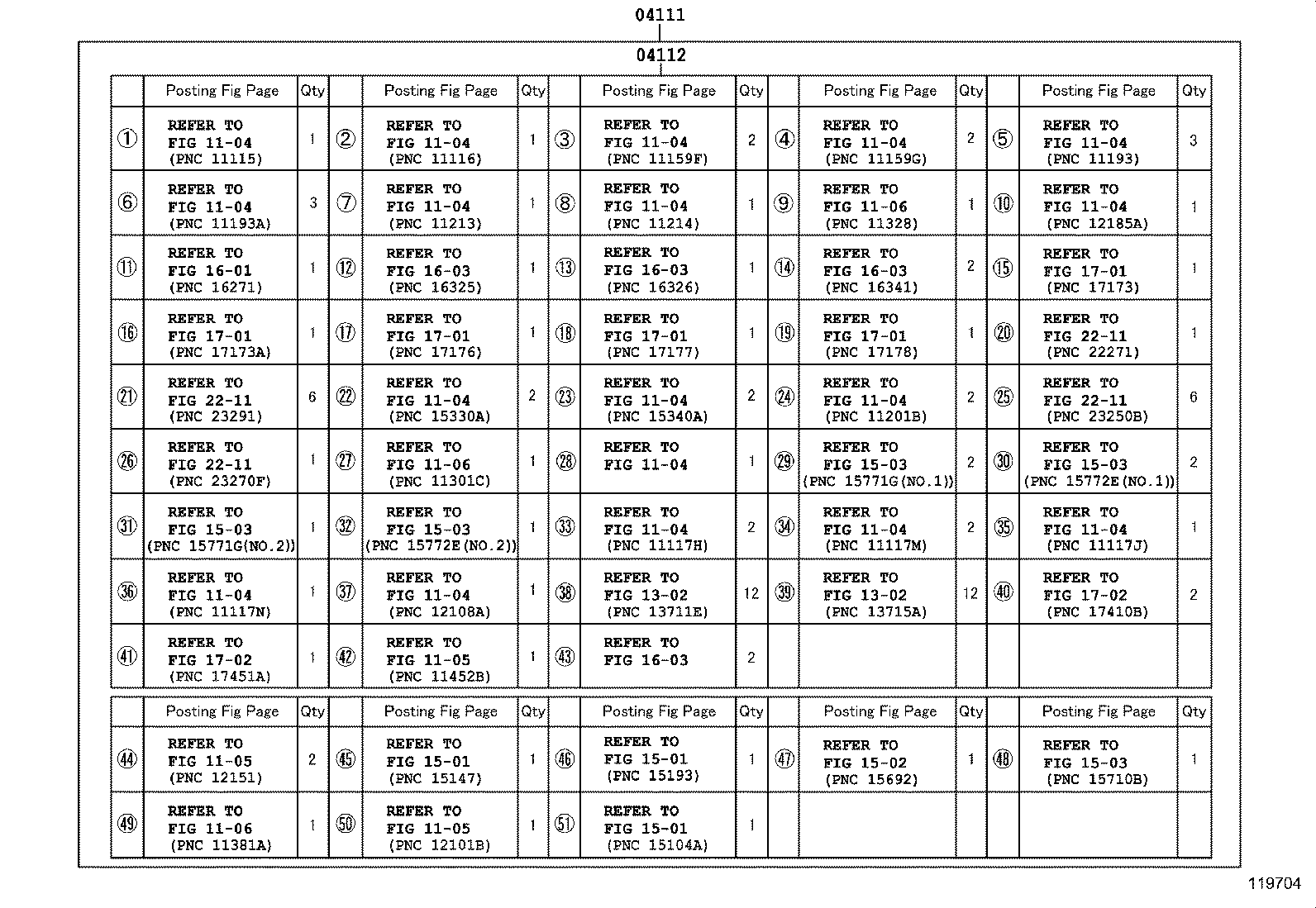

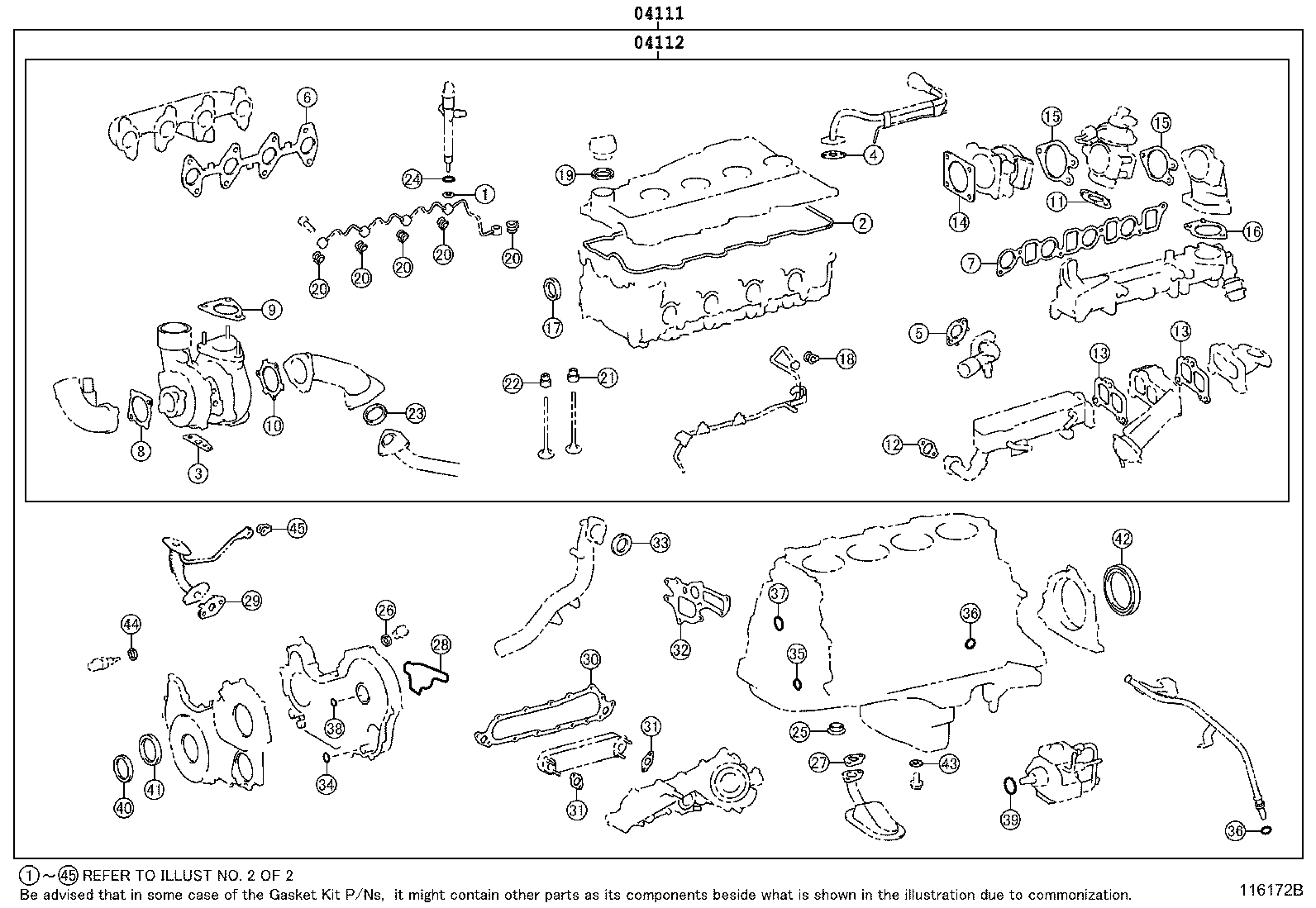

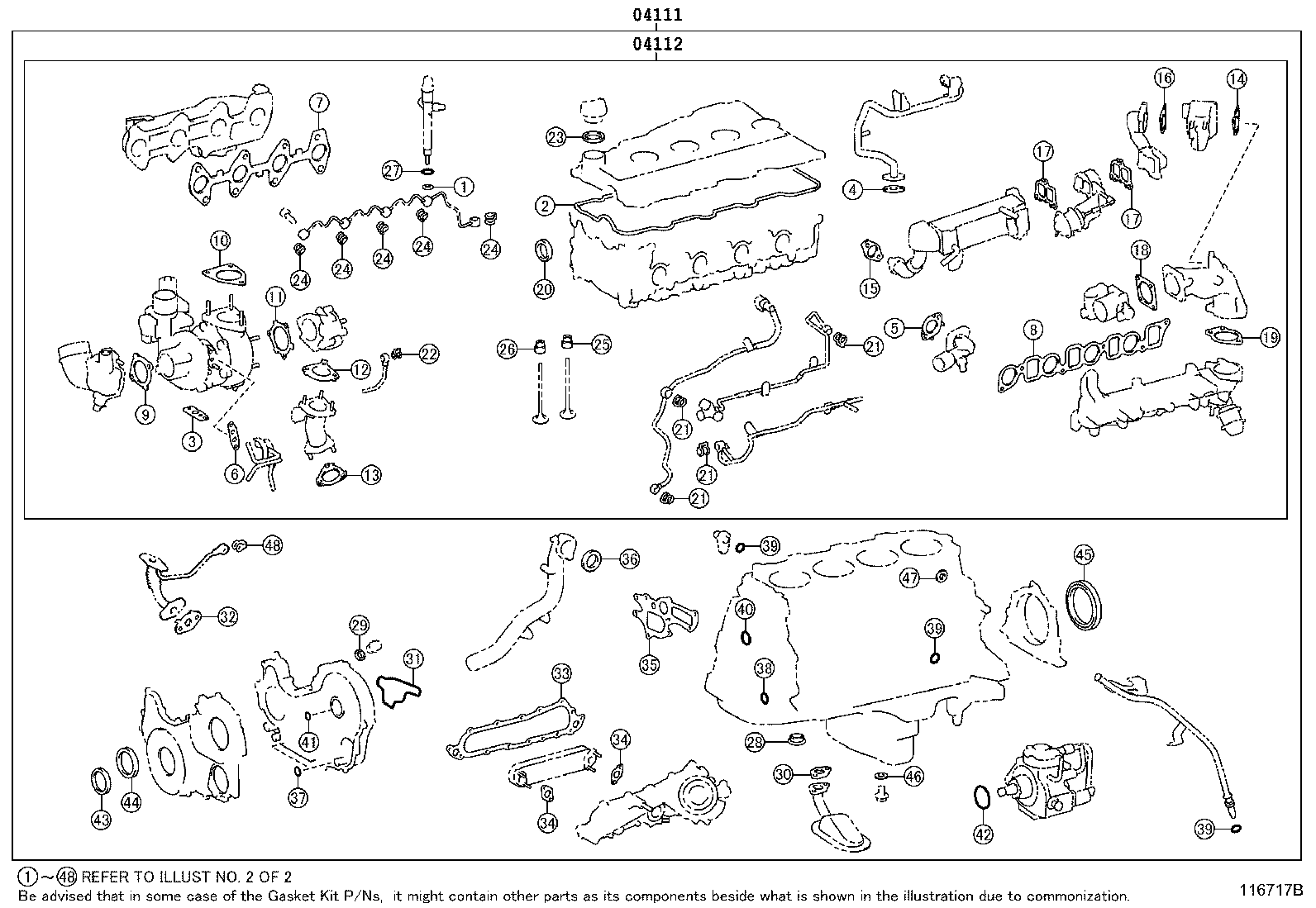

Figure 119703 119703 2009-08 → 2010-05 Figure 119703 119703 2010-12 → 2011-03 Figure 119704 119704 2009-08 → 2010-05 Figure 119704 119704 2010-12 → 2011-03 Figure 119705 119705 2010-05 → 2010-12 Figure 119706 119706 2010-05 → 2010-12 Figure 119707 119707 2011-03 → — Figure 119708 119708 2011-03 → — Figure 11A612 11A612 2015-06 → — Figure 11B809 11B809 2015-06 → — Figure 116172B 116172B 2009-08 → 2013-08 Figure 116172B 116172B 2013-08 → — Figure 11C646 11C646 2009-08 → 2013-08 Figure 11C646 11C646 2013-08 → — Figure 116717B 116717B 2010-10 → 2015-06 Figure 11B980 11B980 2010-10 → 2015-06

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
