Water Pump

14 part groups · 4 illustrations

Illustrations

Figure 166709B

166709B 2009-08 → —

168703 2009-08 → —

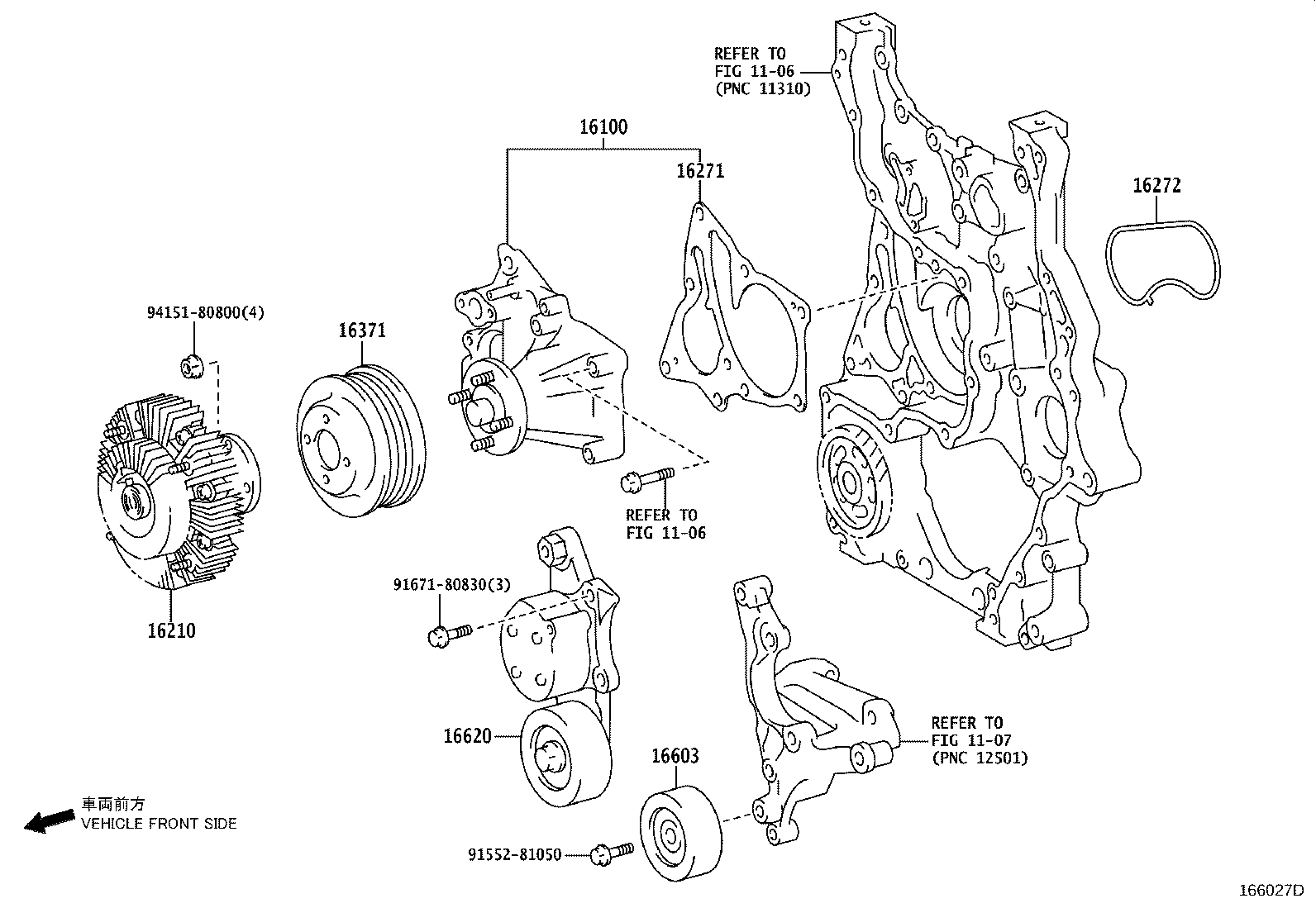

Figure 166027D

166027D 2015-06 → —

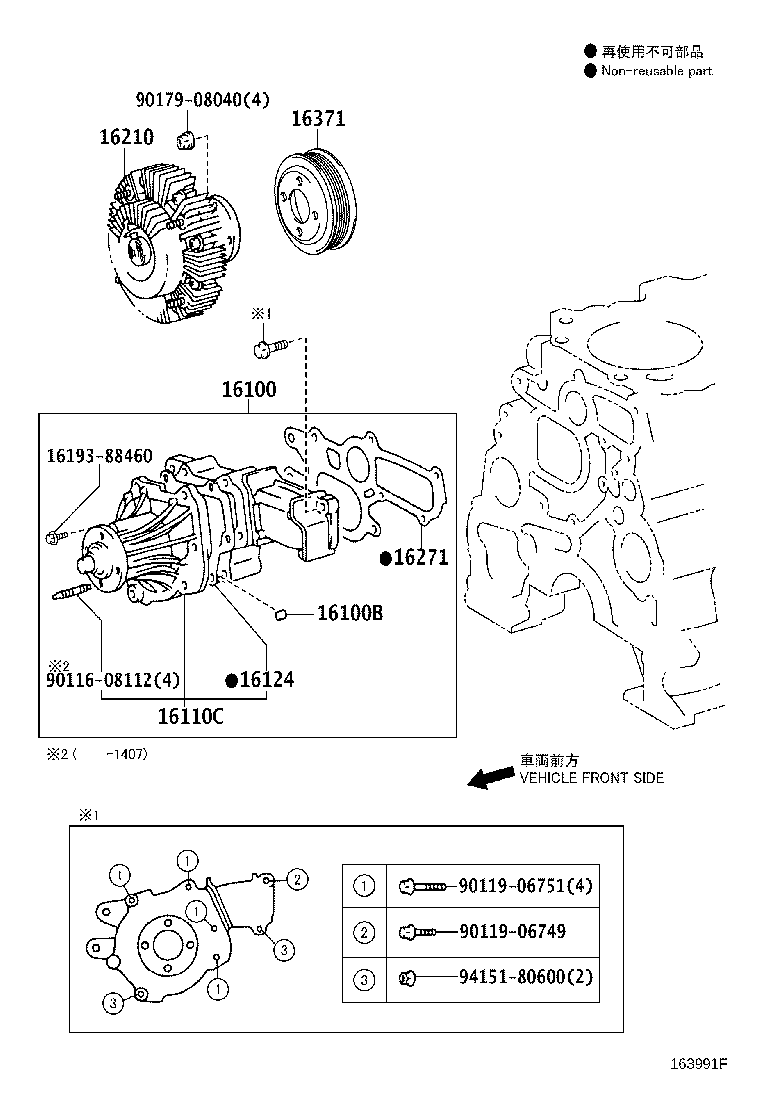

Figure 163991F

163991F 2009-08 → —

Part groups

PNC	Description
16100	Pump Assy, Engine Water
16100B	Pin, Ring(FOR WATER PUMP SET)
16110C	Pump Assy, Water, W/O Cover
16124	Gasket, Water Pump Cover
16193A	Bolt(FOR WATER PUMP COVER)
16210	Coupling Assy, Fluid
16271	Gasket, Water Pump
16272	Gasket, Water Pump, NO.2
16371	Pulley, Fan
16603	Pulley Sub-assy, Idler, NO.1
16604	Pulley Sub-assy, Idler, NO.2
16620	Tensioner Assy, V-ribbed Belt
16649B	Plate, Idler Pulley Cover
16659	Plate, Idler Pulley Cover, NO.2
