Toyota Land Cruiser Prado

2009-08 → 2017-08 · chassis GDJ15#,GRJ150,KDJ15# · catalogue 781560 · Europe

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

V-belt

2 part groups · 2 illustrations

Illustrations

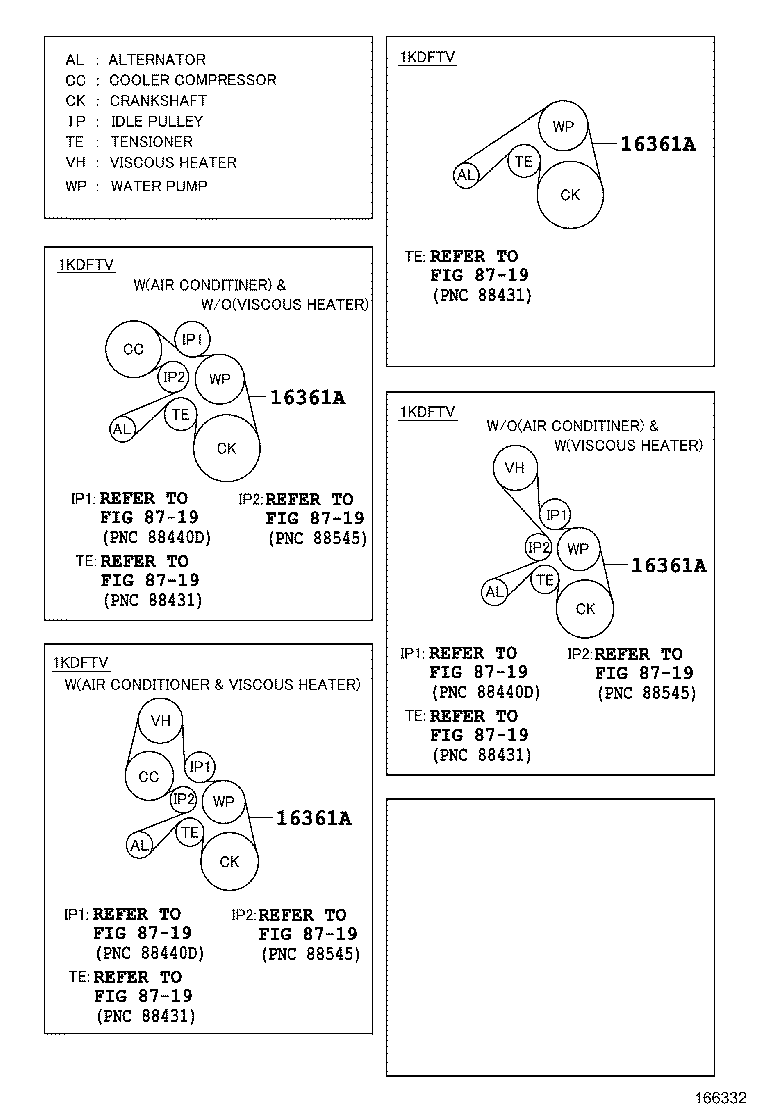

Figure 164027C 164027C 2009-08 → — Figure 166332 166332 2009-08 → —

Part groups

PNCDescription
16361A Belt, V(FOR FAN & ALTERNATOR)
88359 Belt, V(FOR VISCOUS HEATER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
