Toyota Land Cruiser Prado

2009-08 → 2017-08 · chassis GDJ15#,GRJ150,KDJ15# · catalogue 781560 · Europe

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

59 part groups · 11 illustrations

Illustrations

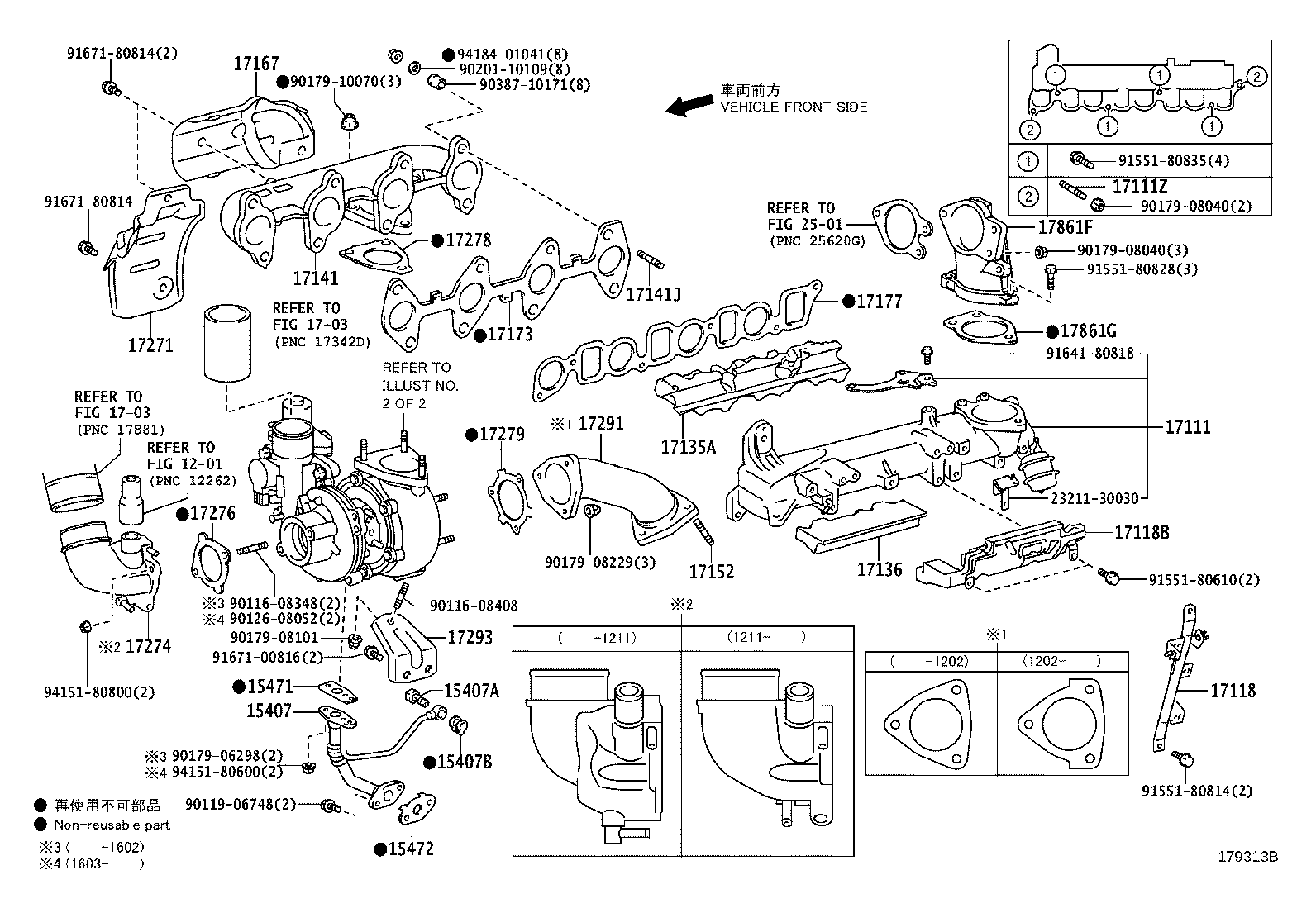

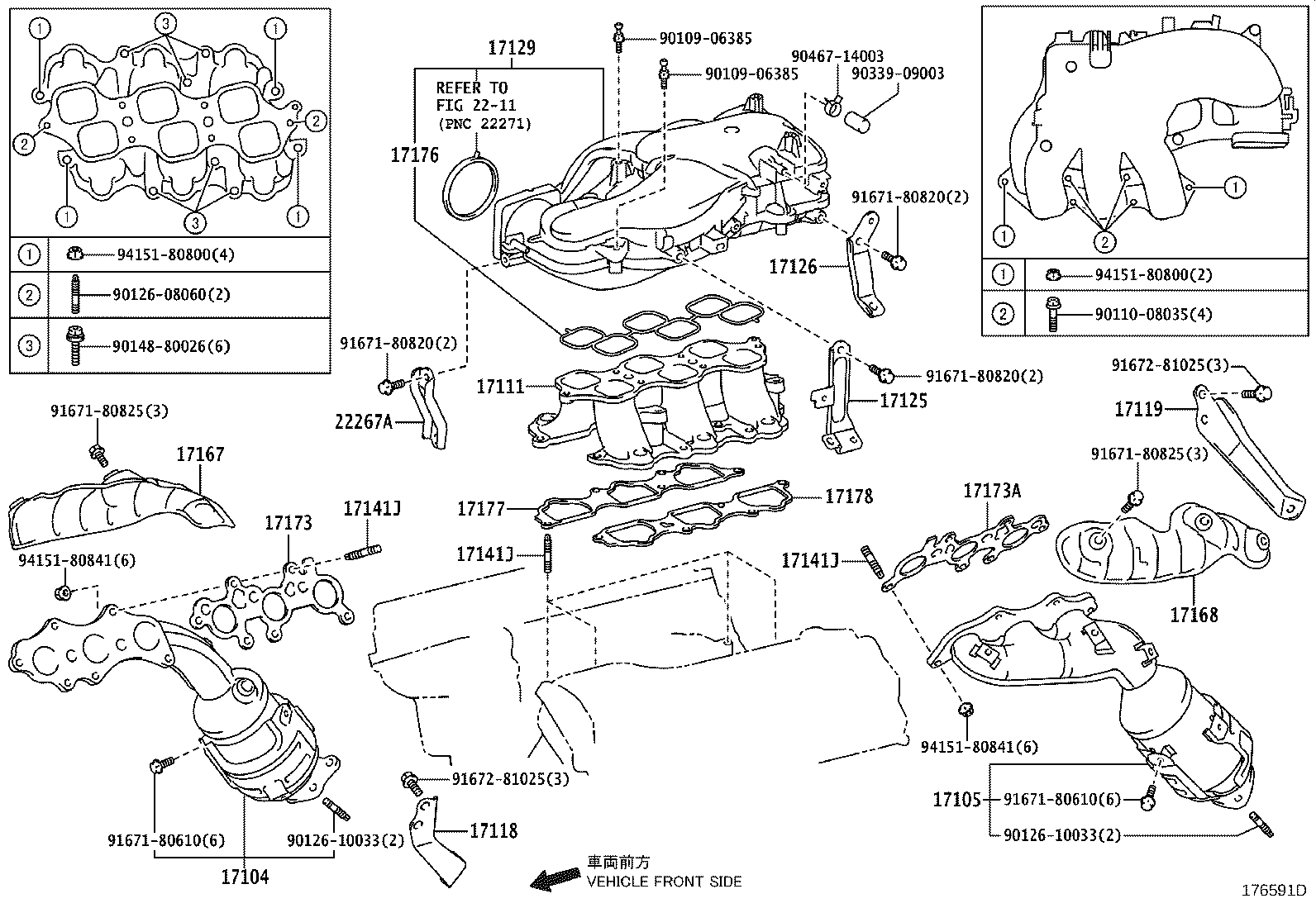

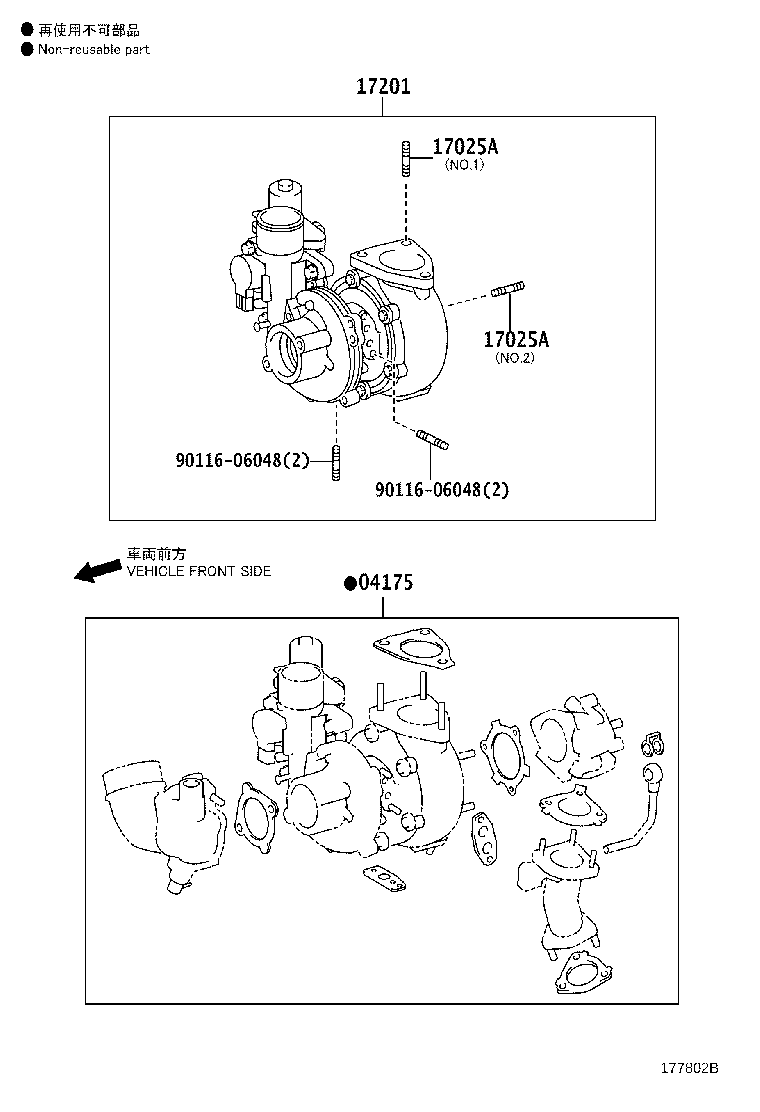

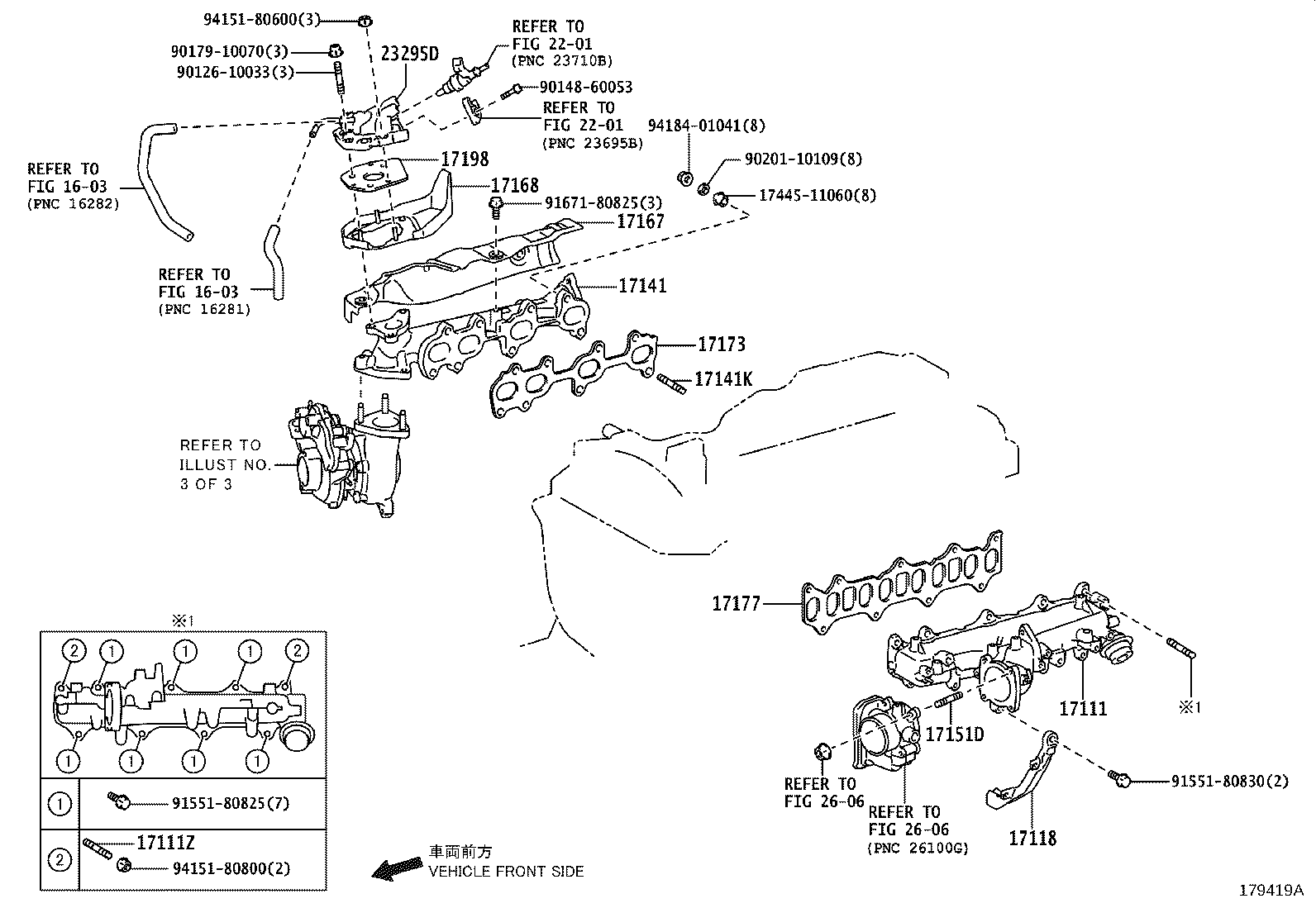

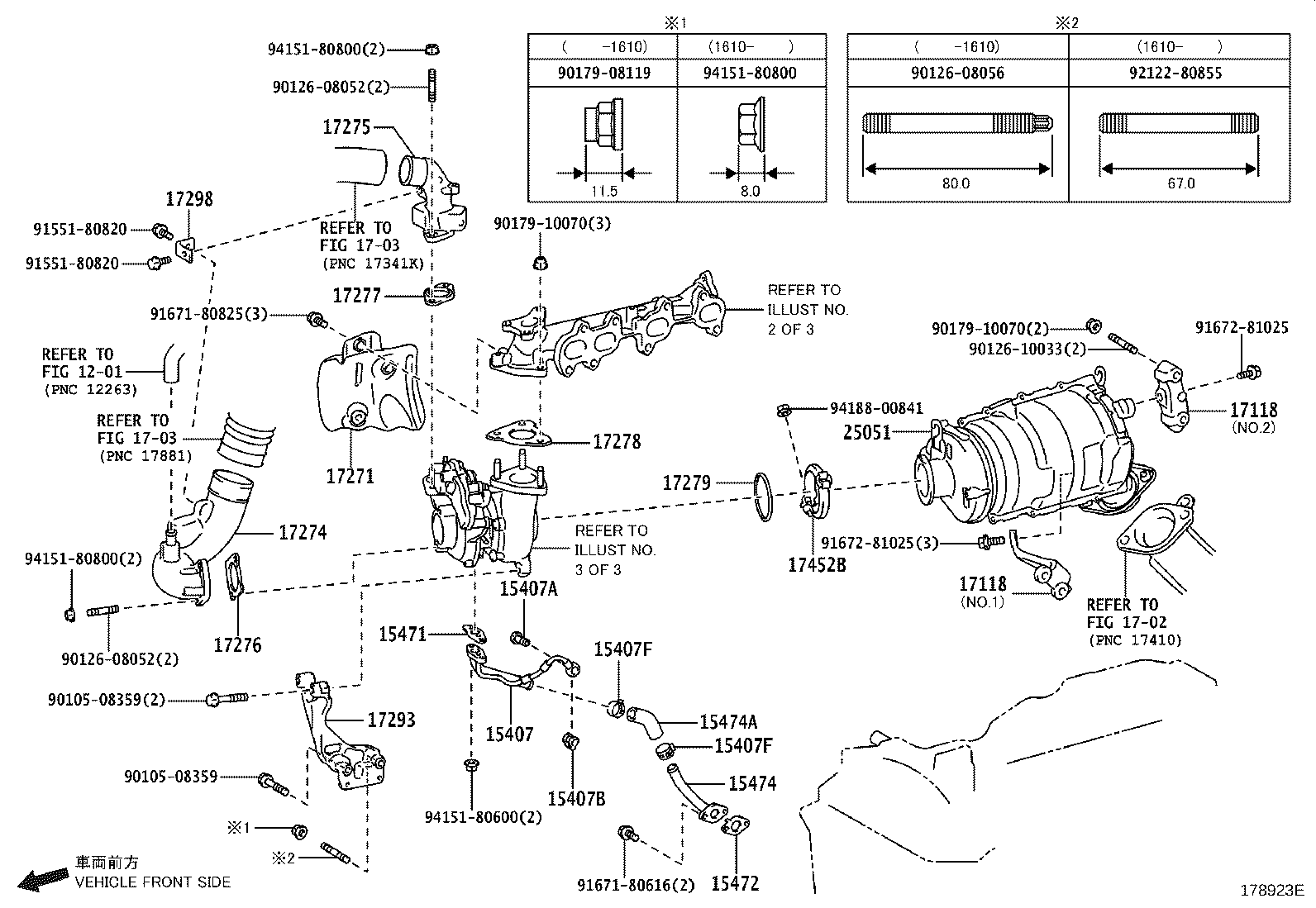

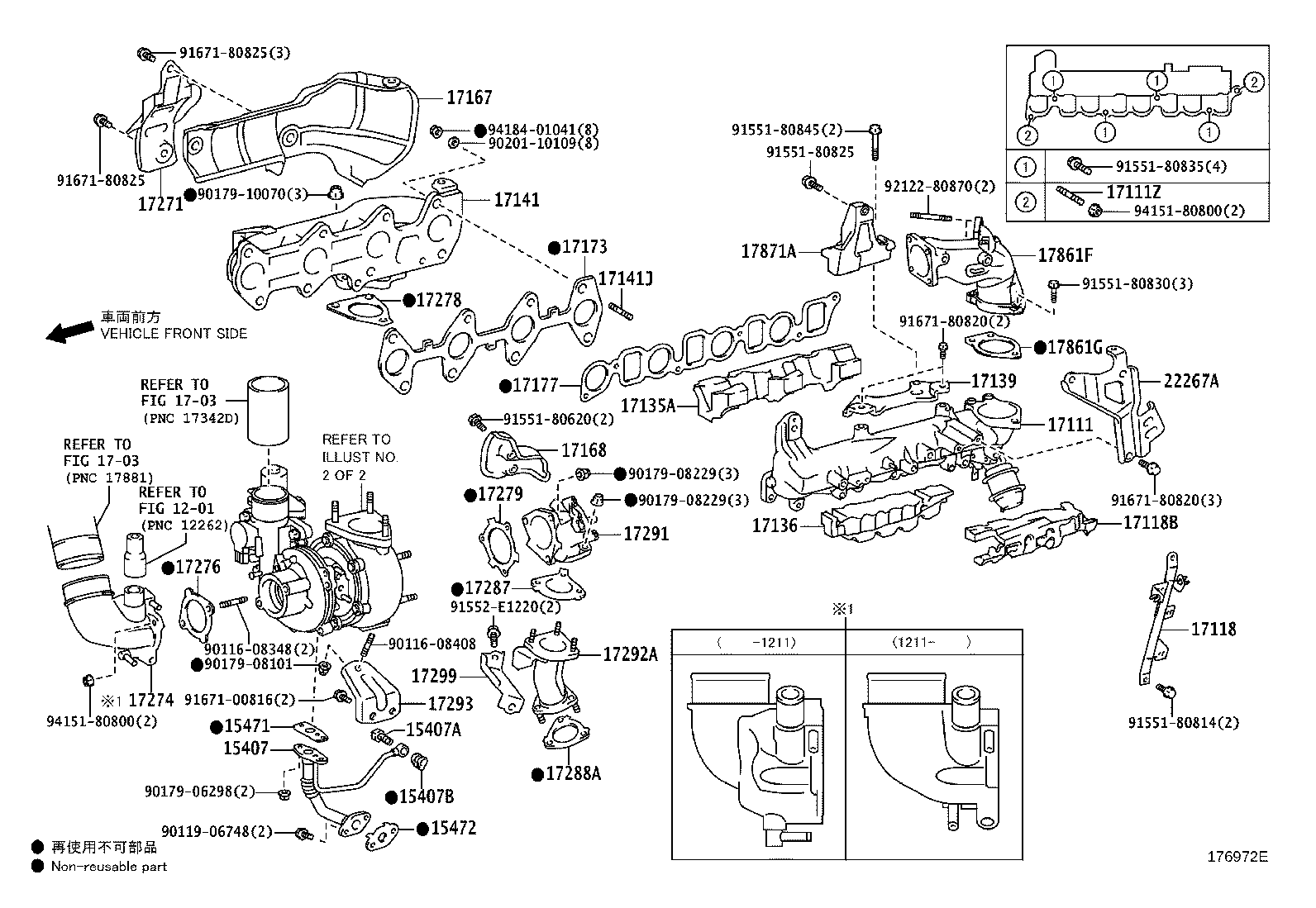

Figure 176956A 176956A 2009-08 → — Figure 176591D 176591D 2009-08 → — Figure 178923E 178923E 2015-06 → — Figure 179419A 179419A 2015-06 → — Figure 178961E 178961E 2015-06 → — Figure 179313B 179313B 2009-08 → 2013-08 Figure 179313B 179313B 2013-08 → — Figure 177557C 177557C 2009-08 → 2013-08 Figure 177557C 177557C 2013-08 → — Figure 176972E 176972E 2010-10 → 2015-06 Figure 177802B 177802B 2010-10 → 2015-06

Part groups

PNCDescription
04175 Gasket Kit, Turbocharger
15407 Pipe Sub-assy, Turbo Oil Inlet
15407A Bolt, Union(FOR TURBO OIL INLET PIPE)
15407B Gasket(FOR TURBO OIL INLET PIPE)
15407F Clamp OR Clip, Oil Hose
15471 Gasket, Turbo Oil Inlet
15472 Gasket, Turbo Oil Outlet, NO.1
15474 Pipe, Turbo Oil Outlet
15474A Hose, Turbo Oil Outlet
17025A Bolt, Stud(FOR TURBINE HOUSING)
17104 Manifold Sub-assy, Exhaust, RH
17105 Manifold Sub-assy, Exhaust, LH
17111 Manifold, Intake
17111Z Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17118 Stay, Manifold
17118B Insulator, Intake Manifold
17119 Stay, Manifold, NO.2
17125 Stay, Surge Tank, NO.1
17126 Stay, Surge Tank, NO.2
17129 Tank, Intake Air Surge
17135A Insulator, Intake Manifold, NO.1
17136 Insulator, Intake Manifold, NO.2
17139 Stay, Manifold, NO.2
17141 Manifold, Exhaust
17141J Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
17141K Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
17151D Bolt, Stud(MANIFOLD TO THROTTLE BODY)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17173A Gasket, Exhaust Manifold TO Head, LH
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
17178 Gasket, Intake Manifold TO Head, NO.2
17198 Gasket, Exhaust Manifold, NO.2
17201 Turbocharger Sub-assy
17271 Insulator, Turbo, NO.1
17274 Elbow, Compressor Inlet
17275 Elbow, Compressor Outlet
17276 Gasket, Compressor Inlet
17277 Gasket, Compressor Outlet
17278 Gasket, Turbo TO Exhaust Manifold
17279 Gasket, Turbine Outlet Elbow
17287 Gasket, Turbine Outlet Elbow, NO.2
17288A Gasket, Turbine Outlet Elbow, NO.3
17291 Elbow, Turbine Outlet
17292A Elbow, Turbine Outlet, NO.2
17293 Stay, Turbocharger
17298 Stay, Compressor Elbow
17299 Stay, Turbine Outlet Elbow
17452B Clamp, Exhaust Pipe
17861F Connector, Intake Air
17861G Gasket, Intake Air Connector
17871A Stay, Air Connector
22267A Bracket, Throttle Body
23295D Holder, Injector, NO.1
25051 Converter Sub-assy, Exhaust Manifold
89674 Motor, Turbocharger Variable Nozzle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
