Toyota Land Cruiser Prado

2009-08 → 2017-08 · chassis GDJ15#,GRJ150,KDJ15# · catalogue 781560 · Europe

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

32 part groups · 6 illustrations

Illustrations

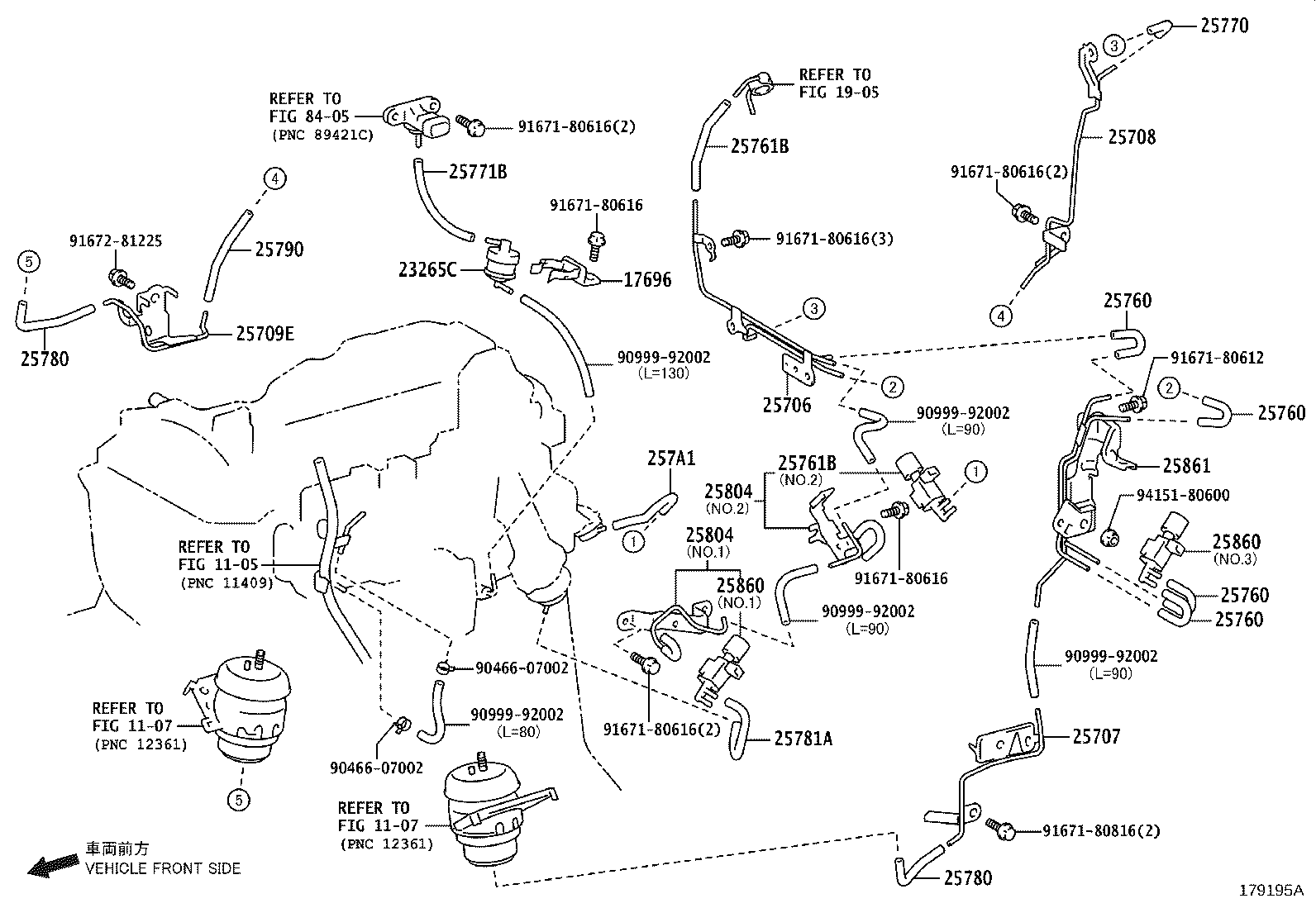

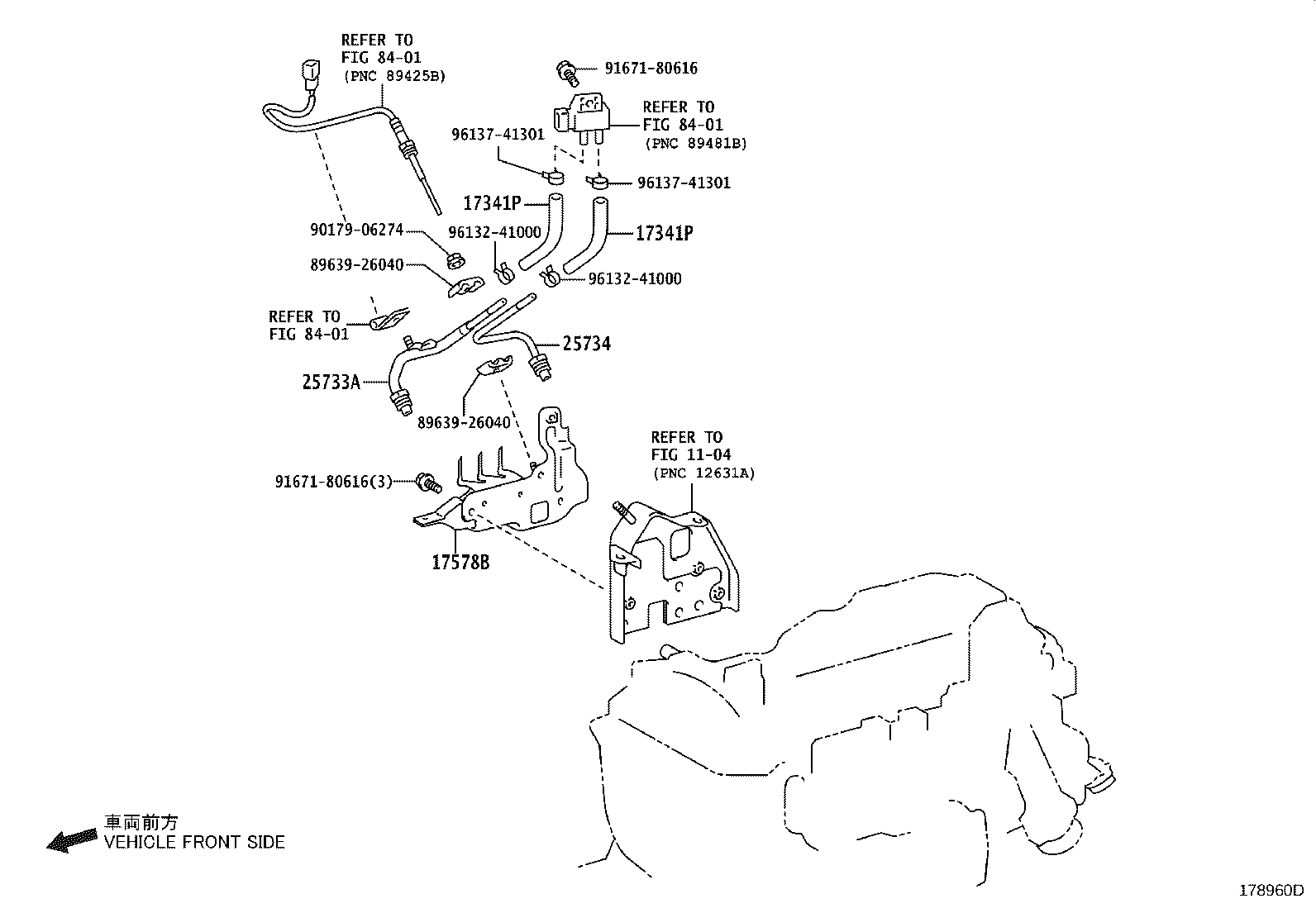

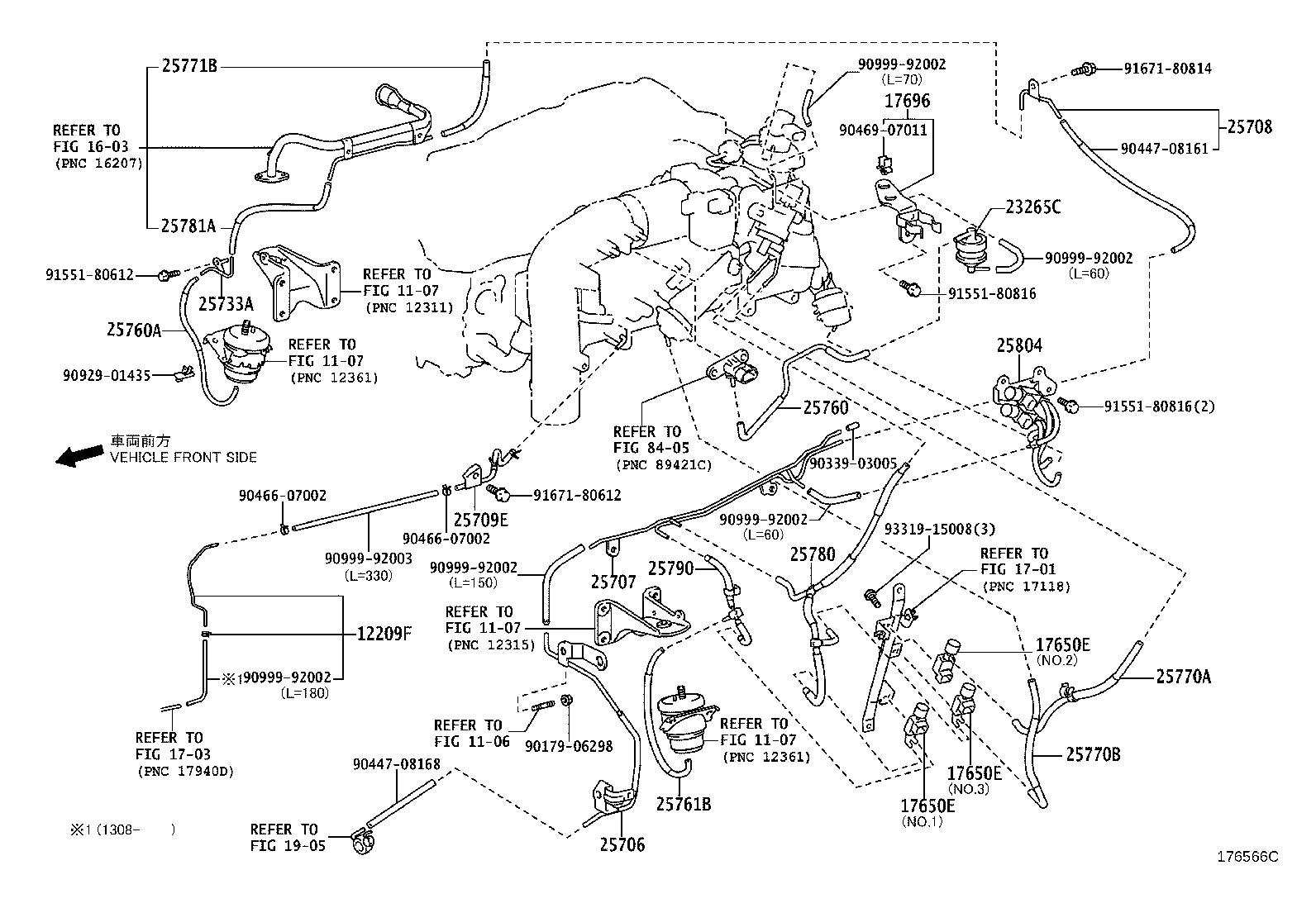

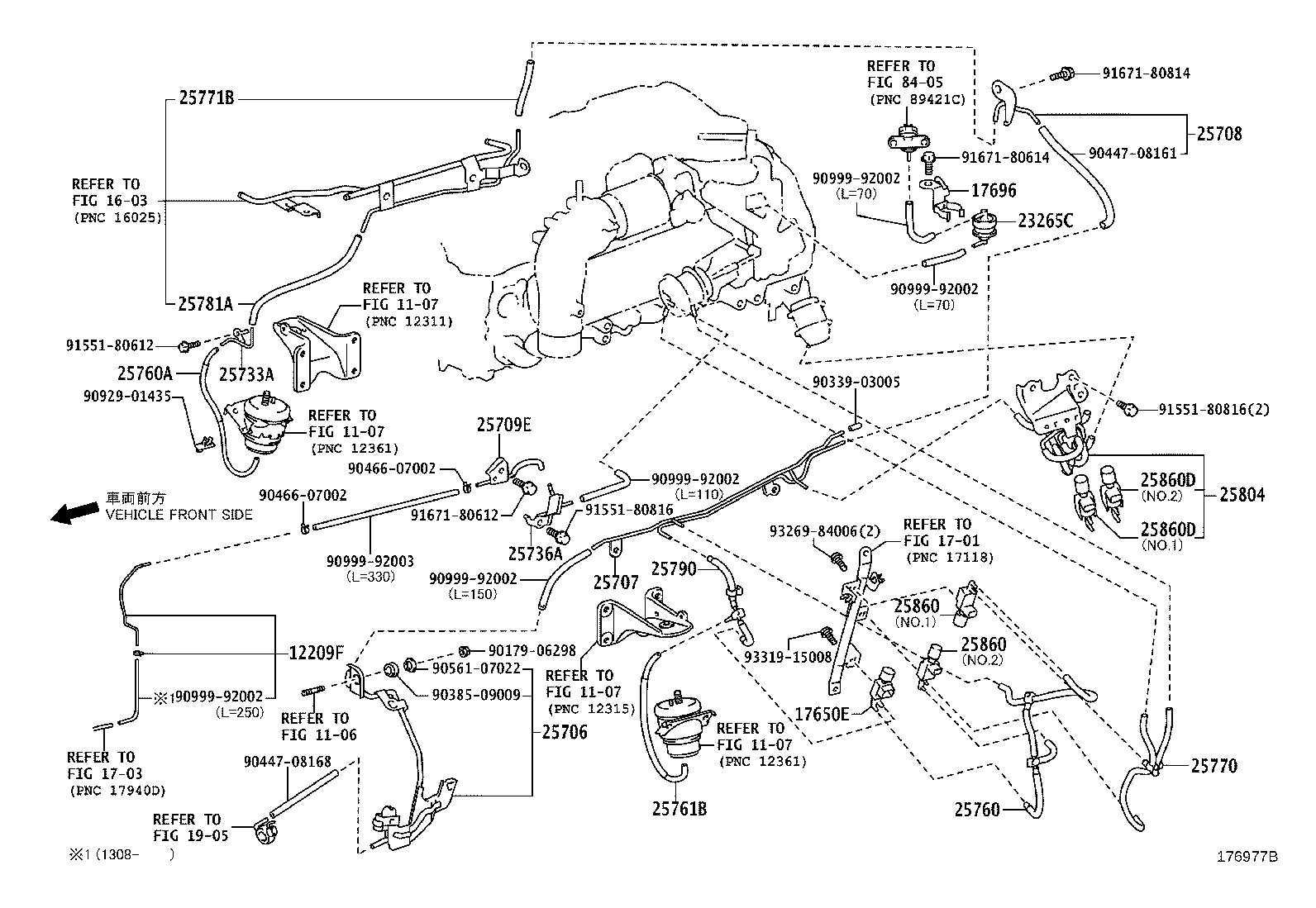

Figure 176584B 176584B 2009-08 → — Figure 178960D 178960D 2015-06 → — Figure 179195A 179195A 2015-06 → — Figure 176566C 176566C 2009-08 → 2013-08 Figure 176566C 176566C 2013-08 → — Figure 176977B 176977B 2010-10 → 2015-06

Part groups

PNCDescription
12209F Pipe Sub-assy, Oil Return
17341P Hose, Air
17578B Clamp, Pipe
17650E Valve, Vacuum Switching
17650G Valve, Duty Vacuum Switching
17696 Bracket, Gas Filter
23265C Filter, Gas
23820 Hose Assy, Fuel Vapor Feed
23826 Hose, Fuel Vapor Feed, NO.1
23829B Clip(FOR FUEL VAPOR FEED HOSE)
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25708 Pipe Sub-assy, Vacuum Transmitting, NO.3
25709E Pipe Sub-assy, Vacuum Transmitting, NO.4
25733A Pipe, Vacuum, NO.1
25734 Pipe, Vacuum, NO.2
25736A Pipe, Vacuum Transmitting, NO.1
25760 Hose Assy, Vacuum Transmitting
25760A Hose Assy, Vacuum Transmitting
25761B Hose, Vaccum Transmitting, NO.1
25770 Hose Assy, Vacuum Transmitting, NO.2
25770A Hose Assy, Vacuum Transmitting, NO.2
25770B Hose Assy, Vacuum Transmitting, NO.3
25771B Hose, Vaccum Transmitting, NO.2
25780 Hose Assy, Vacuum Transmitting, NO.3
25781A Hose, Vacuum Transmitting, NO.3
25790 Hose Assy, Vacuum Transmitting, NO.4
257A1 Hose, Vacuum Transmitting, NO.5
25804 Valve Set, Vacuum Control
25860 Valve Assy, Vacuum Switching, NO.1
25860D Valve Assy, Vacuum Switching, NO.2
25861 Bracket, Vacuum Switching Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
