Toyota Land Cruiser Prado

2009-08 → 2017-08 · chassis GDJ15#,GRJ150,KDJ15# · catalogue 781560 · Europe

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

12 part groups · 5 illustrations

Illustrations

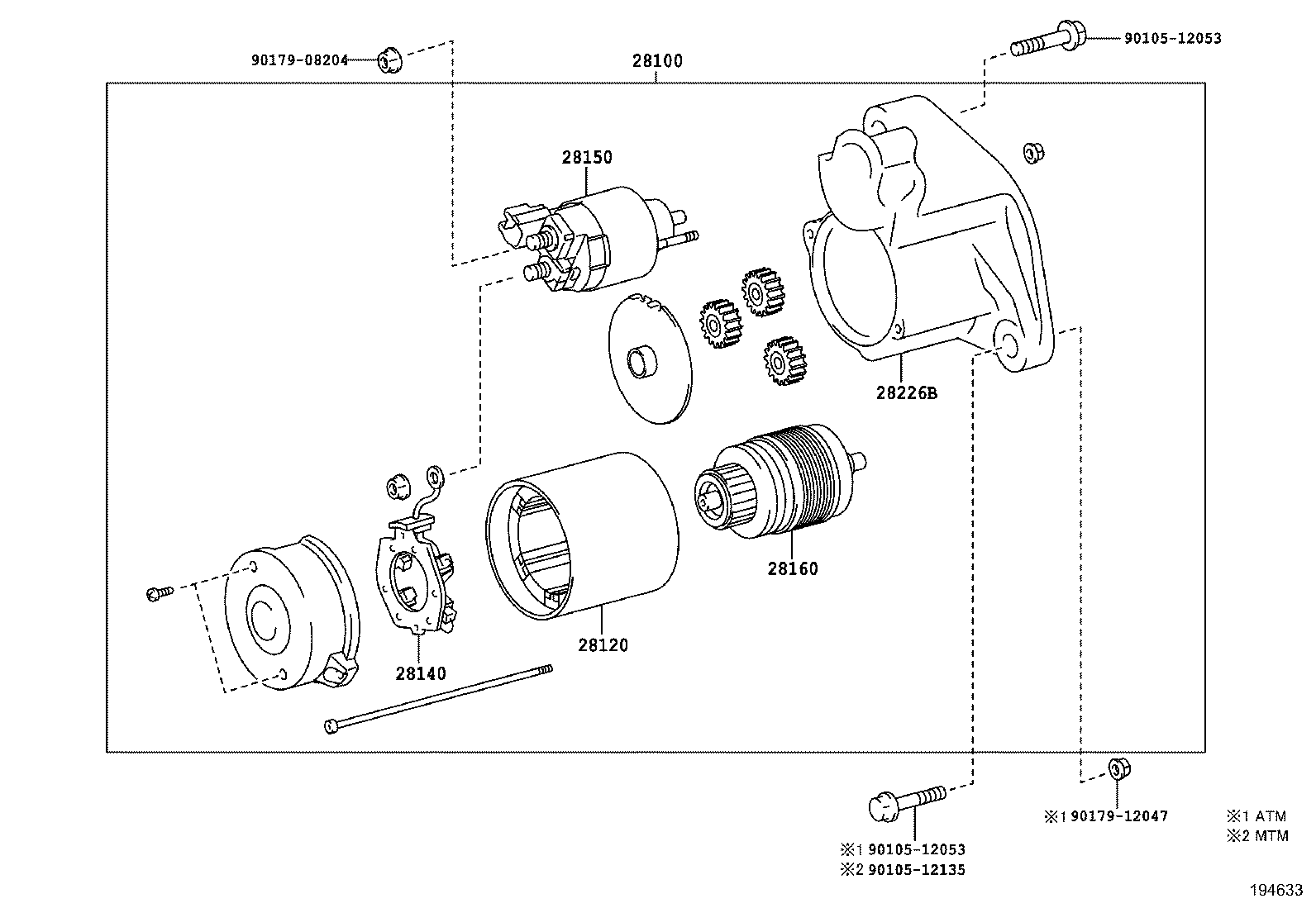

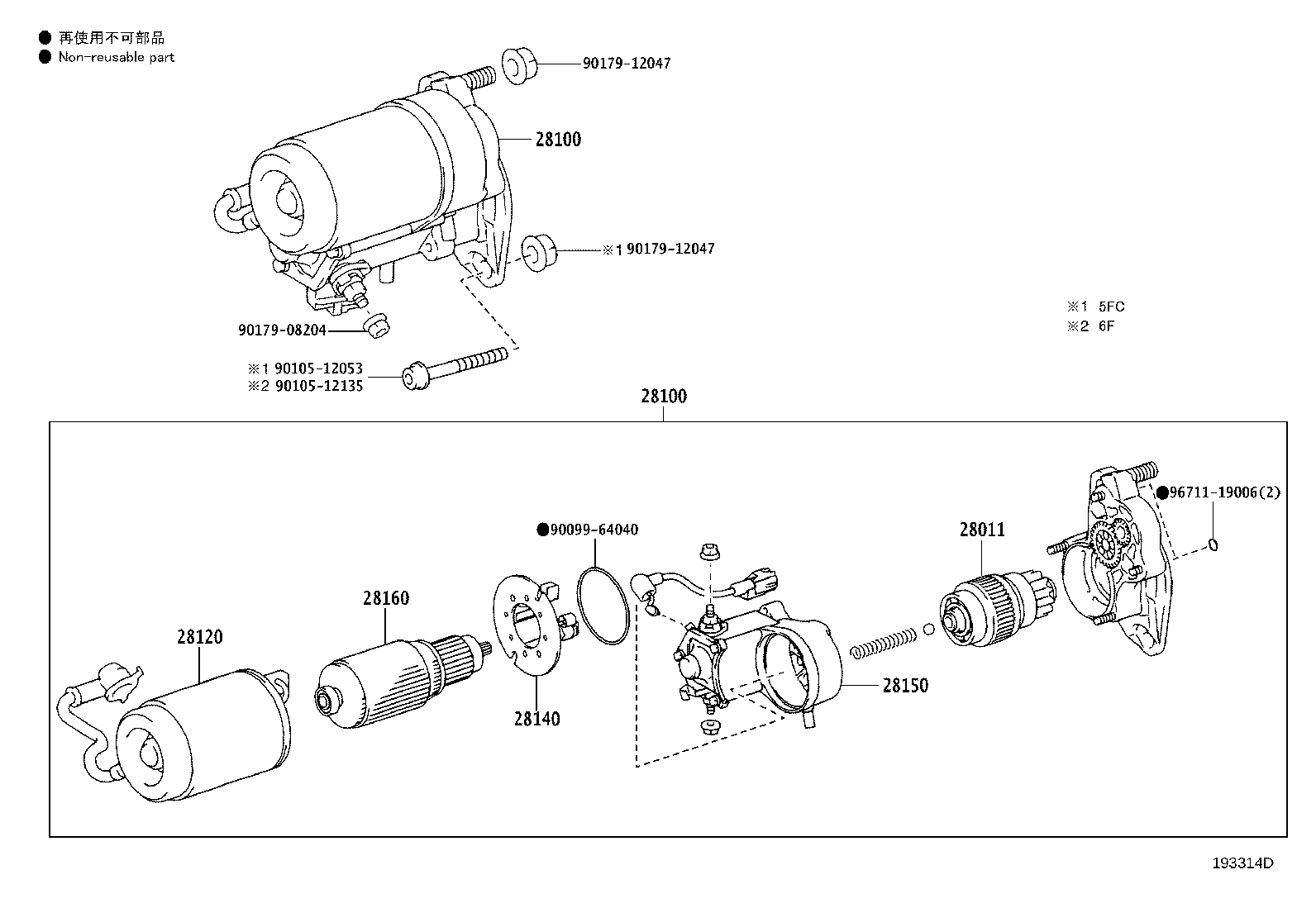

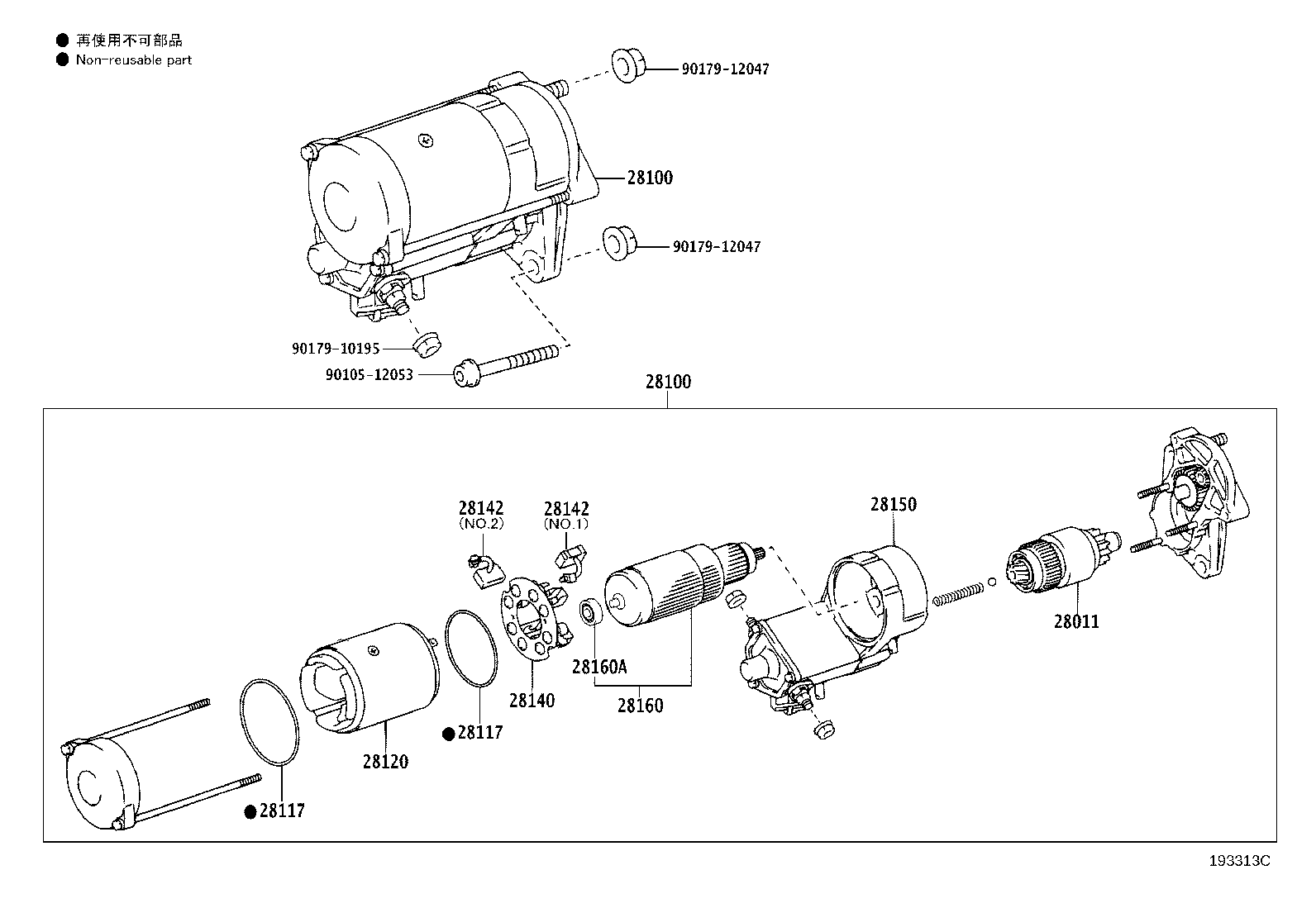

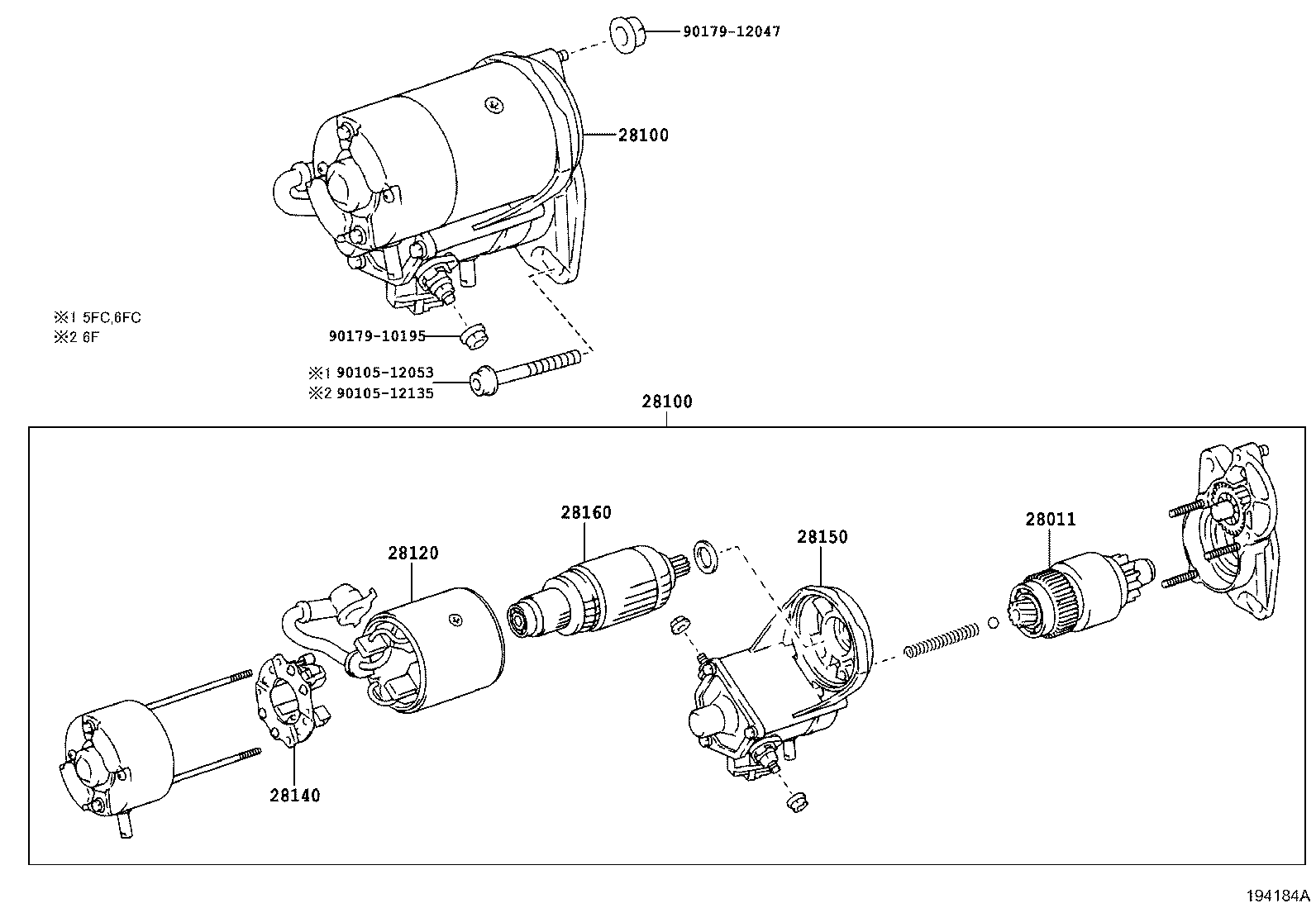

Figure 193324D 193324D 2009-08 → — Figure 193314D 193314D 2009-08 → — Figure 194184A 194184A 2009-08 → — Figure 193313C 193313C 2009-08 → — Figure 194633 194633 2015-06 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28100 Starter Assy
28117 Rubber(FOR STARTER YOKE)
28120 Yoke Assy, Starter
28120A Ring, O(FOR STARTER YOKE)
28140 Holder Assy, Starter Brush
28142 Brush, Starter
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
28160A Bearing, Starter Armature
28192 Cover, Starter
28226B Starter Kit, Repair Service
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
