Toyota Land Cruiser Prado

2009-08 → 2017-08 · chassis GDJ15#,GRJ150,KDJ15# · catalogue 781560 · Europe

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Nozzle

28 part groups · 4 illustrations

Illustrations

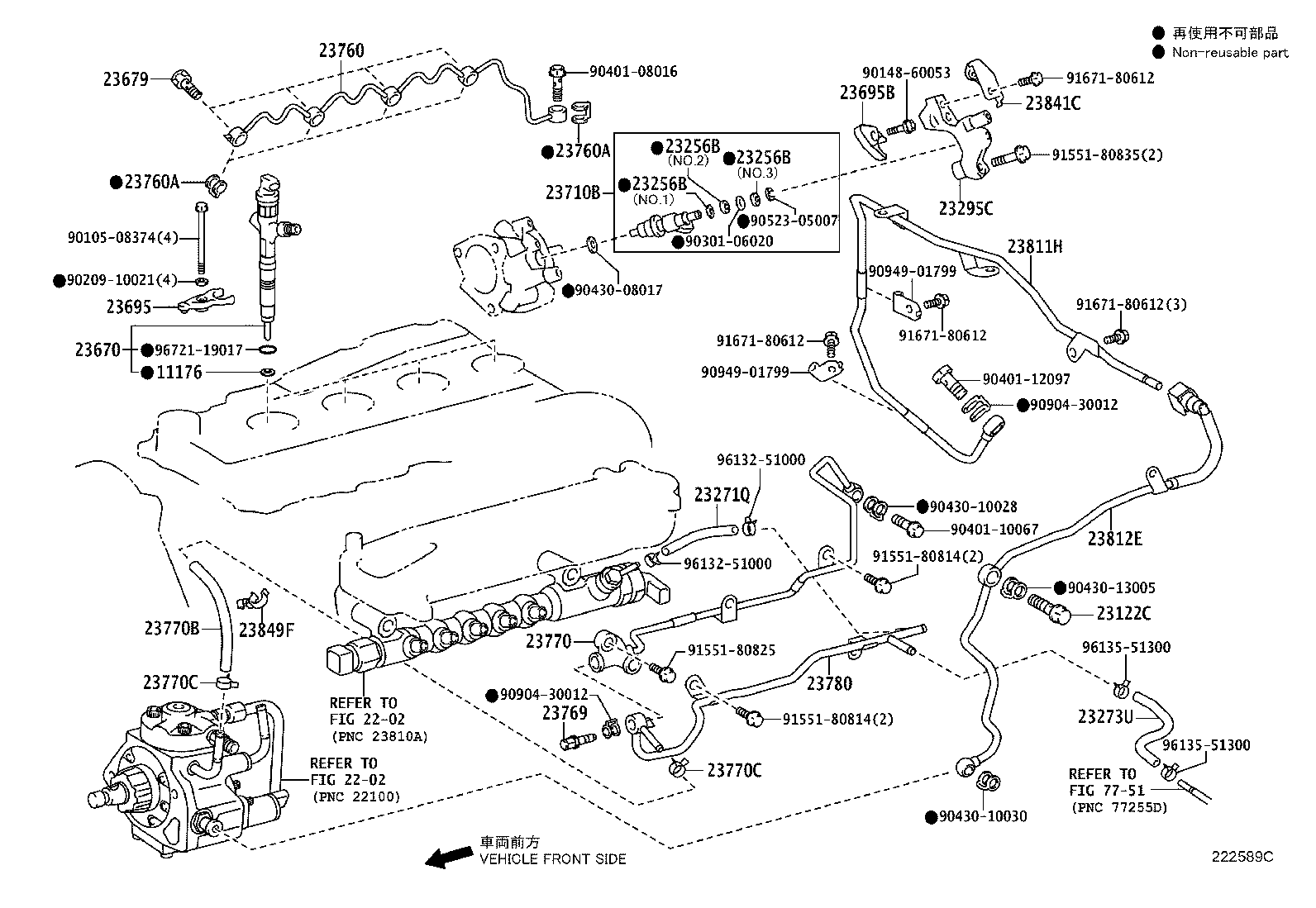

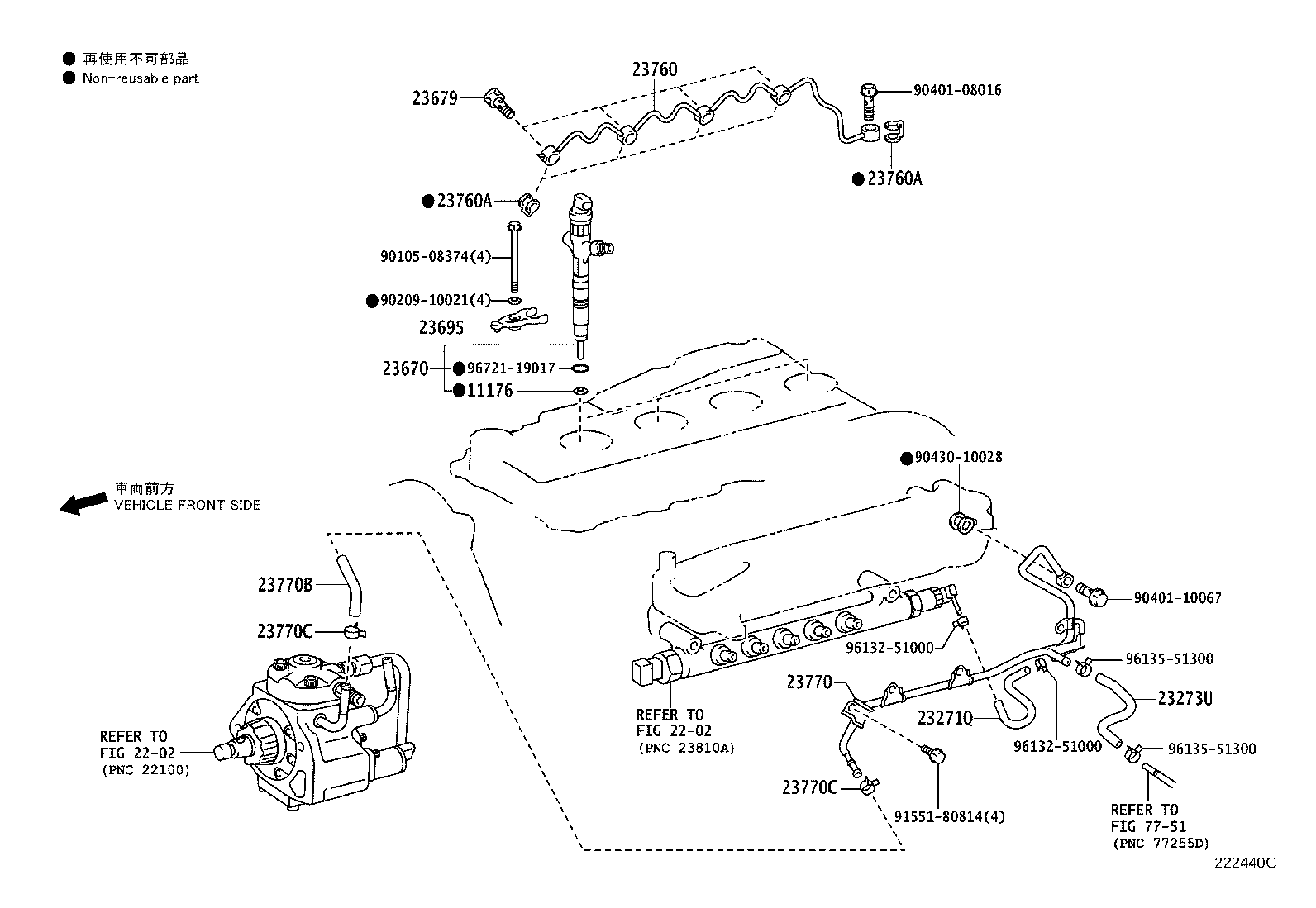

Figure 223176B 223176B 2015-06 → — Figure 222440C 222440C 2009-08 → 2013-08 Figure 222440C 222440C 2013-08 → — Figure 222589C 222589C 2010-10 → 2015-06

Part groups

PNCDescription
11176 Seat, Injection Nozzle
23122C Valve, Check
23256B Ring, Fuel Injector Back-up, NO.1
23257B Ring, Fuel Injector Back-up, NO.2
23258B Ring, Fuel Injector Back-up, NO.3
23271Q Hose, Fuel, NO.1
23273U Hose, Fuel, NO.2
23282H Hose, Fuel, NO.4
23284C Hose, Fuel, NO.5
23286C Hose, Fuel, NO.6
23295C Holder, Injector
23670 Injector Assy
23679 Screw, Injector Follow
23695 Clamp, Nozzle Holder, NO.1
23695B Clamp, Nozzle Holder, NO.2
23699A Seat, Nozzle Holder Clamp
23710B Injector Assy, Exhaust Fuel Addition
23760 Pipe Assy, Nozzle Leakage
23760A Gasket
23769 Valve, Fuel Check
23770 Pipe Assy, Nozzle Leakage, NO.2
23770B Hose, Fuel
23770C Clamp OR Clip(FOR FUEL HOSE SET)
23780 Pipe, Nozzle Leakage, NO.3
23811H Pipe, Fuel, NO.1
23812E Pipe, Fuel, NO.2
23841C Clamp, Fuel Pipe, NO.1
23849F Support, Fuel Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
