Toyota Land Cruiser Prado
2009-08 → 2017-08 · chassis GDJ15#,GRJ150,KDJ15# · catalogue 781560 · Europe
Supported model
Data version 2018-02
Injection Pump Assembly

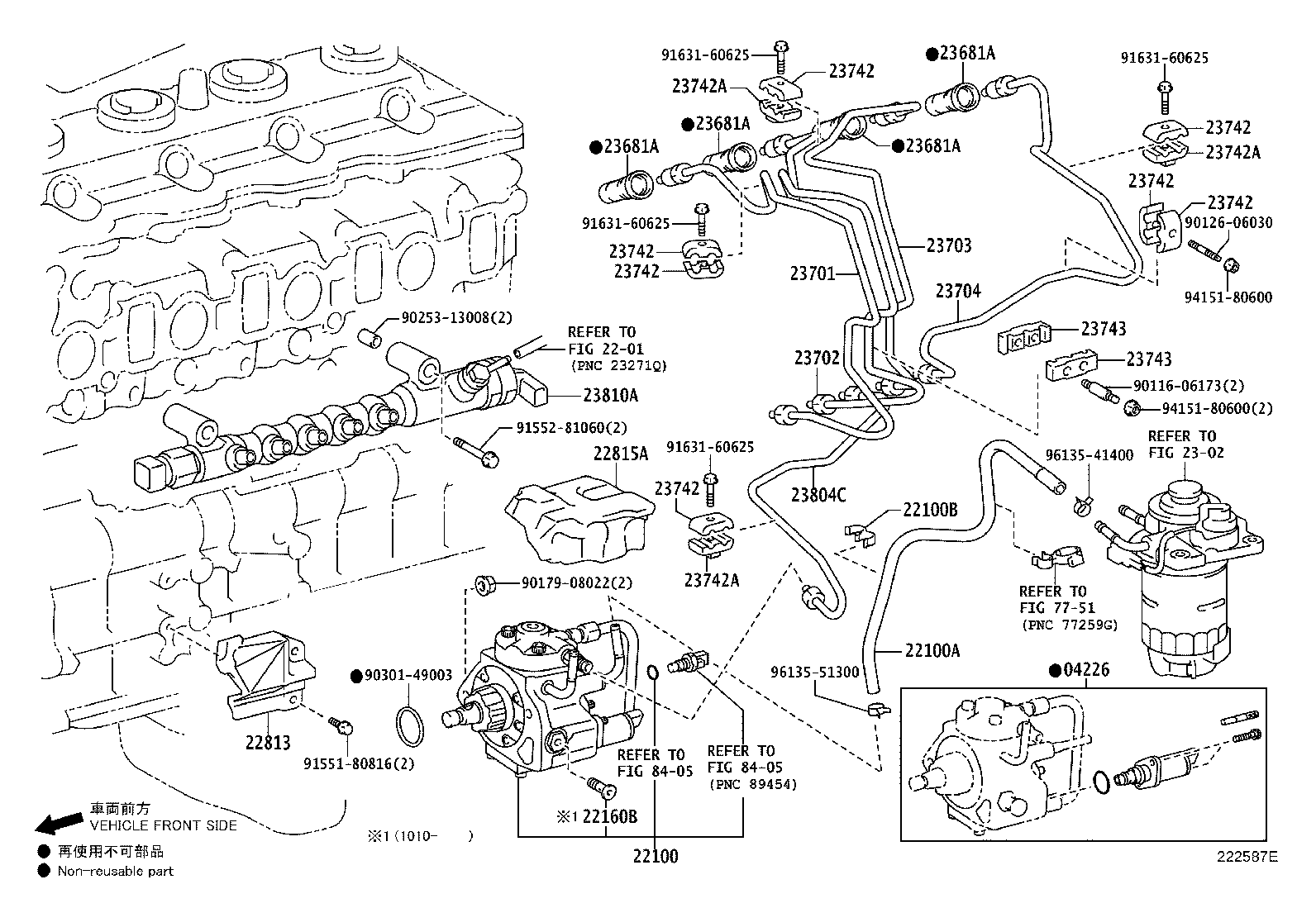

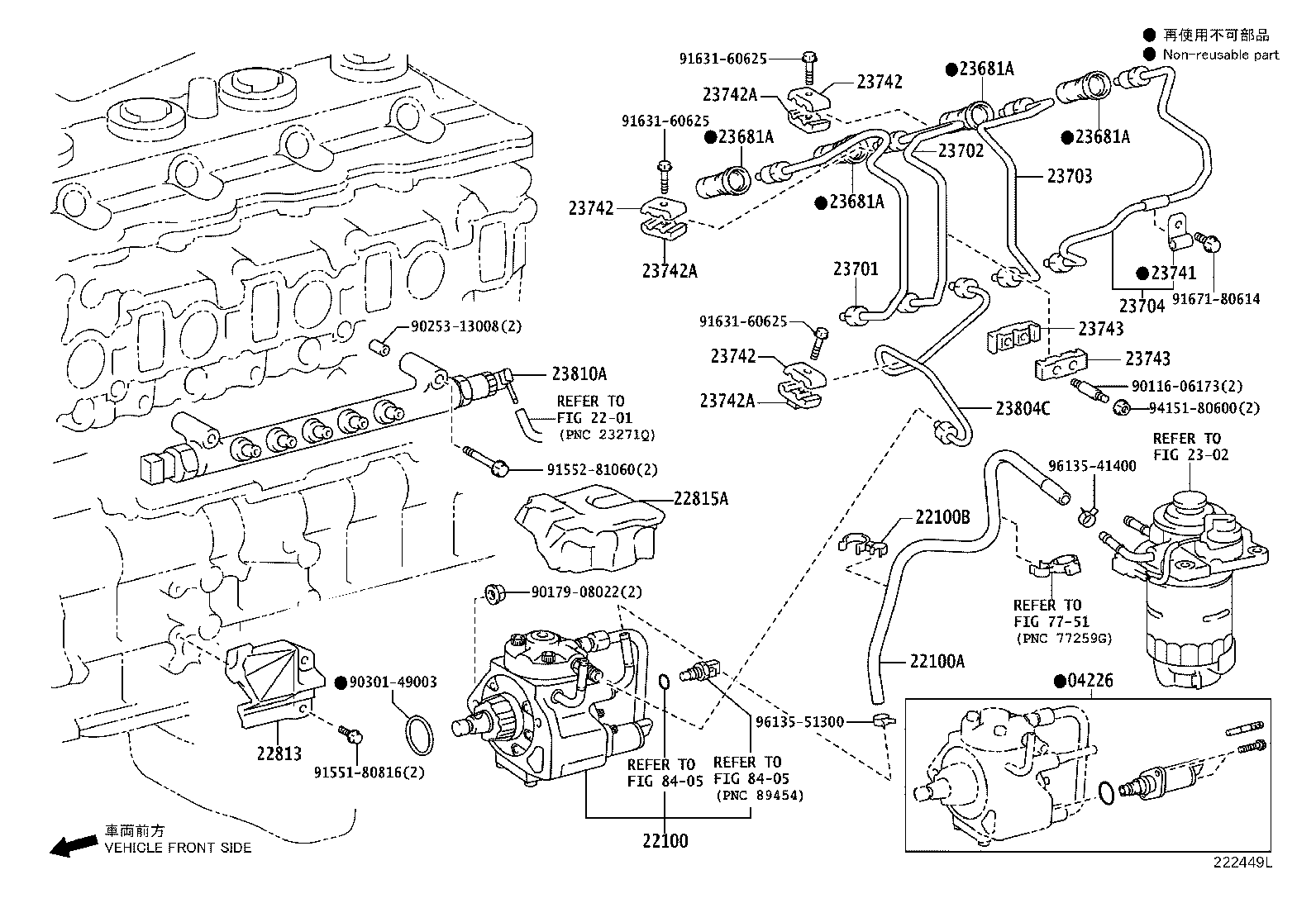

31 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04226 | Valve Kit, Suction Control |
| 22100 | Pump Assy, Injection OR Supply |
| 22100A | Hose OR Pipe, Fuel(FOR INJECTION PUMP TO FUEL FILTER) |
| 22100B | Clamp, Fuel Hose, NO.1 |
| 22160B | Screw |
| 22569B | Screw, Supply Pump Hollow |
| 22803 | Cover Sub-assy, Fuel Injection Pump |
| 22813 | Protector, Injection Pump, NO.1 |
| 22815A | Insulator, Injection Pump |
| 23243B | Wire, Fuel Pump Motor |
| 23265D | Bracket, Fuel Pump, NO.1 |
| 23271H | Hose, Fuel, NO.1 |
| 23271W | Clip(FOR FUEL HOSE NO.1) |
| 23273H | Hose, Fuel, NO.2 |
| 23273V | Clip(FOR FUEL HOSE NO.2) |
| 23681A | Seal, Nozzle Holder |
| 23701 | Pipe Sub-assy, Injection, NO.1 |
| 23702 | Pipe Sub-assy, Injection, NO.2 |
| 23703 | Pipe Sub-assy, Injection, NO.3 |
| 23704 | Pipe Sub-assy, Injection, NO.4 |
| 23741 | Clamp, Injection Pipe, NO.1 |
| 23741B | Clamp, Injection Pipe |
| 23742 | Clamp, Injection Pipe, NO.2 |
| 23742A | Clamp, Injection Pipe, NO.3 |
| 23743 | Clamp, Injection Pipe, NO.3 |
| 23804C | Pipe Sub-assy, Fuel Inlet |
| 23804D | Pipe Sub-assy, Fuel, NO.4 |
| 23810A | Rail Assy, Common |
| 23812D | Pipe, Fuel, NO.2 |
| 23815D | Pipe, Fuel, NO.3 |
| 27148A | Wire, Connecting |
