Toyota Land Cruiser Prado

2009-08 → 2017-08 · chassis GDJ15#,GRJ150,KDJ15# · catalogue 781560 · Europe

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

8 part groups · 4 illustrations

Illustrations

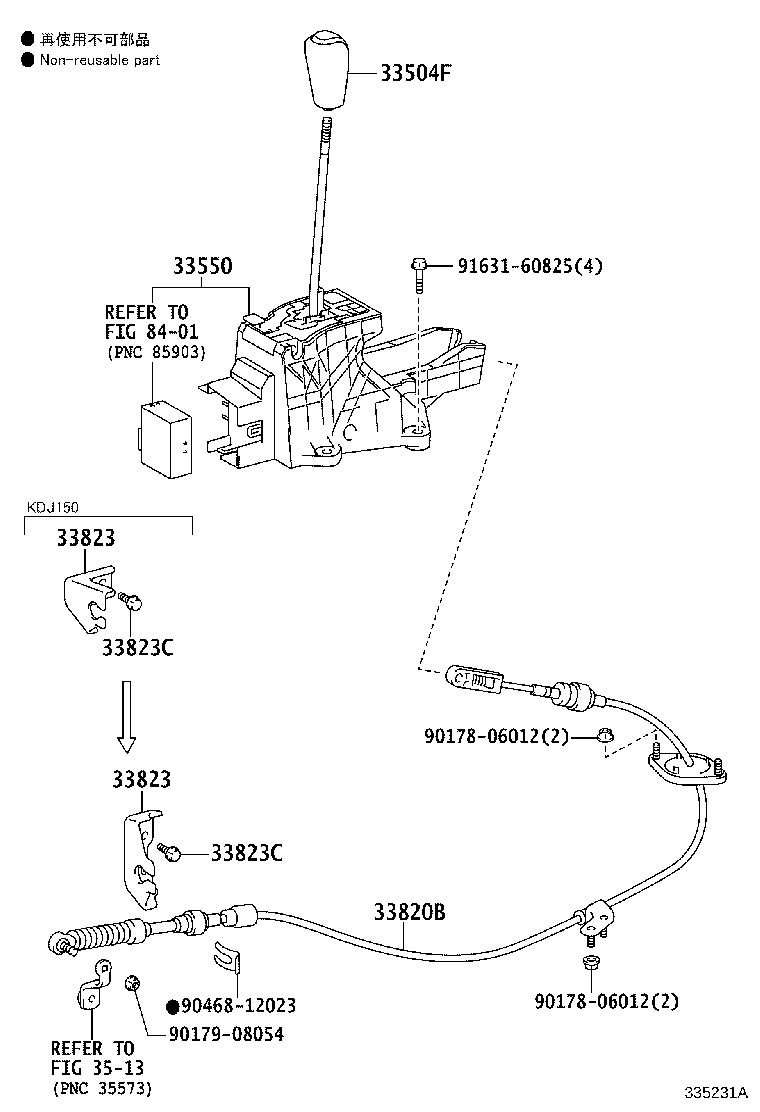

Figure 333973 333973 2009-08 → — Figure 333971 333971 2009-08 → 2015-06 Figure 333989B 333989B 2009-08 → 2015-06 Figure 335231A 335231A 2015-06 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33506F Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
33530F Lever Assy, Shift (FOR FLOOR SHIFT)
33548F Bush, NO.1, Shift Lever (FOR FLOOR SHIFT)
33550 Floor Shift Assy, Transmission
33820B Cable Assy, Transmission Control
33823 Bracket, Transmission Control Cable, NO.1
33823C Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
