Oil Cooler & Tube (ATM)

31 part groups · 4 illustrations

Illustrations

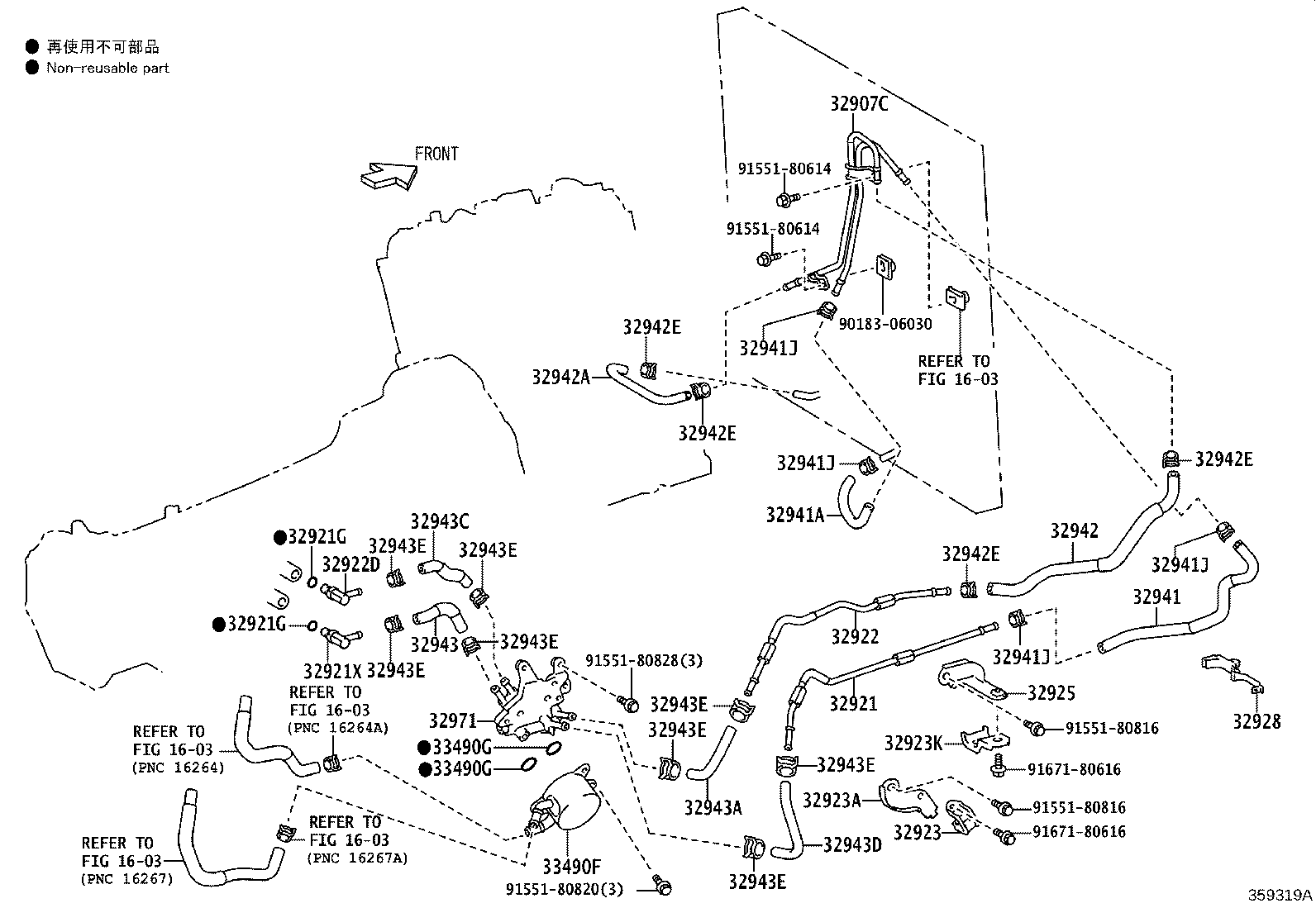

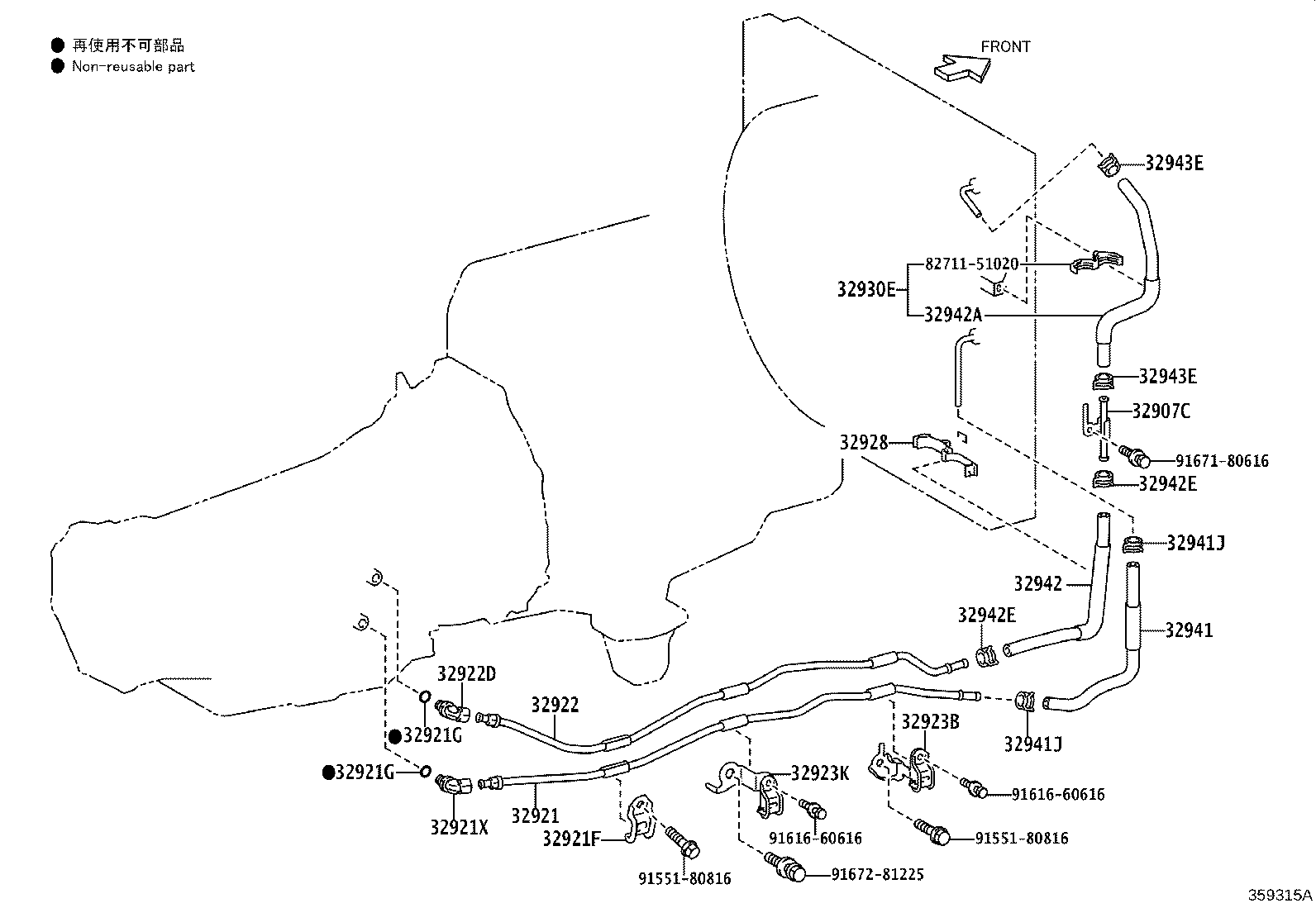

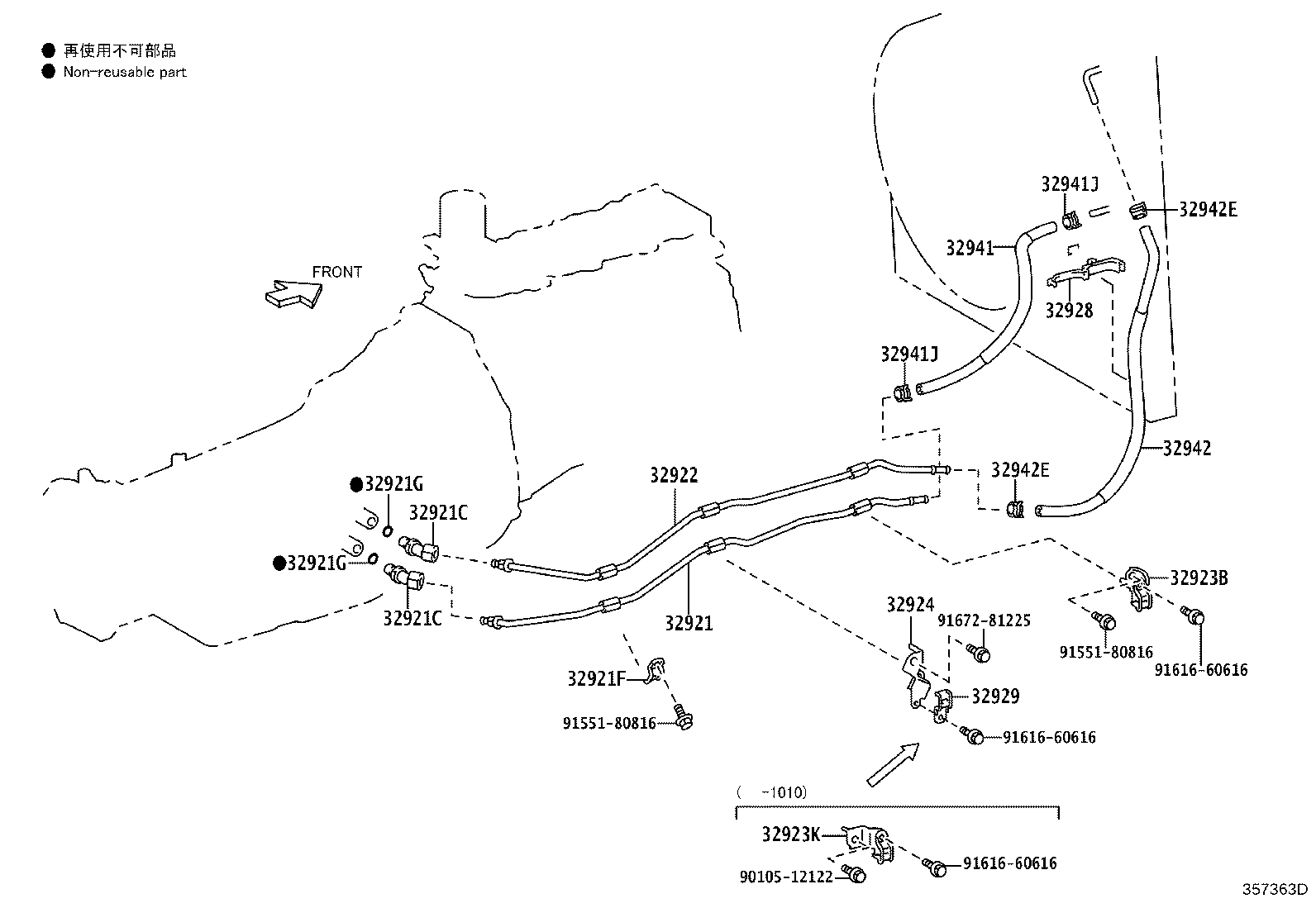

Figure 359143A 359143A 2009-08 → 2015-06 Figure 359315A 359315A 2015-06 → — Figure 359319A 359319A 2015-06 → — Figure 357363D 357363D 2009-08 → —

Part groups

PNCDescription
32907C Tube Sub-assy, Oil Cooler W/O Hose, NO.1
32921 Tube, Oil Cooler Inlet, NO.1
32921C Union(FOR OIL COOLER TUBE)
32921F Clamp(FOR OIL COOLER TUBE)
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32921X Union OR Elbow, Oil Cooler Inlet
32922 Tube, Oil Cooler Outlet, NO.1
32922D Union OR Elbow, Oil Cooler Outlet
32923 Clamp, Automatic Transmission Oil Cooler Tube
32923A Clamp, Automatic Transmission Oil Cooler Tube
32923B Clamp, Automatic Transmission Oil Cooler Tube, NO.1
32923K Clamp, Automatic Transmission Oil Cooler Tube, NO.2
32924 Clamp, Oil Cooler Tube, NO.2
32925 Clamp, Oil Cooler Tube, NO.3
32928 Clamp, Flexible Hose, NO.1
32929 Clamp, Flexible Hose, NO.2
32930E Hose Assy, Transmission Oil Cooler, NO.1
32941 Hose, Oil Cooler Inlet, NO.1
32941A Hose, Oil Cooler Inlet, NO.2
32941J Clip, NO.1(FOR OIL COOLER HOSE)
32942 Hose, Oil Cooler Outlet, NO.1
32942A Hose, Oil Cooler Outlet, NO.2
32942E Clip, NO.2(FOR OIL COOLER HOSE)
32943 Hose, Transmission Oil Cooler, NO.1
32943A Hose, Transmission Oil Cooler, NO.2
32943C Hose, Transmission Oil Cooler, NO.3
32943D Hose, Transmission Oil Cooler, NO.4
32943E Clip, NO.3(FOR OIL COOLER HOSE)
32971 Thermostat, Transmission Oil
33490F Cooler Assy, Transmission Oil
33490G Ring, O (FOR TRANSMISSION OIL COOLER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
