Toyota Land Cruiser Prado

2009-08 → 2017-08 · chassis GDJ15#,GRJ150,KDJ15# · catalogue 781560 · Europe

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

11 part groups · 4 illustrations

Illustrations

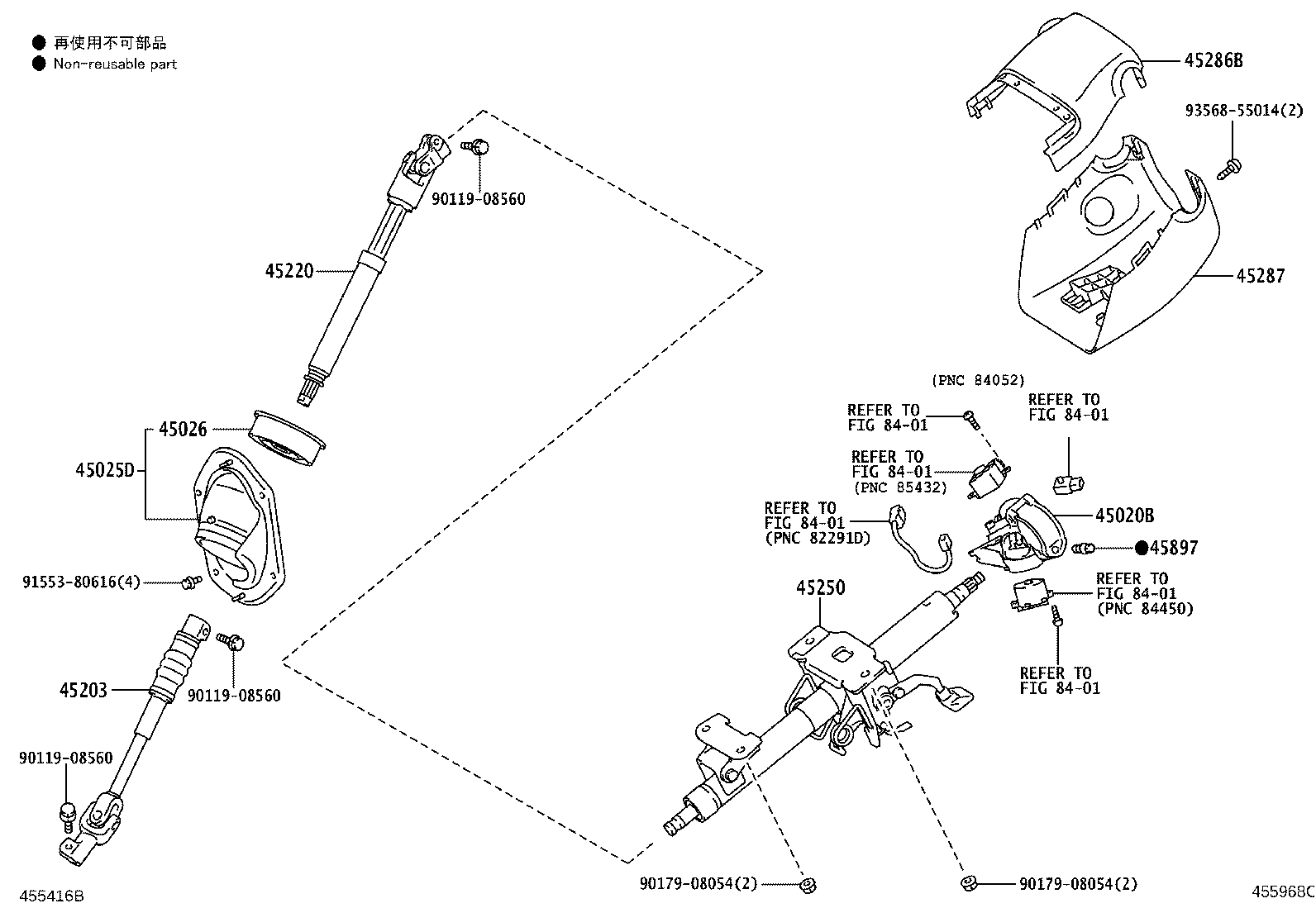

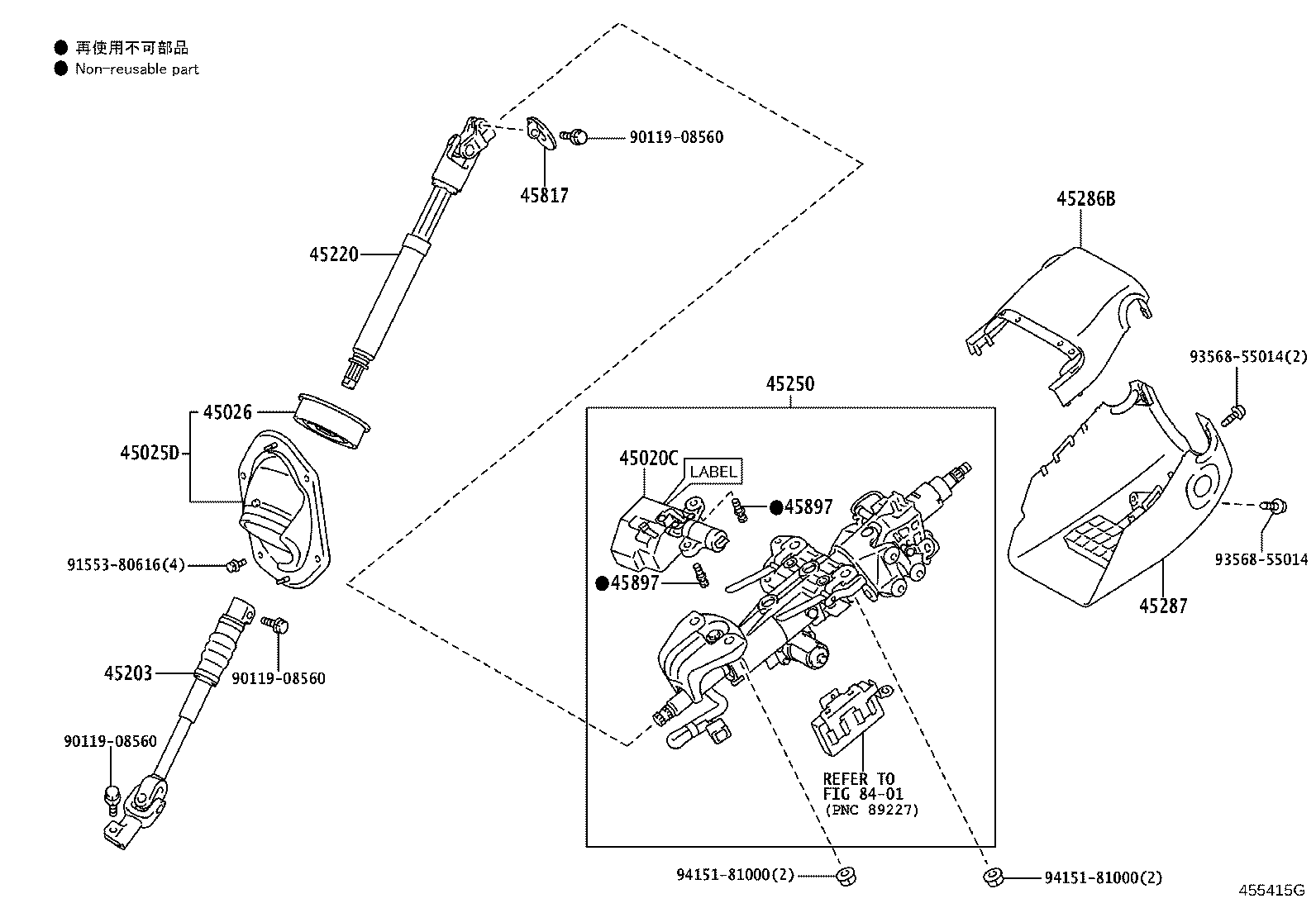

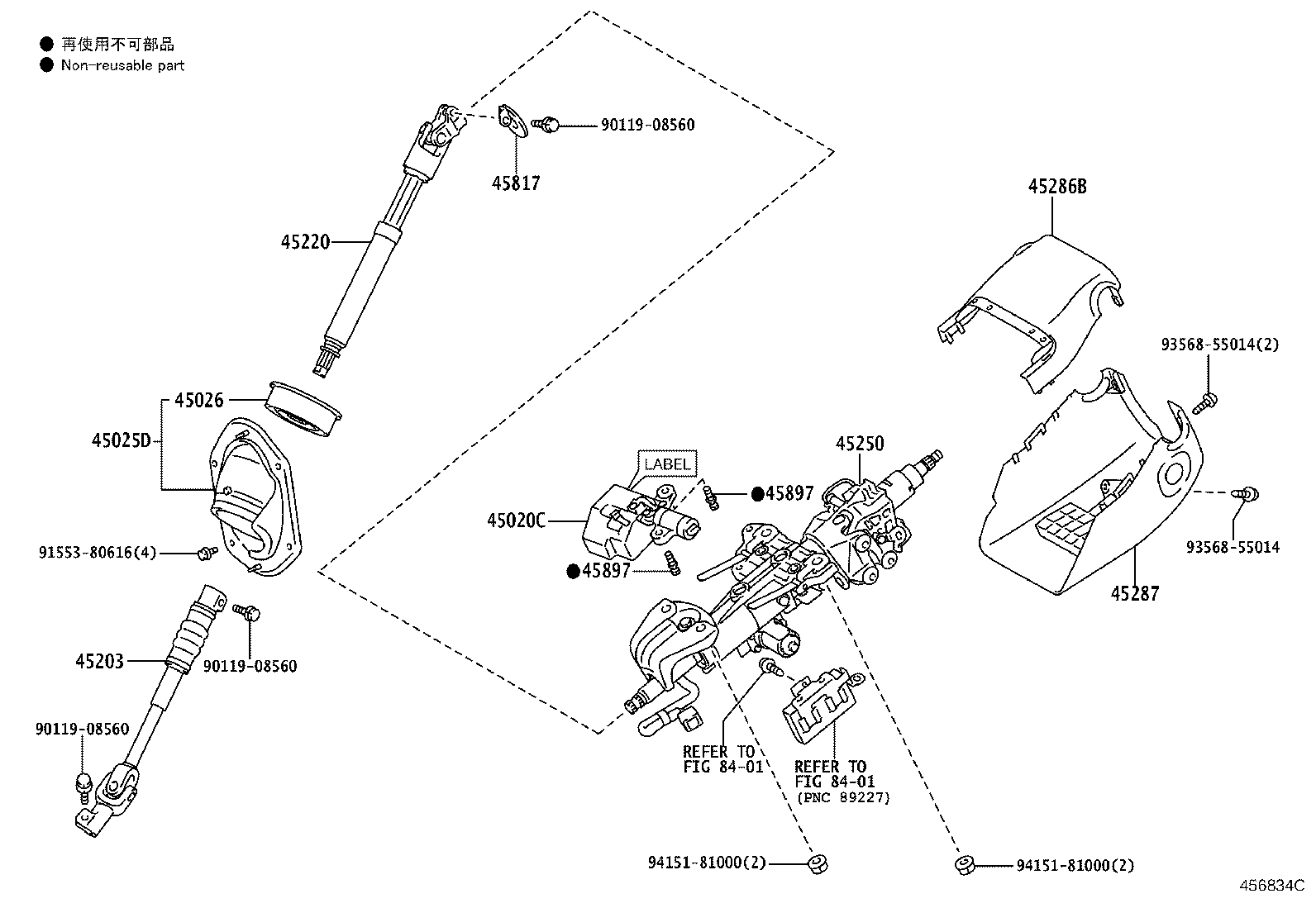

Figure 455414F 455414F 2009-08 → — Figure 455968C 455968C 2011-10 → 2013-08 Figure 455415G 455415G 2009-08 → 2010-07 Figure 456834C 456834C 2010-07 → —

Part groups

PNCDescription
45020B Actuator OR Upper Bracket Assy, Steering Lock
45020C Actuator Assy, Steering Lock(W/ECU)
45025D Cover Sub-assy, Steering Column Hole, NO.1
45026 Cover Sub-assy, Steering Column Hole, NO.2
45203 Shaft Sub-assy, Steering Intermediate, NO.2
45220 Shaft Assy, Steering Intermediate
45250 Column Assy, Steering
45286B Cover, Steering Column, Upr
45287 Cover, Steering Column, Lwr
45817 Stopper, Steering Shaft Thrust
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
