Toyota Land Cruiser Prado
2009-08 → 2017-08 · chassis GDJ15#,GRJ150,KDJ15# · catalogue 781560 · Europe
Supported model
Data version 2018-02

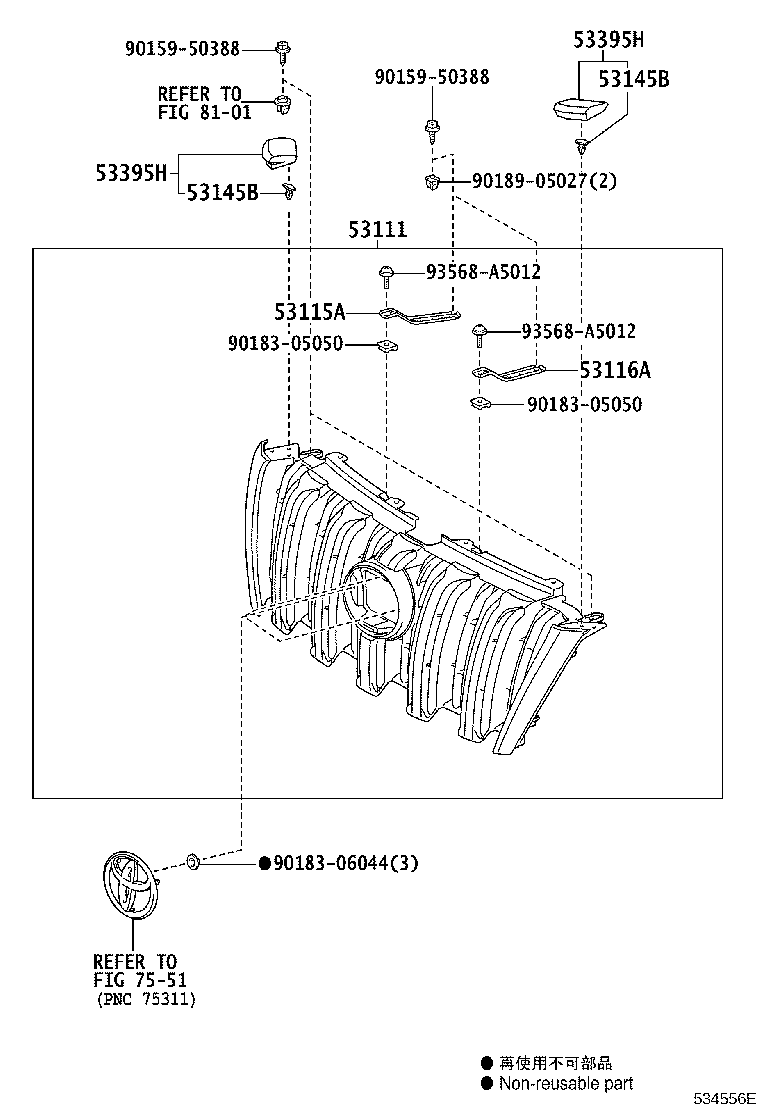

Radiator Grille
6 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 53012 | Garnish Sub-assy, Radiator Grille, Center |
| 53111 | Grille, Radiator |
| 53115A | Bracket, Radiator Grille, RH |
| 53116A | Bracket, Radiator Grille, LH |
| 53145B | Clip, Radiator Grille Garnish |
| 53395H | Seal, Hood TO Radiator Grille |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
