Toyota Land Cruiser Prado

2009-08 → 2017-08 · chassis GDJ15#,GRJ150,KDJ15# · catalogue 781560 · Europe

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

28 part groups · 3 illustrations

Illustrations

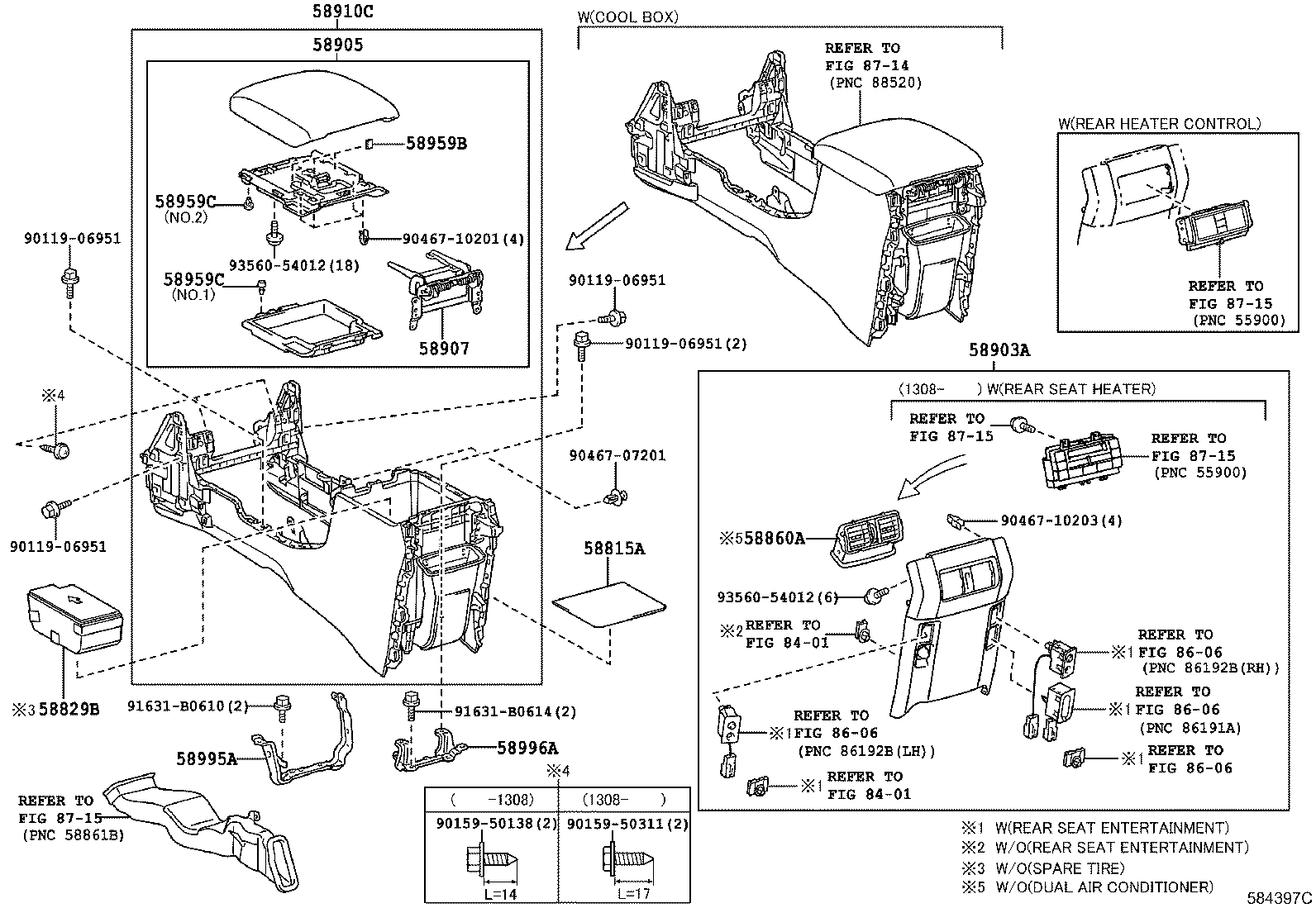

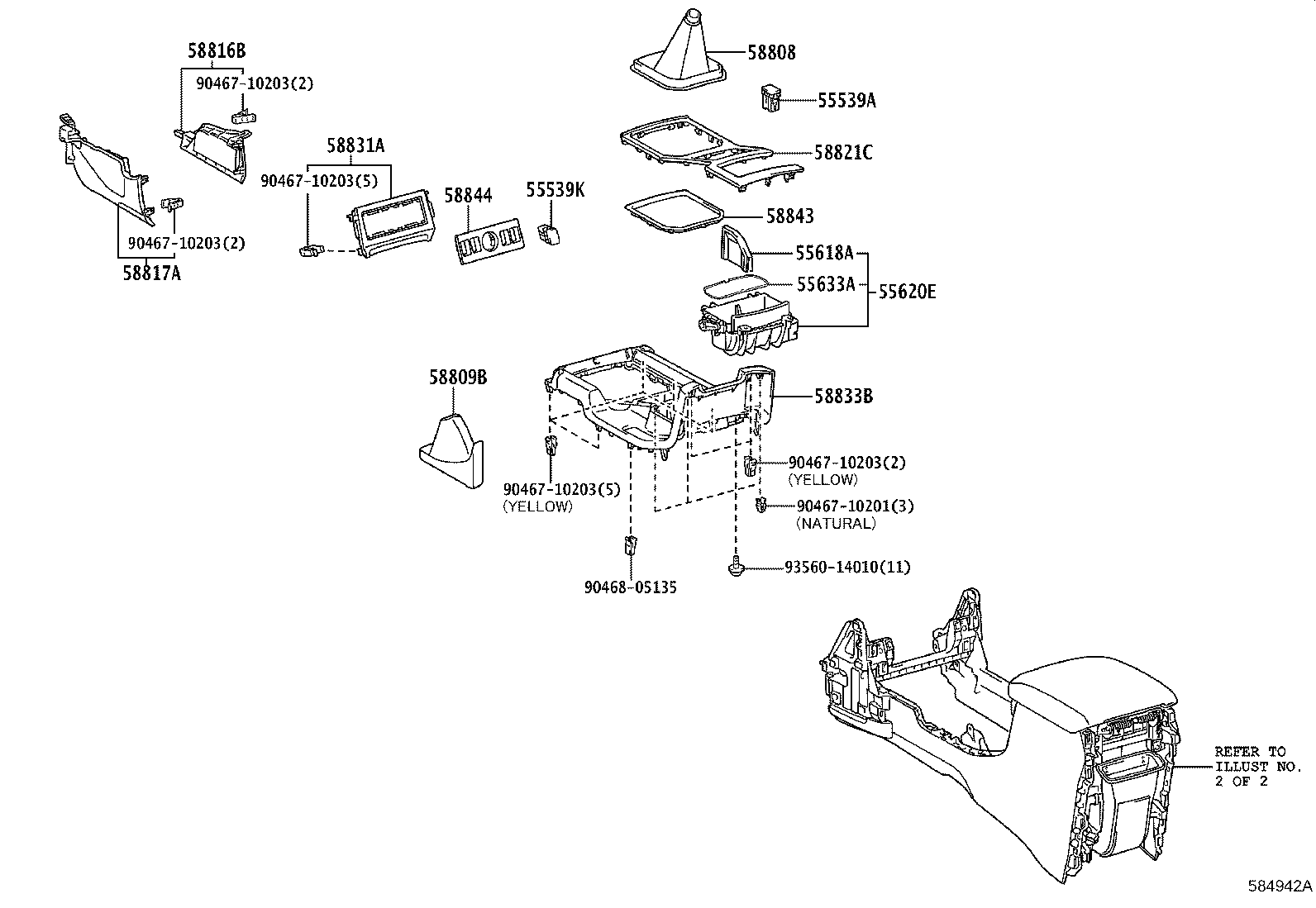

Figure 583690G 583690G 2009-08 → — Figure 584942A 584942A 2009-08 → — Figure 584397C 584397C 2009-08 → —

Part groups

PNCDescription
55539A Cover, Spare Switch Hole
55539J Cover, Spare Switch Hole
55539K Cover, Spare Switch Hole
55618A Holder, Console Box Cup
55620E Holder Assy, Instrument Panel Cup
55633A Support, Instrument Panel Cup Holder, NO.1
58808 Cover Sub-assy, Shifting Hole
58809B Cover Sub-assy, Parking Brake Hole
58810J Box Assy, Console
58815A Carpet, Console Box
58816B Insert, Console Box
58817A Insert, Console Box, Front NO.2
58821C Panel, Console, Upper
58829B Stopper, Console Box Pocket
58831A Garnish, Console Upper Panel, Front
58833B Garnish, Console Upper Panel, NO.1
58843 Bezel, Shifting Hole
58844 Bezel, Console Box
58860A Register Assy, Console Box
58903A Panel Sub-assy, Console Rear End
58905 Door Sub-assy, Console Compartment
58907 Hinge Sub-assy, Console Compartment Door
58910C Box Assy, Console, Rear
58916G Mat, Box Bottom, NO.2
58959B Cushion, Console Compartment Door
58959C Cushion, Console Compartment Door
58995A Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
