Toyota Land Cruiser Prado

2009-08 → 2017-08 · chassis GDJ15#,GRJ150,KDJ15# · catalogue 781560 · Europe

Supported model Data version 2018-02

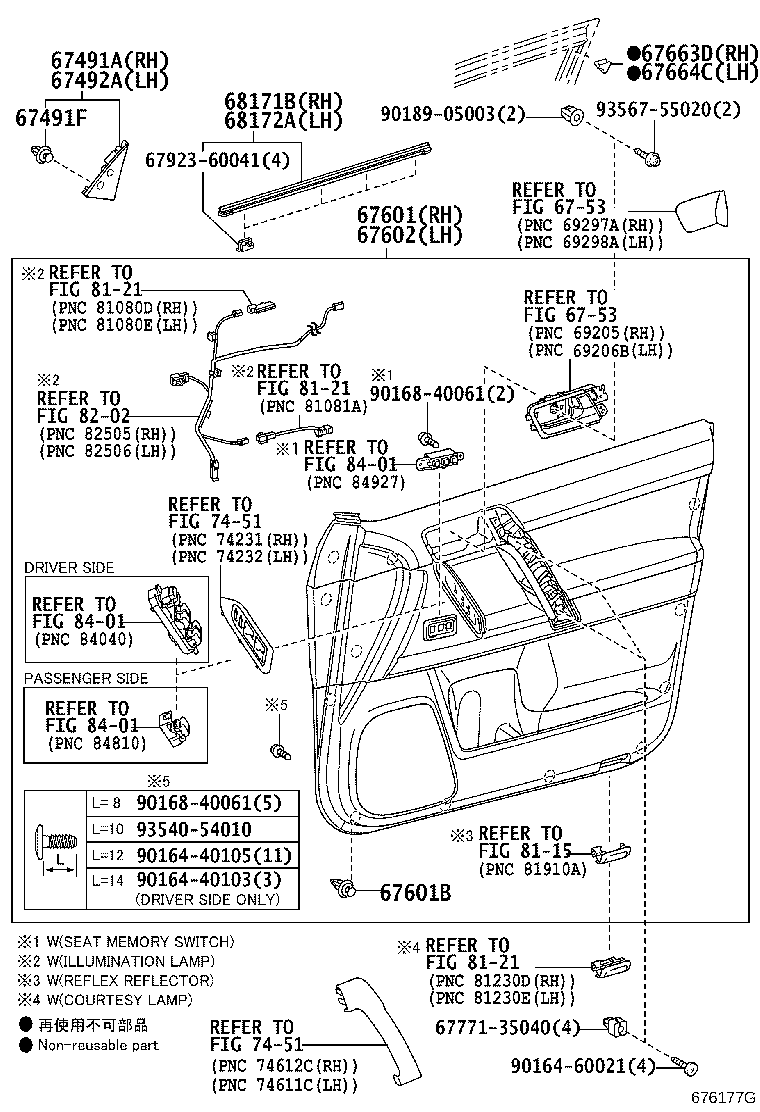

Front Door Panel & Glass

39 part groups · 2 illustrations

PNC	Description
67001	Panel Sub-assy, Front Door, RH
67001A	Cushion, Front Door Panel
67002	Panel Sub-assy, Front Door, LH
67111	Panel, Front Door, Outer RH
67112	Panel, Front Door, Outer LH
67403F	Frame Sub-assy, Front Door, Rear Lower RH
67404F	Frame Sub-assy, Front Door, Rear Lower LH
67491A	Garnish, Front Door Lower Frame Bracket, RH
67491F	Clip(FOR DOOR TRIM)
67492A	Garnish, Front Door Lower Frame Bracket, LH
67601	Board Sub-assy, Front Door Trim, RH
67601B	Clip(FOR FRONT DOOR TRIM BOARD)
67602	Board Sub-assy, Front Door Trim, LH
67663D	Garnish, Door Frame, RH
67664C	Garnish, Door Frame, LH
67831	Cover, Front Door Service Hole, RH
67832	Cover, Front Door Service Hole, LH
67861	Weatherstrip, Front Door, RH
67861A	Retainer(FOR FRONT DOOR WEATHERSTRIP)
67862	Weatherstrip, Front Door, LH
67867C	Retainer, Front Door Weatherstrip, RH
67868C	Retainer, Front Door Weatherstrip, LH
67869J	Clip, Front Door Weatherstrip
67923E	Cushion, Front Door Stiffener, NO.1
67924	Cushion, Front Door Stiffener, NO.2
68101	Glass Sub-assy, Front Door, RH
68102	Glass Sub-assy, Front Door, LH
68141E	Run, Front Door Glass, RH
68151D	Run, Front Door Glass, LH
68171B	Weatherstrip, Front Door Glass, Inner RH
68172A	Weatherstrip, Front Door Glass, Inner LH
68610B	Check Assy, Front Door, RH
68620	Check Assy, Front Door, LH
75921C	Tape, Black Out, NO.1 RH
75922M	Tape, Black Out, NO.1 LH
75975G	Stripe, Front Door, NO.2 RH
75976G	Stripe, Front Door, NO.2 LH
75985E	Stripe, Front Door Outside, RH
75986F	Stripe, Front Door Outside, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
