Toyota Land Cruiser Prado

2009-08 → 2017-08 · chassis GDJ15#,GRJ150,KDJ15# · catalogue 781560 · Europe

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

99 part groups · 10 illustrations

Illustrations

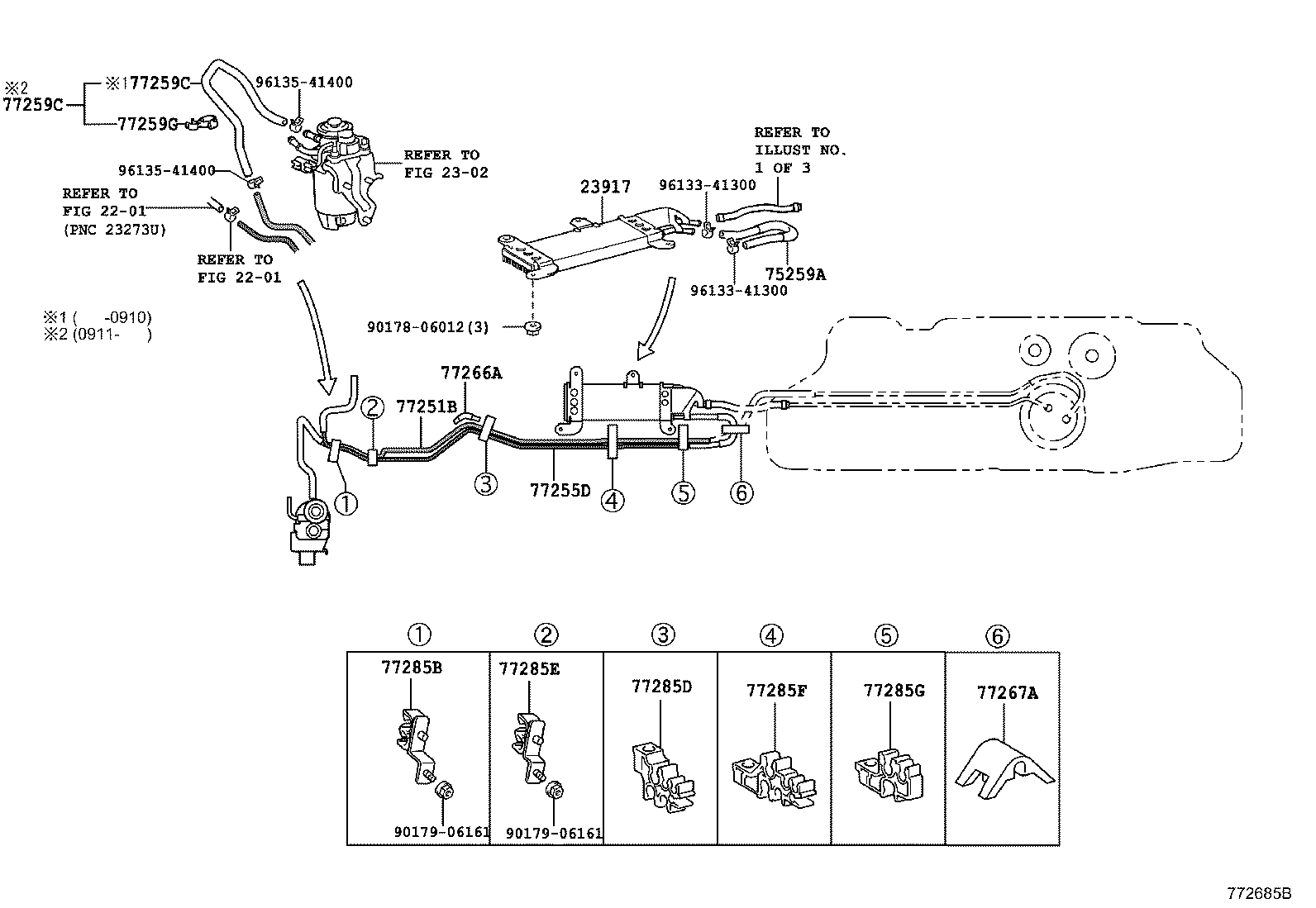

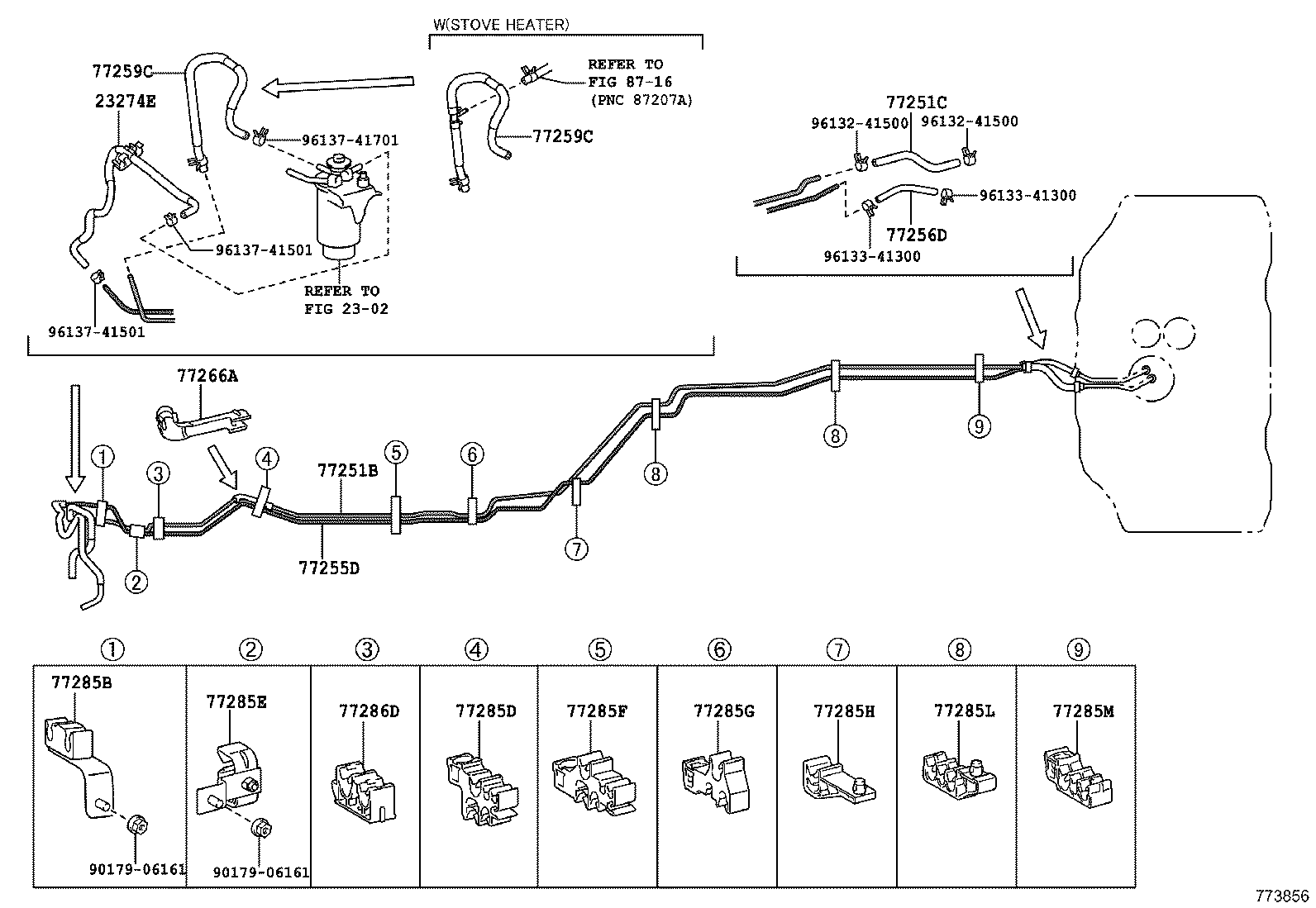

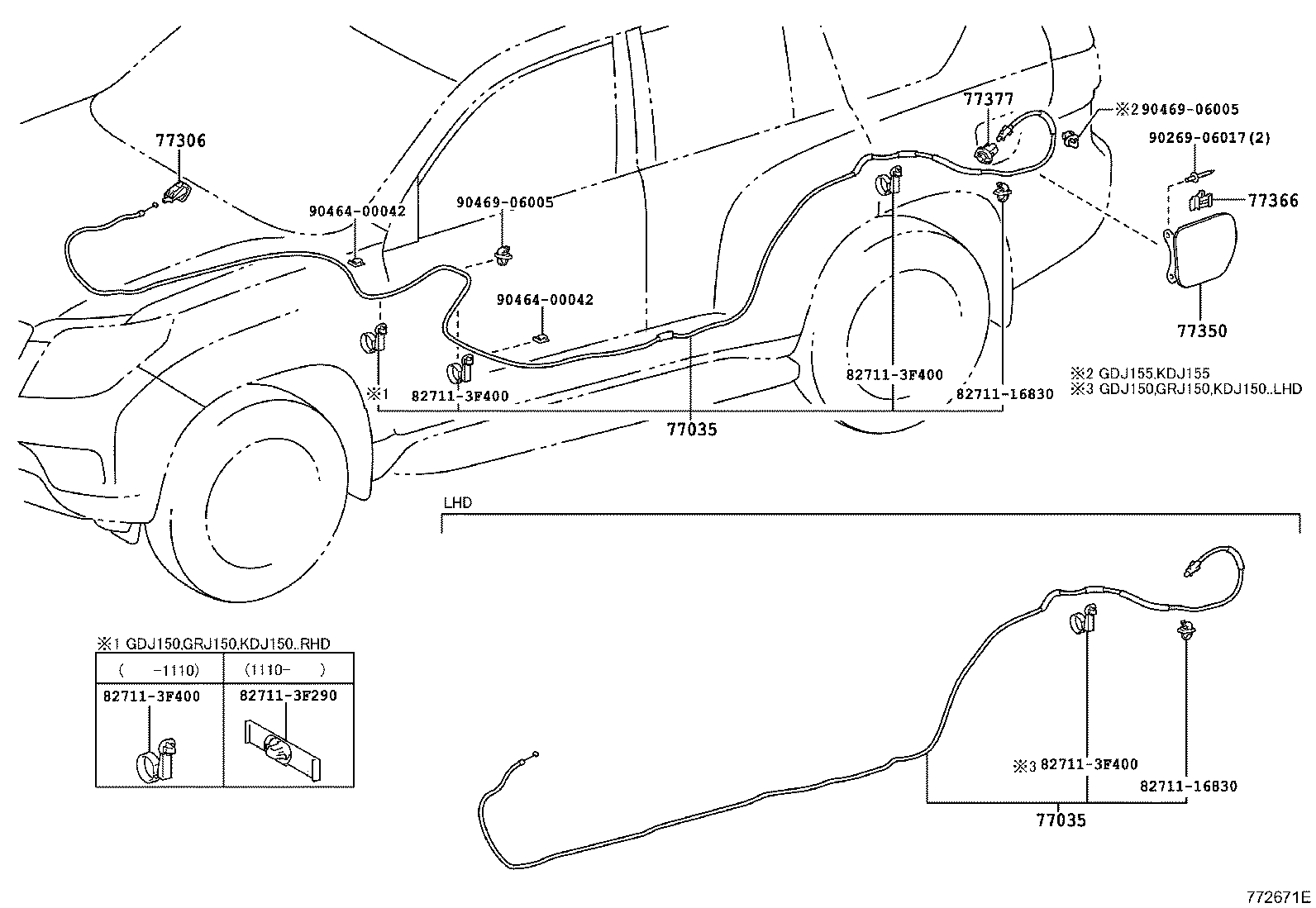

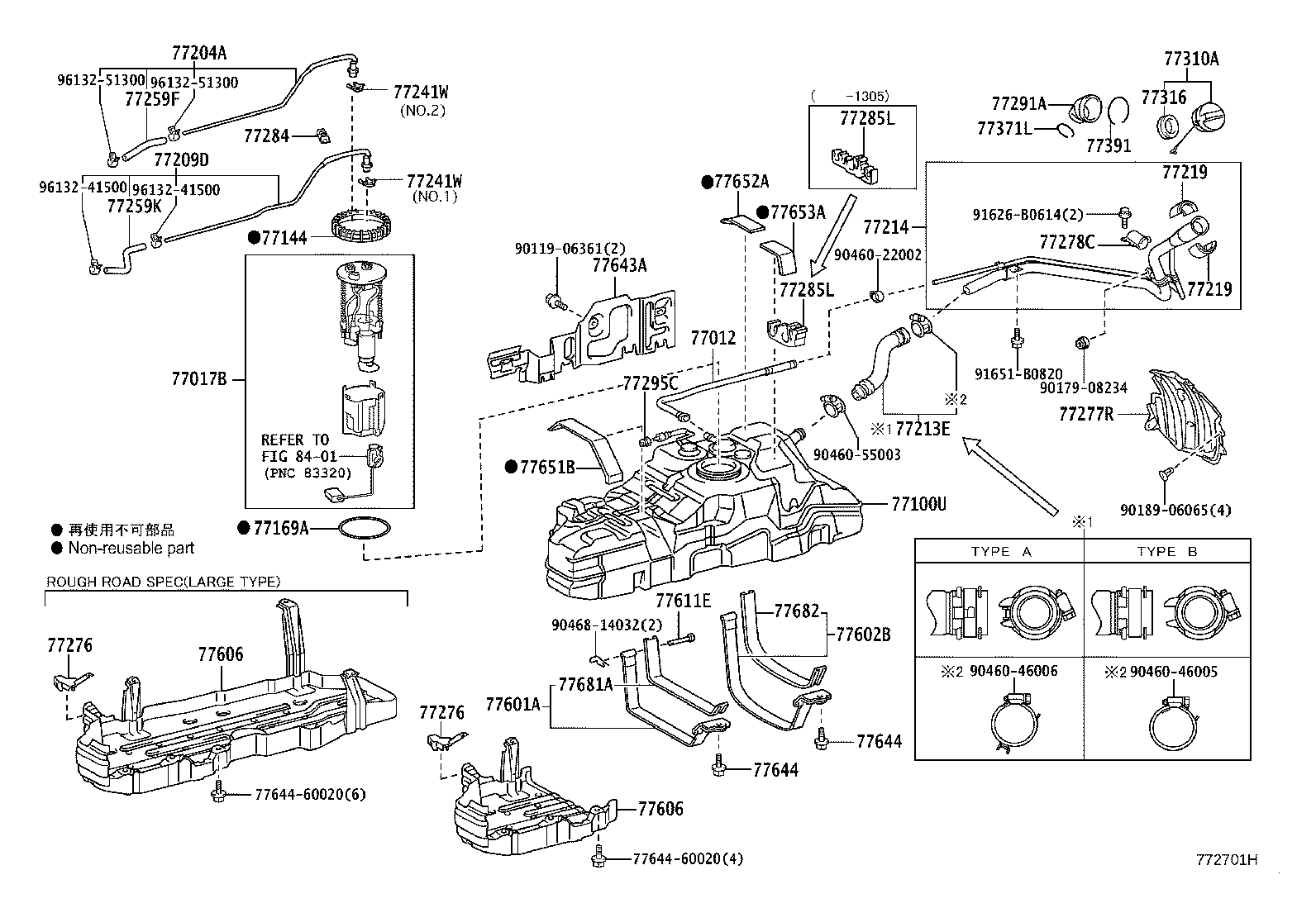

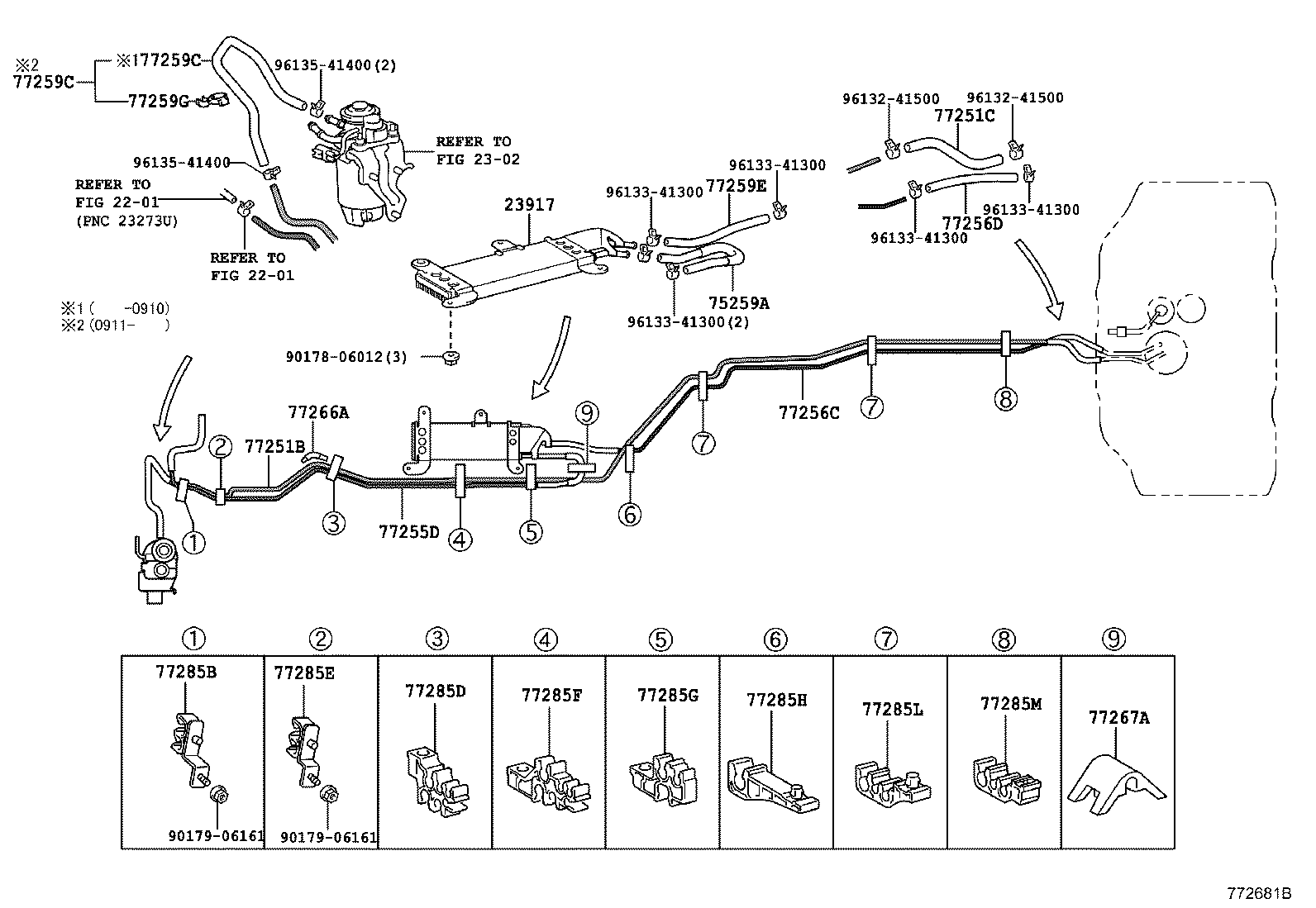

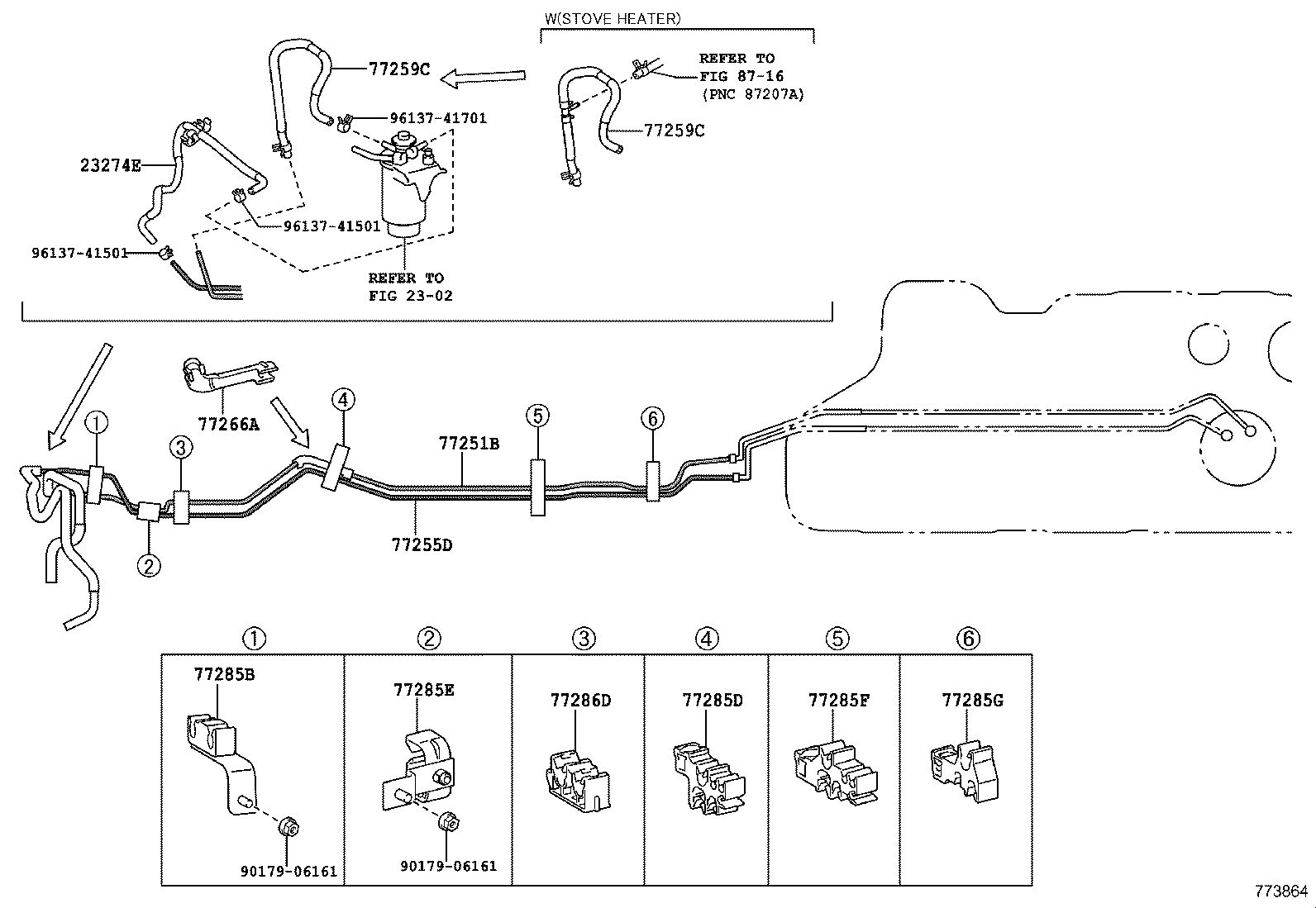

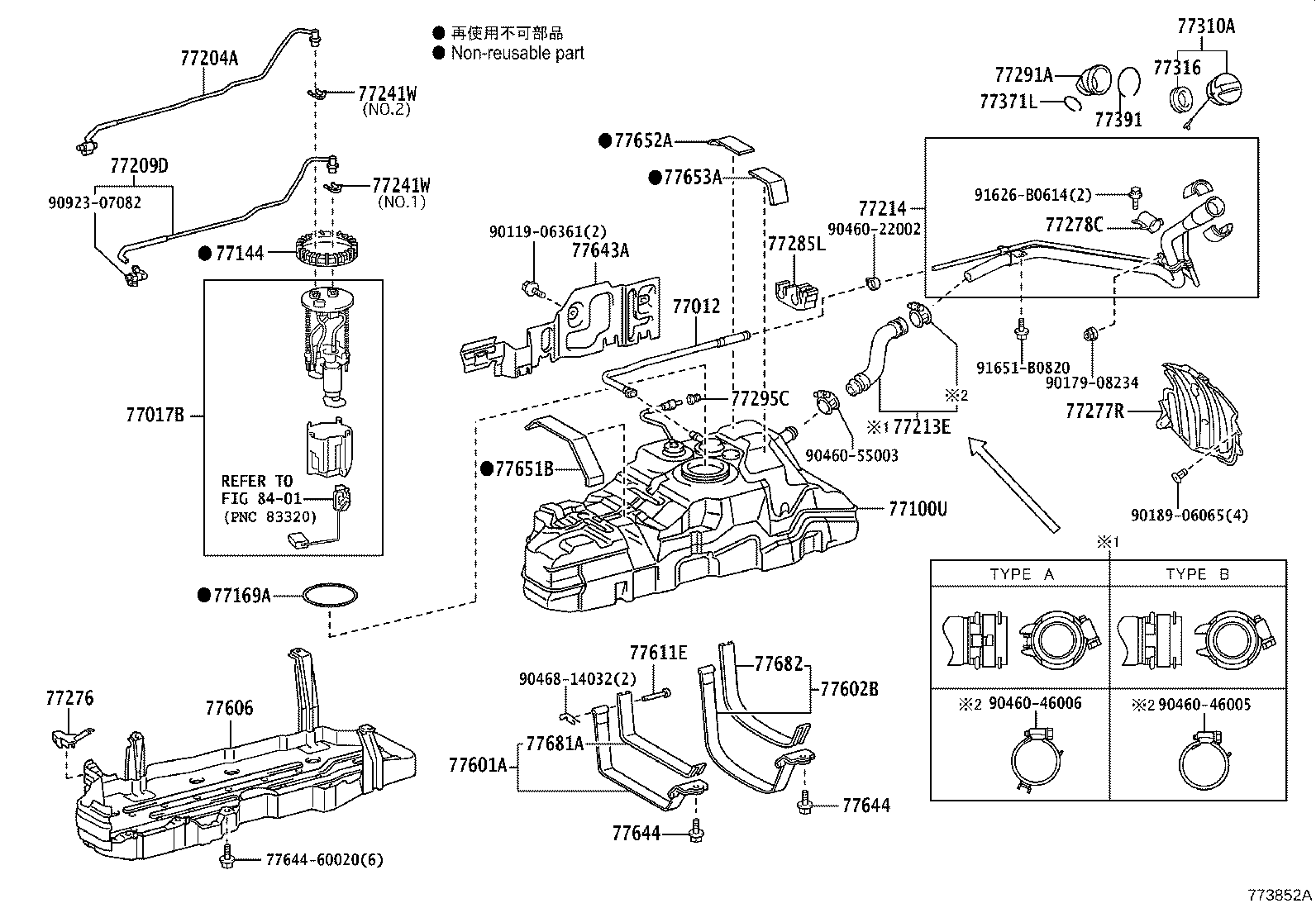

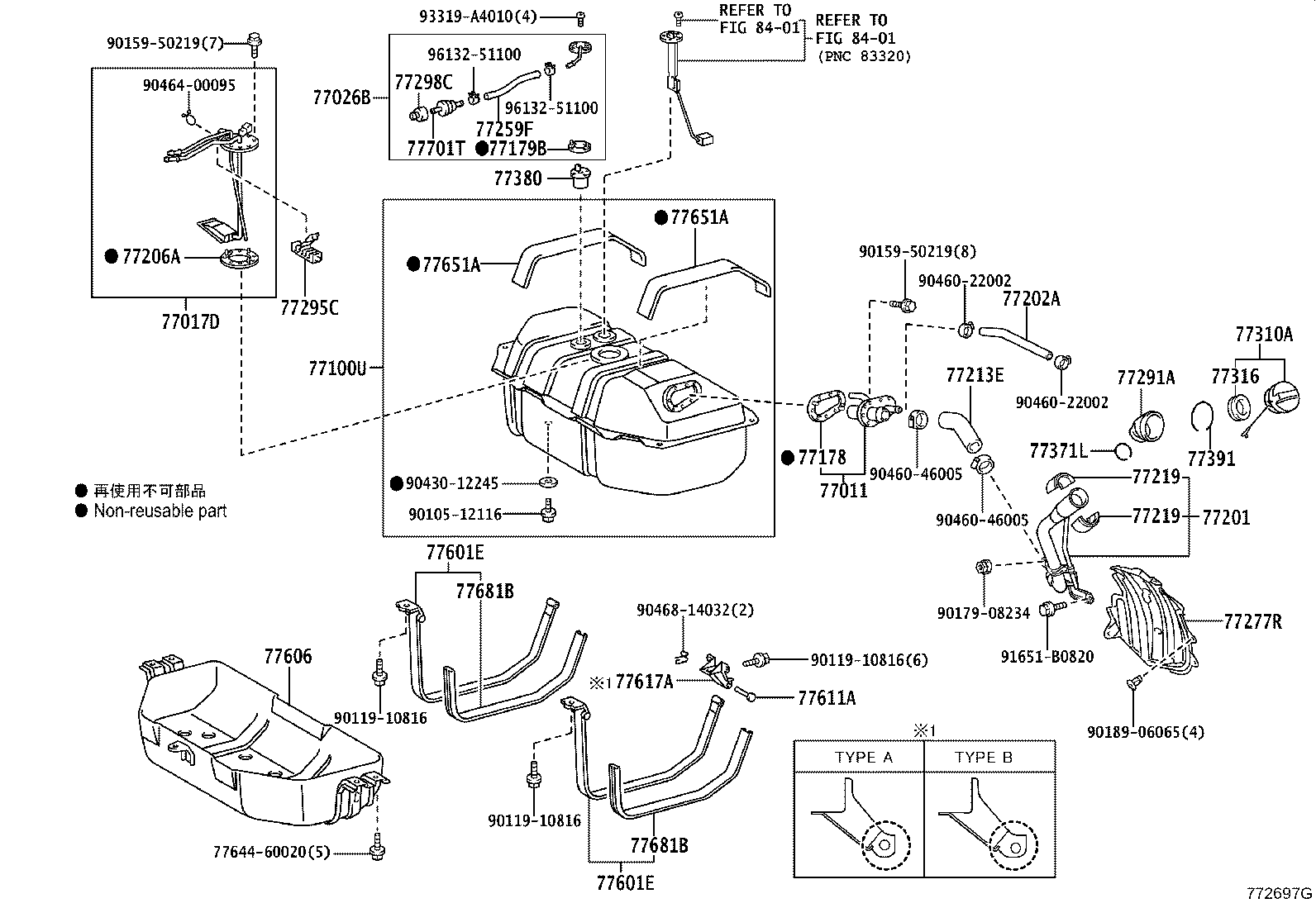

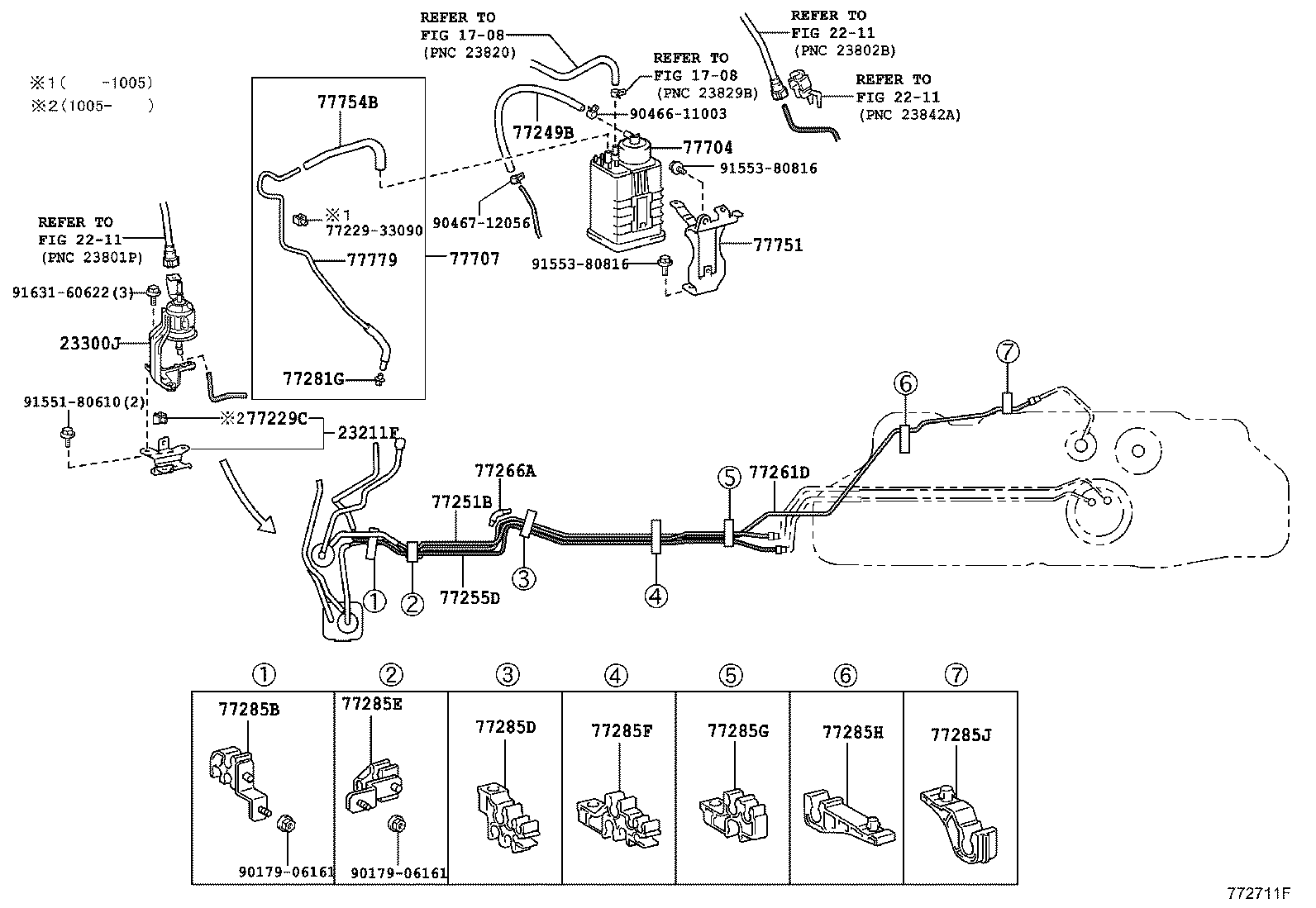

Figure 772696G 772696G 2009-08 → — Figure 772701H 772701H 2009-08 → — Figure 772697G 772697G 2009-05 → — Figure 773852A 773852A 2015-06 → — Figure 772711F 772711F 2009-08 → — Figure 772685B 772685B 2009-08 → — Figure 772681B 772681B 2009-08 → — Figure 773864 773864 2015-06 → — Figure 773856 773856 2015-06 → — Figure 772671E 772671E 2009-08 → —

Part groups

PNCDescription
23070 Valve Assy, Fuel Main
23211F Bracket
23221 Pump, Fuel
23225A Spacer, Fuel Pump
23274E Hose, Fuel, NO.3
23280K Ring, O(FOR FUEL PRESSURE REGULATOR)
23300J Filter Assy, Fuel
23917 Cooler, Fuel
75259A Hose, Fuel
77011 Pipe Sub-assy, Fuel Tank Filler, Lower
77012 Tube Sub-assy, Fuel Tank Breather
77017B Tube Sub-assy, Fuel Tank Vent
77017D Tube Sub-assy, Fuel Tank Vent
77020A Tube Assy, Fuel Suction W/Pump & Gage
77024A Plate Sub-assy, Fuel Suction
77026B Tube Sub-assy, Fuel Evaporation, NO.1
77035 Cable Sub-assy, Fuel Lid Lock Control
77100U Tank Sub-assy, Fuel
77131C Sub-tank, Fuel, NO.1
77144 Retainer, Fuel Pump Gauge
77169A Gasket, Fuel Suction Tube Set
77174 Support, Fuel Suction, NO.1
77178 Gasket, Fuel Tank Filler Pipe, Lower
77179B Gasket, Fuel Tank Evaporation Vent Tube
77201 Pipe Sub-assy, Fuel Tank Inlet
77202A Hose, Fuel, NO.1 (FOR BREATHER TUBE)
77204A Tube, Fuel Tank Return
77206A Gasket (FOR FUEL TANK SUCTION TUBE)
77207A Tube Sub-assy, Fuel Return
77209D Tube Sub-assy, Fuel Tank Main
77213E Hose, Fuel Tank TO Filler Pipe
77214 Pipe, Fuel Tank Filler
77219 Cover, Fuel Tank Filler Pipe
77229C Clamp, Breather Tube
77241W Clip, Tube Joint
77249B Hose, Fuel
77251B Tube, Fuel Main
77251C Hose, Fuel, NO.1(FOR FUEL MAIN TUBE)
77255D Tube, Fuel Return
77256C Tube, Fuel Return, NO.2
77256D Hose, Fuel, NO.1 (FOR FUEL RETURN NO.2 TUBE)
77259C Hose, Fuel
77259E Hose, Fuel
77259F Hose, Fuel
77259G Clip, Fuel Hose
77259K Hose, Fuel
77261D Tube, Fuel Tank TO Canister
77266A Protector, Fuel Tube, NO.1
77267A Protector, Fuel Tube, NO.2
77276 Protector, Fuel Hose
77277R Protector, Fuel Tank Filler Pipe
77278C Protector, Fuel Tank Filler Pipe, NO.2
77281G Clamp, Fuel Hose
77284 Clamp, Fuel Tube
77285B Clamp, Fuel Tube W/Grommet, NO.1
77285D Clamp, Fuel Tube, NO.1
77285E Clamp, Fuel Tube W/Grommet, NO.1
77285F Clamp, Fuel Tube, NO.1
77285G Clamp, Fuel Tube, NO.1
77285H Clamp, Fuel Tube, NO.1
77285J Clamp, Fuel Tube, NO.1
77285L Clamp, Fuel Tube, NO.1
77285M Clamp, Fuel Tube, NO.1
77286D Clamp, Fuel Tube, NO.2
77291A Shield, Fuel Tank Filler Pipe
77295C Grommet, Fuel Tube
77298C Clamp, Fuel Tube, NO.4
77306 Lever Sub-assy, Fuel Lid Lock Open
77310A Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77350 Lid Assy, Fuel Filler Opening
77366 Spring, Fuel Filler Opening Lid Hinge
77371L Ring, Fuel Tank Filler Pipe Shield
77377 Retainer, Fuel Filler Opening Lid Lock
77380 Valve Assy, Fuel Cut Off
77391 Ring, Fuel Inlet Box
77601A Band Sub-assy, Fuel Tank, NO.1
77601E Band Sub-assy, Fuel Tank
77602B Band Sub-assy, Fuel Tank, NO.1 LH
77606 Protector Sub-assy, Fuel Tank, NO.1
77611A Pin (FOR FUEL TANK BAND)
77611E Pin, Fuel Tank Band
77617A Union, Auxiliary Fuel Band
77643A Protector, Fuel Tank, NO.3
77644 Bolt, Fuel Tank
77651A Cushion, Fuel Tank, NO.1
77651B Cushion, Fuel Tank
77652A Cushion, Fuel Tank, NO.2
77653A Cushion, Fuel Tank, NO.3
77681A Seat, Fuel Tank Band
77681B Seat, Fuel Tank Band
77682 Seat, Fuel Tank Band, LH
77701T Valve, Check (FOR MAIN FUEL TANK)
77704 Canister Sub-assy, Charcoal
77707 Tube Sub-assy, Charcoal Canister Outlet
77751 Bracket, Charcoal Canister Base
77754B Hose, Charcoal Canister Outlet
77779 Tube, Charcoal Canister Outlet
77785 Harness, Fuel Pump
