Toyota Land Cruiser Prado

2009-08 → 2017-08 · chassis GDJ15#,GRJ150,KDJ15# · catalogue 781560 · Europe

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

27 part groups · 3 illustrations

Illustrations

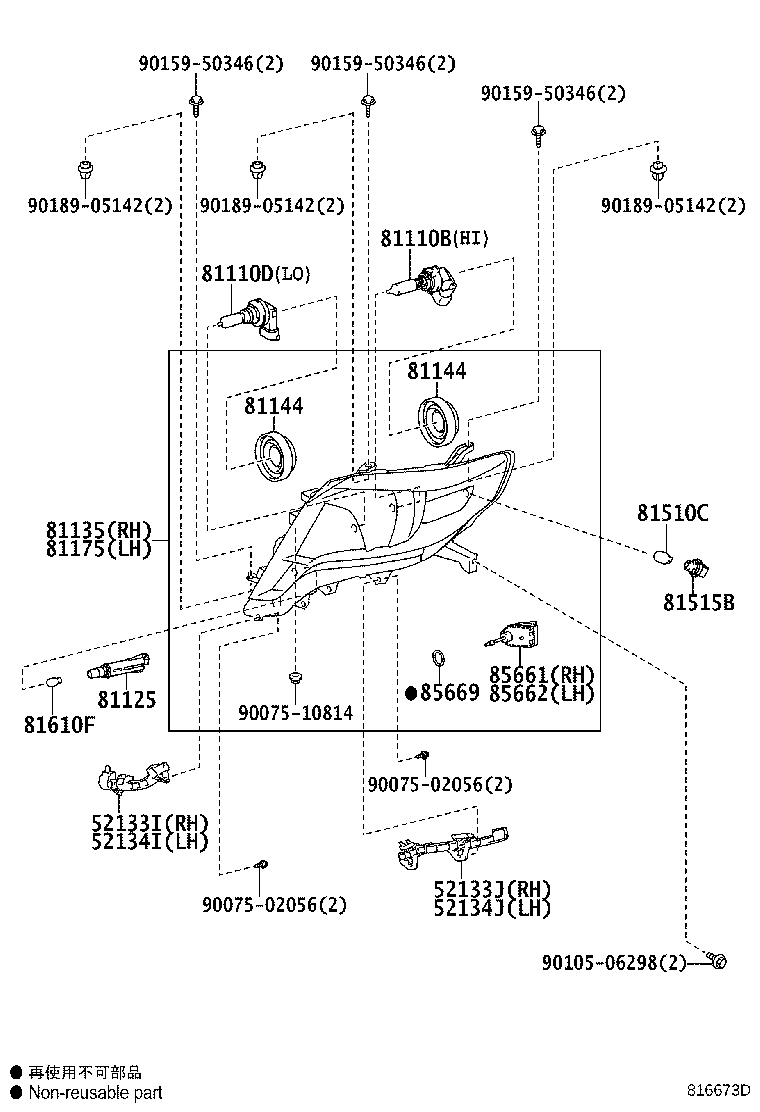

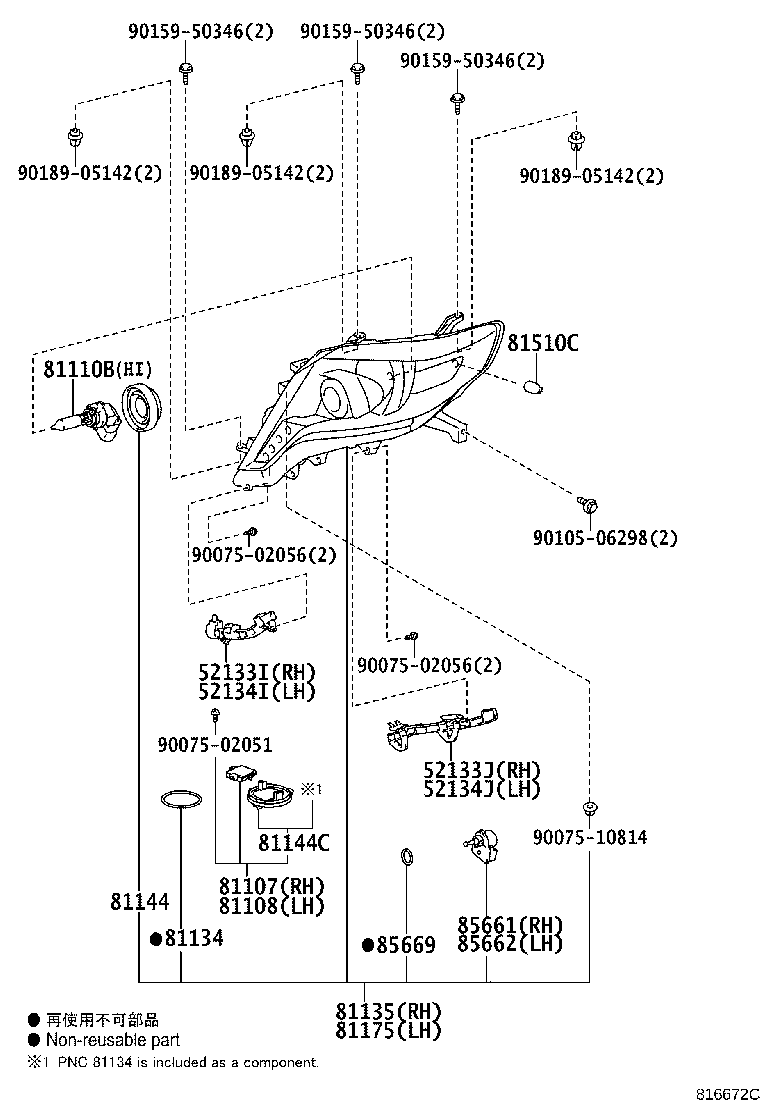

Figure 815132D 815132D 2009-08 → 2013-08 Figure 816673D 816673D 2013-08 → — Figure 816672C 816672C 2013-08 → —

Part groups

PNCDescription
52133I Reinforcement, Front Bumper Bar, RH
52133J Reinforcement, Front Bumper Bar, RH
52134I Reinforcement, Front Bumper Bar, LH
52134J Reinforcement, Front Bumper Bar, LH
53271A Bracket, Headlamp Mounting
81107 Computer Sub-assy, Headlamp Light Control, RH
81108 Computer Sub-assy, Headlamp Light Control, LH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81110L Bulb, Discharge Headlamp
81116C Bracket, Headlamp, RH
81125 Cord, Headlamp
81125A Cord, Headlamp, RH
81134 Gasket, Headlamp
81135 Unit Assy, Headlamp, RH
81135C Cover, Headlamp Back, NO.1
81144 Cover, Headlamp, NO.1
81144C Cover, Headlamp Socket
81156A Bracket, Headlamp, LH
81165 Cord, Headlamp, LH
81175 Unit Assy, Headlamp, LH
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
85661 Motor, Headlamp Leveling, RH
85662 Motor, Headlamp Leveling, LH
85669 Packing, Headlamp Leveling Motor Base
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
