Toyota Land Cruiser Prado

2009-08 → 2017-08 · chassis GDJ15#,GRJ150,KDJ15# · catalogue 781560 · Europe

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear License Plate Lamp

6 part groups · 2 illustrations

Illustrations

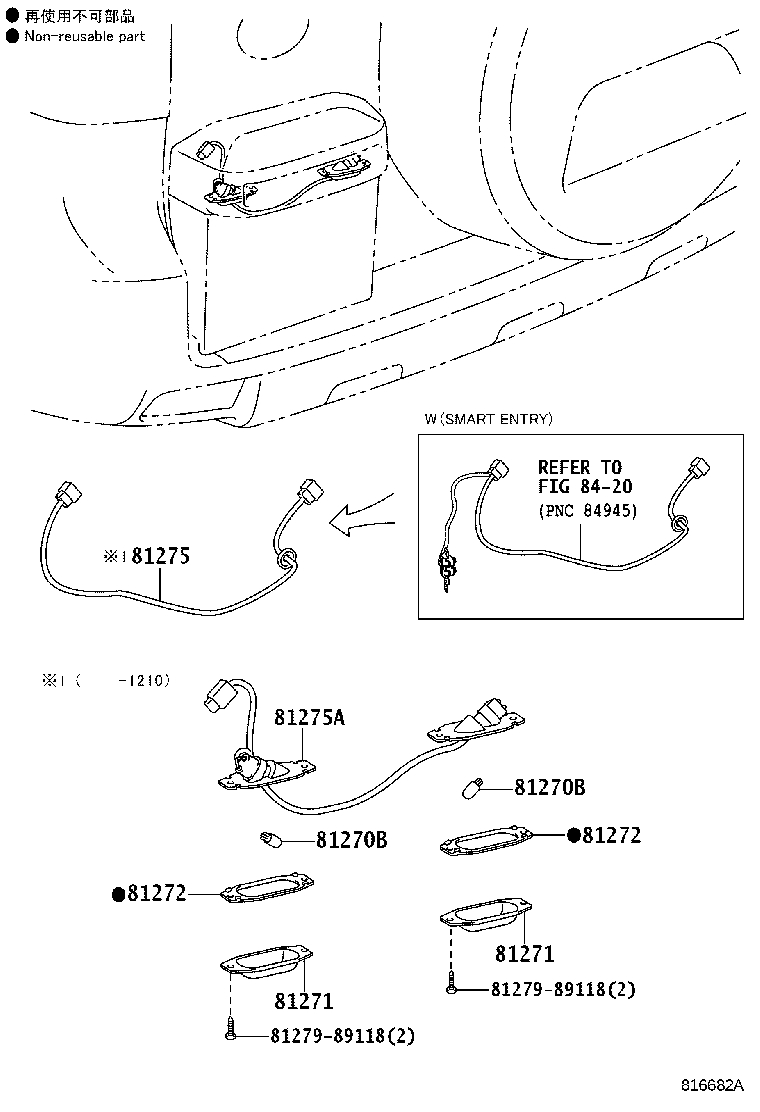

Figure 815801A 815801A 2009-08 → — Figure 816682A 816682A 2009-08 → —

Part groups

PNCDescription
81270B Bulb (FOR LICENSE PLATE LAMP)
81271 Lens, License Plate Lamp
81272 Gasket, License Plate Lamp Lens
81273A Body, License Plate Lamp
81275 Socket And Wire, License Plate Lamp
81275A Cord, License Plate Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
