Toyota Land Cruiser Prado
2009-08 → 2017-08 · chassis GDJ15#,GRJ150,KDJ15# · catalogue 781560 · Europe
Supported model
Data version 2018-02
Interior Lamp
26 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 47131D | Cushion |
| 81080D | Lamp Assy, Front Door Inside Handle Illumination, RH |
| 81080E | Lamp Assy, Front Door Inside Handle Illumination, LH |
| 81080F | Lamp Assy, Rear Door Inside Handle Illumination, RH |
| 81080G | Lamp Assy, Rear Door Inside Handle Illumination, LH |
| 81081A | Lamp Sub-assy, Interior Illumination, NO.2 |
| 81230B | Bulb(FOR COURTESY LAMP) |
| 81230D | Lamp Assy, Front Door Courtesy, RH |
| 81230E | Lamp Assy, Front Door Courtesy, LH |
| 81230F | Lamp Assy, Rear Door Courtesy, RH |
| 81230G | Lamp Assy, Rear Door Courtesy, LH |
| 81240 | Lamp Assy, Room, NO.1 |
| 81240B | Bulb, Room Lamp, NO.1 |
| 81240D | Lamp Assy, Room, NO.2 |
| 81240E | Bulb, Room Lamp, NO.2 |
| 81249 | Switch, Room Lamp |

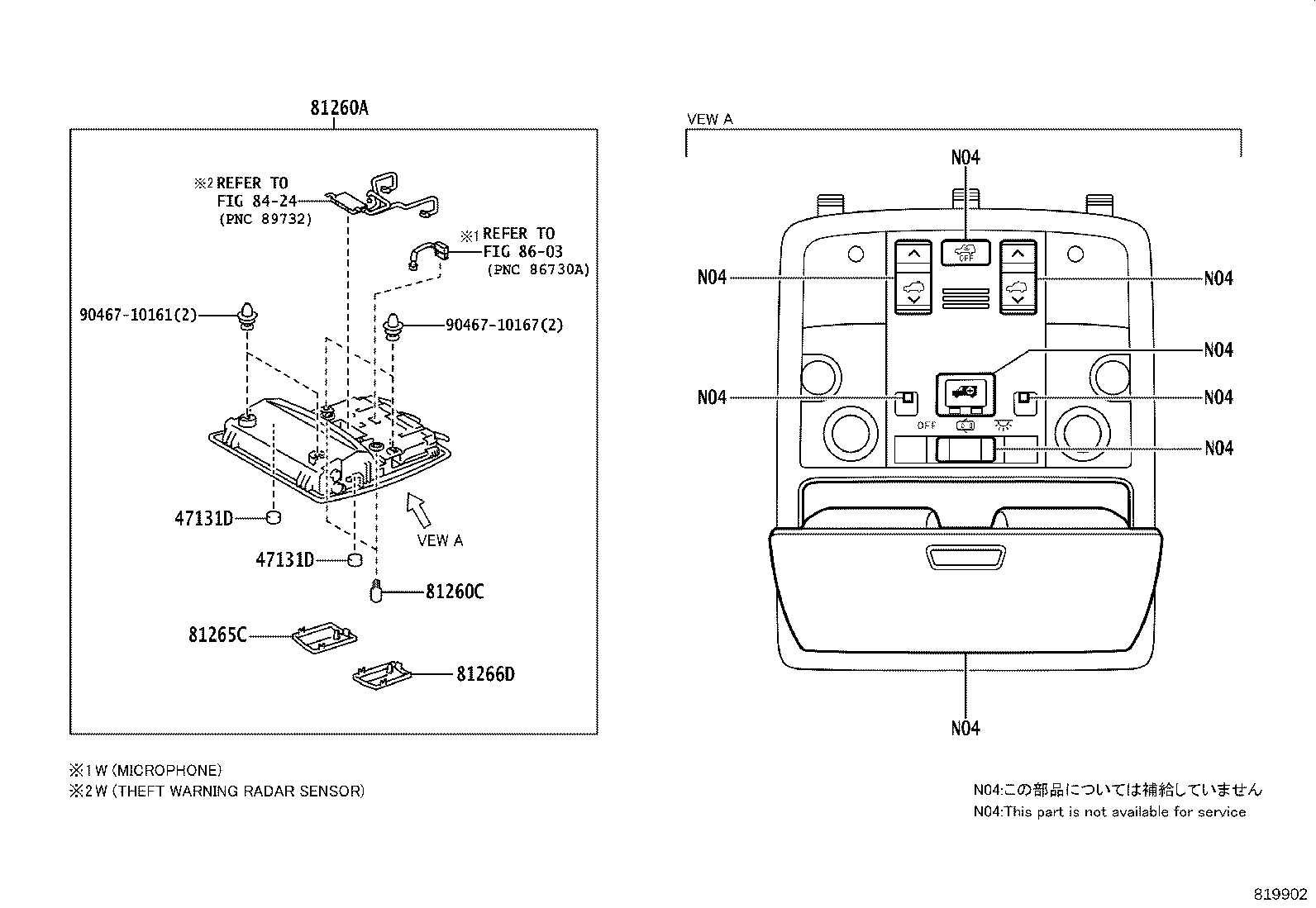

| 81260A | Lamp Assy, Map |
| 81260C | Bulb(FOR MAP LAMP) |
| 81265C | Lens, Map Lamp, NO.1 |
| 81266D | Lens, Map Lamp, NO.2 |
| 81319 | Switch, Rear Room Lamp |
| 81340B | Bulb (FOR VANITY LAMP) |
| 81340H | Lamp Assy, Vanity, RH |
| 81340J | Lamp Assy, Vanity, LH |
| 81380D | Lamp Assy, Step |
| 81380E | Bulb (FOR STEP LAMP) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
