Toyota Land Cruiser Prado

2009-08 → 2017-08 · chassis GDJ15#,GRJ150,KDJ15# · catalogue 781560 · Europe

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

102 part groups · 20 illustrations

Illustrations

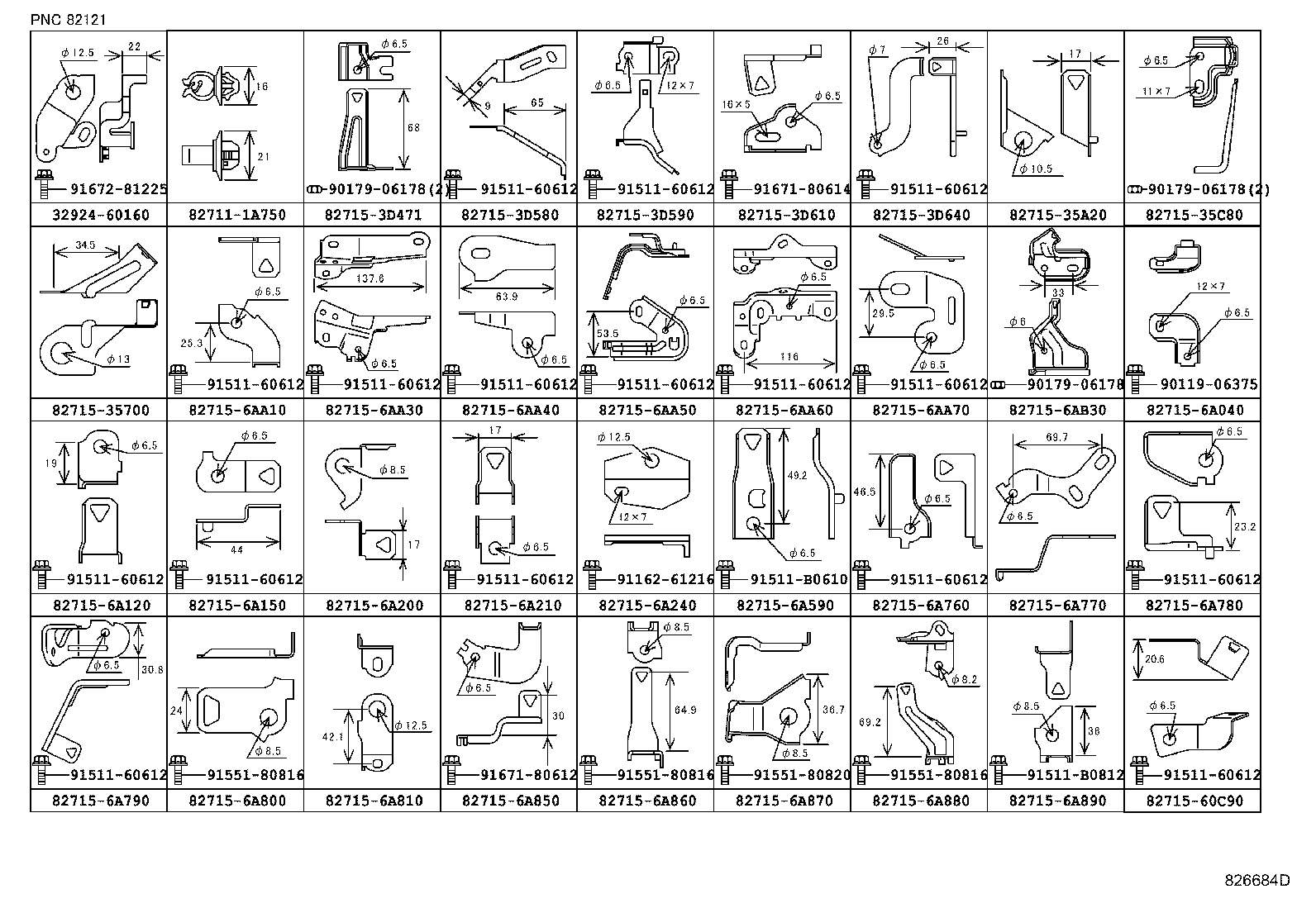

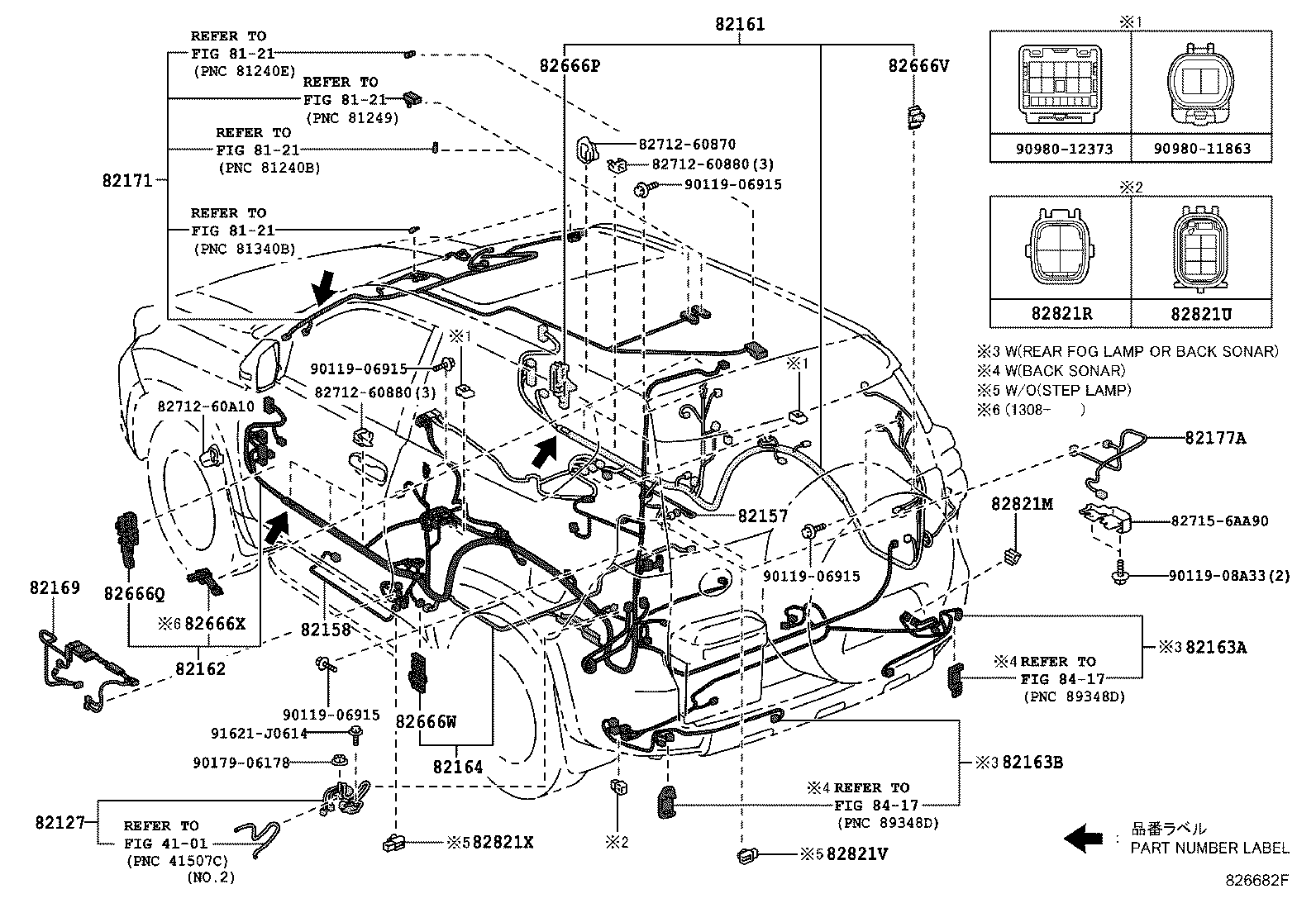

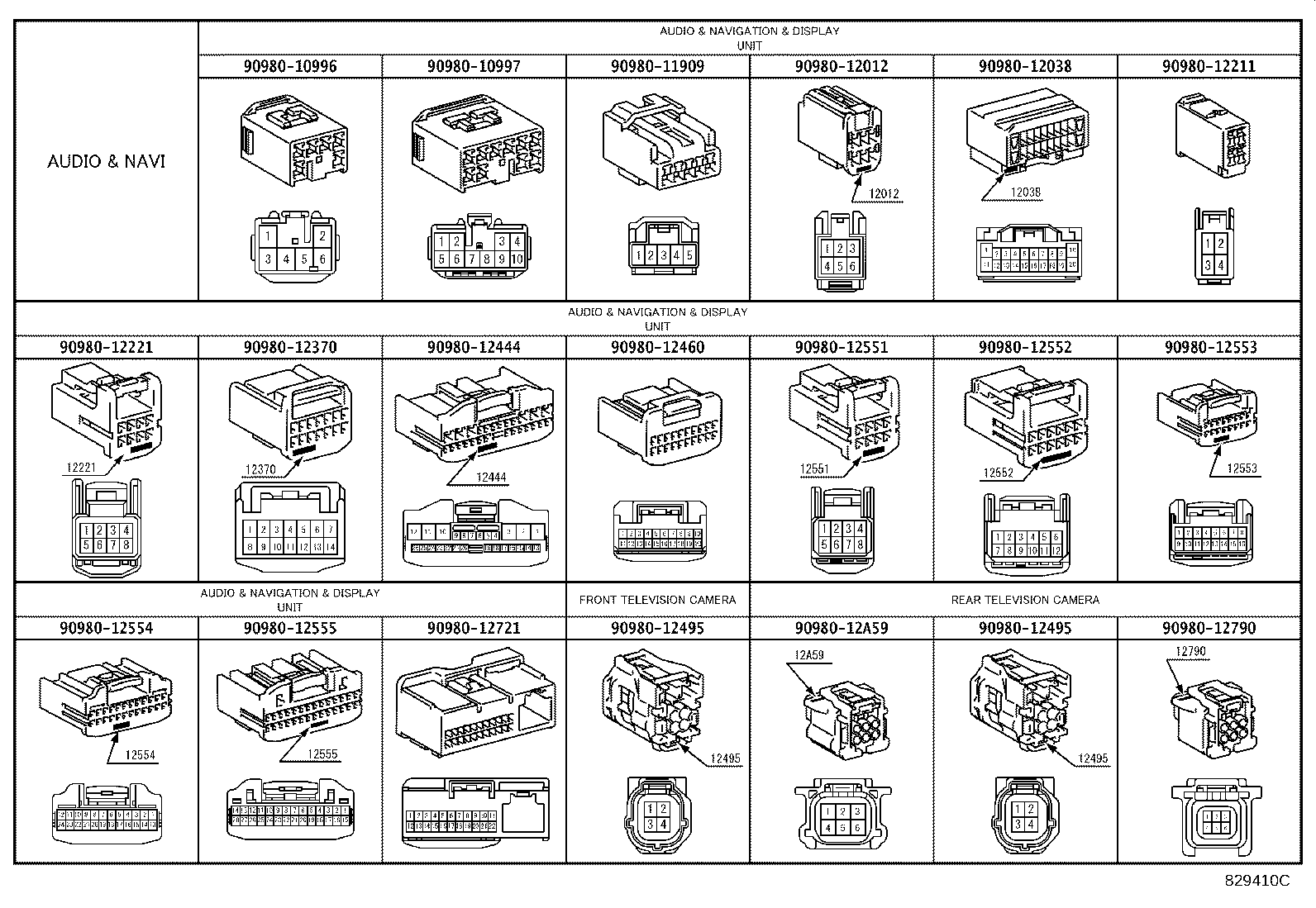

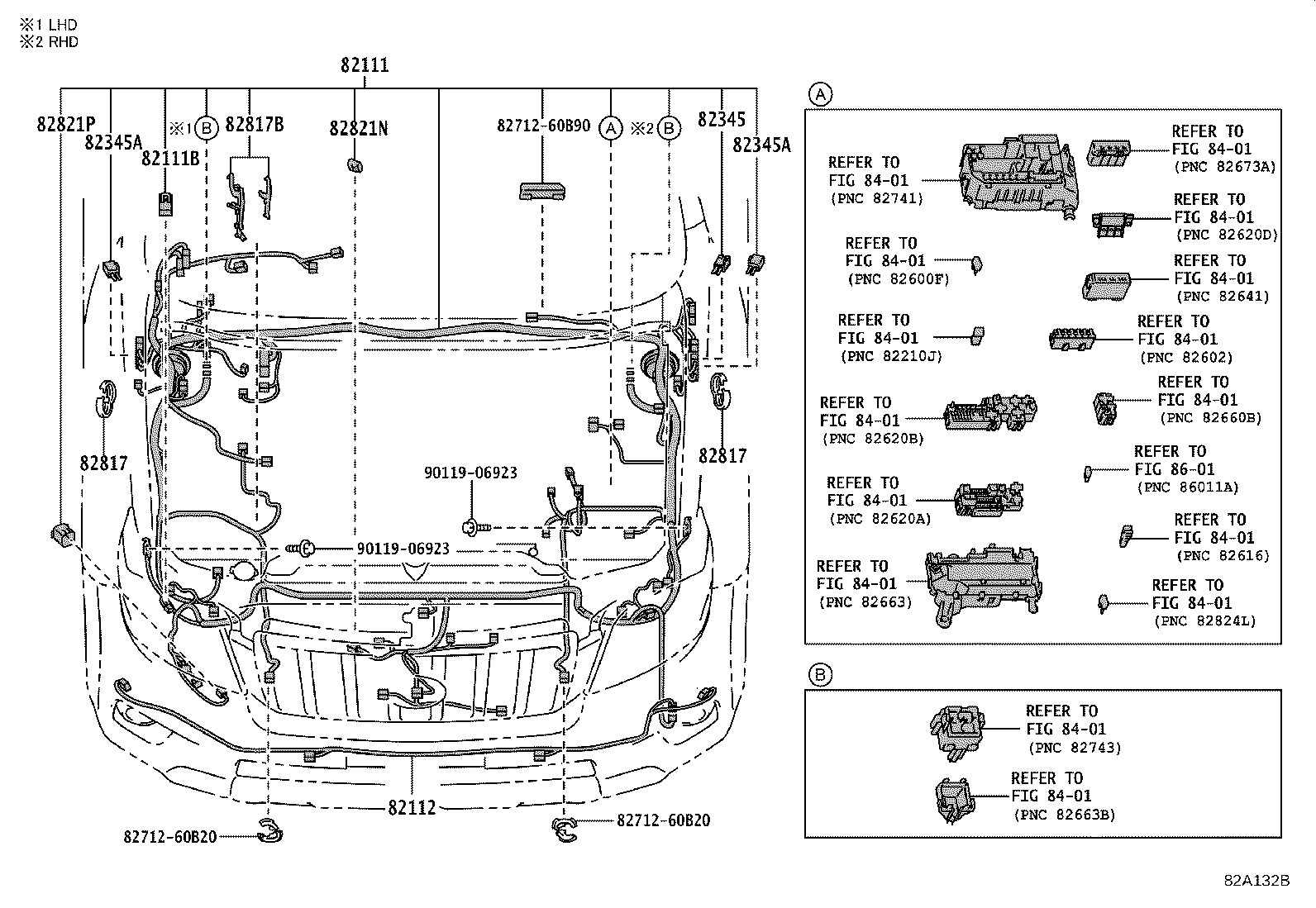

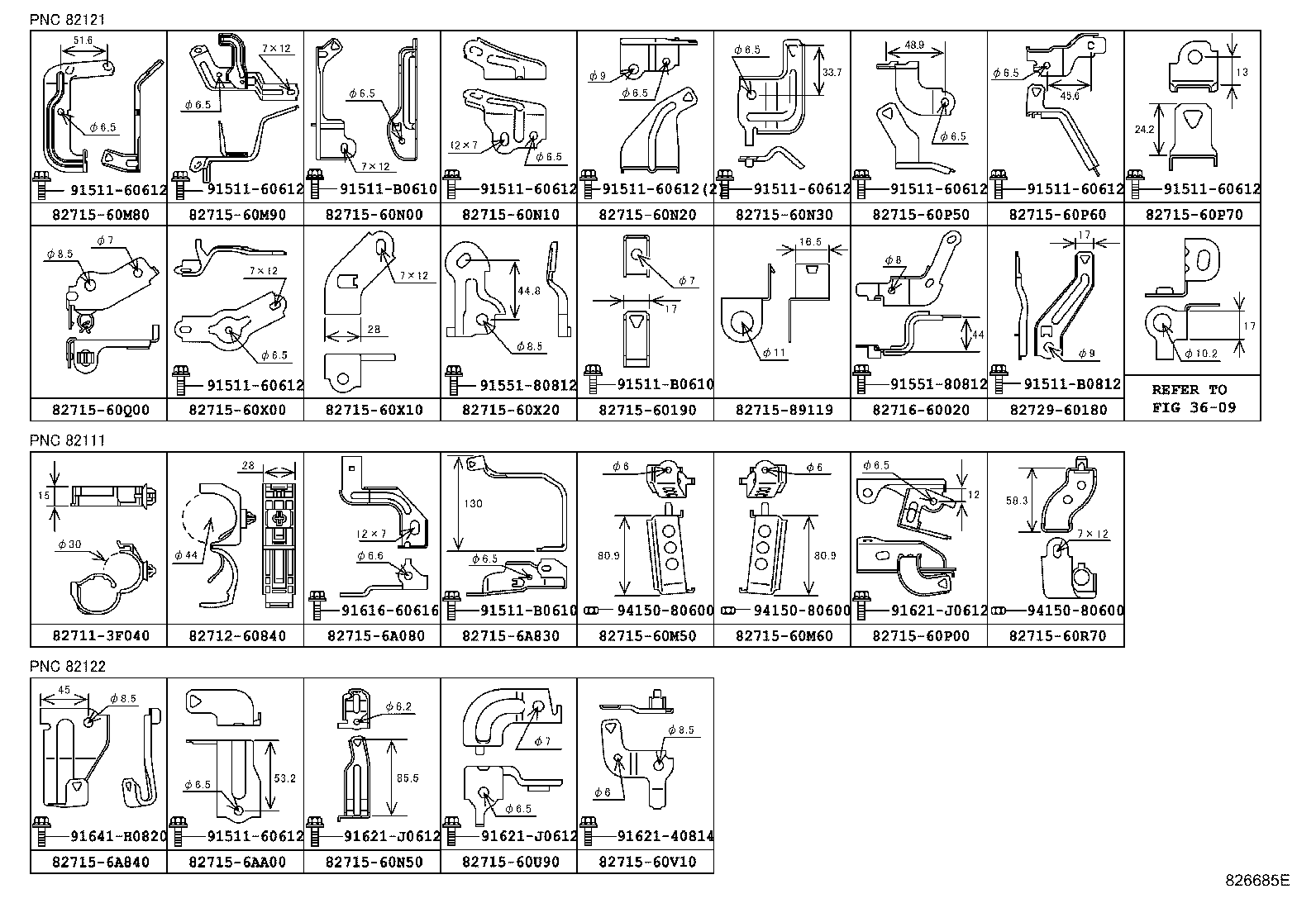

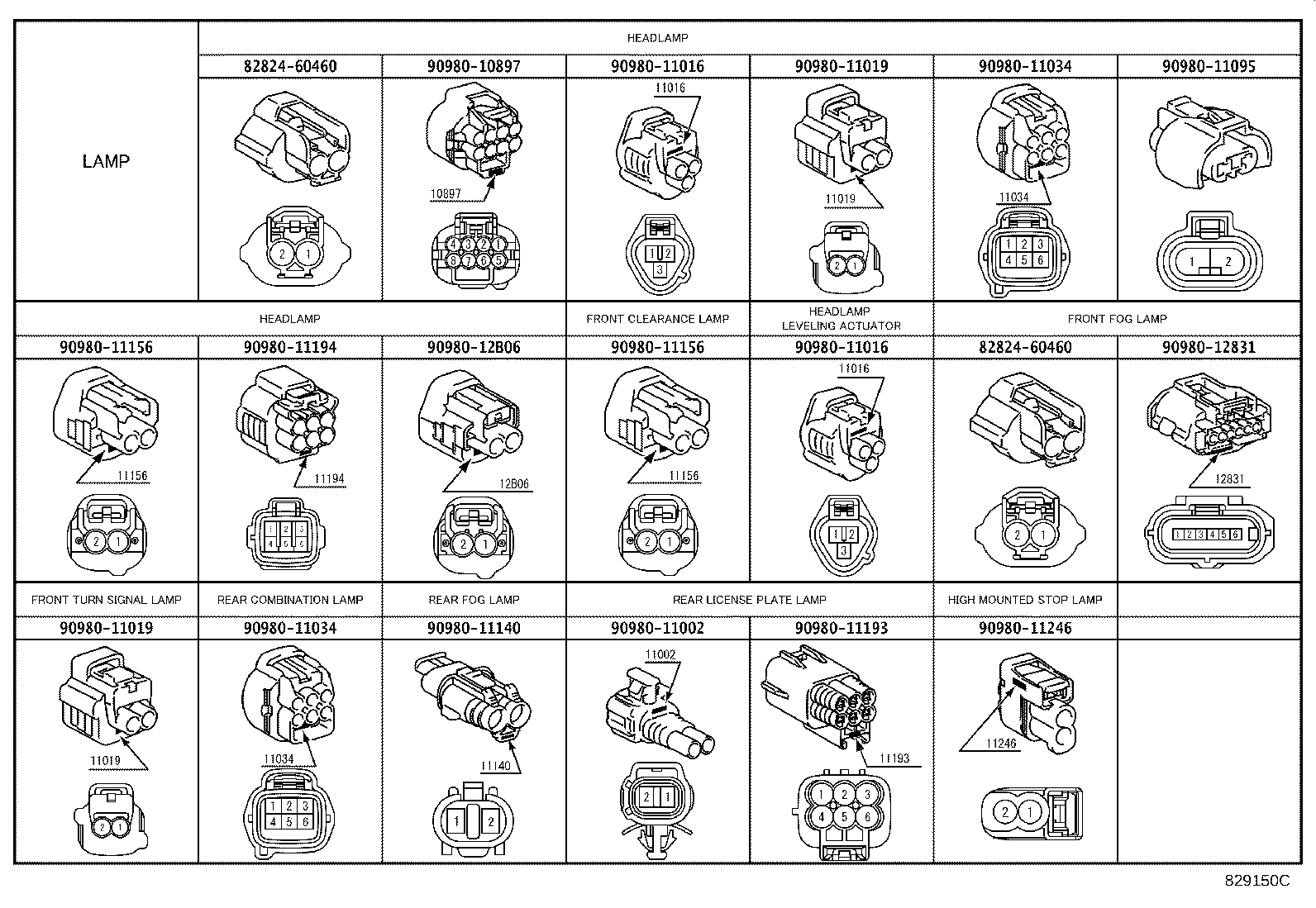

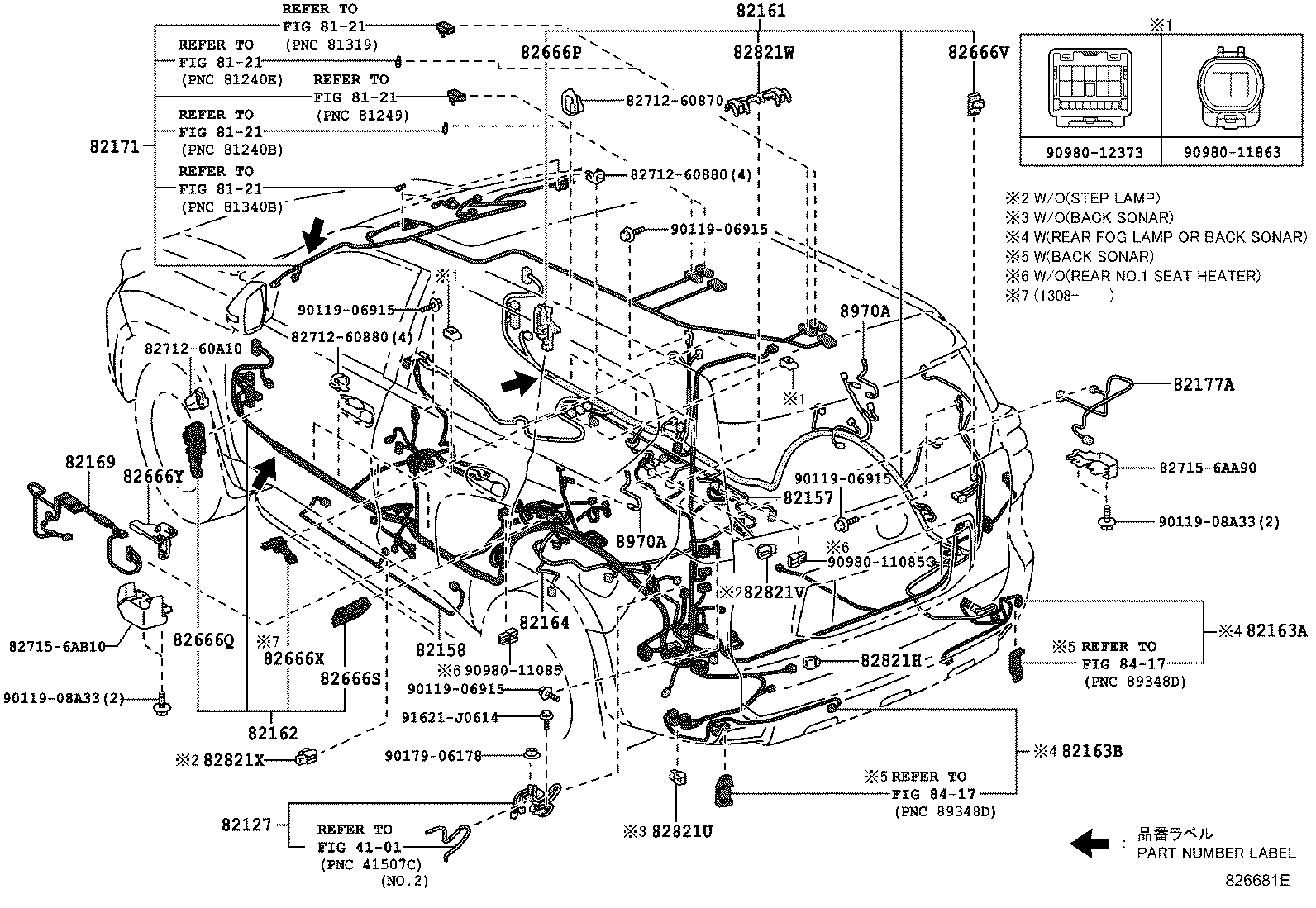

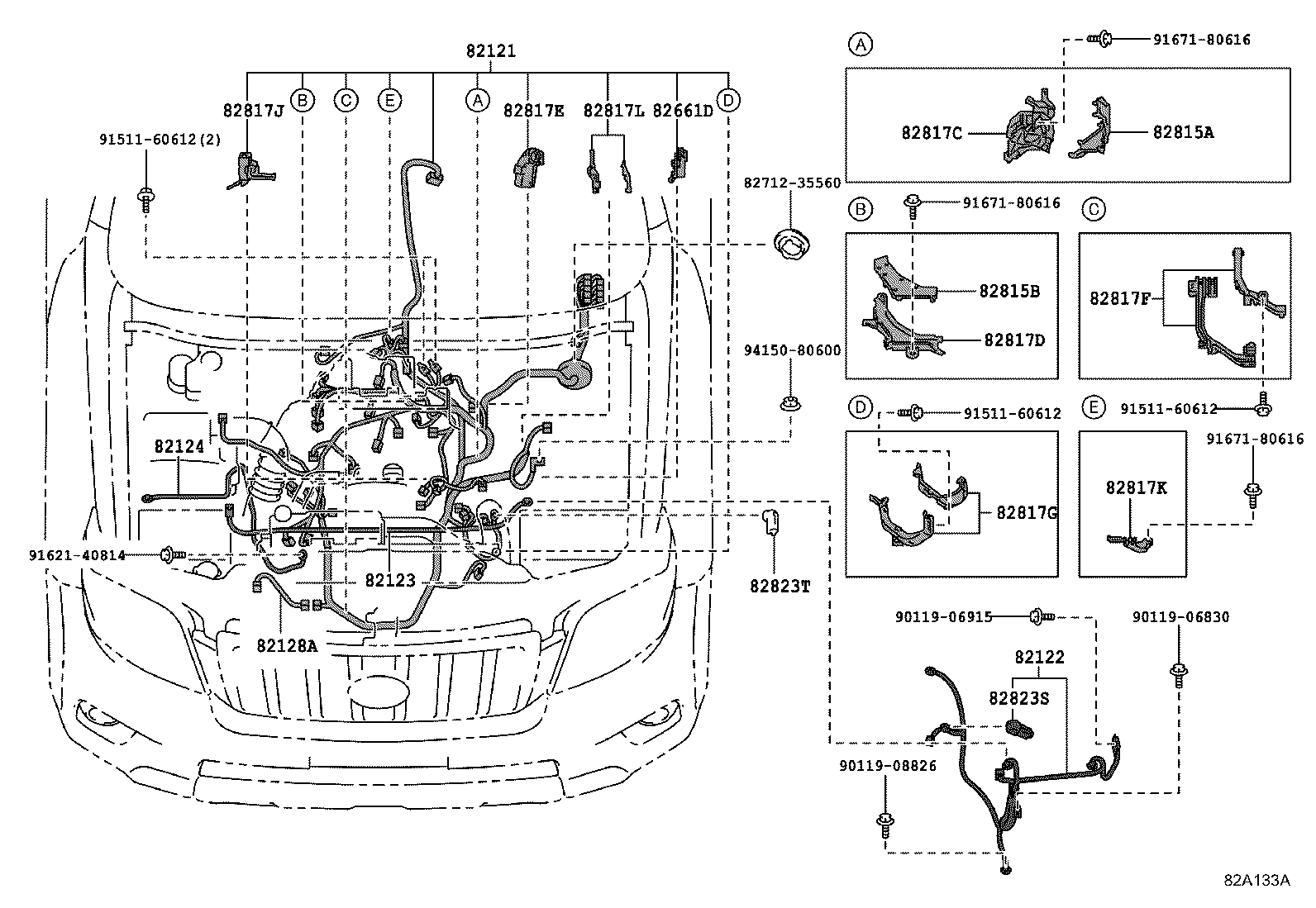

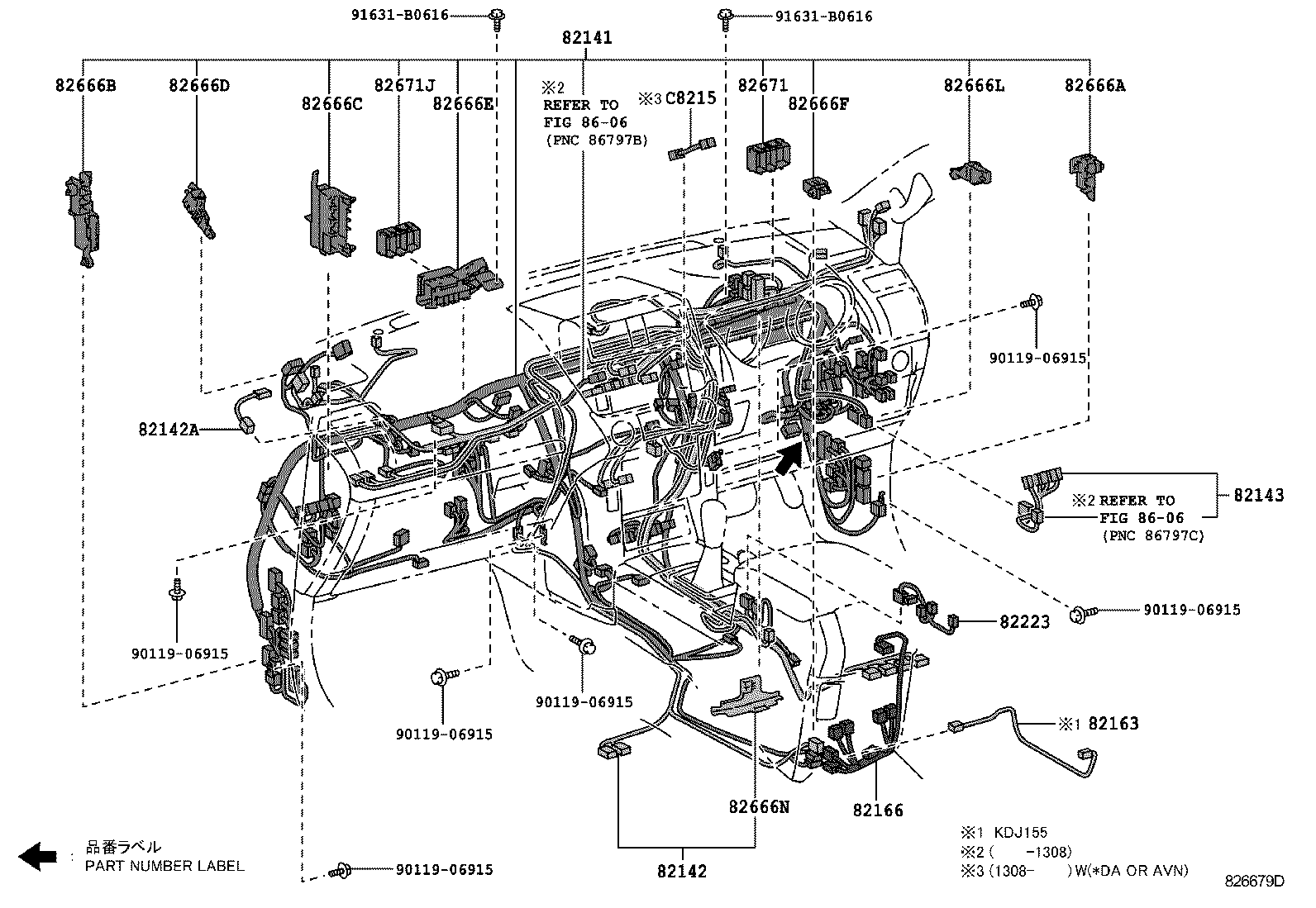

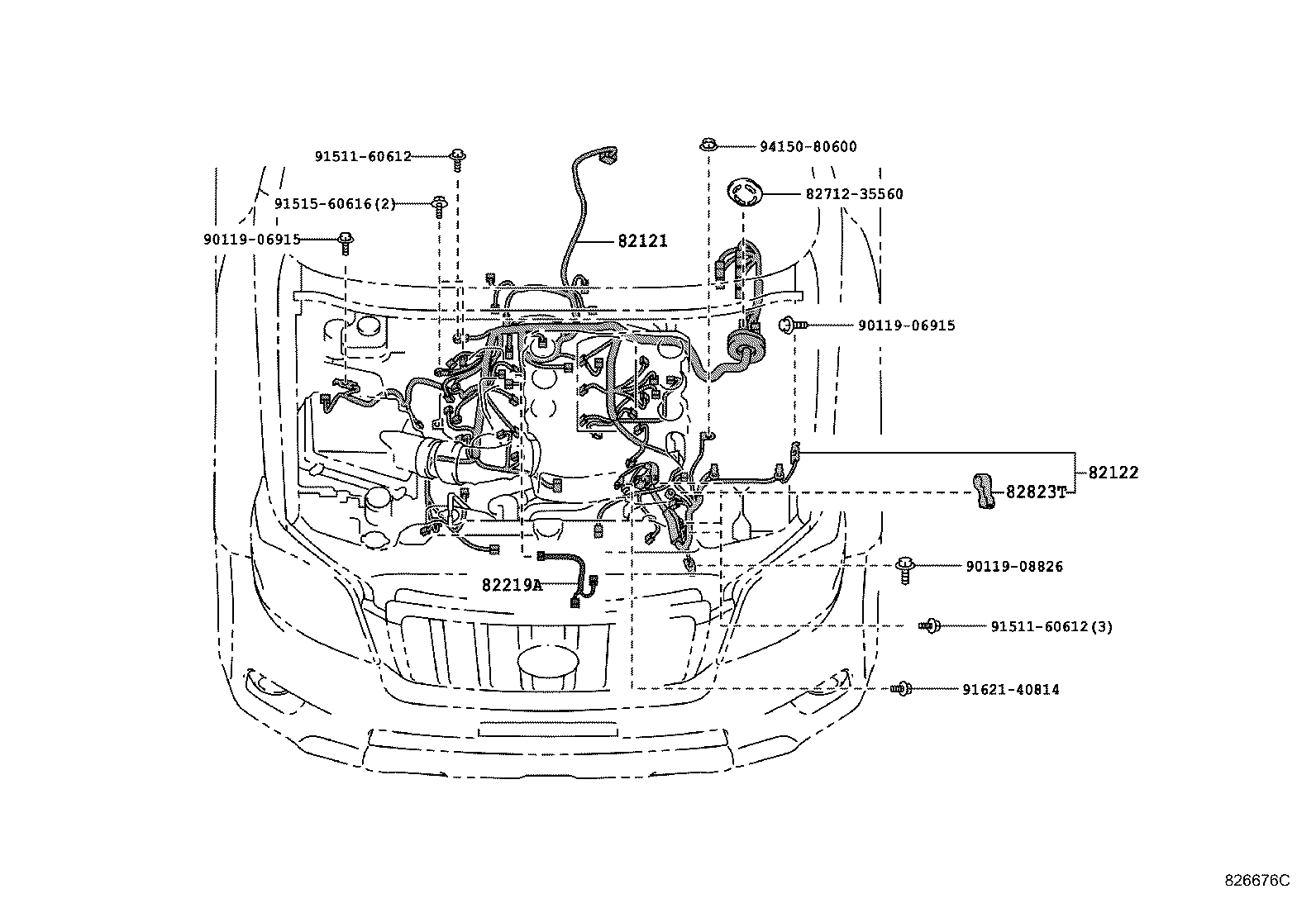

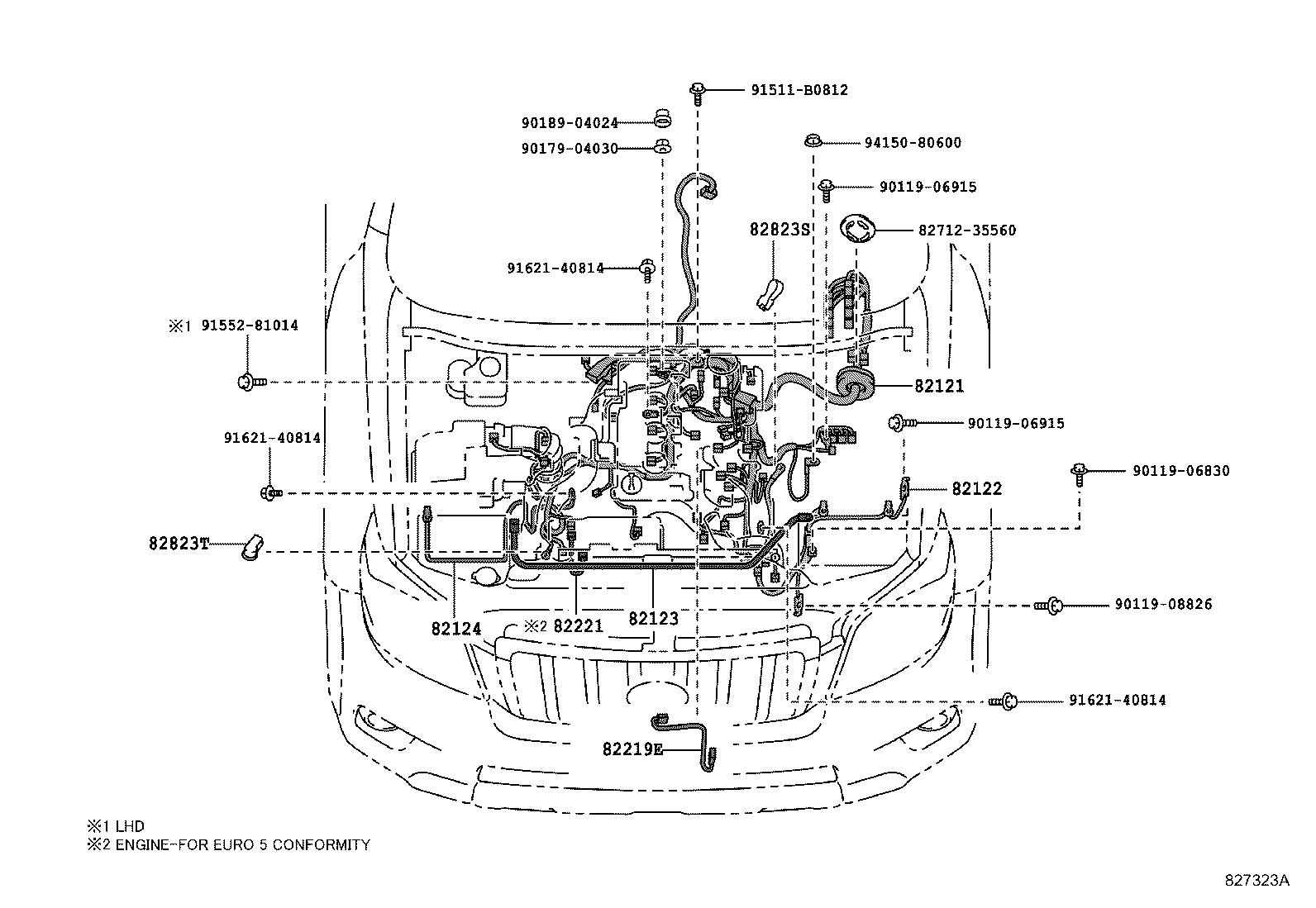

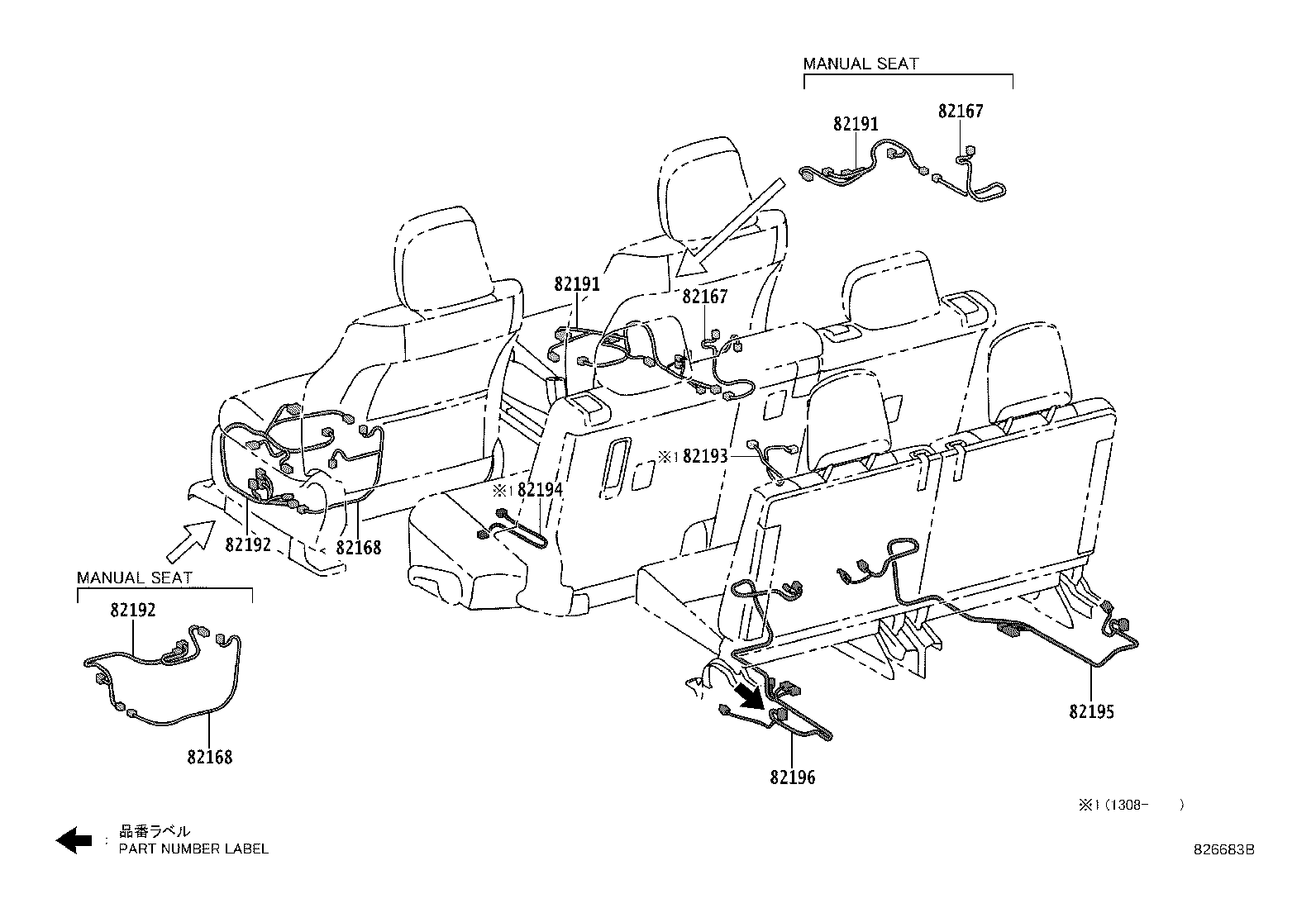

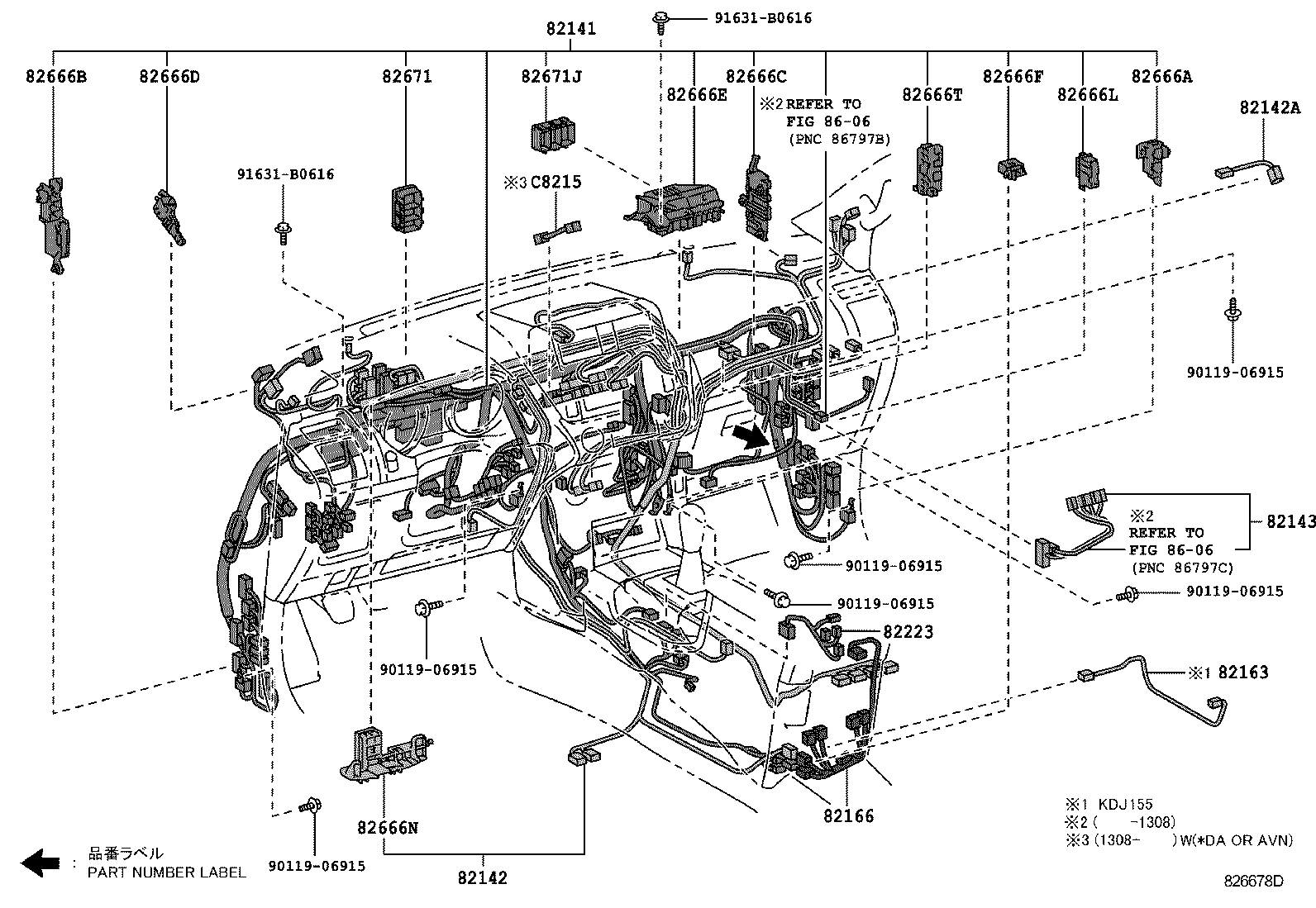

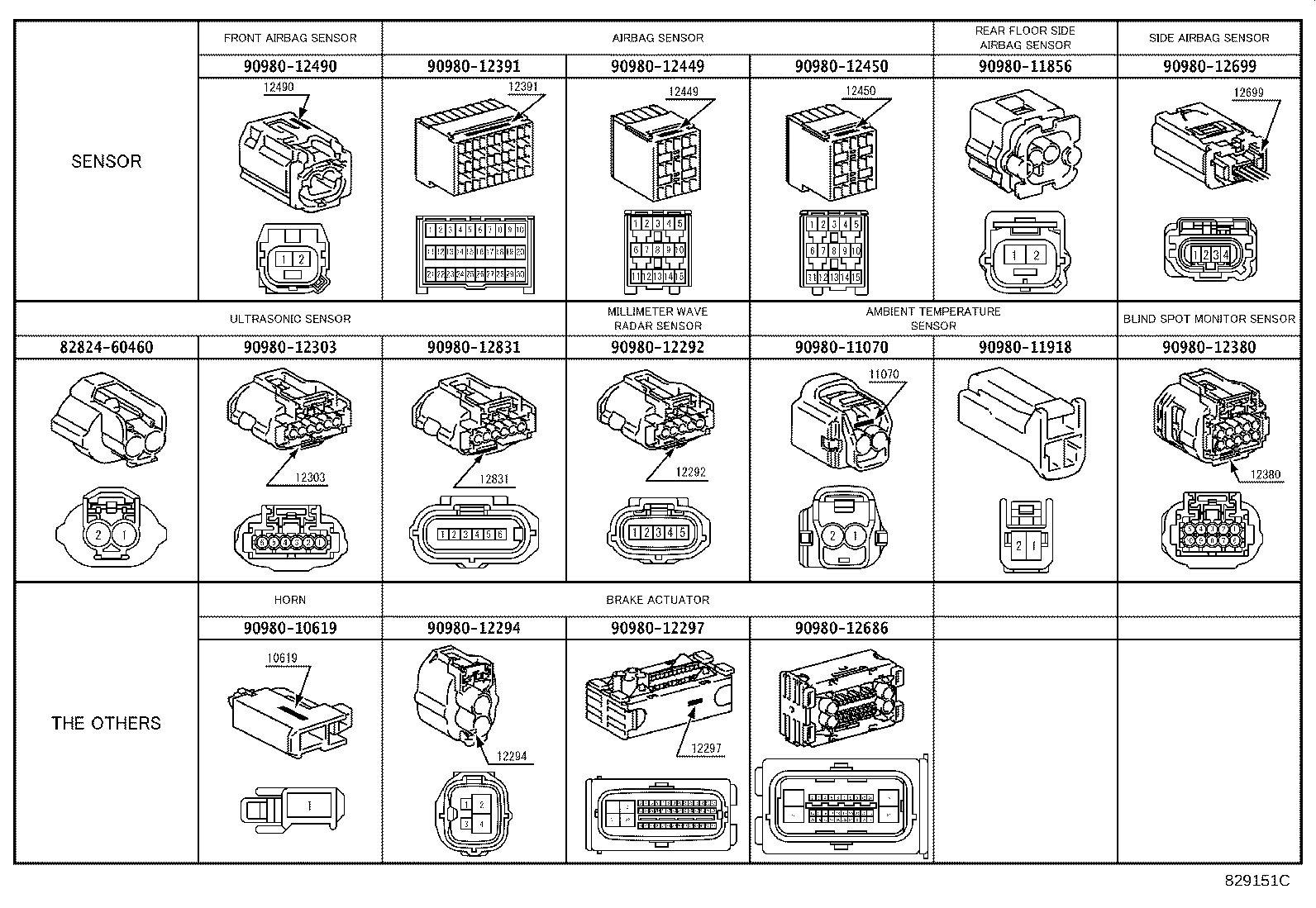

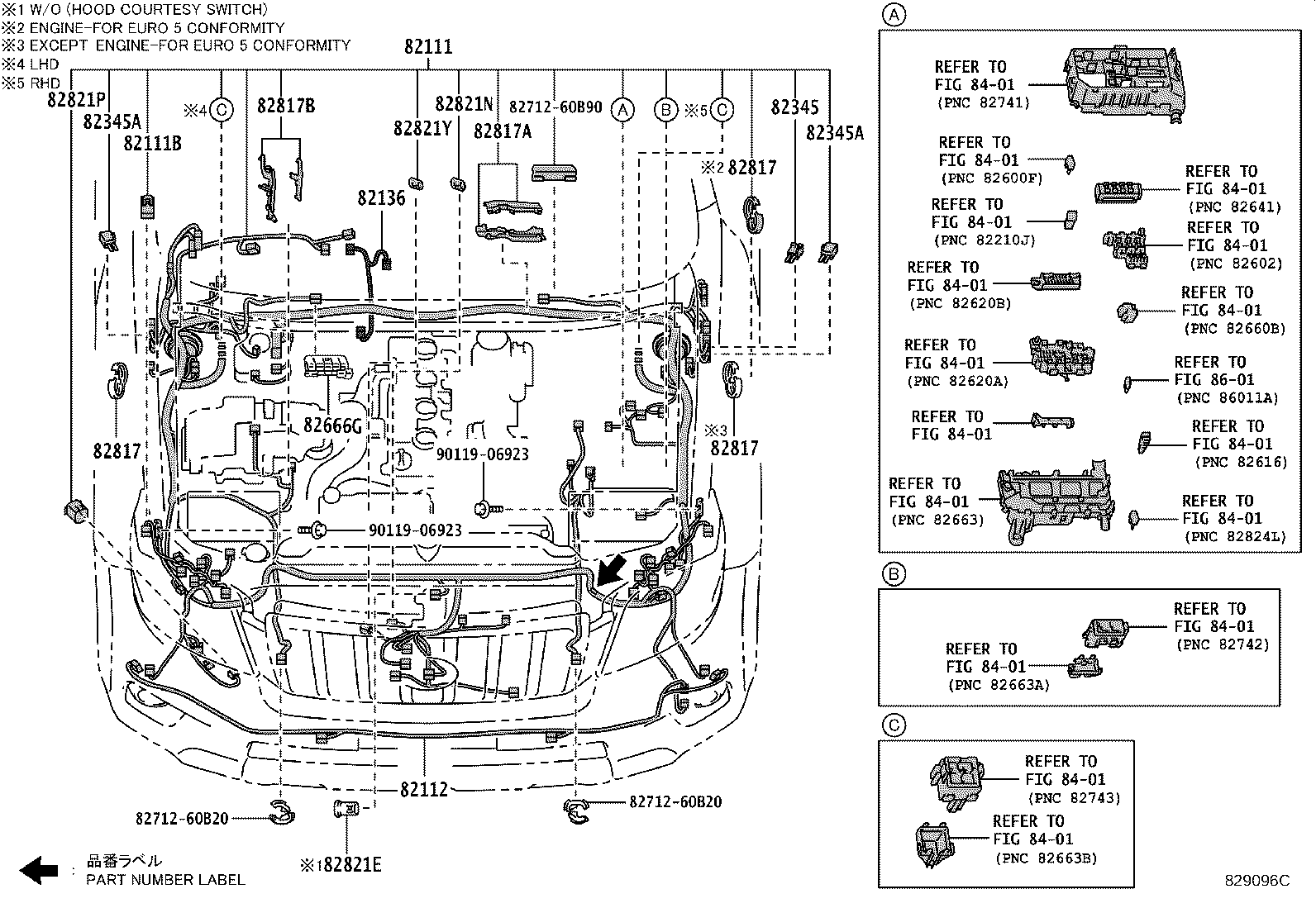

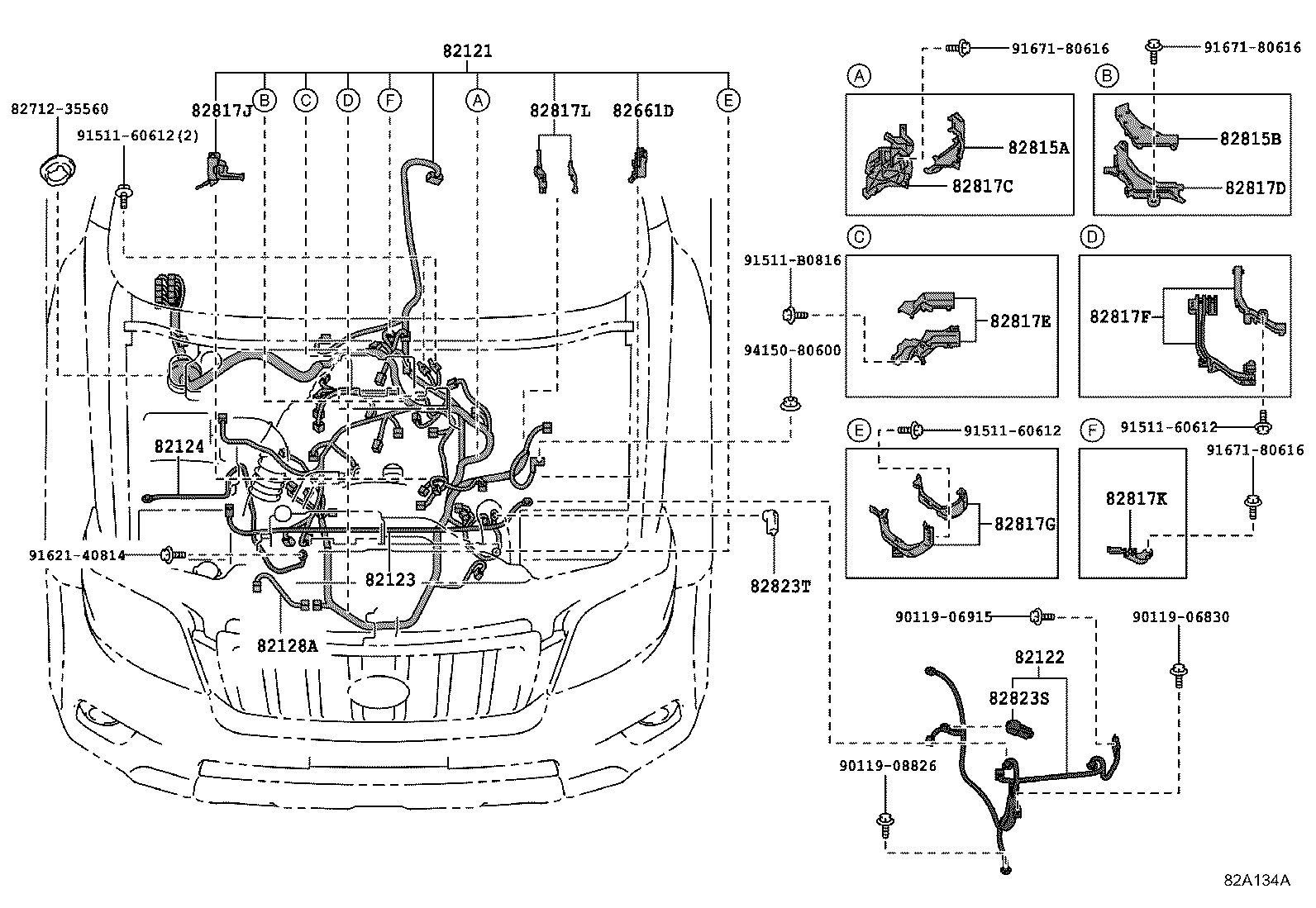

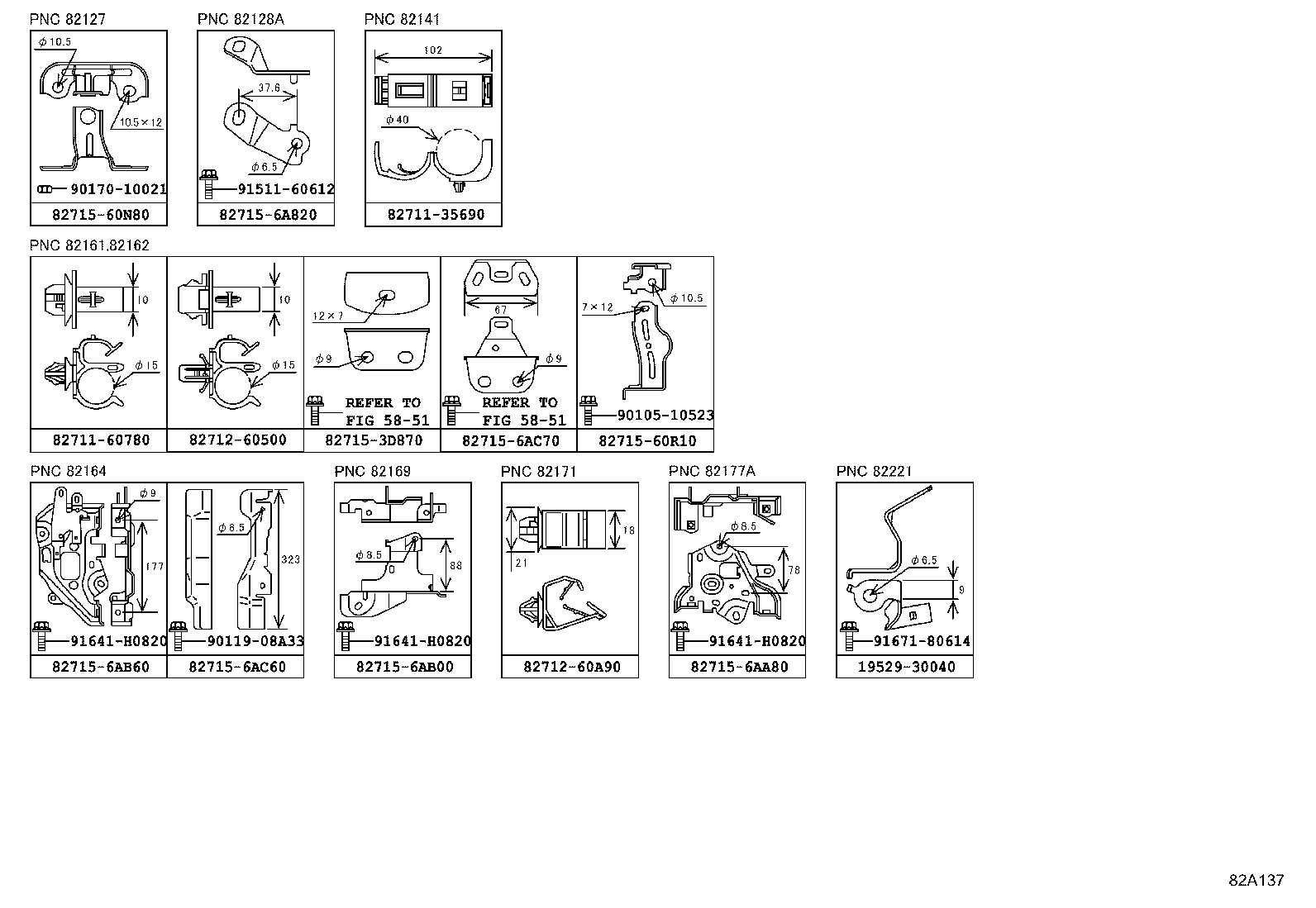

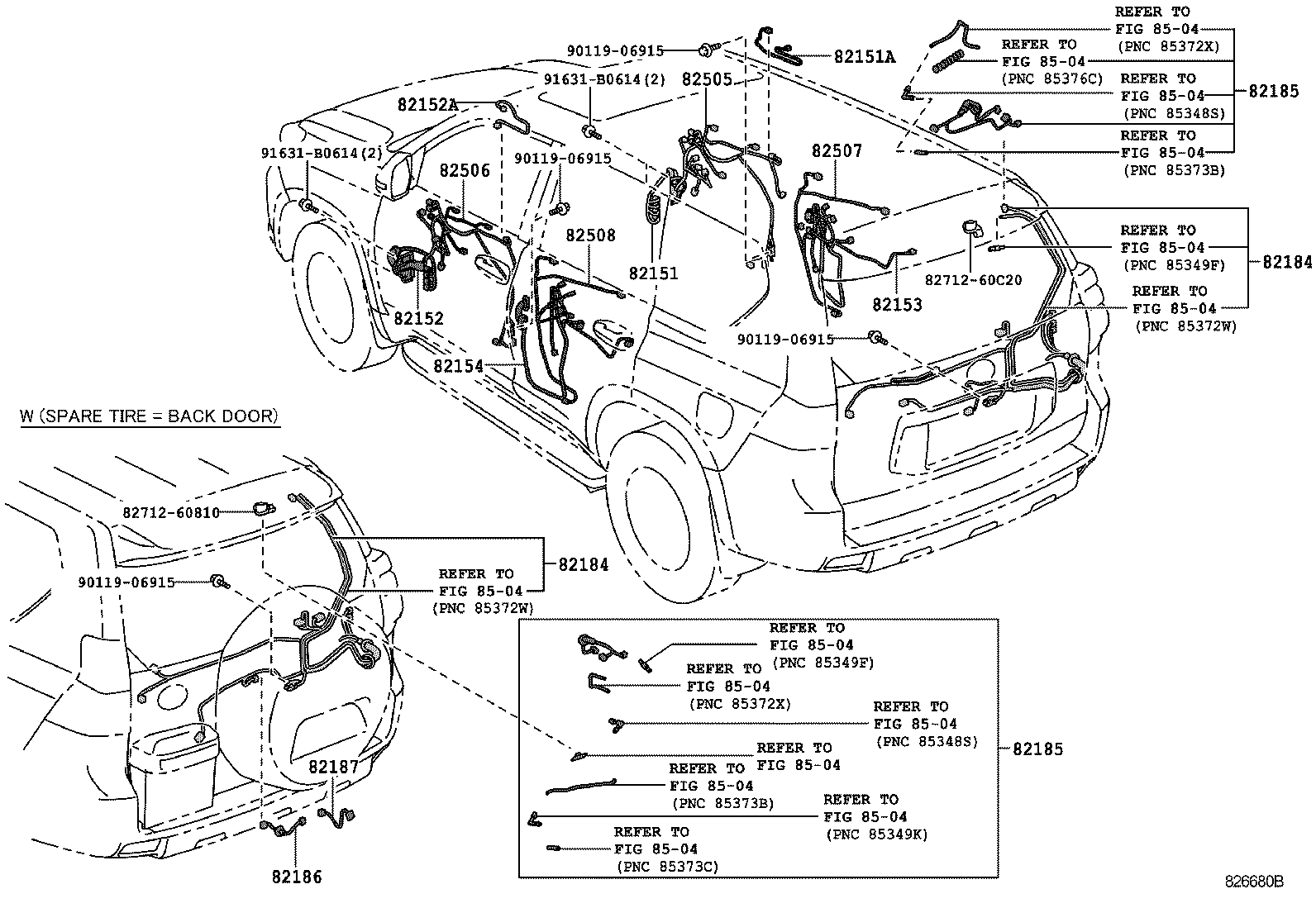

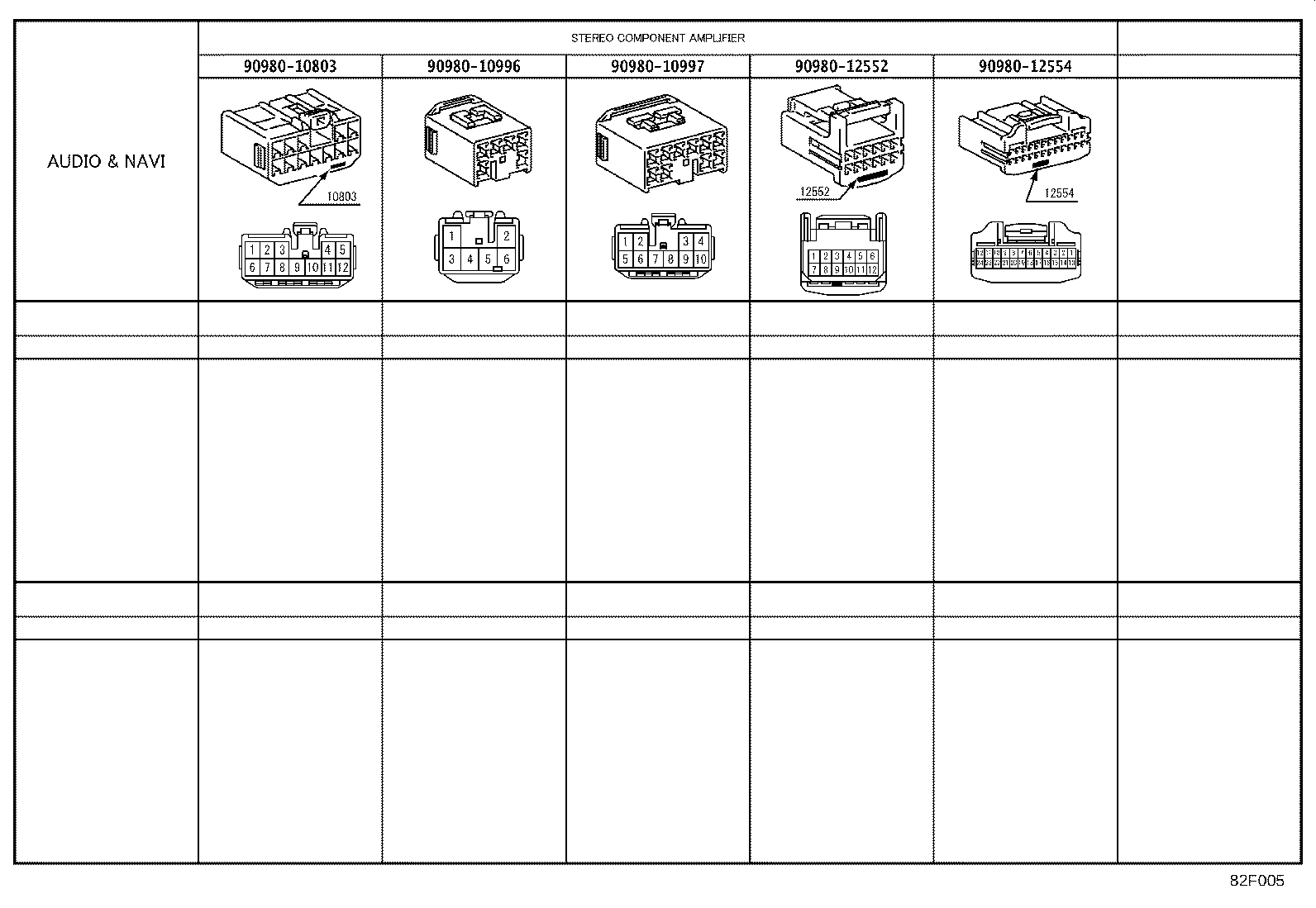

Figure 826863C 826863C 2009-08 → 2013-08 Figure 829096C 829096C 2013-08 → — Figure 82A132B 82A132B 2015-06 → — Figure 826676C 826676C 2009-08 → — Figure 827323A 827323A 2009-08 → — Figure 82A134A 82A134A 2015-06 → — Figure 82A133A 82A133A 2015-06 → — Figure 826678D 826678D 2009-08 → — Figure 826679D 826679D 2009-08 → — Figure 826680B 826680B 2009-08 → — Figure 826681E 826681E 2009-08 → — Figure 826682F 826682F 2009-08 → — Figure 826683B 826683B 2009-08 → — Figure 826684D 826684D 2009-08 → — Figure 826685E 826685E 2009-08 → — Figure 82A137 82A137 2009-08 → — Figure 829150C 829150C 2009-08 → — Figure 829151C 829151C 2009-08 → — Figure 829410C 829410C 2009-08 → — Figure 82F005 82F005 2009-08 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82111B Condenser
82112 Wire, Engine Room, NO.2
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82127 Wire, Differential
82128A Wire, Engine, NO.8
82136 Wire, Dash
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82151A Wire, Front Door, NO.2, RH
82152 Wire, Front Door, LH
82152A Wire, Front Door, NO.2, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82157 Wire, Step Panel, RH
82158 Wire, Step Panel, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82163A Wire, Floor, NO.4
82163B Wire, Floor NO.5
82164 Wire, Frame
82166 Wire, Console Box
82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82177A Wire, Frame, NO.4
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82193 Wire, Rear Seat, RH
82194 Wire, Rear Seat, LH
82195 Wire, Rear Seat, RH NO.2
82196 Wire, Rear Seat, LH NO.2
82219A Wire, Sensor
82219E Wire, Sensor
82221 Wire, Oil Pressure Switch
82223 Wire, Switch
82345 Diode
82345A Diode
82505 Wiring Sub-assy, Front Door, RH
82506 Wiring Sub-assy, Front Door, LH
82507 Wiring Sub-assy, Rear Door, RH
82508 Wiring Sub-assy, Rear Door, LH
82661D Cover, Relay Block, Side NO.1
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82666P Holder, Connector NO.11
82666Q Holder, Connector NO.12
82666S Holder, Connector NO.13
82666T Holder, Connector NO.14
82666V Holder, Connector NO.15
82666W Holder, Connector NO.16
82666X Holder, Connector NO.17
82666Y Holder, Connector NO.18
82671 Block, Junction
82671J Block, Junction, NO.2
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82821E Cover, Connector
82821H Cover, Connector
82821M Cover, Connector
82821N Cover, Connector
82821P Cover, Connector
82821R Cover, Connector
82821U Cover, Connector
82821V Cover, Connector
82821W Cover, Connector
82821X Cover, Connector
82821Y Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
8970A Cord Sub-assy, Theft Warning Sensor
C8215 Wire, Hazard Switch
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
