Toyota Land Cruiser Prado

2009-08 → 2017-08 · chassis GDJ15#,GRJ150,KDJ15# · catalogue 781560 · Europe

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

10 part groups · 2 illustrations

Illustrations

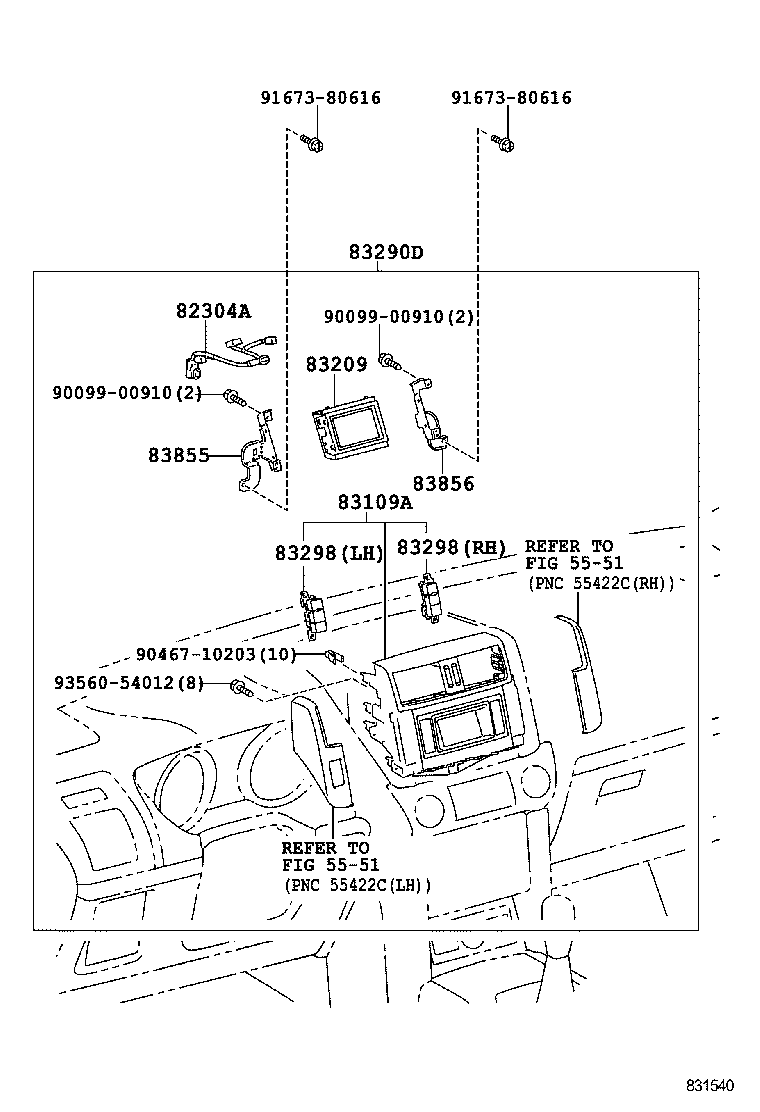

Figure 831520B 831520B 2009-08 → — Figure 831540 831540 2009-08 → 2013-08

Part groups

PNCDescription
82304A Wire Sub-assy, Clock
83100 Meter Assy, Combination
83109A Panel Sub-assy, Combination Meter
83138G Glass, Combination Meter
83209 Meter Sub-assy, Accessory
83290D Meter Assy, Accessory
83298 Housing,Accessory Meter Computer
83847 Cushion, Combination Speedometer, NO.1
83855 Bracket, Combination Meter, NO.1
83856 Bracket, Combination Meter, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
