Toyota Land Cruiser Prado

2009-08 → 2017-08 · chassis GDJ15#,GRJ150,KDJ15# · catalogue 781560 · Europe

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

171 part groups · 31 illustrations

Illustrations

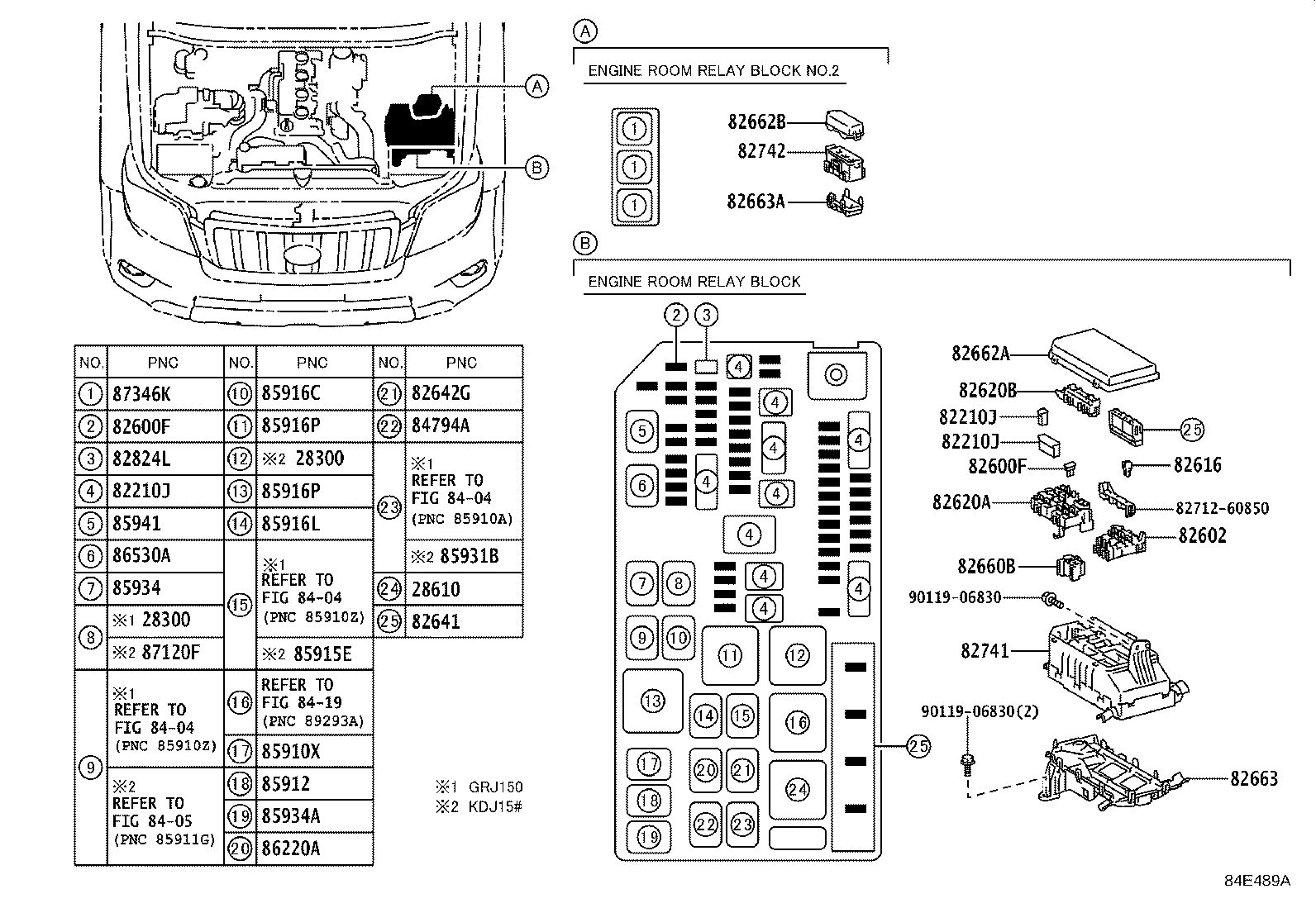

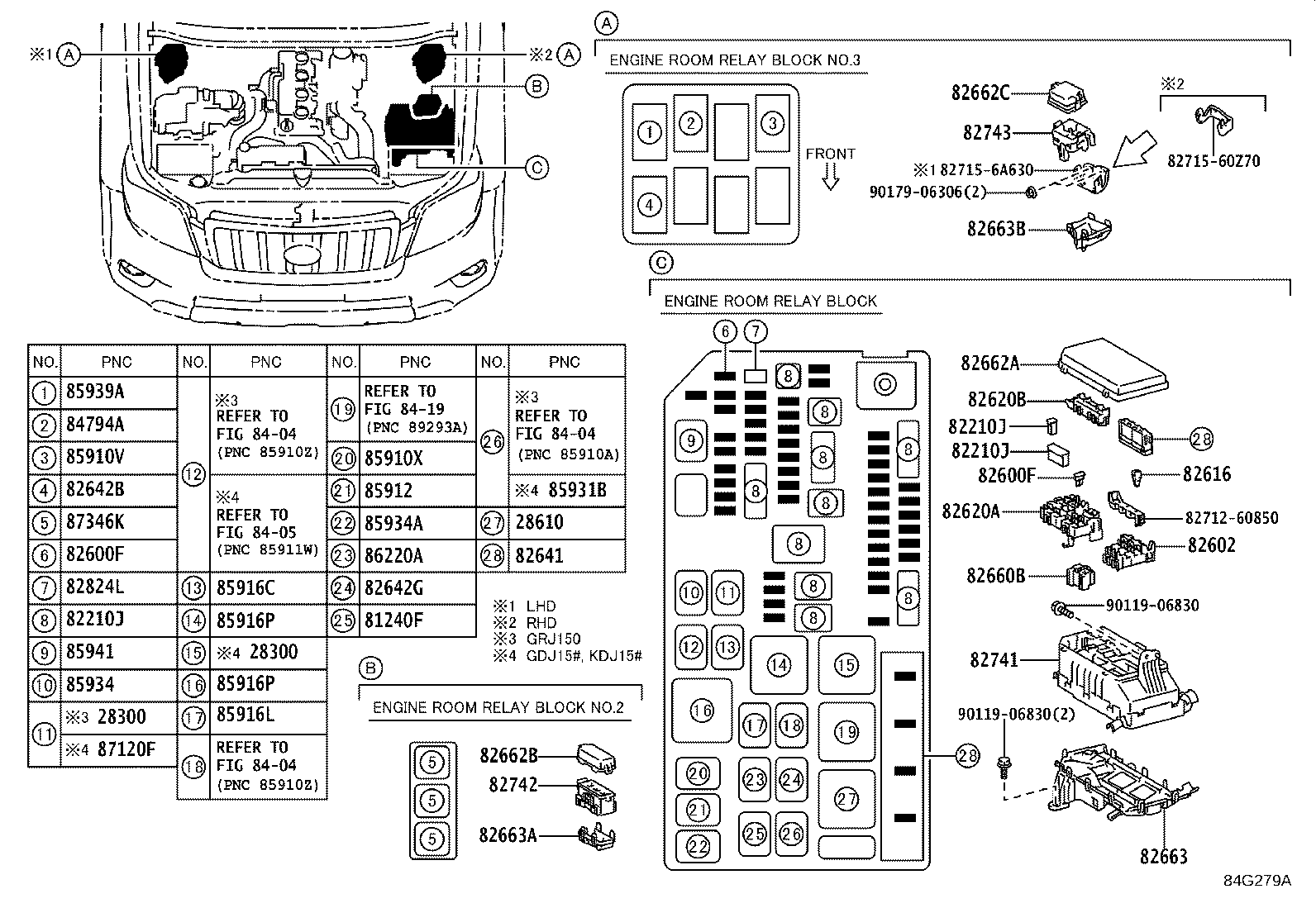

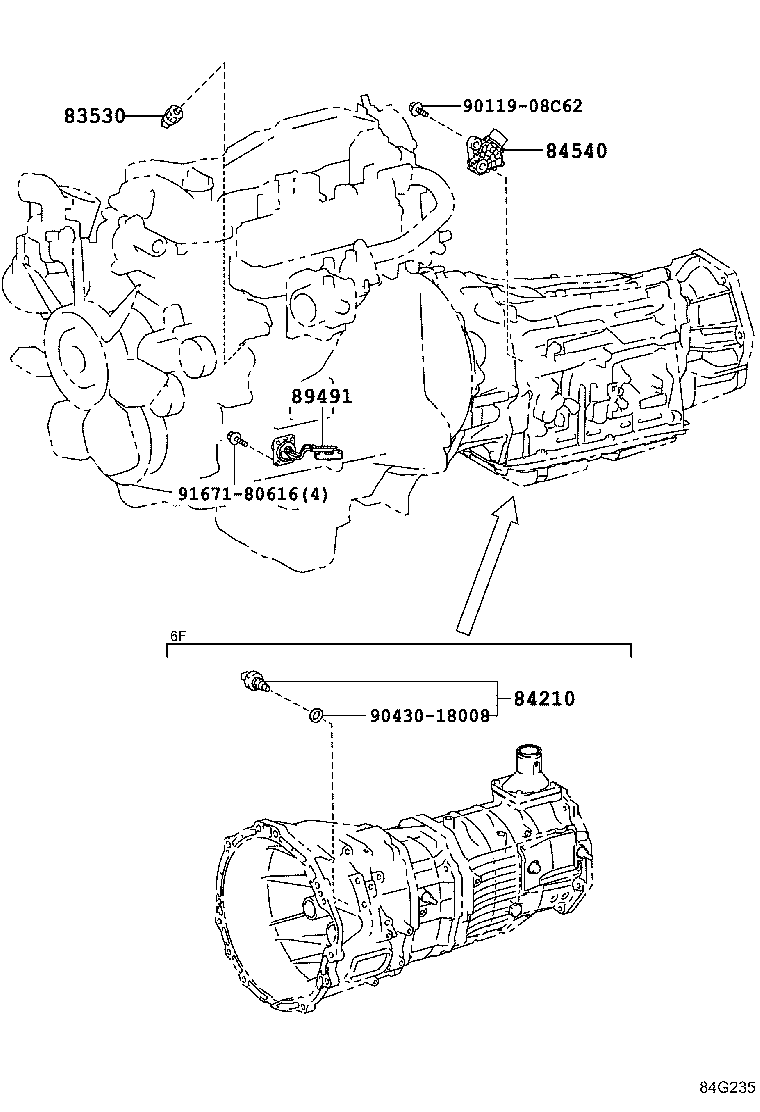

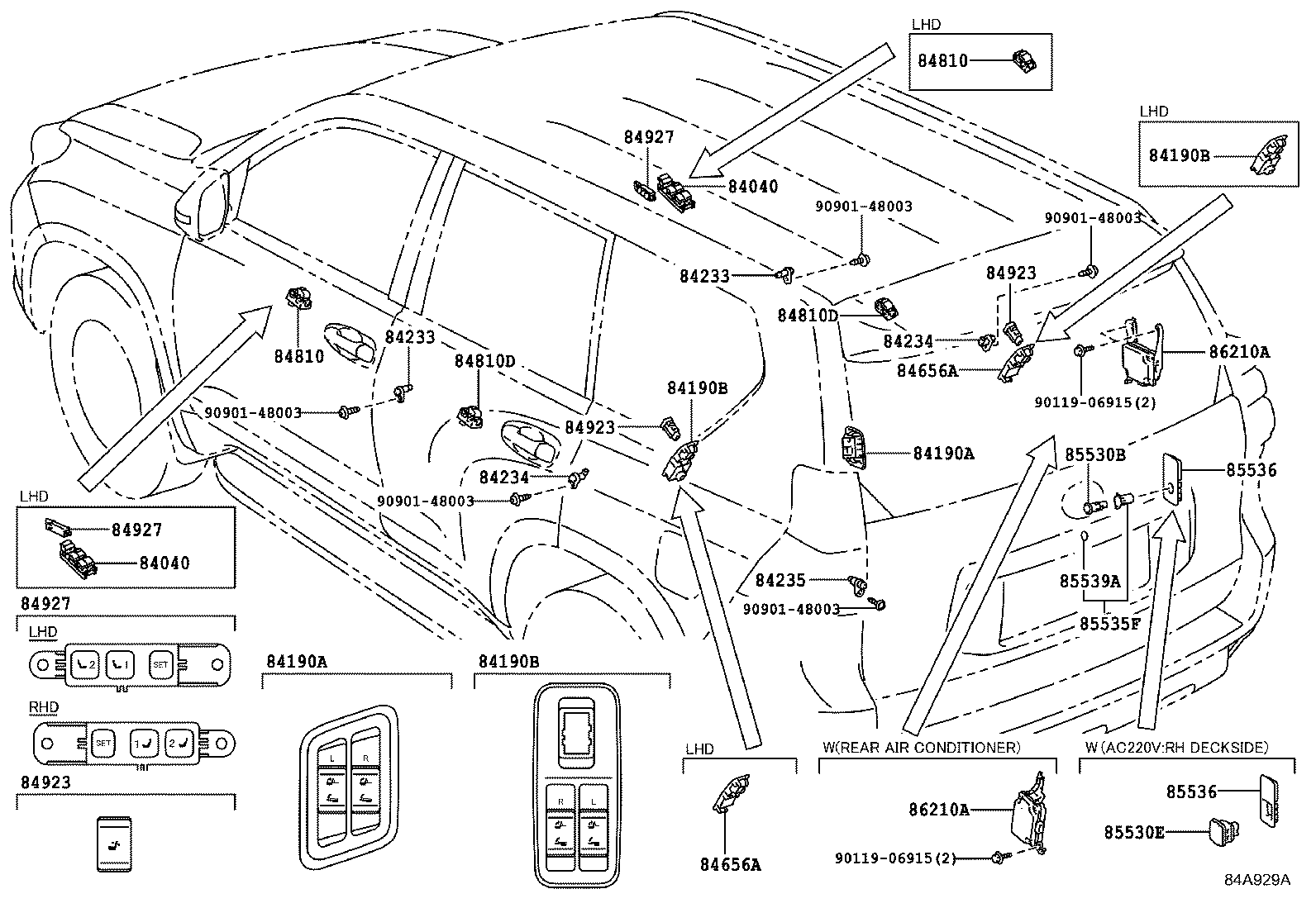

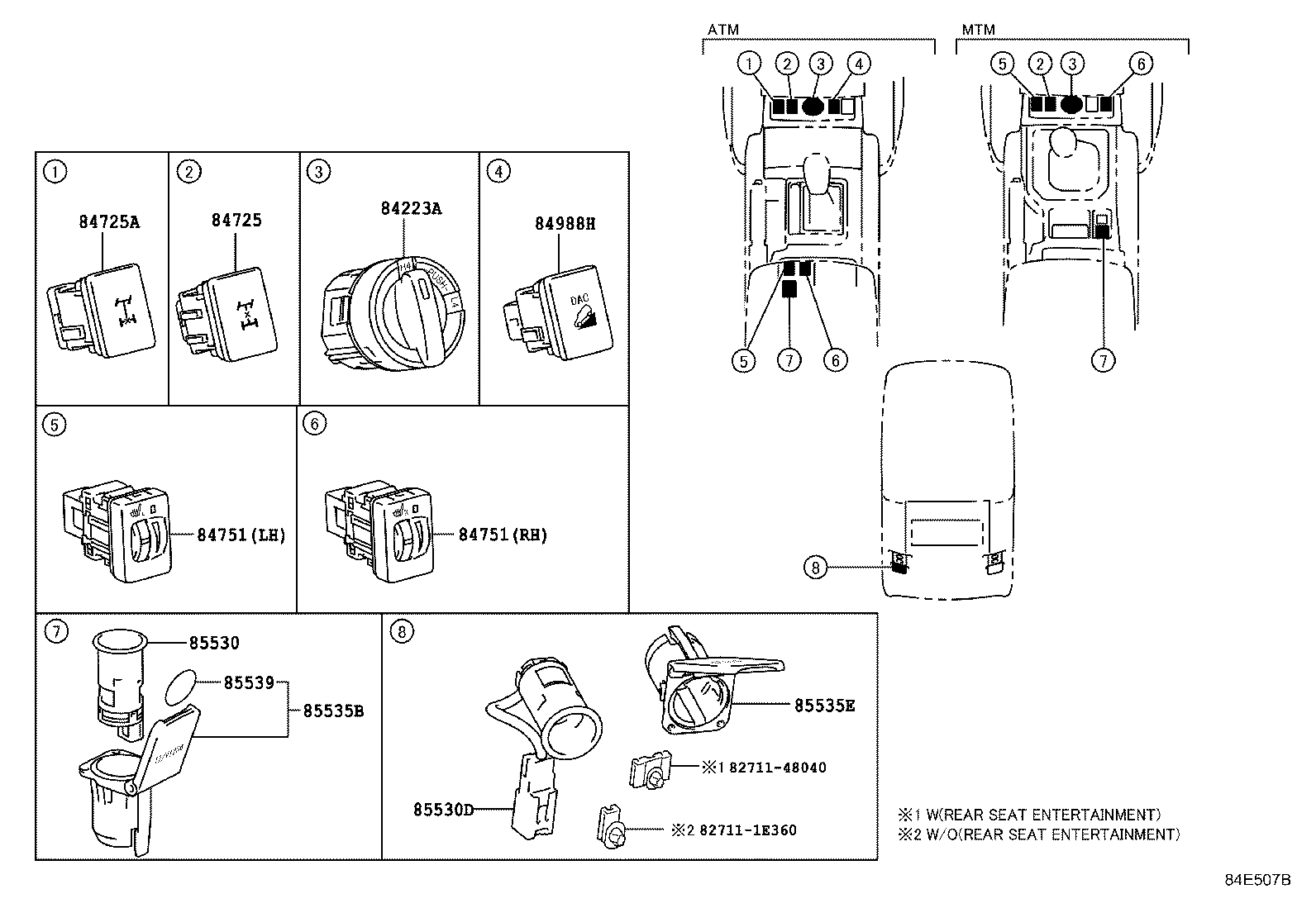

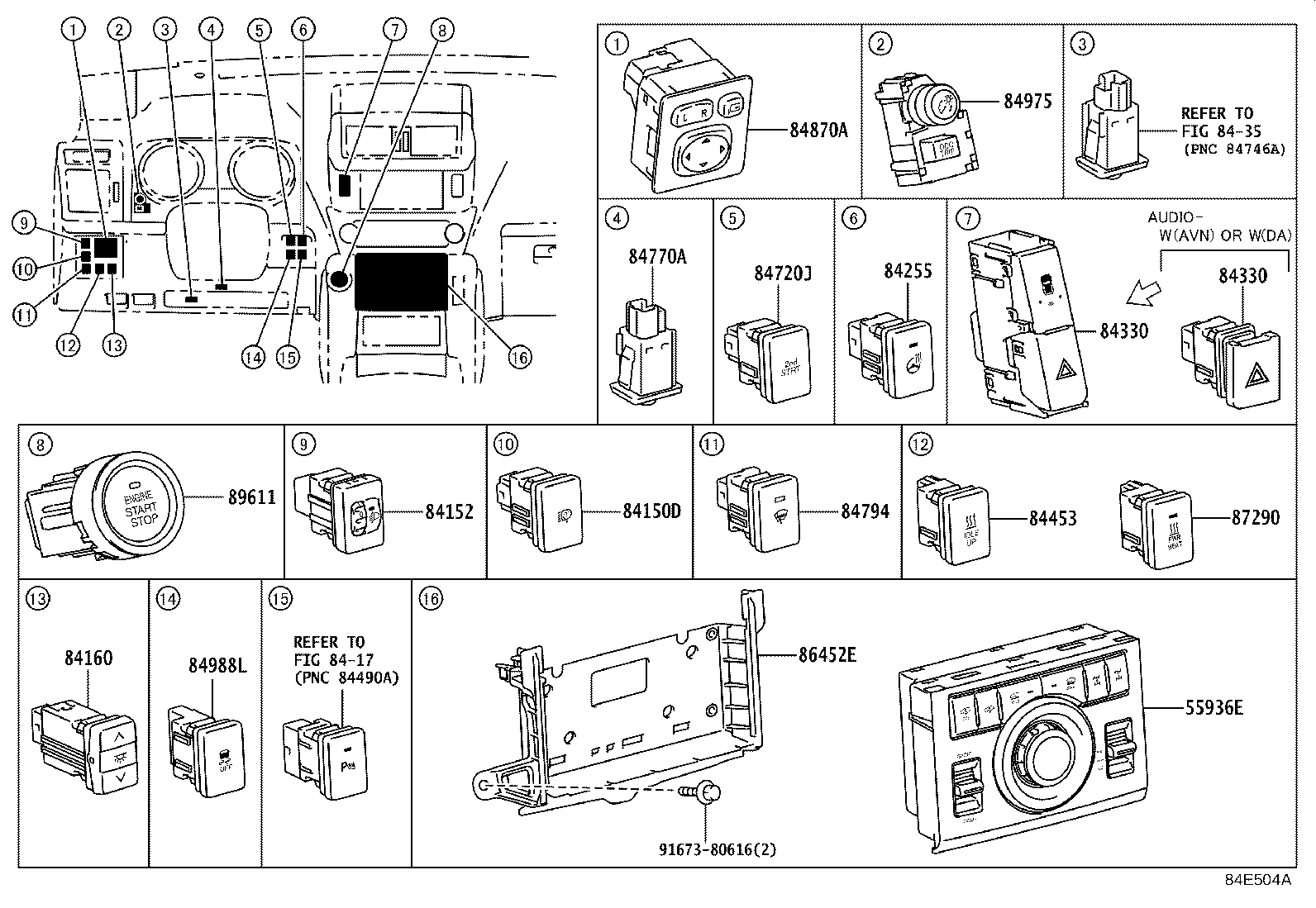

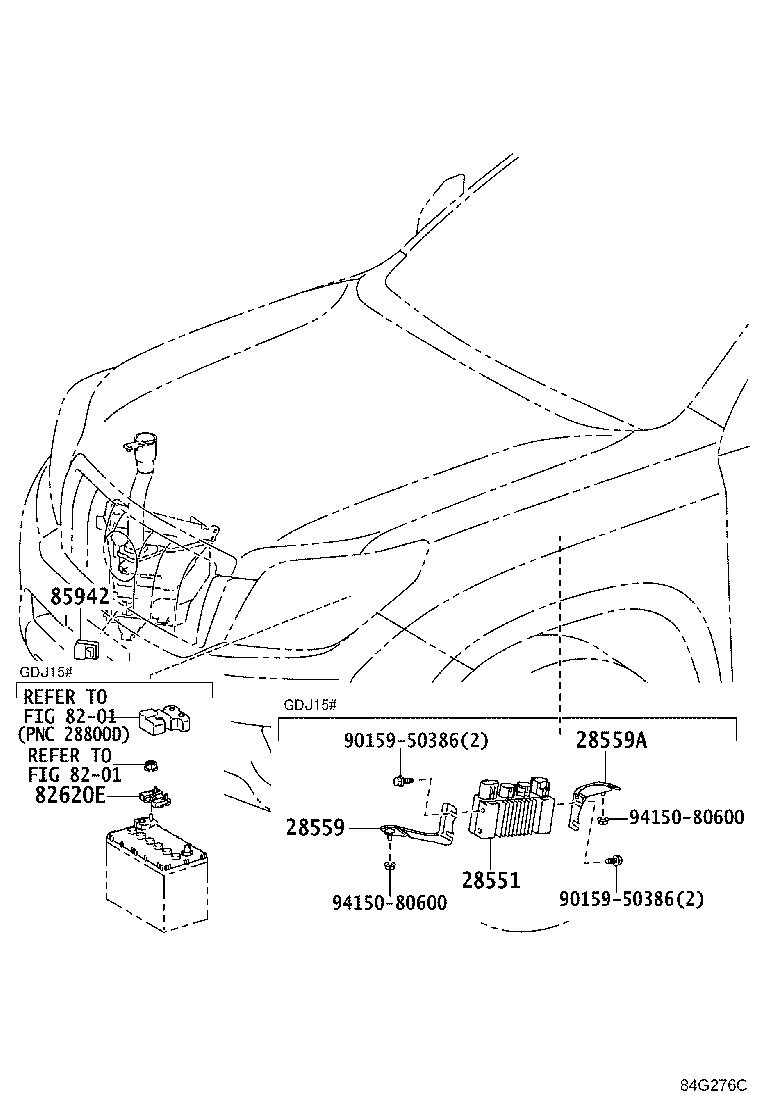

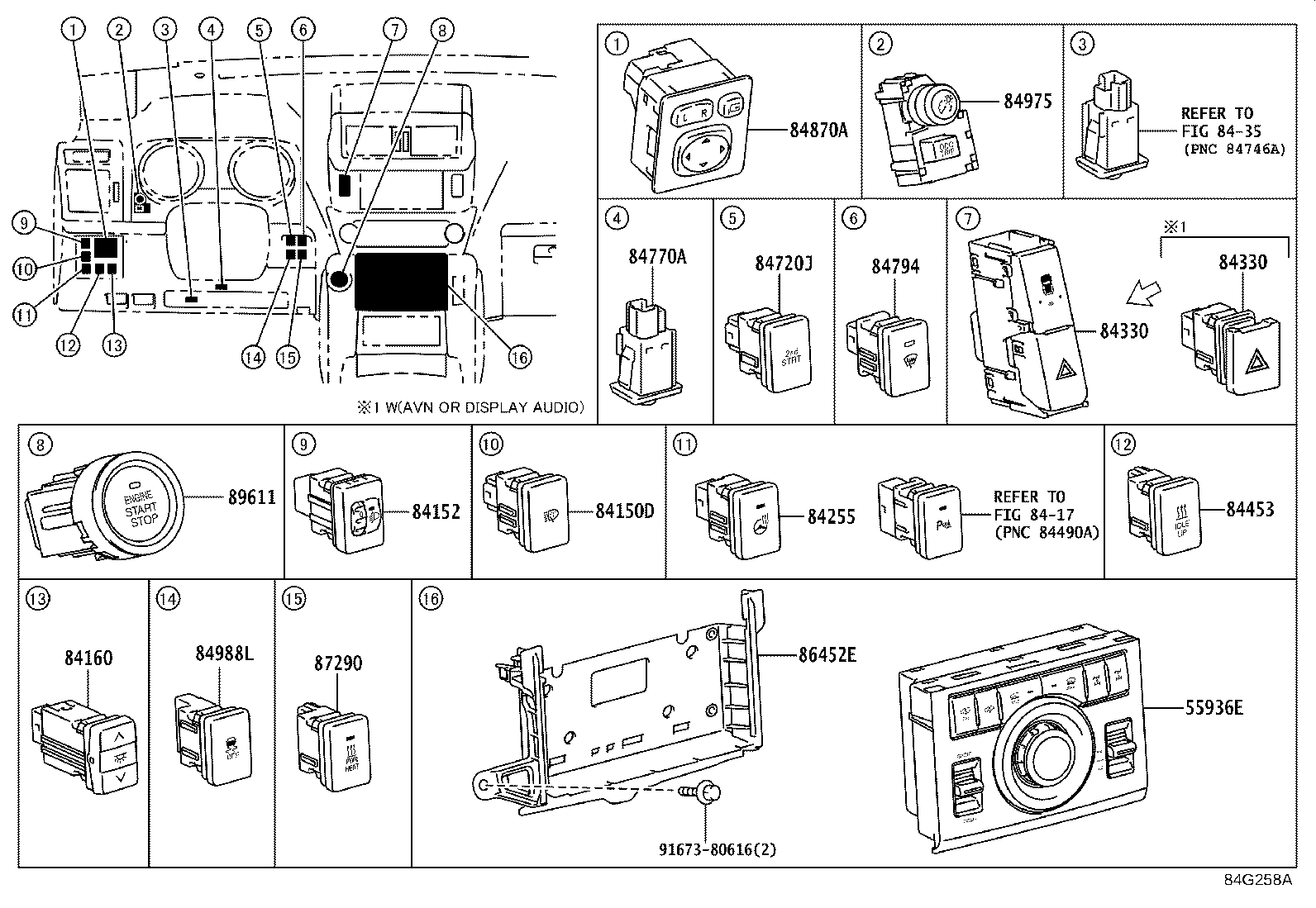

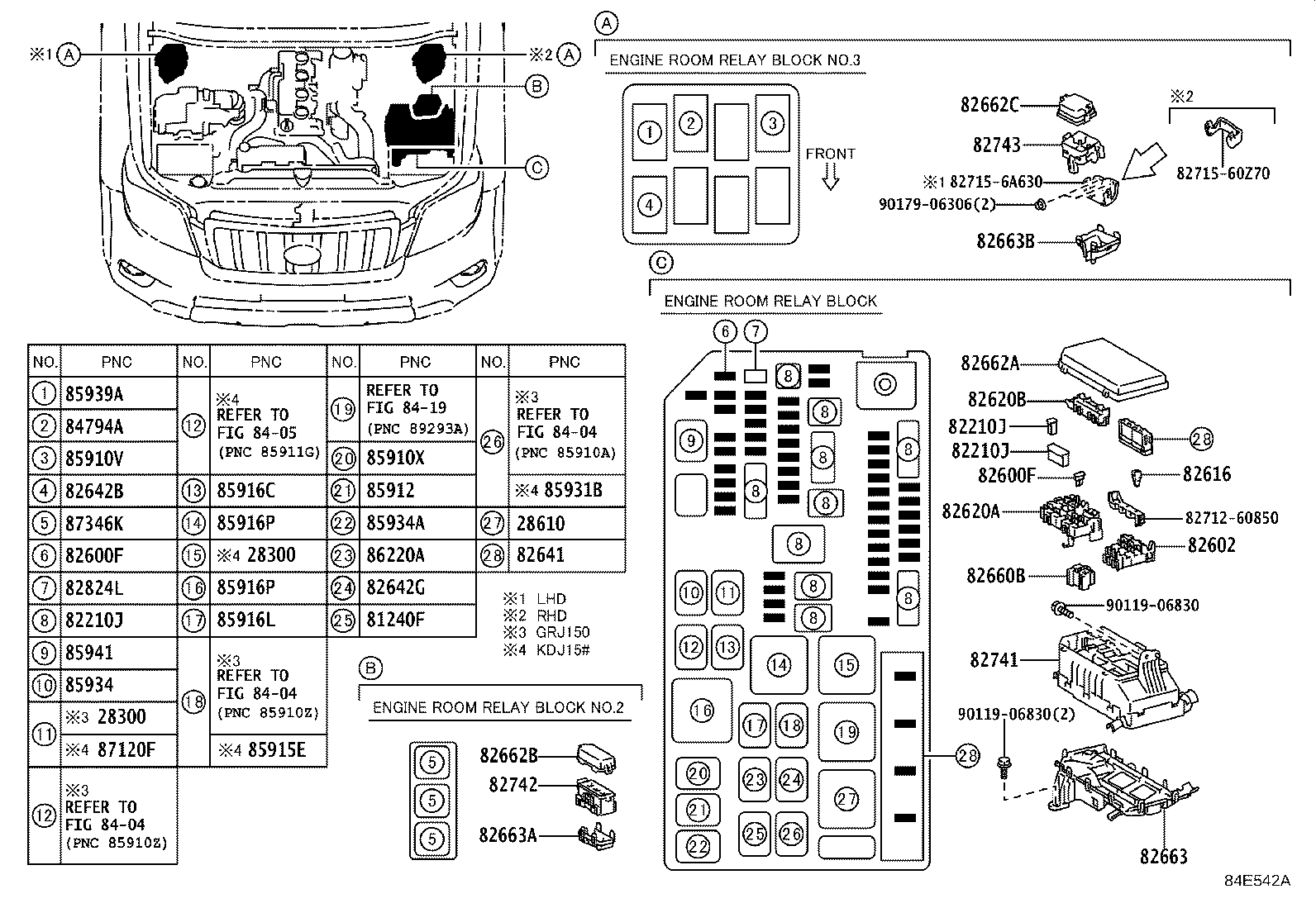

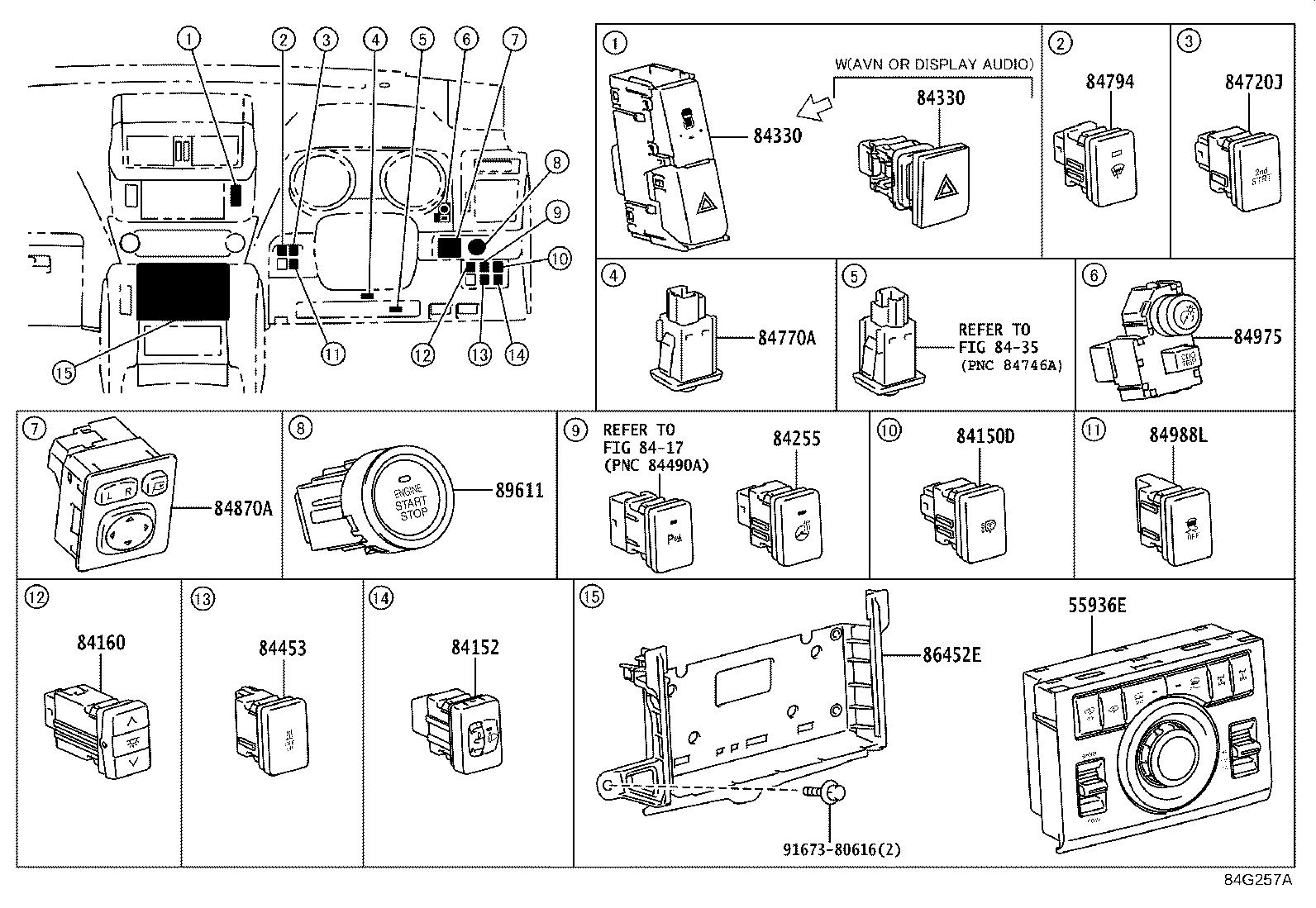

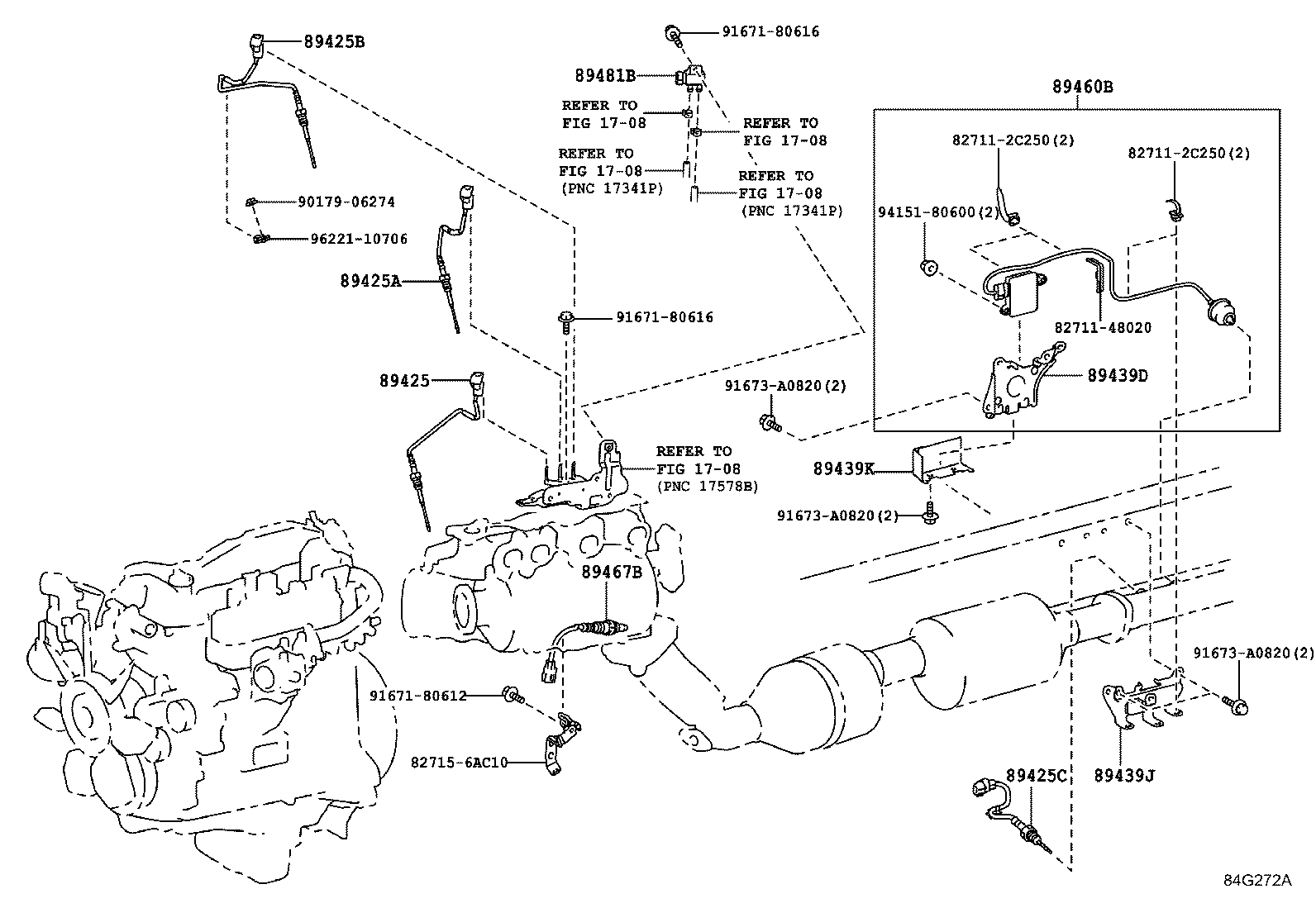

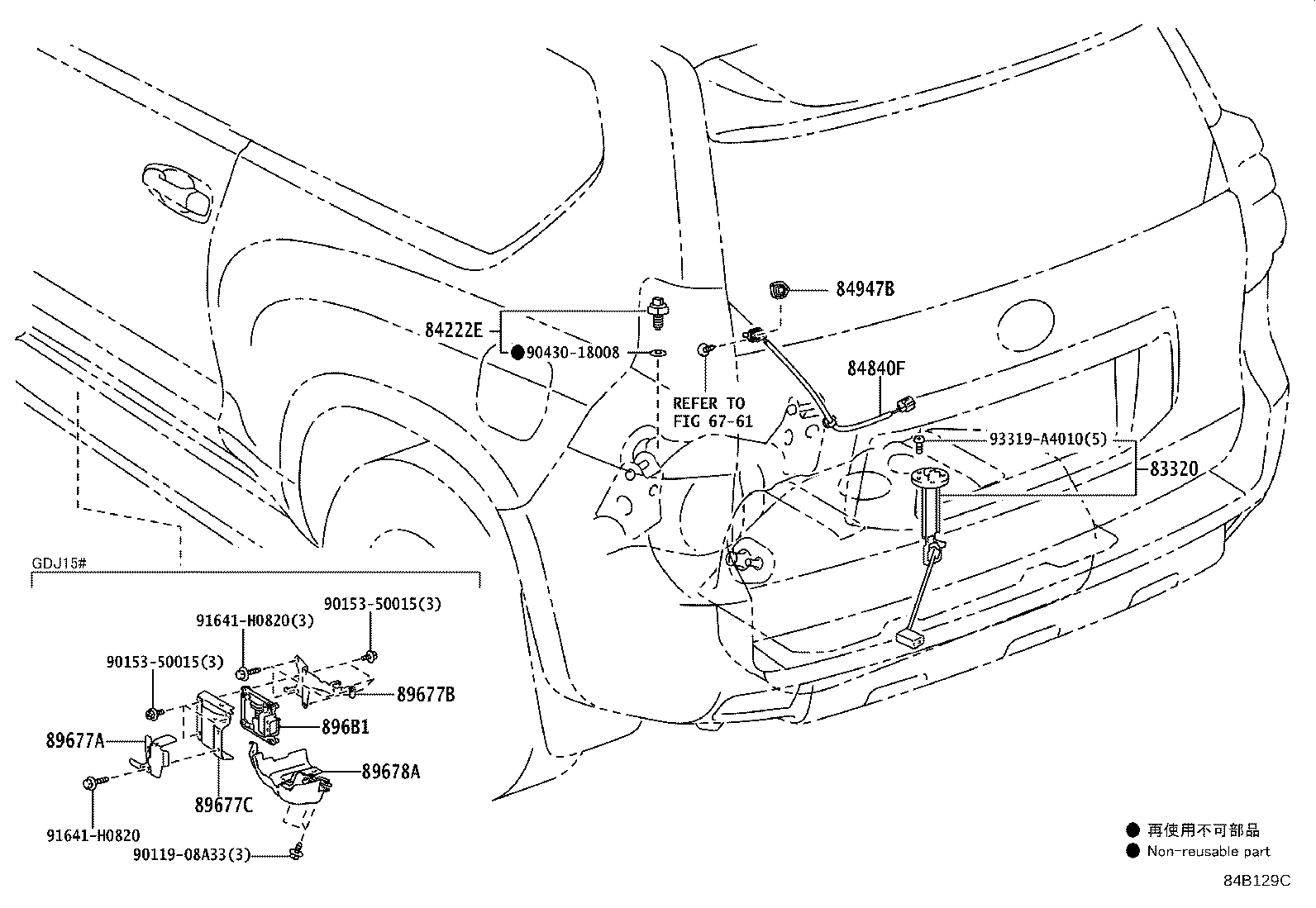

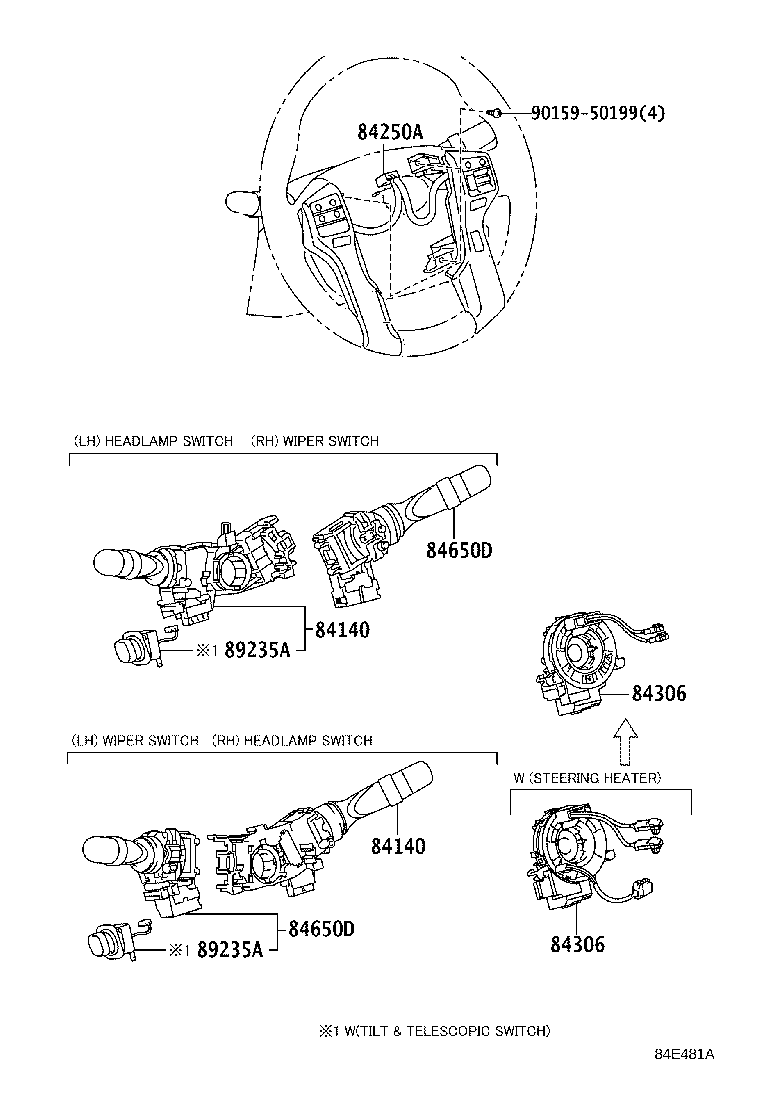

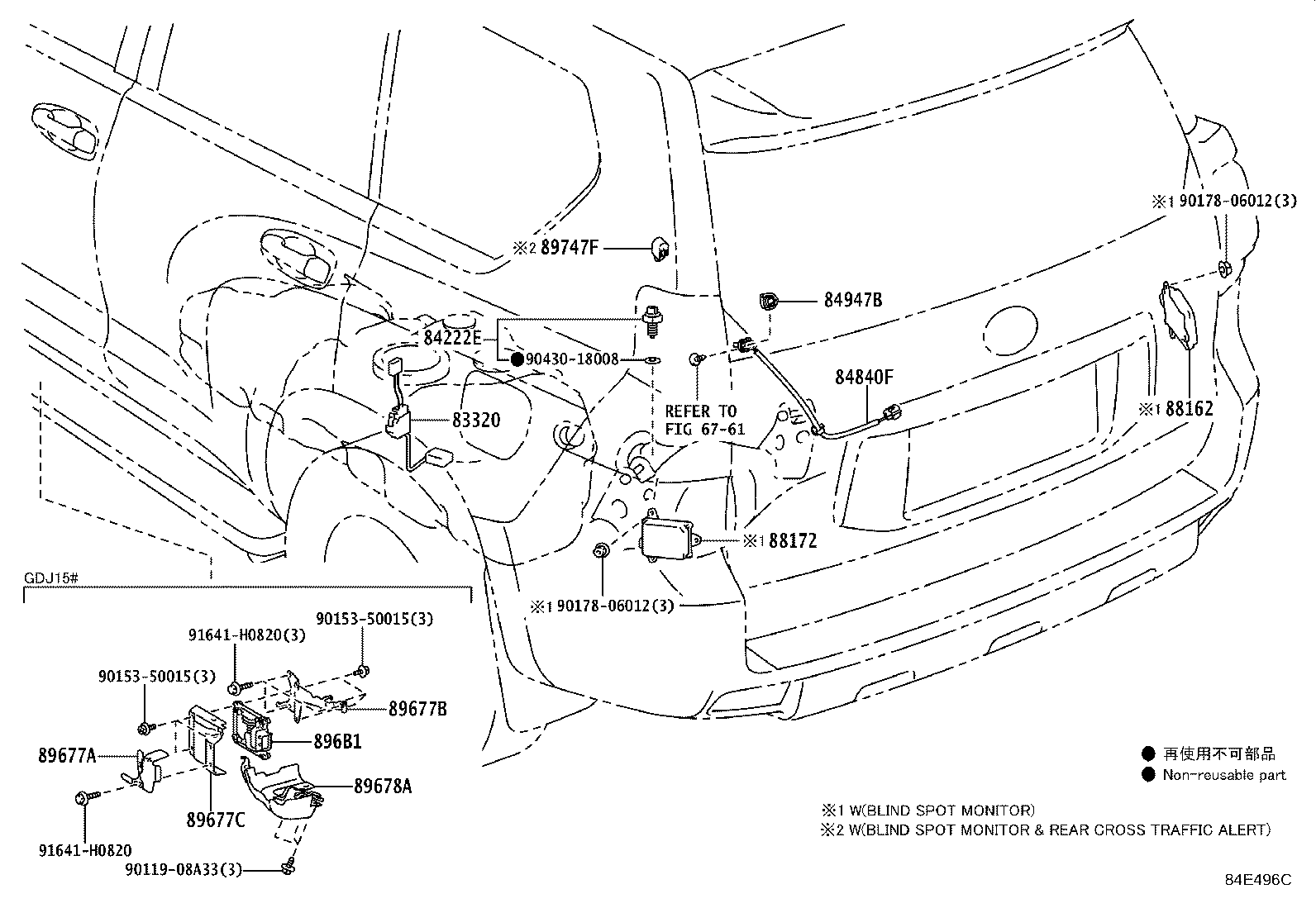

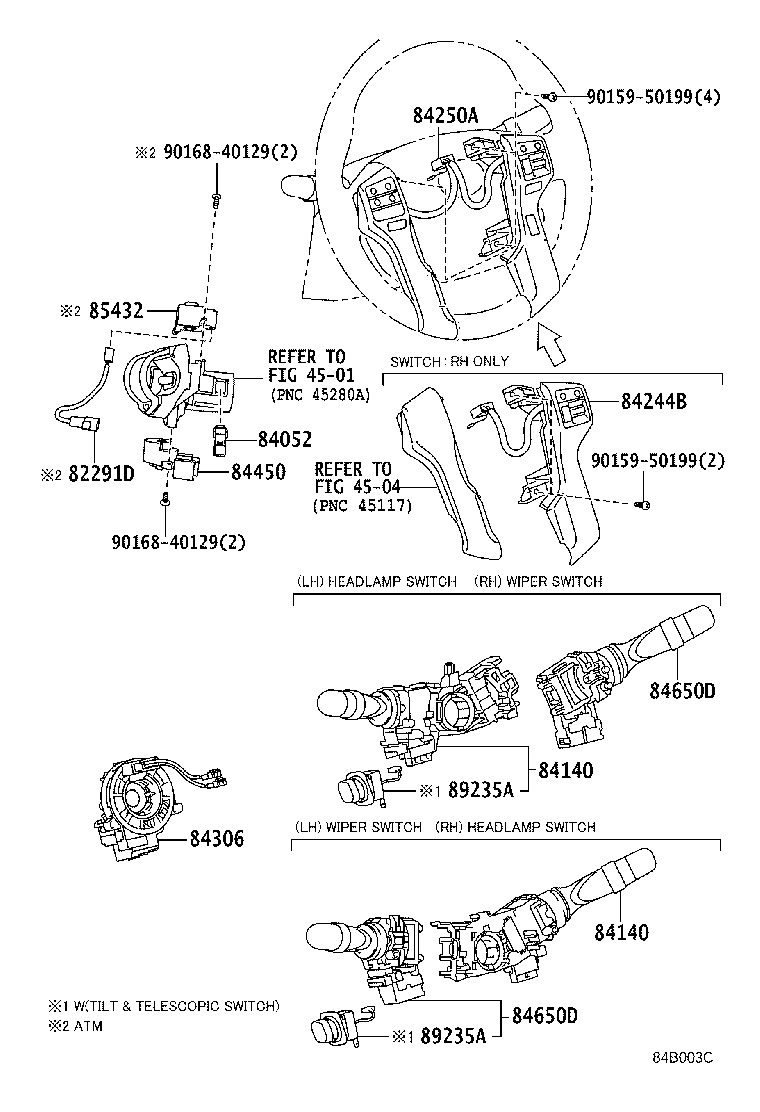

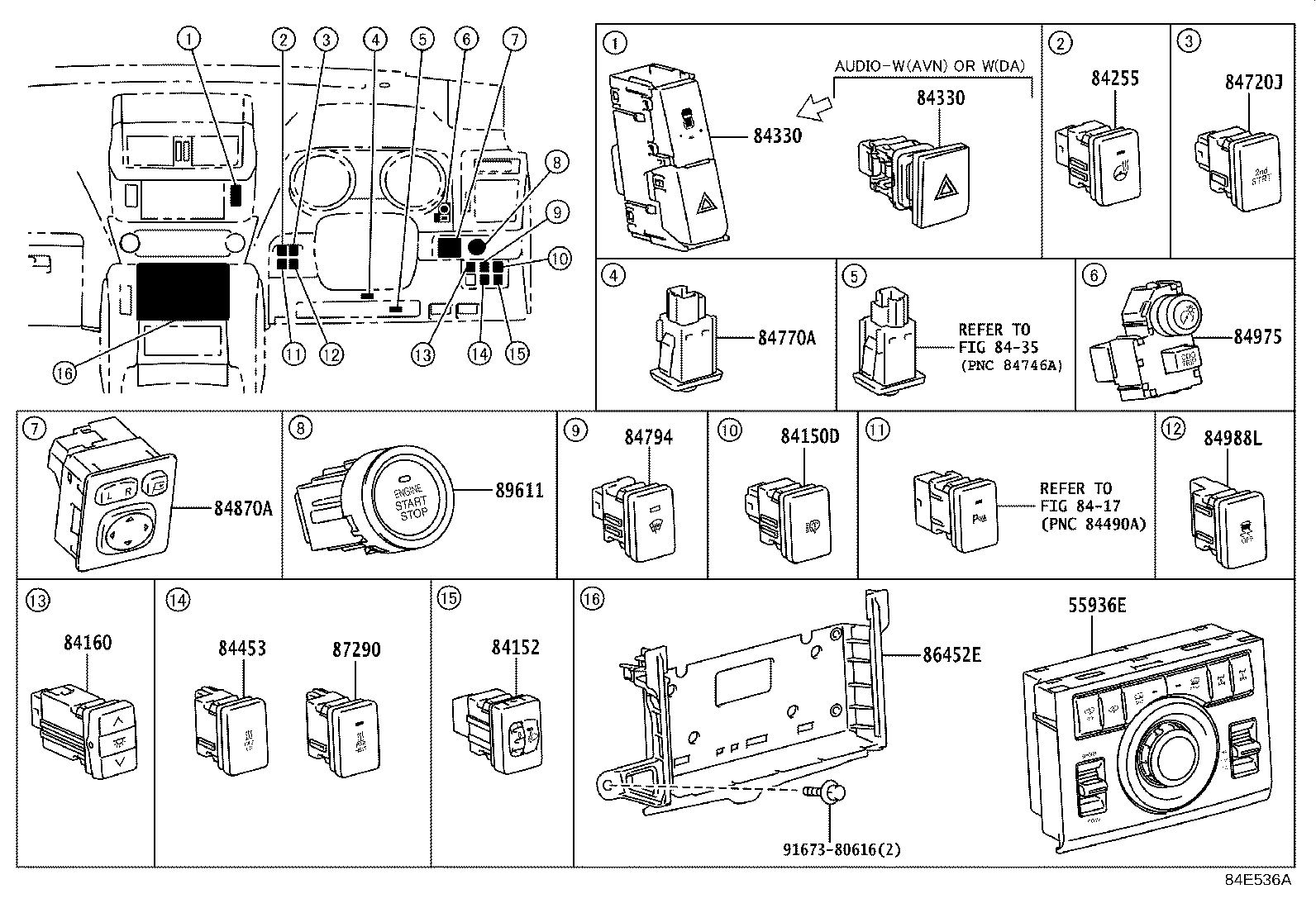

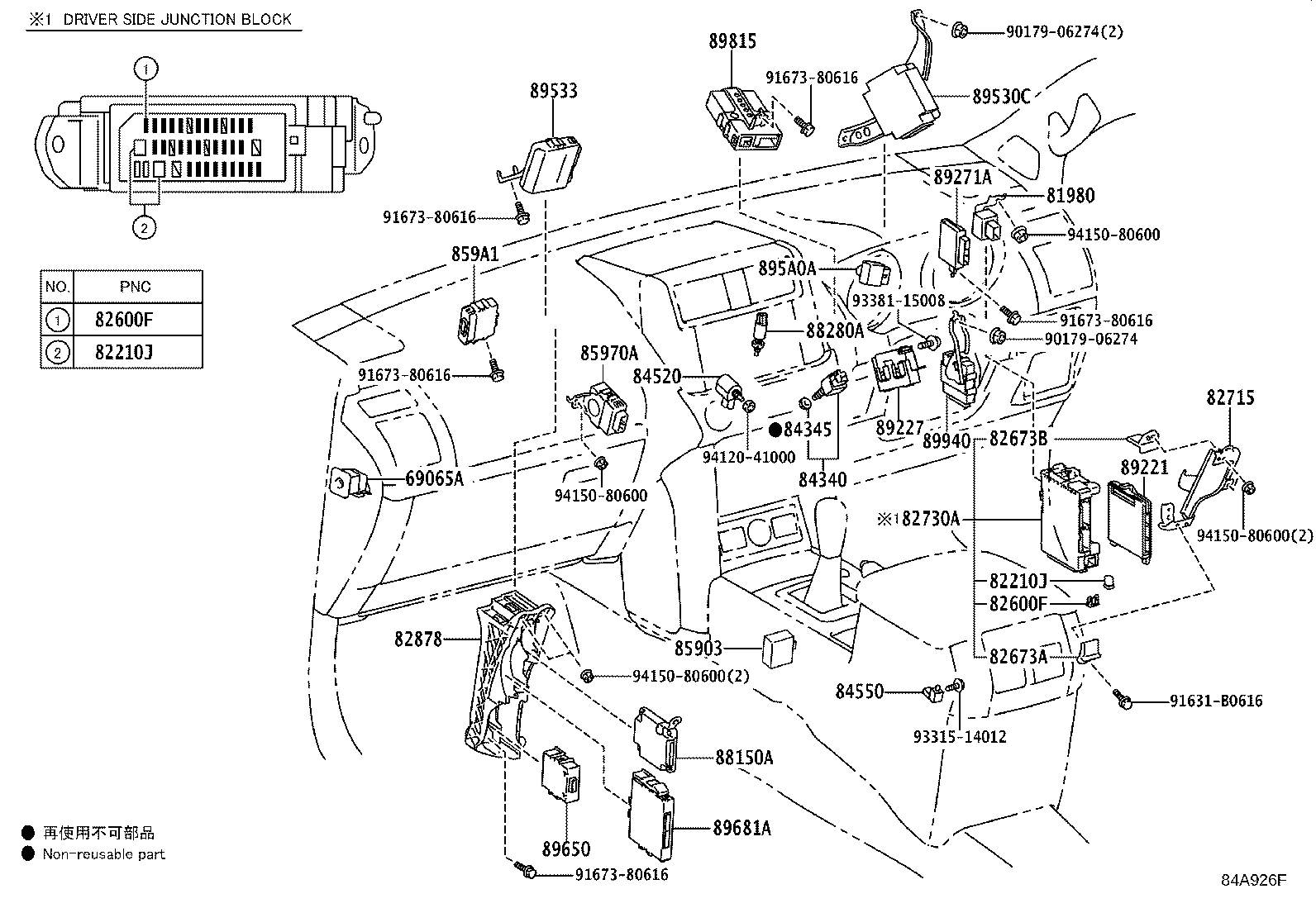

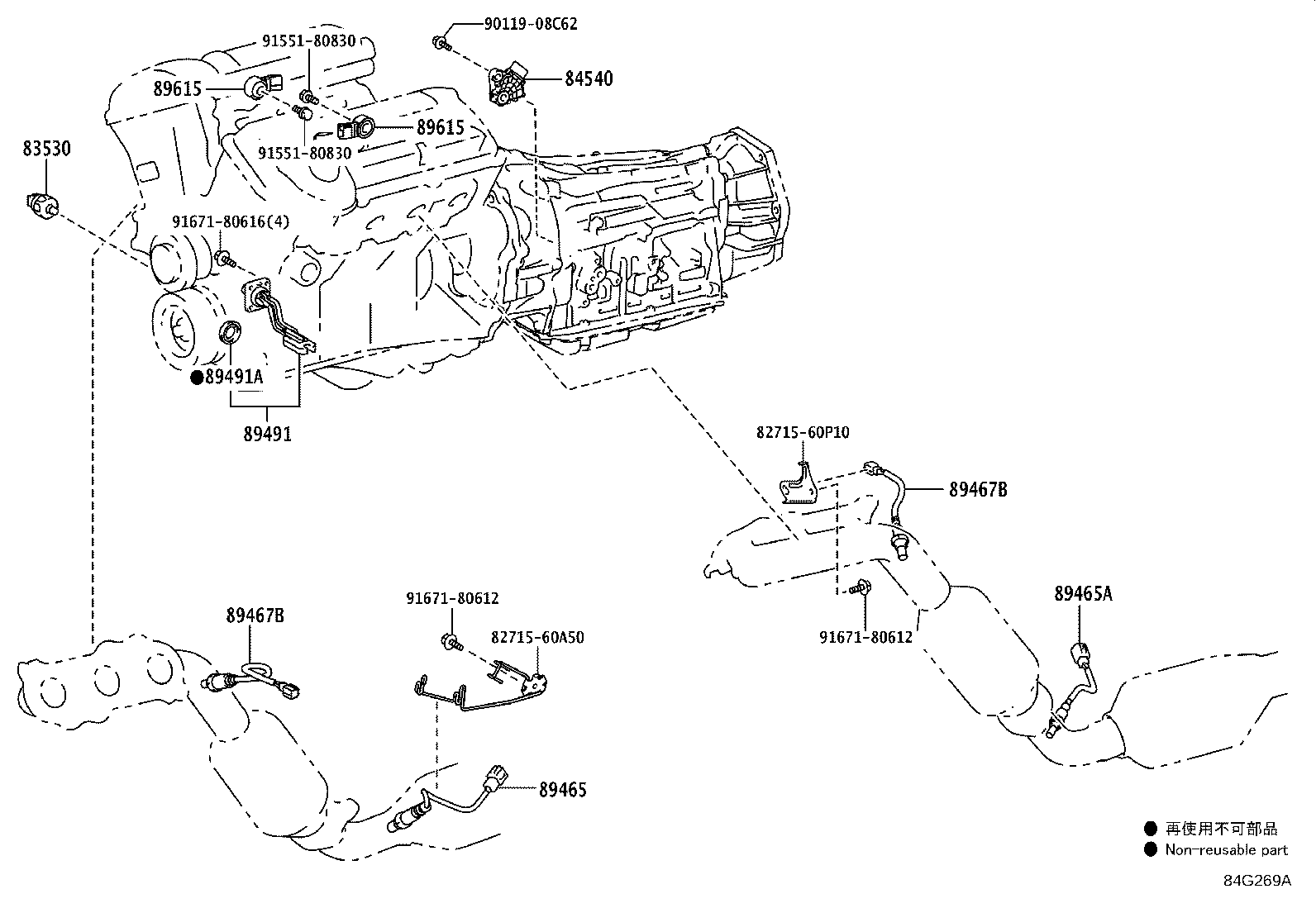

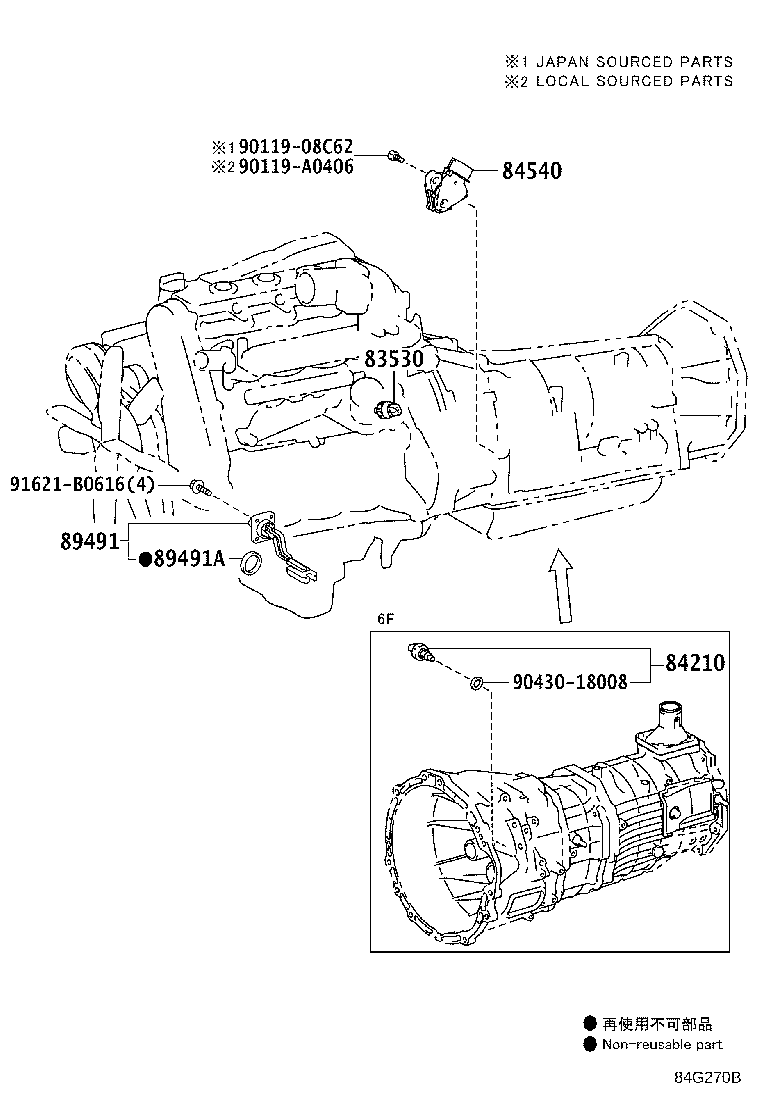

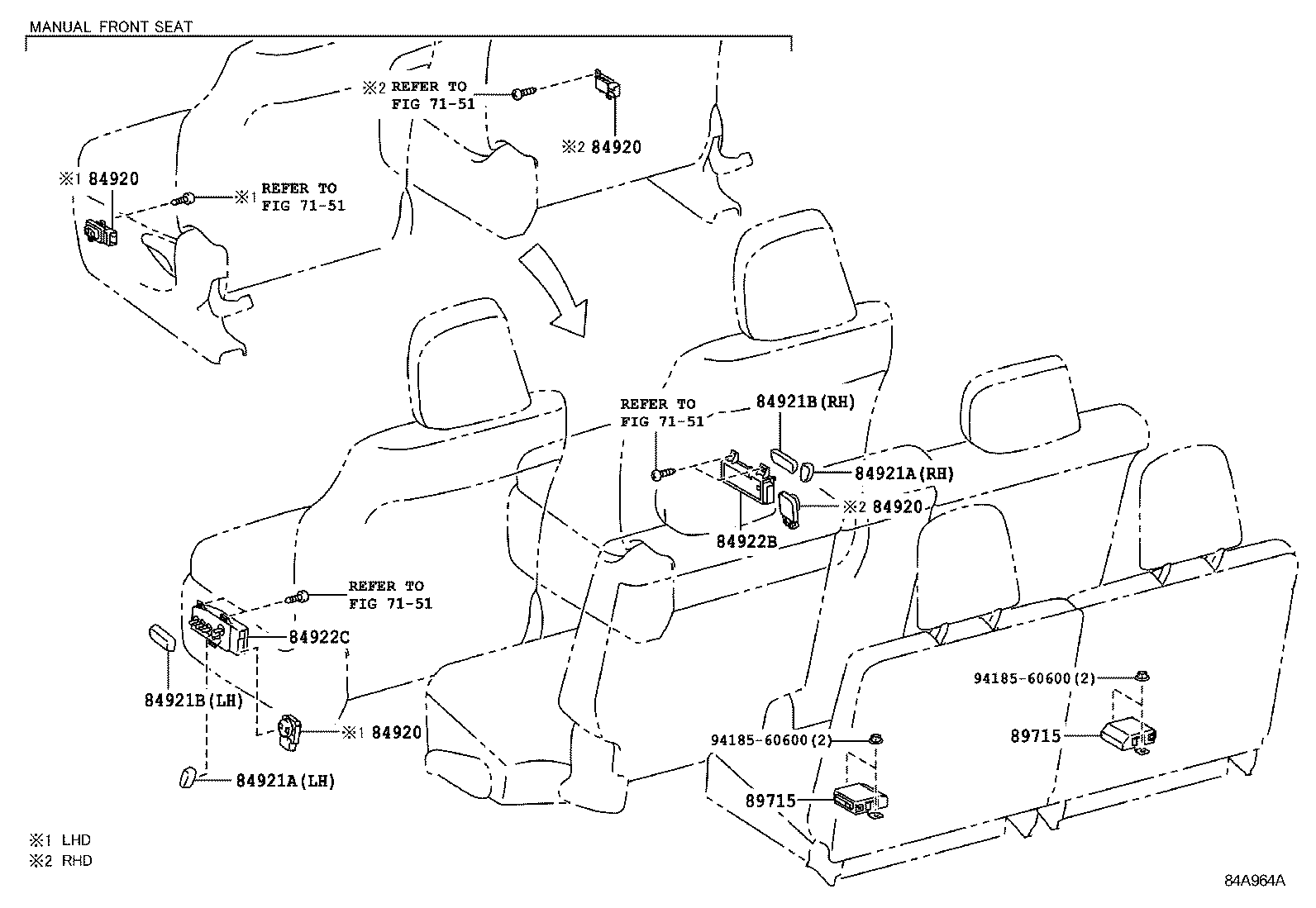

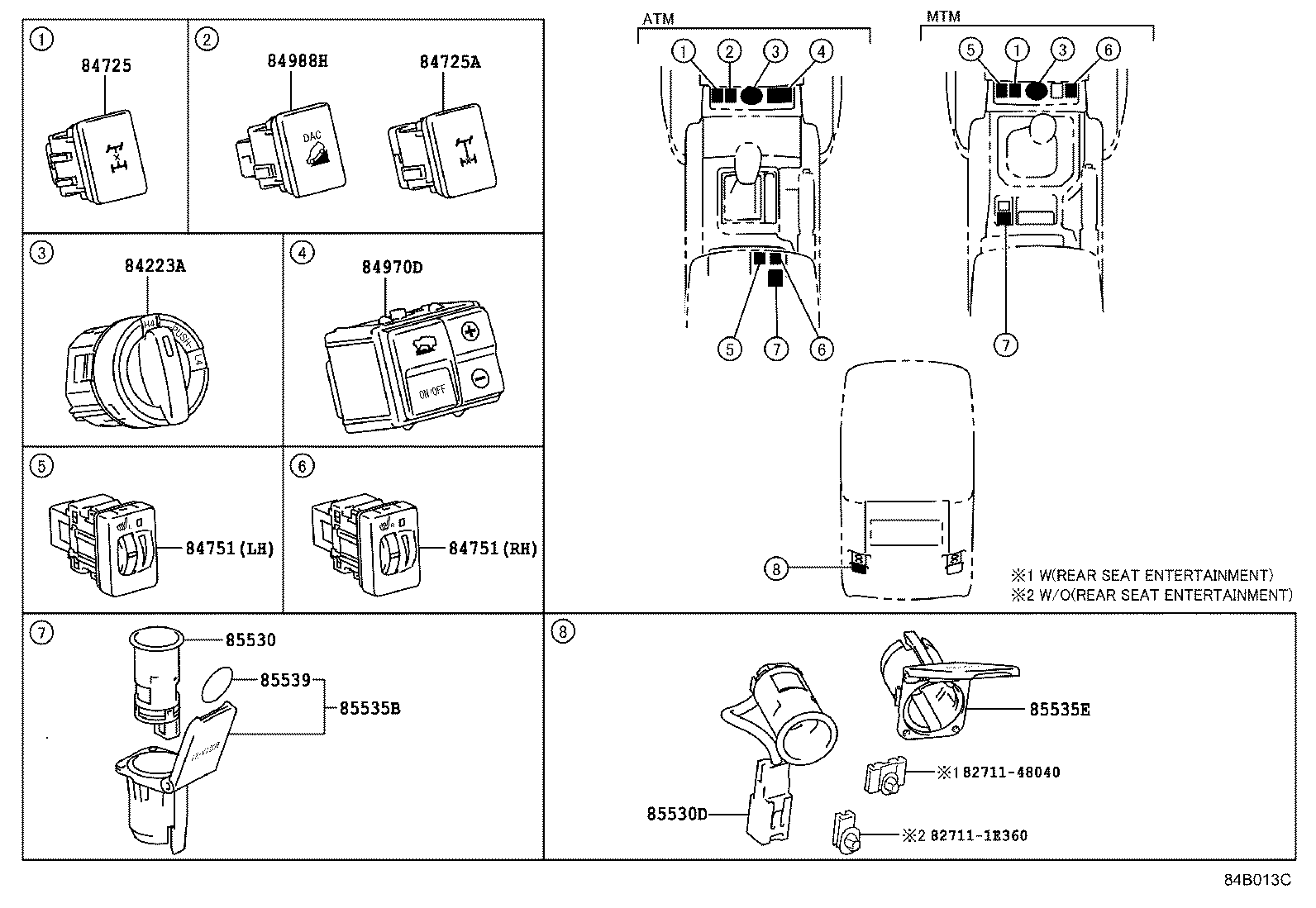

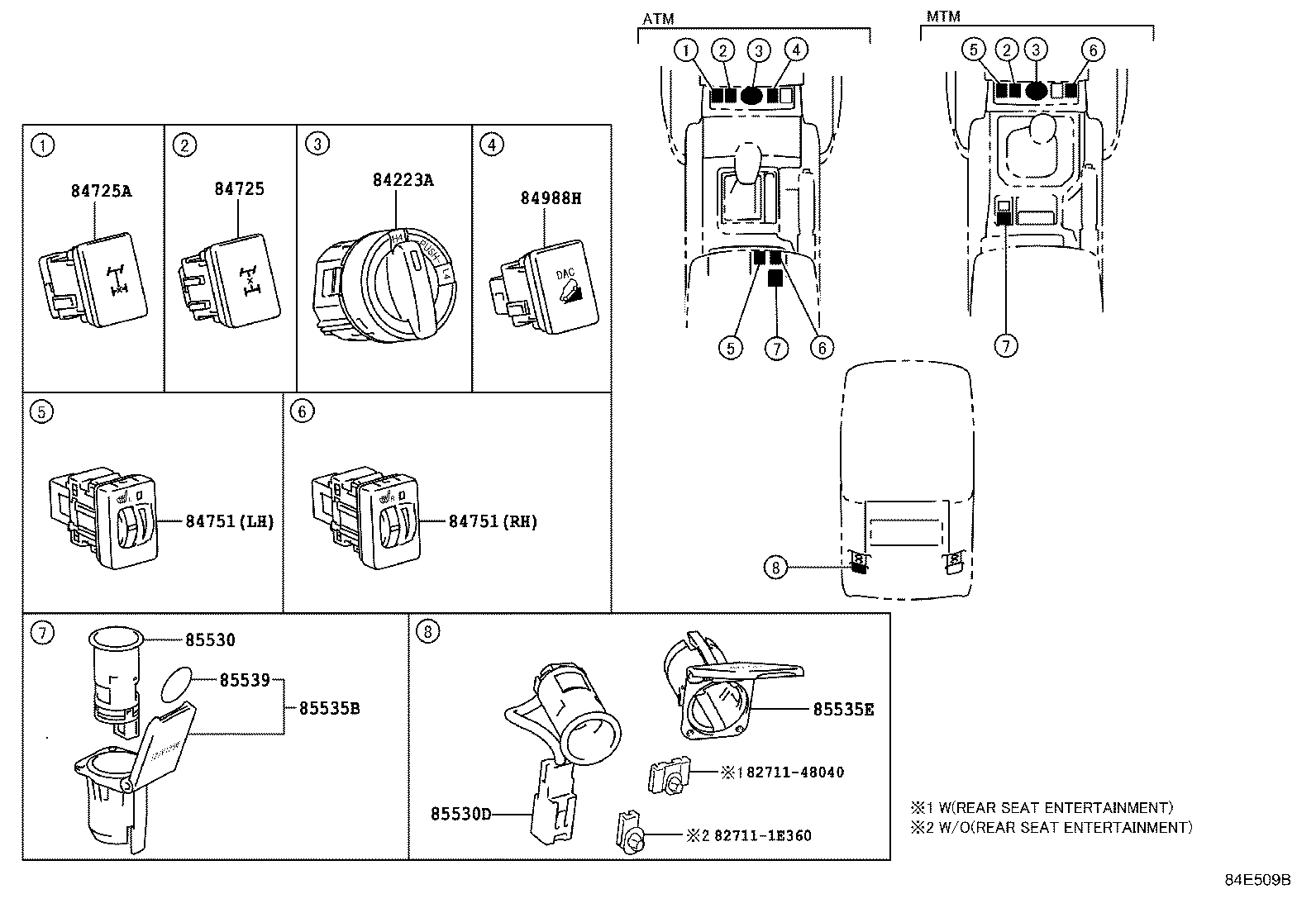

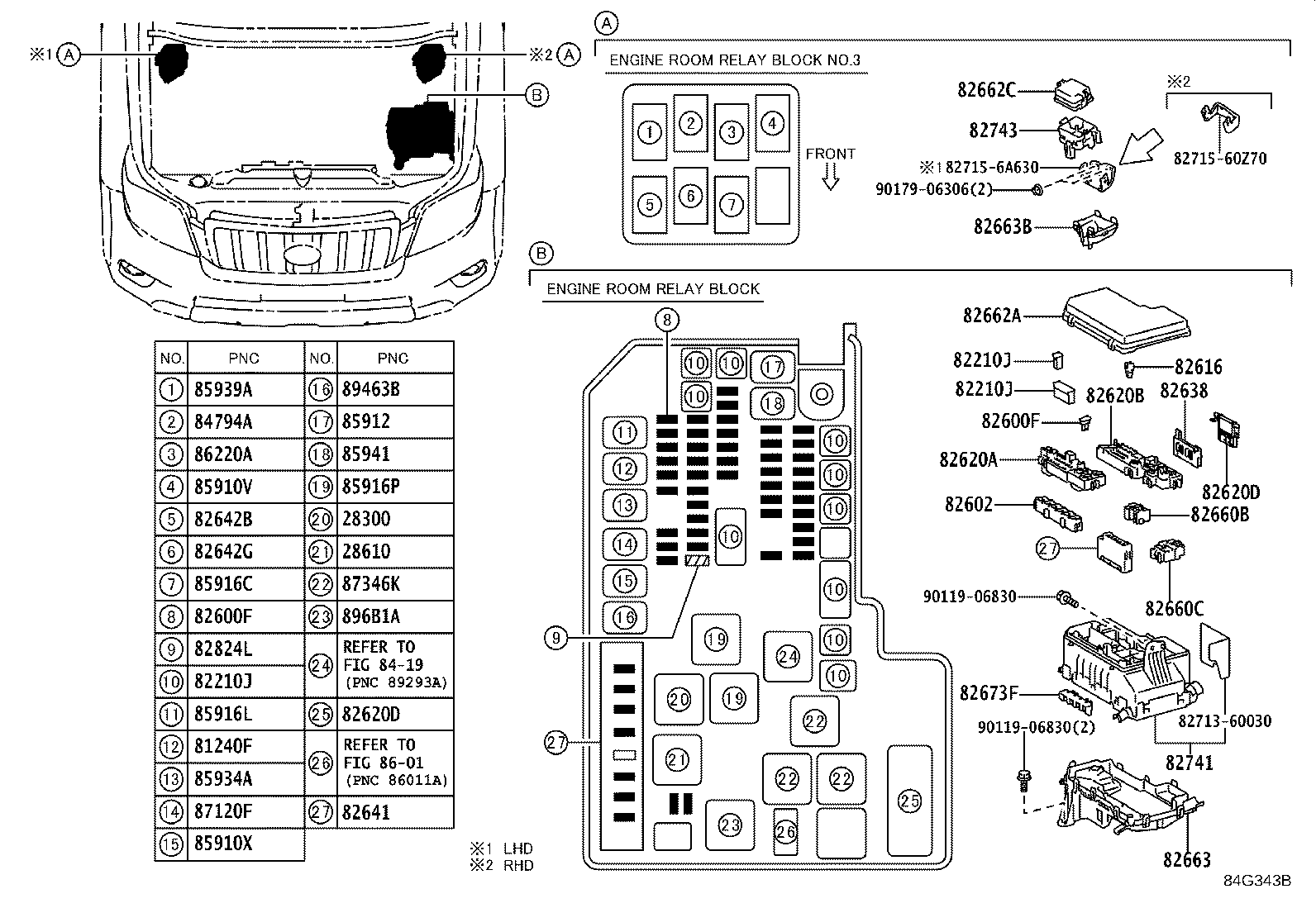

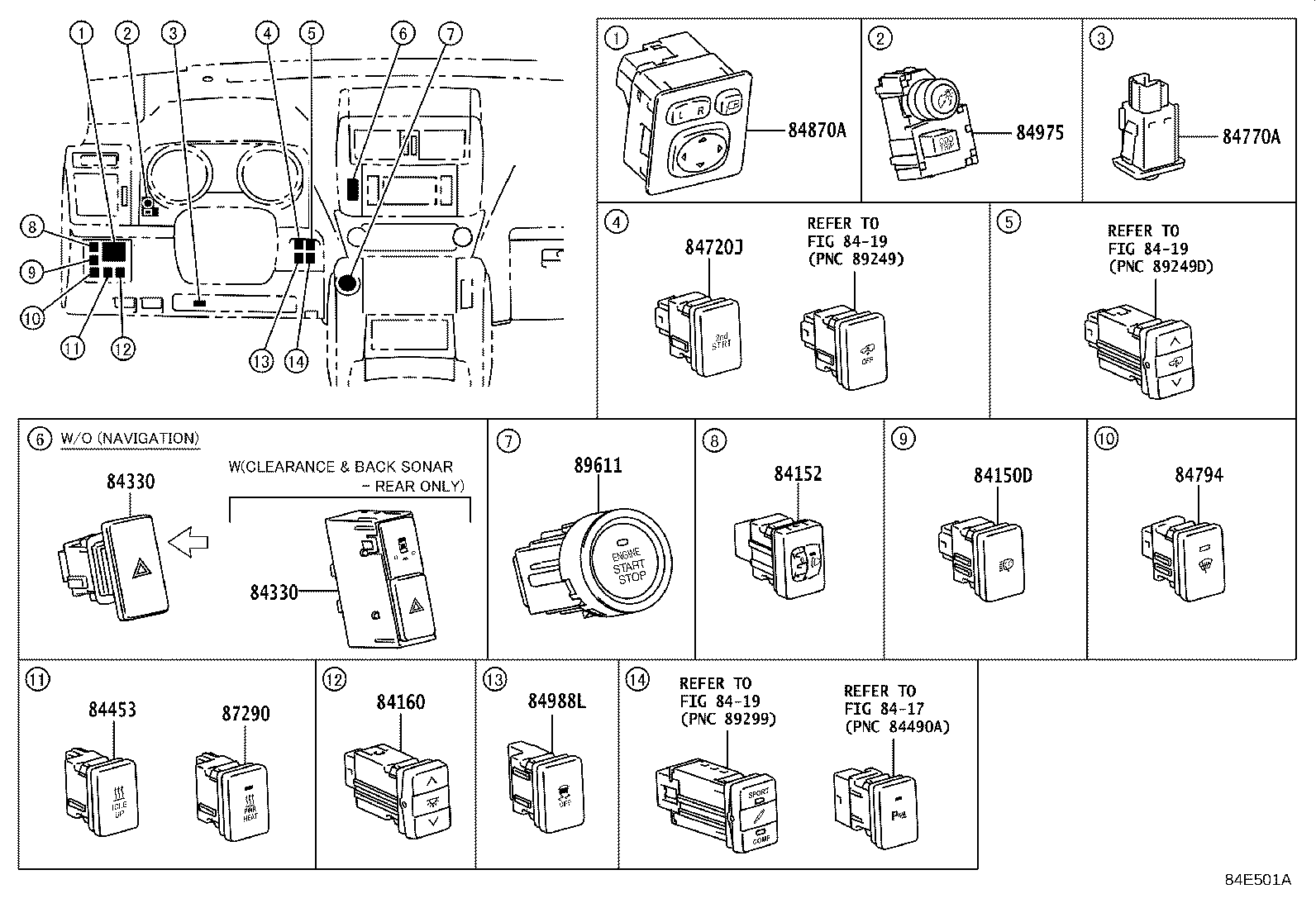

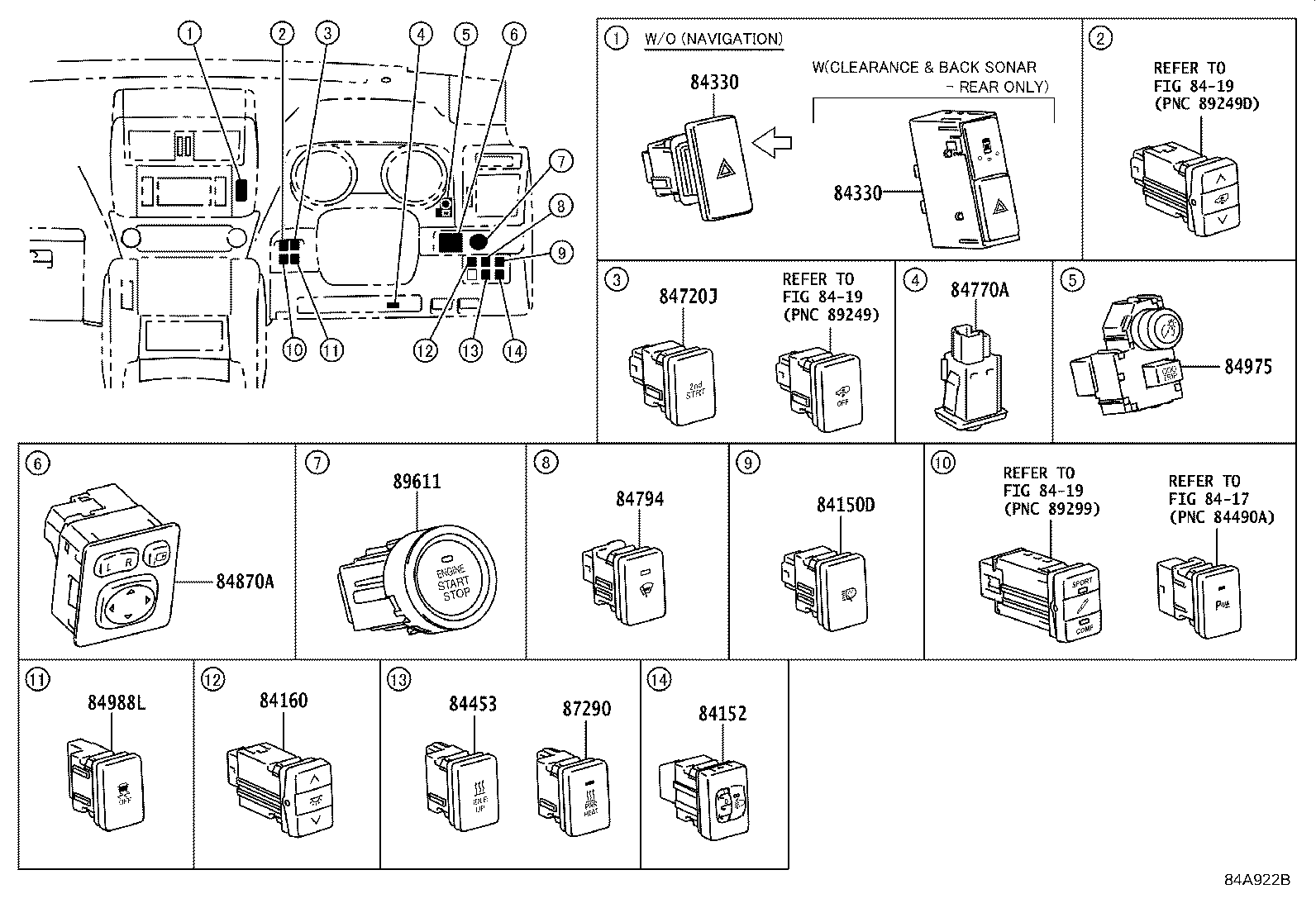

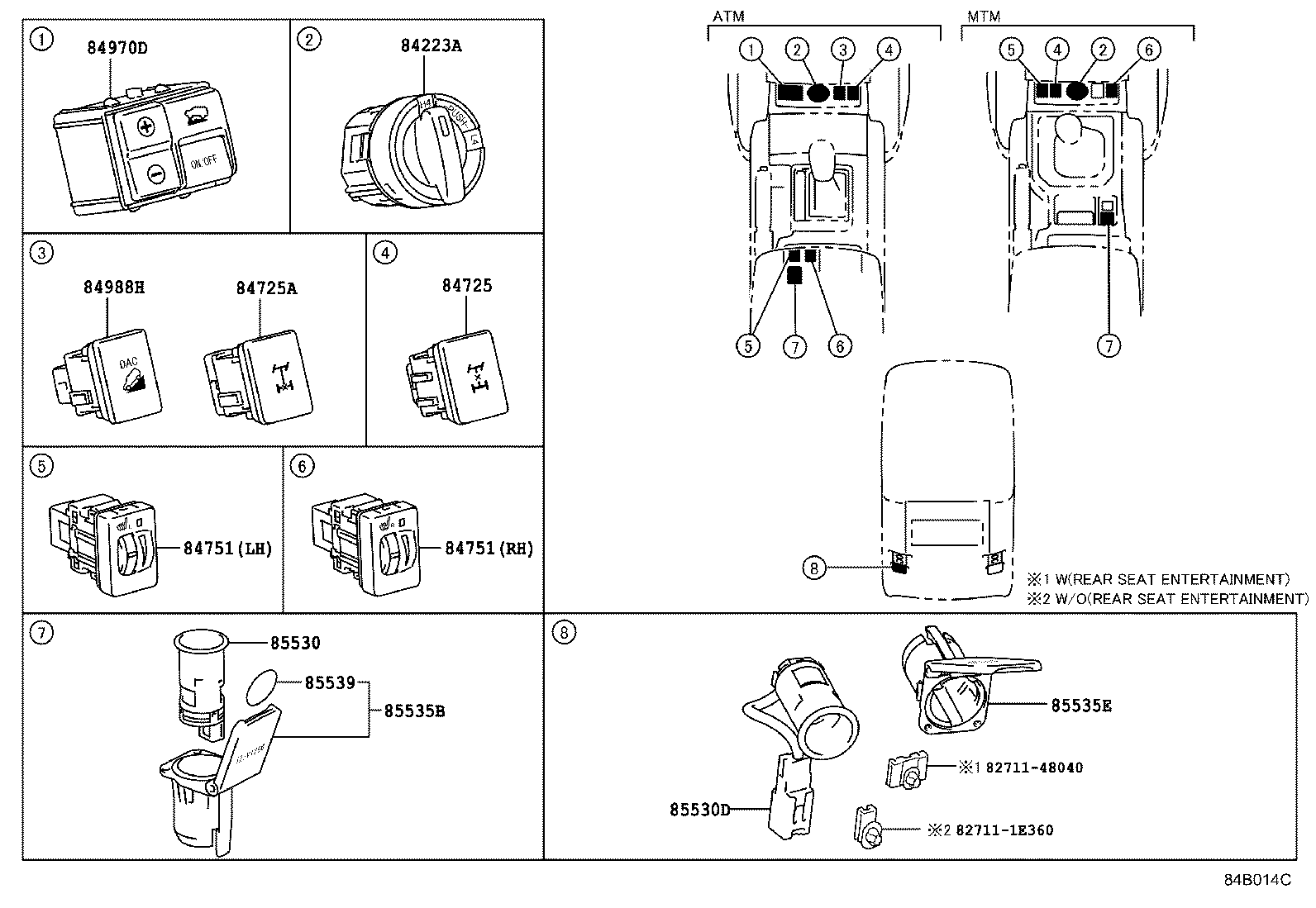

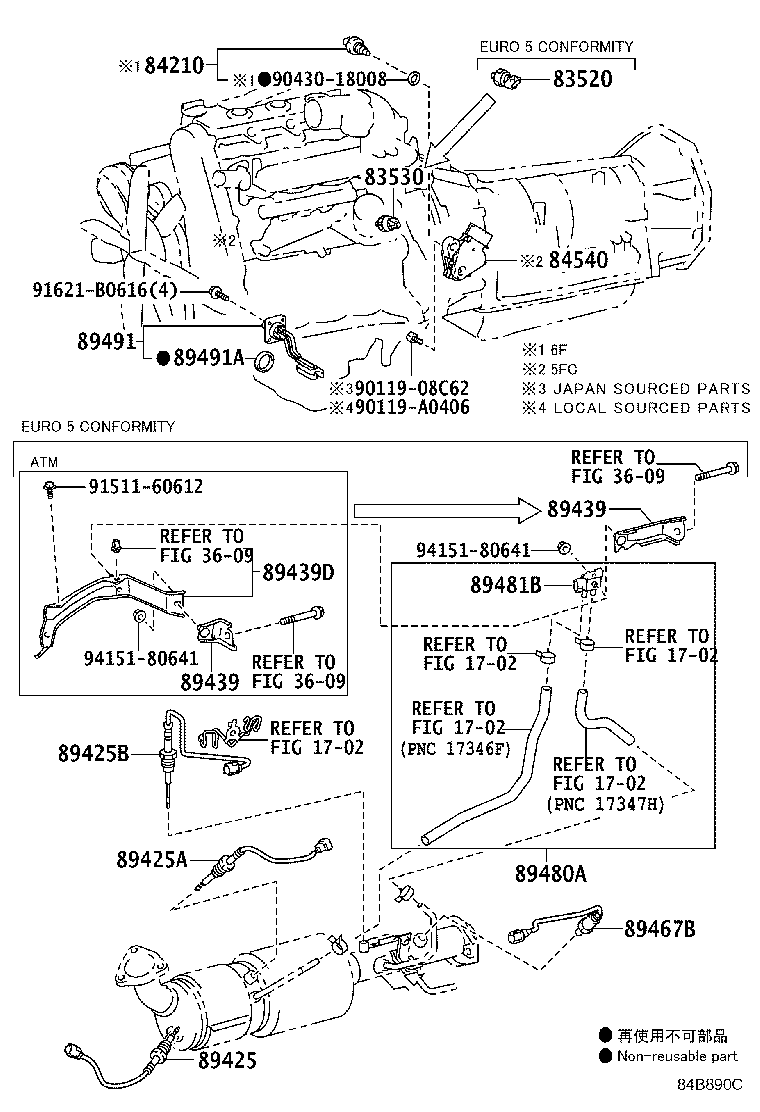

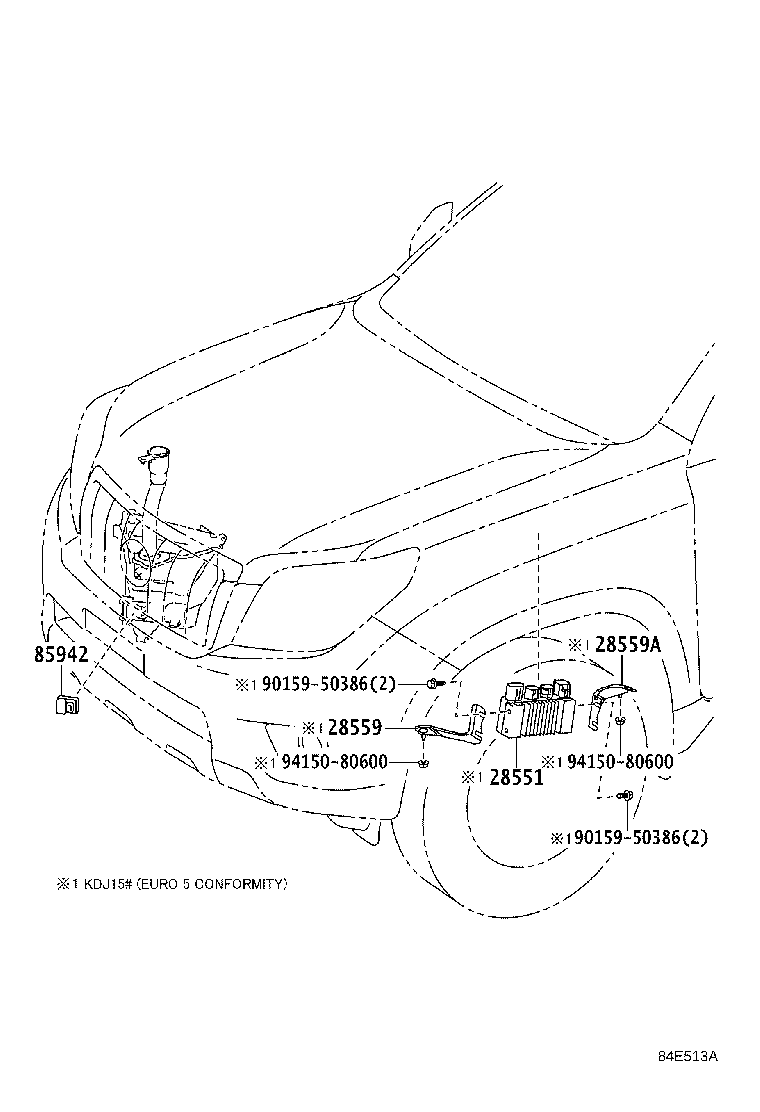

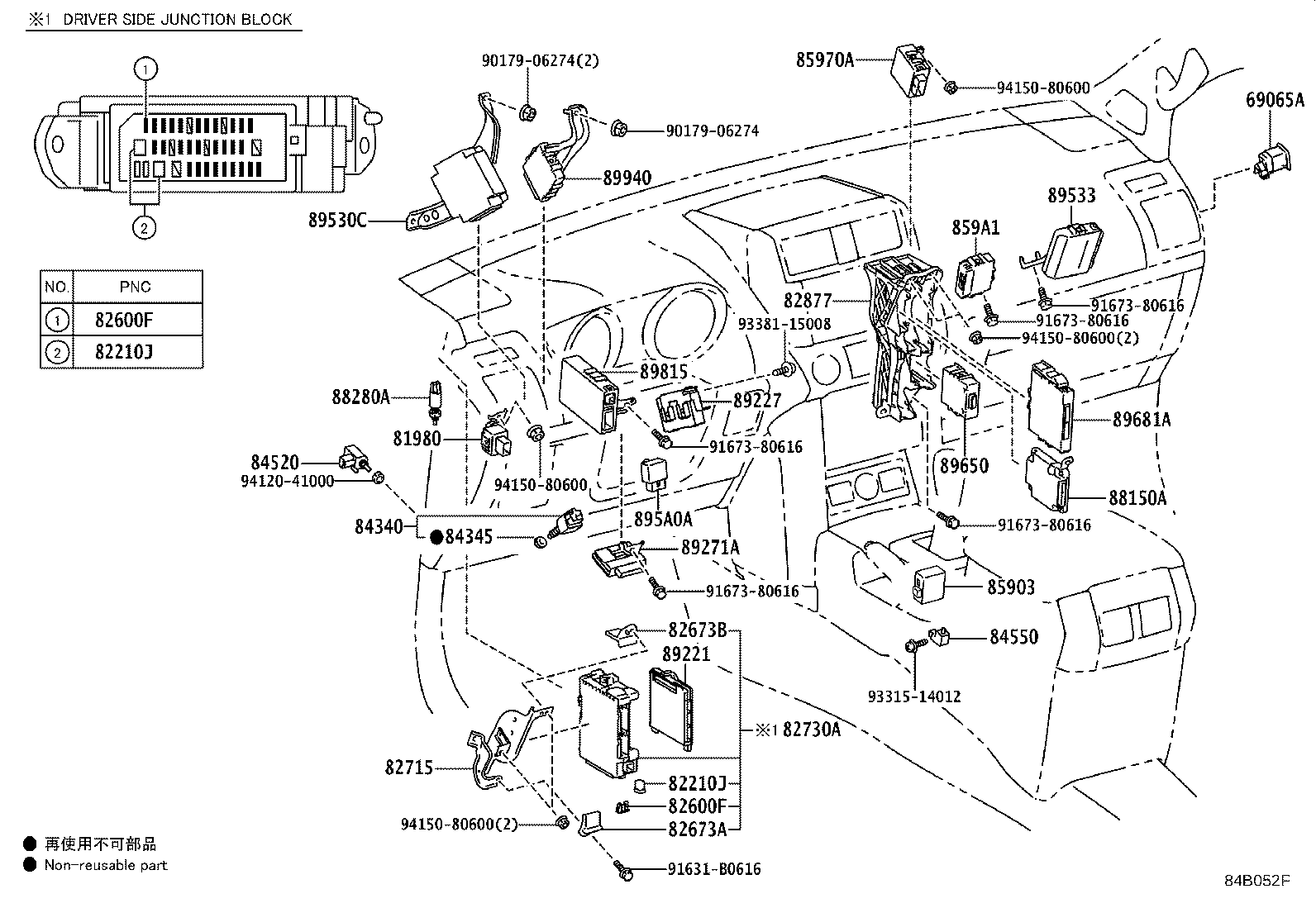

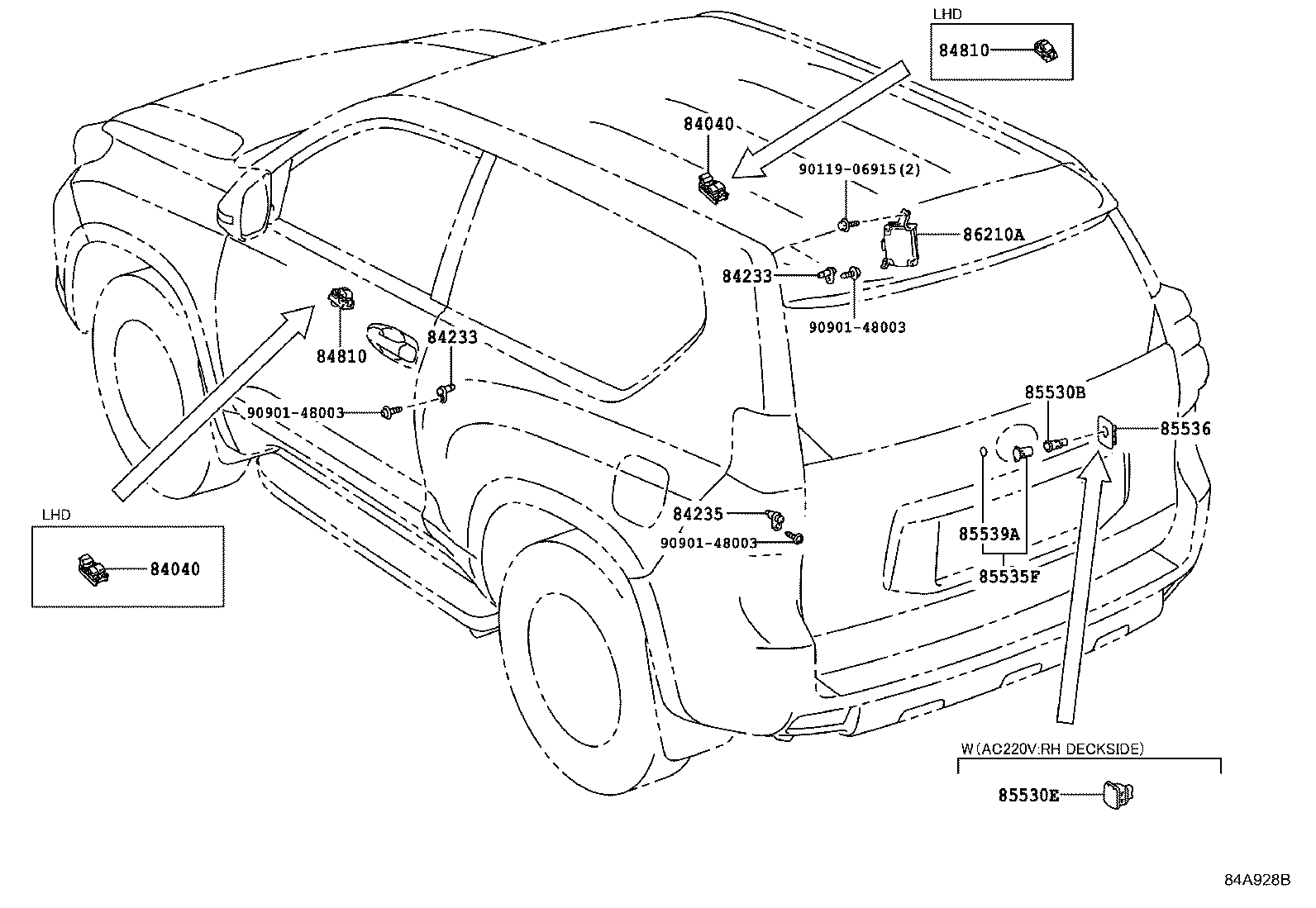

Figure 84A915D 84A915D 2009-08 → 2015-06 Figure 84B890C 84B890C 2009-08 → 2015-06 Figure 84G269A 84G269A 2015-06 → — Figure 84G270B 84G270B 2015-06 → — Figure 84G235 84G235 2015-06 → — Figure 84G272A 84G272A 2015-06 → — Figure 84E513A 84E513A 2009-08 → 2015-06 Figure 84G276C 84G276C 2015-06 → — Figure 84E489A 84E489A 2009-08 → 2013-08 Figure 84E542A 84E542A 2013-08 → 2015-06 Figure 84G279A 84G279A 2015-06 → — Figure 84G343B 84G343B 2015-06 → — Figure 84B052F 84B052F 2009-08 → — Figure 84A926F 84A926F 2009-08 → — Figure 84E501A 84E501A 2009-08 → 2013-08 Figure 84A922B 84A922B 2009-08 → 2013-08 Figure 84E504A 84E504A 2013-08 → 2015-06 Figure 84E536A 84E536A 2013-08 → 2015-06 Figure 84G258A 84G258A 2015-06 → — Figure 84G257A 84G257A 2015-06 → — Figure 84B014C 84B014C 2009-08 → 2013-08 Figure 84B013C 84B013C 2009-08 → 2013-08 Figure 84E507B 84E507B 2013-08 → — Figure 84E509B 84E509B 2013-08 → — Figure 84B003C 84B003C 2009-08 → 2013-08 Figure 84E481A 84E481A 2013-08 → — Figure 84A964A 84A964A 2009-08 → — Figure 84A928B 84A928B 2009-08 → — Figure 84A929A 84A929A 2009-08 → — Figure 84B129C 84B129C 2009-08 → — Figure 84E496C 84E496C 2009-08 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28551 Controller, Glow Plug
28559 Bracket, Glow Plug Controller, NO.1
28559A Bracket, Glow Plug Controller, NO.2
28610 Relay Assy, Intake Heater OR Glow Plug
55936E Switch, Center Cluster Module
69065A Cylinder Sub-assy, Airbag Cut Off Switch
81240F Relay, Dome Lamp
81980 Flasher Assy, Turn Signal
82210J Fusible Link
82291D Wire, TO Solenoid
82600F Fuse, Fuse Block
82602 Block Sub-assy, Relay
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82620D Block Assy, Fusible Link
82620E Block Assy, Fusible Link
82638 Retainer, Relay Block
82641 Relay, Integration NO.1
82642B Relay, Day Time Running Light, NO.1
82642G Relay, Panel
82660B Block Assy, Relay
82660C Block Assy, Relay
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82662C Cover, Relay Block, Upper, NO.3
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82663B Cover, Relay Block, Lower, NO.3
82673A Bracket, Junction Block, NO.1
82673B Bracket, Junction Block, NO.2
82673F Bracket, Junction Block
82715 Bracket,Wiring Harness Clamp
82730A Block Assy, Driver Side Junction
82741 Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82743 Block, Engine Room Relay, NO.3
82824L Pin, Short
82877 Box, Computer Integration, RH
82878 Box, Computer Integration, LH
83320 Gage Assy, Fuel Sender
83520 Gage Assy,Oil Pressure Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84040 Master Switch Assy,Multiplex Network
84052 Switch Assy, Un-lock Warning
84140 Switch Assy, Headlamp Dimmer
84150D Switch Assy, Headlamp Cleaner
84152 Switch, Headlamp Leveling
84160 Switch Assy, Room Lamp
84190A Switch Assy, Fold Seat, NO.1
84190B Switch Assy, Fold Seat, NO.2
84210 Switch Assy, Back-up Lamp
84222E Switch, Differential Lock Indicator
84223A Switch, Transfer Position
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84235 Switch Assy, Courtesy Lamp(FOR BACK DOOR)
84244B Switch, Steering Pad, RH
84250A Switch Assy, Steering Pad
84255 Switch, Steering Heater
84306 Cable Sub-assy, Spiral
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84450 Switch Assy, Ignition OR Starter
84453 Switch, Idle UP
84520 Switch Assy, Clutch Start
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84656A Bezel, Switch
84720J Switch Assy, Pattern Select
84725 Switch, Center Differential Lock
84725A Switch, Differential Lock
84751 Switch, Seat Heater
84770A Switch Assy, Pre-collision System Cancel
84794 Switch, FR Wiper Deicer
84794A Relay, FR Wiper Deicer
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84840F Switch Assy, Glass Hatch Opener
84870A Switch Assy, Outer Mirror
84920 Switch Assy, Power Seat
84921A Knob, Power Seat Switch (FOR RECLINING)
84921B Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
84922B Switch, Front Power Seat, RH
84922C Switch, Front Power Seat, LH
84923 Switch, Rear Power Seat
84927 Switch, Seat Memory
84947B Cover, Switch
84970D Switch Assy, Crawl Control
84975 Switch, Trip
84988H Switch, Downhill Assist Control
84988L Switch, Vsc Off
85432 Solenoid, Key Interlock
85530 Socket Assy, Power Outlet, NO.1
85530B Socket Assy, Power Outlet, Rear NO.1
85530D Socket Assy, Power Outlet, NO.2
85530E Socket Assy, Power Outlet, NO.3
85535B Cover, Power Outlet Socket, NO.1
85535E Cover, Power Outlet Socket, NO.2
85535F Cover, Power Outlet Socket, Rear
85536 Bezel, Power Outlet Socket
85539 Label, Power Outlet Notice
85539A Label, Power Outlet Notice, Rear
85903 Computer Sub-assy, Shift Lock Control
85910V Relay, Seat Heater
85910X Relay, Heater Mirror
85912 Relay, Defogger
85915E Relay
85916C Relay, Back UP Lamp
85916L Relay, Rear Fog Lamp
85916P Relay, Headlamp
85931B Relay, Fuel Heater
85934 Relay, Magnet-clutch
85934A Relay Condenser Fan
85939A Relay, Steering Heater
85941 Relay, Windshield Washer
85942 Relay, Headlamp Cleaner Control
85970A Relay Assy, Double Lock Door Control
859A1 Computer, Driving Support Switch Control
86210A Inverter Assy, Voltage
86220A Relay, Inverter
86452E Panel, Center Cluster Module
86530A Relay, Horn
87120F Relay, Viscous Heater
87290 Switch Assy, Heater
87346K Relay, Ptc Heater
88150A Computer Assy, Driving Support
88162 Sensor, Blind Spot Monitor, RH
88172 Sensor, Blind Spot Monitor, LH
88280A Switch Assy, Clutch
89221 Computer, Multiplex Network Body
89227 Computer, Multiplex Tilt & Telescopic
89235A Switch, Tilt & Telescopic
89271A Computer, Stabilizer Control
89425 Sensor, Exhaust Gas Temperature
89425A Sensor, Exhaust Gas Temperature, NO.2
89425B Sensor, Exhaust Gas Temperature, NO.3
89425C Sensor, Exhaust Gas Temperature, NO.4
89439 Bracket, Sensor
89439D Bracket, Sensor, NO.1
89439J Bracket, Sensor, NO.2
89439K Bracket, Sensor, NO.3
89460B Sensor Assy, Nitrogen Oxides
89463B Relay, Nitrogen Oxides
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89467B Sensor, Air Fuel Ratio
89480A Sensor Assy, Differential Pressure
89481B Sensor, Differential Pressure
89491 Sensor, Engine Oil Level
89491A Gasket, Engine Oil Level Sensor
89530C Computer Assy, Transmission Control
89533 Computer, 4 Wheel Drive Control
895A0A Computer Assy, Stop Lamp Control
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89677A Bracket, Urea Pump Control, NO.1
89677B Bracket, Urea Pump Control, NO.3
89677C Bracket, Urea Pump Control, NO.4
89678A Bracket, Urea Pump Control, NO.2
89681A Computer, Power Management Control
896B1 Computer, Urea Pump Control
896B1A Relay, Dcu Main
89715 Computer, Fold Seat Control
89747F Buzzer, Blind Spot Monitor
89815 Computer, Seat Belt Control
89940 Computer Assy, Headlamp Swivel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
