Toyota Land Cruiser Prado
2009-08 → 2017-08 · chassis GDJ15#,GRJ150,KDJ15# · catalogue 781560 · Europe
Supported model
Data version 2018-02
Electronic Controled Diesel (ECD)

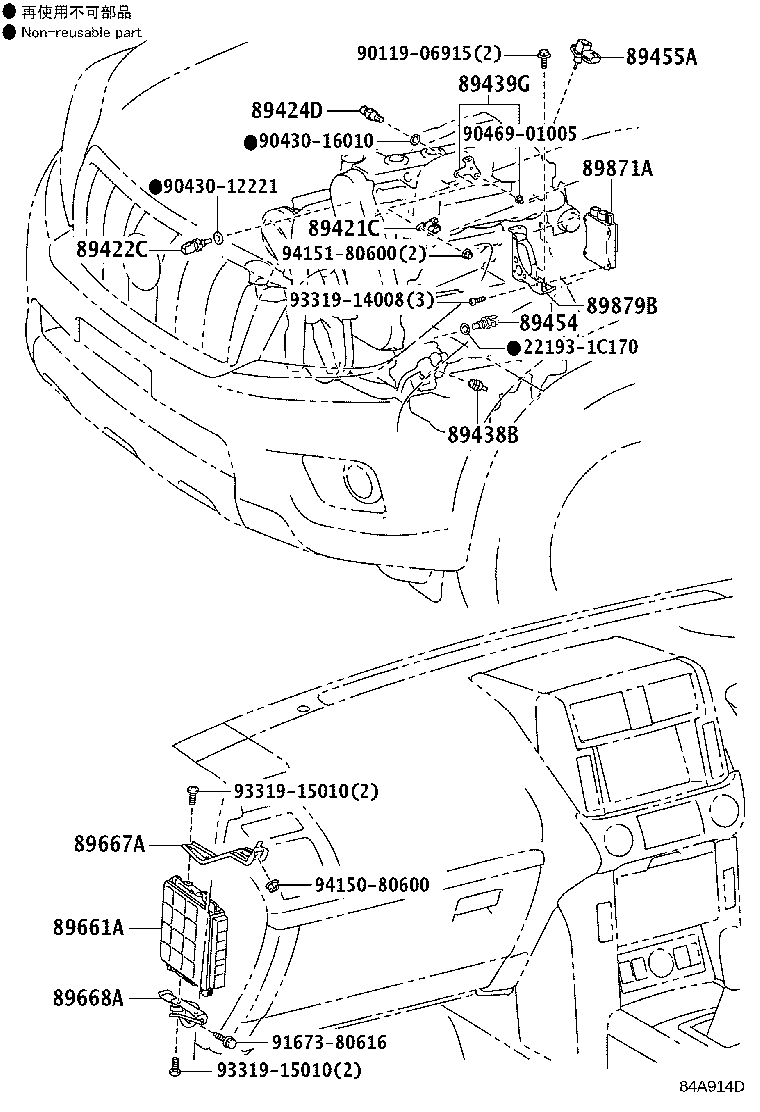

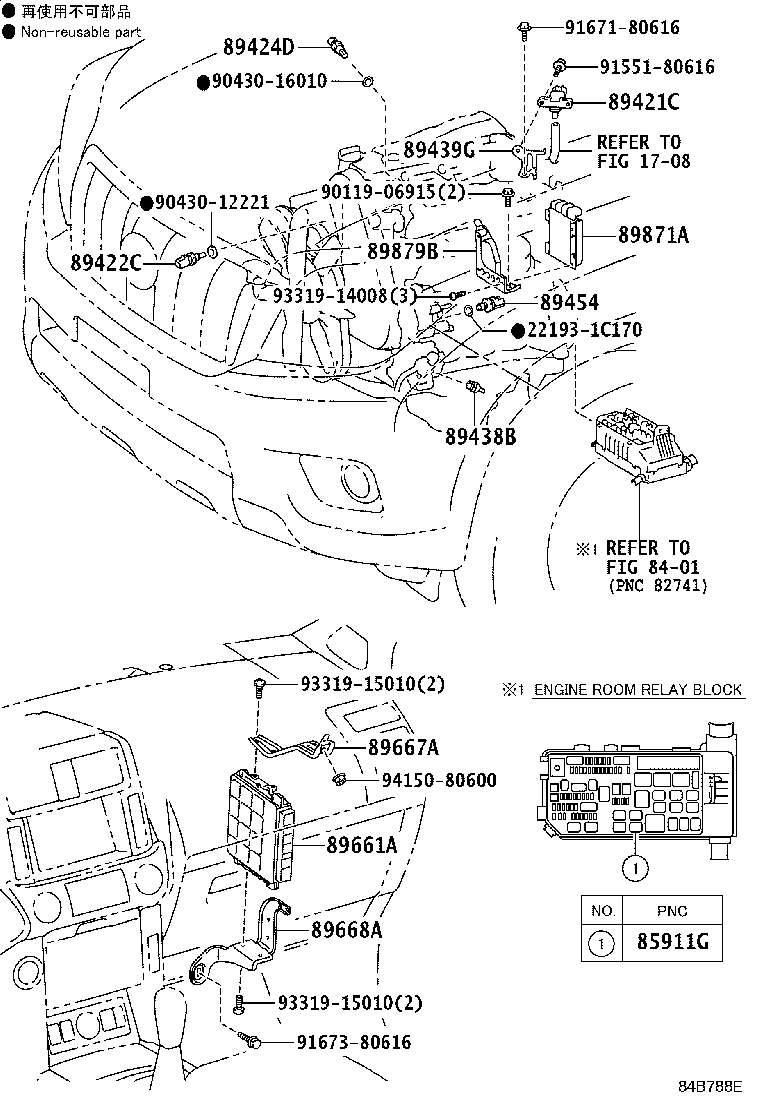

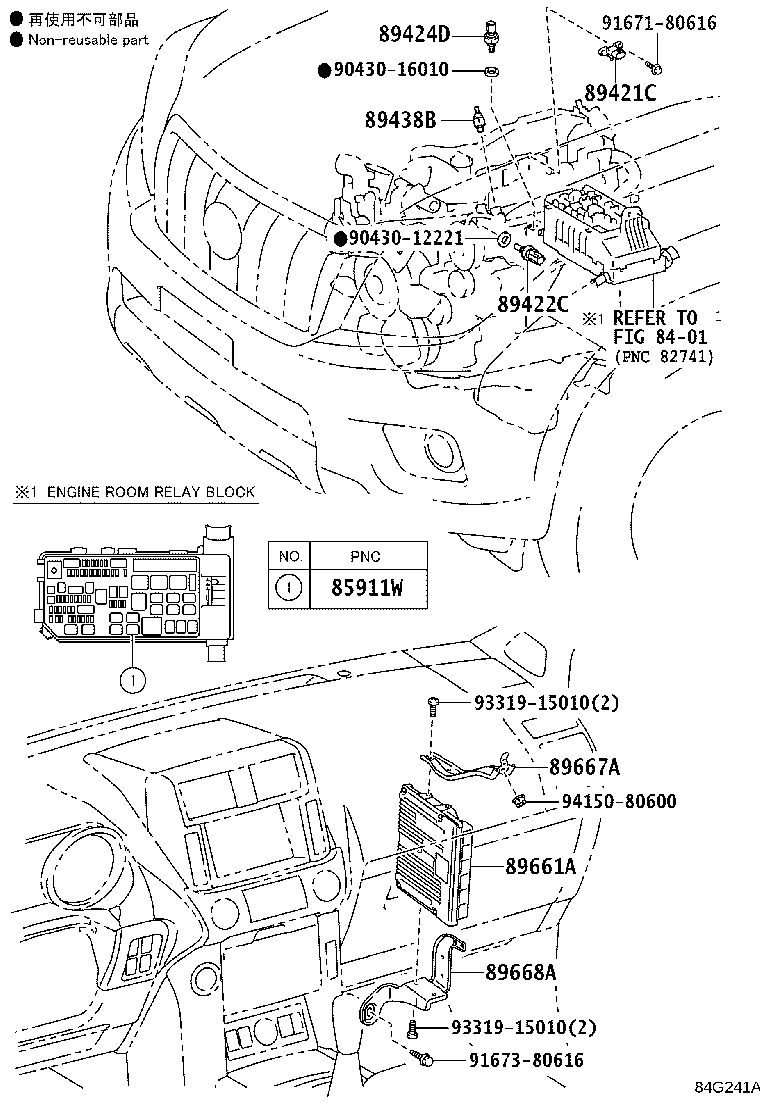

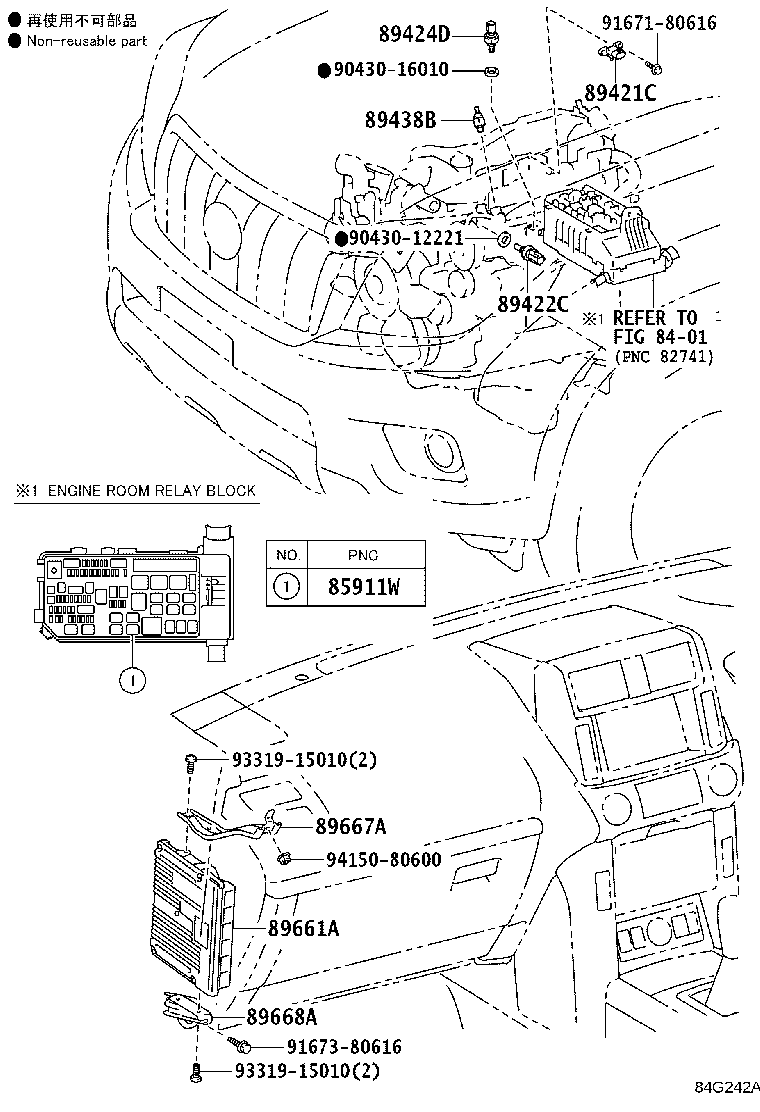

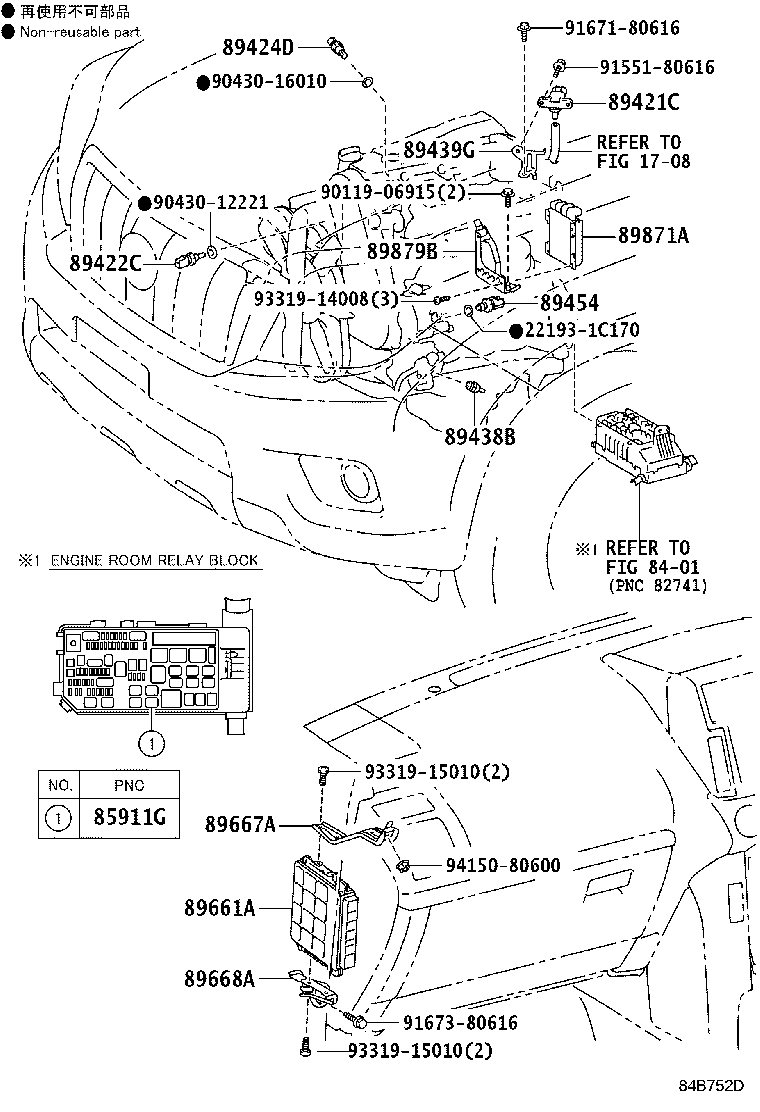

14 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 85911G | Relay, Injector Driver |
| 85911W | Relay, Electronic Driver Unit |
| 89421C | Sensor, Turbo Pressure (FOR DIESEL TURBO) |
| 89422C | Sensor, Diesel Engine Water Temperature |
| 89424D | Sensor, Inlet Air Temperature |
| 89438B | Switch, Power Steering Oil Pressure |
| 89439G | Bracket, Sensor |
| 89454 | Sensor, Fuel Temperature |
| 89455A | Sensor, Egr Valve Position |
| 89661A | Computer, Engine Control |
| 89667A | Bracket, Engine Control Computer, NO.1 |
| 89668A | Bracket, Engine Control Computer, NO.2 |
| 89871A | Driver, Injector |
| 89879B | Bracket, Injector Driver |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
