Toyota Land Cruiser Prado

2009-08 → 2017-08 · chassis GDJ15#,GRJ150,KDJ15# · catalogue 781560 · Europe

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clearance & Back Sonar

6 part groups · 4 illustrations

Illustrations

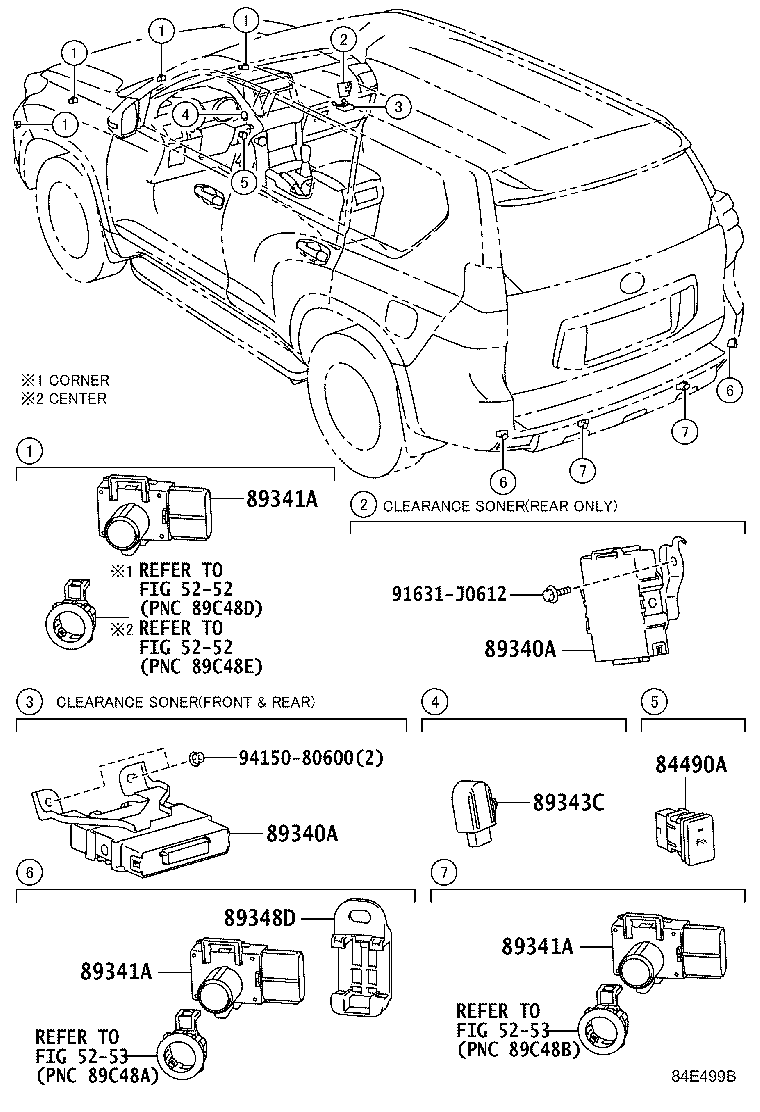

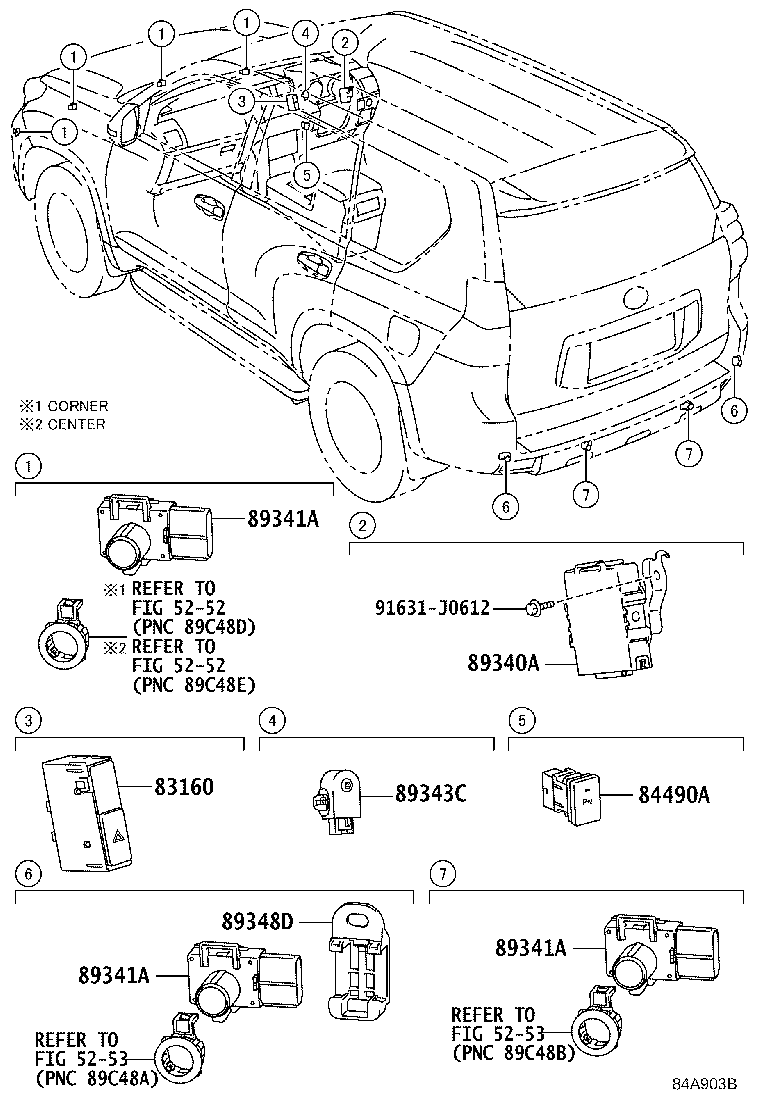

Figure 84A902B 84A902B 2009-08 → 2013-08 Figure 84E499B 84E499B 2013-09 → — Figure 84A903B 84A903B 2009-08 → 2013-08 Figure 84E500B 84E500B 2013-08 → —

Part groups

PNCDescription
83160 Indicator Assy, Clearance Warning
84490A Switch Assy, Back Sonar OR Clearance Sonar
89340A Computer Assy, Clearance Warning
89341A Sensor, Ultrasonic, NO.1
89343C Buzzer, Clearance Warning, NO.1
89348D Clip, Ultrasonic Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
