Toyota Land Cruiser Prado

2009-08 → 2017-08 · chassis GDJ15#,GRJ150,KDJ15# · catalogue 781560 · Europe

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

5 part groups · 2 illustrations

Illustrations

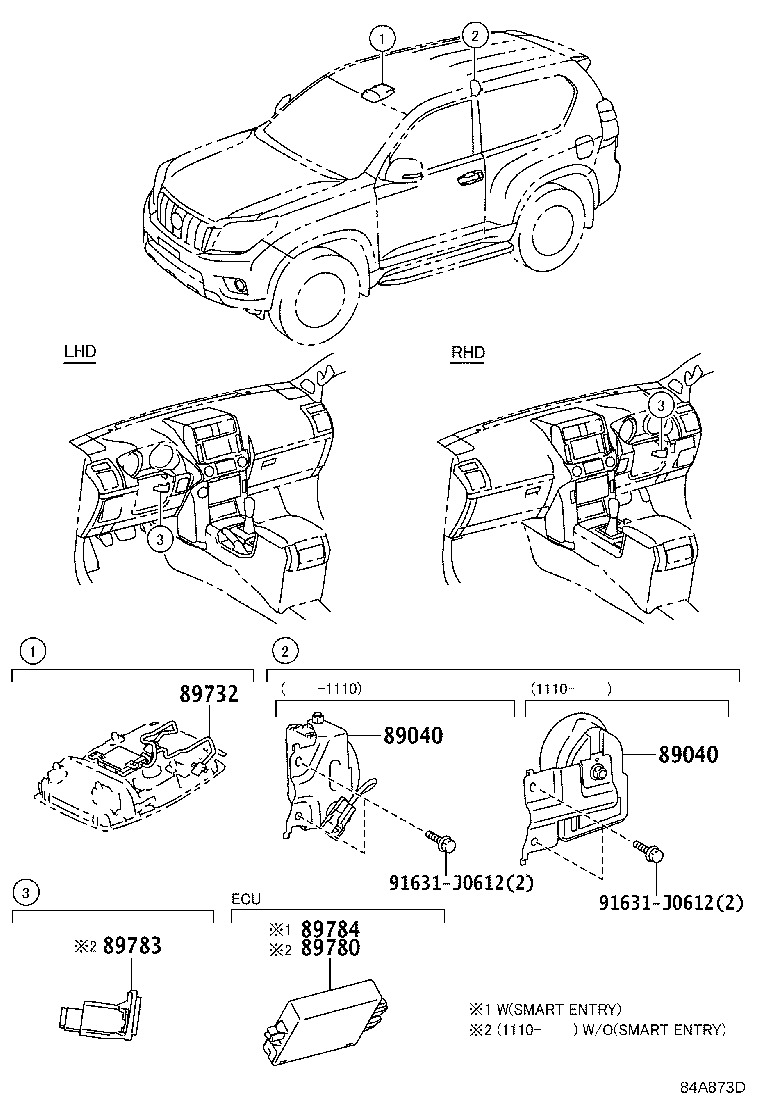

Figure 84A874E 84A874E 2009-08 → — Figure 84A873D 84A873D 2009-08 → —

Part groups

PNCDescription
89040 Siren Assy, Theft Warning
89732 Sensor, Theft Warning Radar
89780 Computer Assy, Transponder Key
89783 Amplifier, Transponder Key
89784 Computer, Immobilizer Code
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
