Toyota Land Cruiser Prado

2009-08 → 2017-08 · chassis GDJ15#,GRJ150,KDJ15# · catalogue 781560 · Europe

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

28 part groups · 3 illustrations

Illustrations

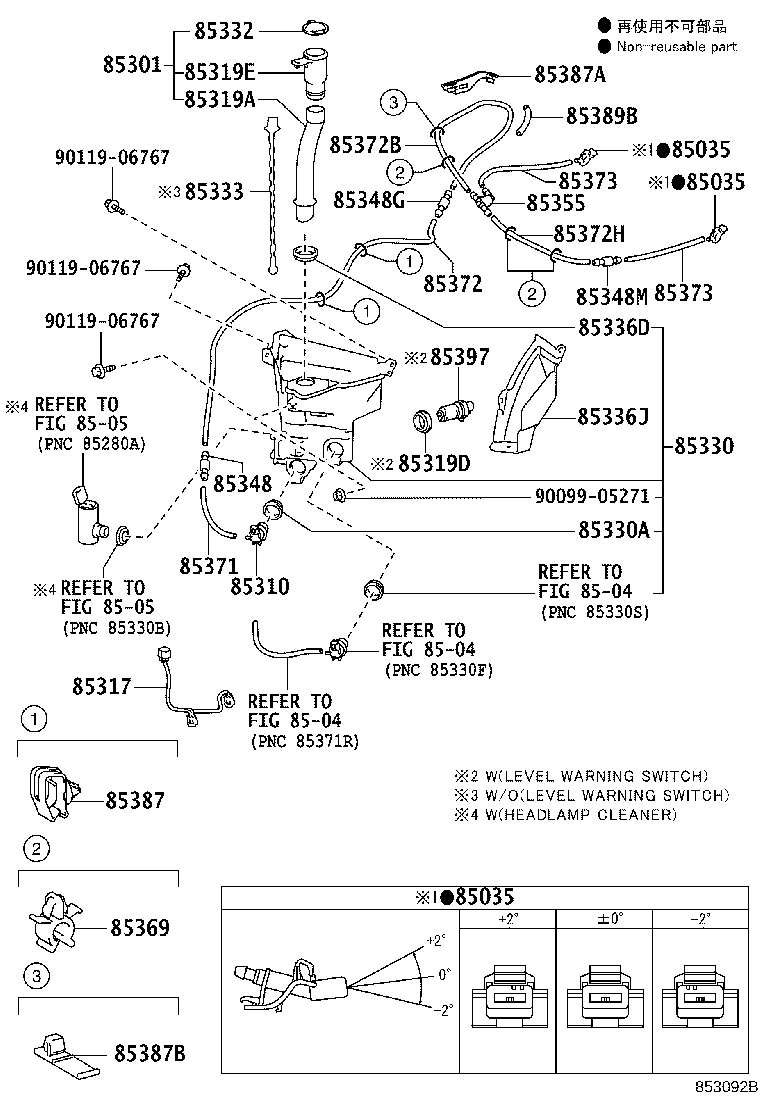

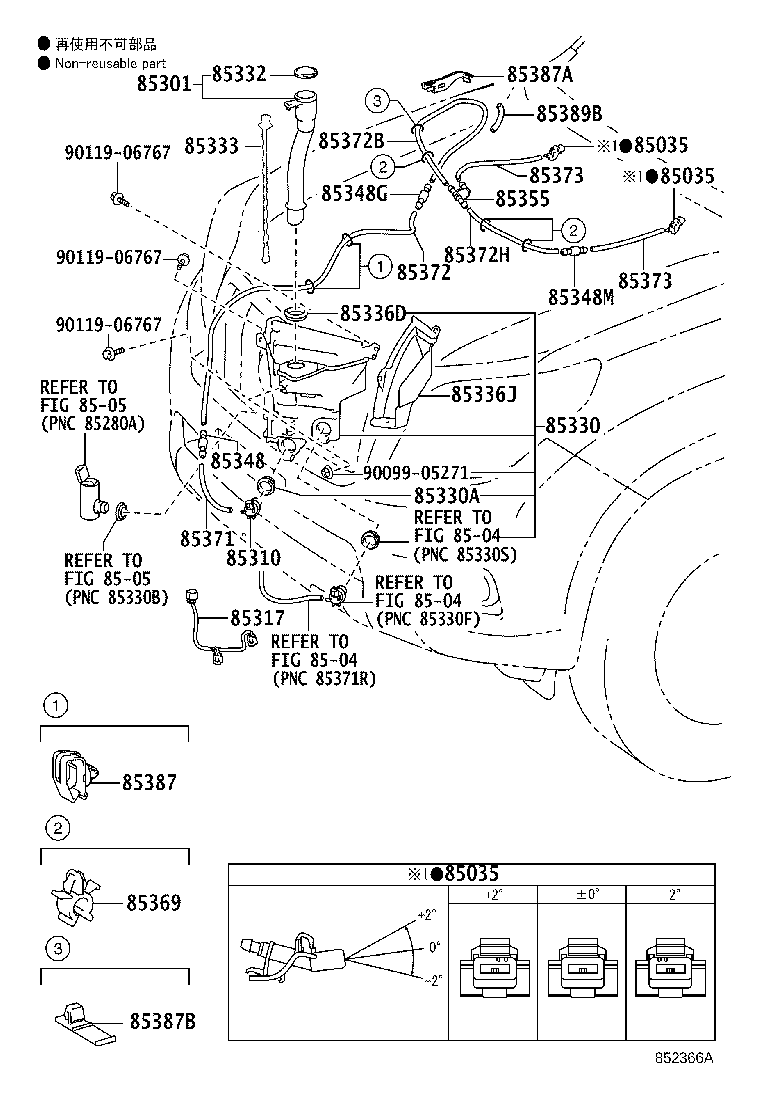

Figure 852365A 852365A 2009-08 → 2013-08 Figure 852366A 852366A 2009-08 → 2013-08 Figure 853092B 853092B 2013-08 → —

Part groups

PNCDescription
85035 Nozzle Sub-assy, Washer
85301 Inlet Sub-assy, Washer
85310 Motor And Pump Assy, Windshield Washer
85317 Wiring Assy, Washer
85319A Hose, Inlet
85319D Packing, Front Washer
85319E Inlet Washer
85330 Jar Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85332 Cap, Windshield Washer Jar
85333 Filter, Windshield Washer Jar
85336D Packing, Windshield Washer Jar
85336J Protector, Washer Jar
85348 Joint, Windshield Washer Hose, NO.1
85348G Joint, Windshield Washer Hose, NO.2
85348M Joint, Windshield Washer Hose, NO.3
85355 Valve, Windshield Washer Hose
85369 Clamp
85371 Hose, Windshield Washer (FROM MOTOR TO JOINT)
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85372B Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
85372H Hose, Windshield Washer (FROM JOINT TO JOINT), NO.3
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
85387 Clamp NO.1 (FOR WINDSEIELD WASHER)
85387A Clamp, Washer, NO.2
85387B Clamp, Washer, NO.3
85389B Protector, Windshield Washer
85397 Switch Assy,Level Warning
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
