Toyota Land Cruiser Prado

2009-08 → 2017-08 · chassis GDJ15#,GRJ150,KDJ15# · catalogue 781560 · Europe

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

10 part groups · 2 illustrations

Illustrations

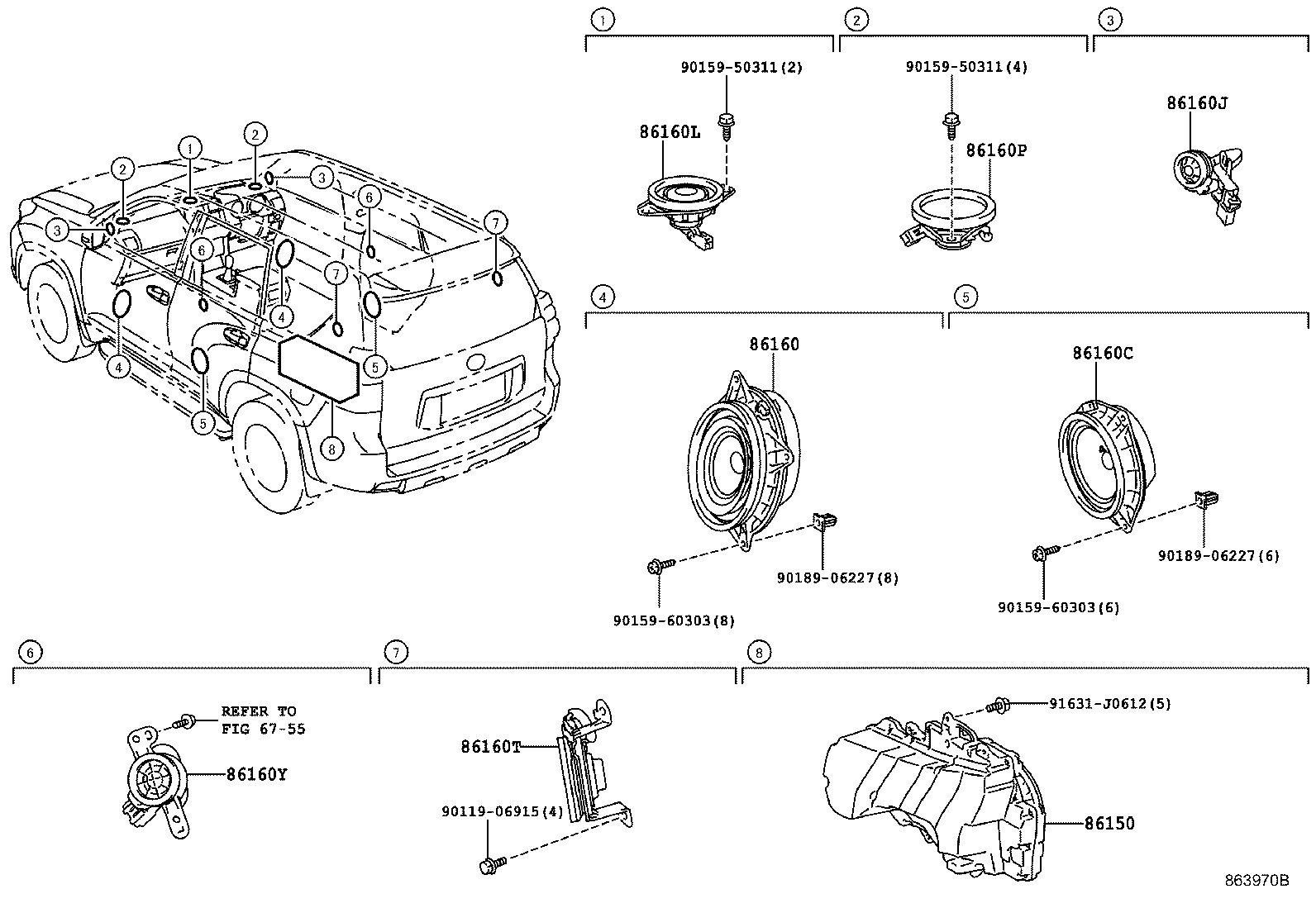

Figure 863972A 863972A 2009-08 → — Figure 863970B 863970B 2009-08 → —

Part groups

PNCDescription
86150 Speaker Assy, W/Box, NO.1
86160 Speaker Assy, Front NO.1
86160C Speaker Set, Rear
86160J Speaker Assy, Front NO.3
86160L Speaker Assy, Front NO.4
86160P Speaker Assy, Front NO.2
86160T Speaker Assy, Rear Header
86160Y Speaker Assy, Rear NO.2
86161D Bracket, Speaker Mounting, NO.1
86163 Bracket, Speaker, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
