Toyota Land Cruiser Prado
2009-08 → 2017-08 · chassis GDJ15#,GRJ150,KDJ15# · catalogue 781560 · Europe
Supported model
Data version 2018-02
Antenna

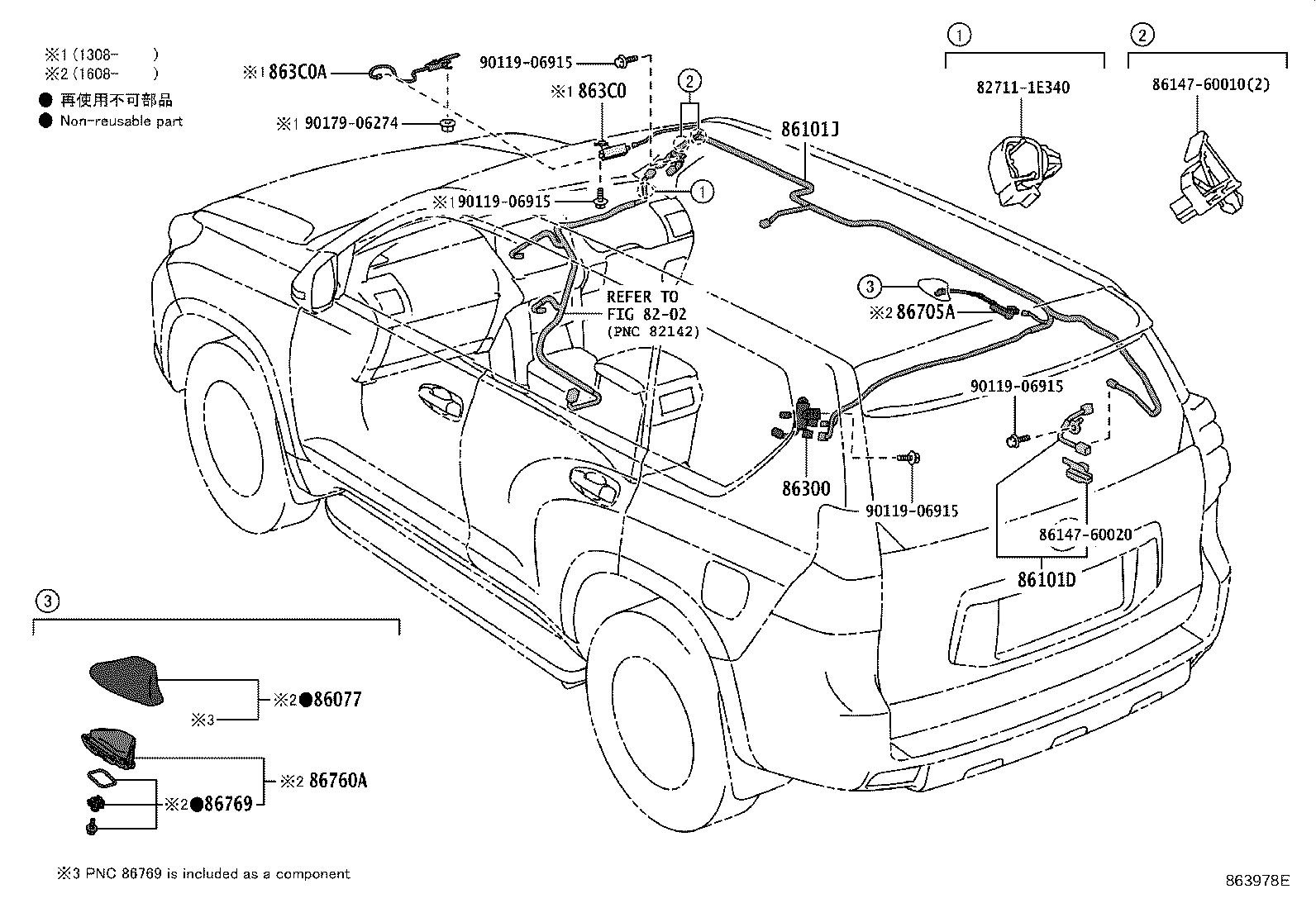

9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86077 | Cover Kit, Antenna |
| 86101D | Cord Sub-assy, Antenna, NO.3 |
| 86101J | Cord Sub-assy, Antenna, NO.2 |
| 86300 | Antenna Assy, W/Holder |
| 863C0 | Antenna Assy, Digital Audio Broadcasting |
| 863C0A | Antenna Assy, Digital Audio Broadcasting |
| 86705A | Cord Sub-assy, Telephone Antenna |
| 86760A | Antenna Assy, Telephone |
| 86769 | Housing, Roof Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
