Toyota Land Cruiser Prado
2009-08 → 2017-08 · chassis GDJ15#,GRJ150,KDJ15# · catalogue 781560 · Europe
Supported model
Data version 2018-02

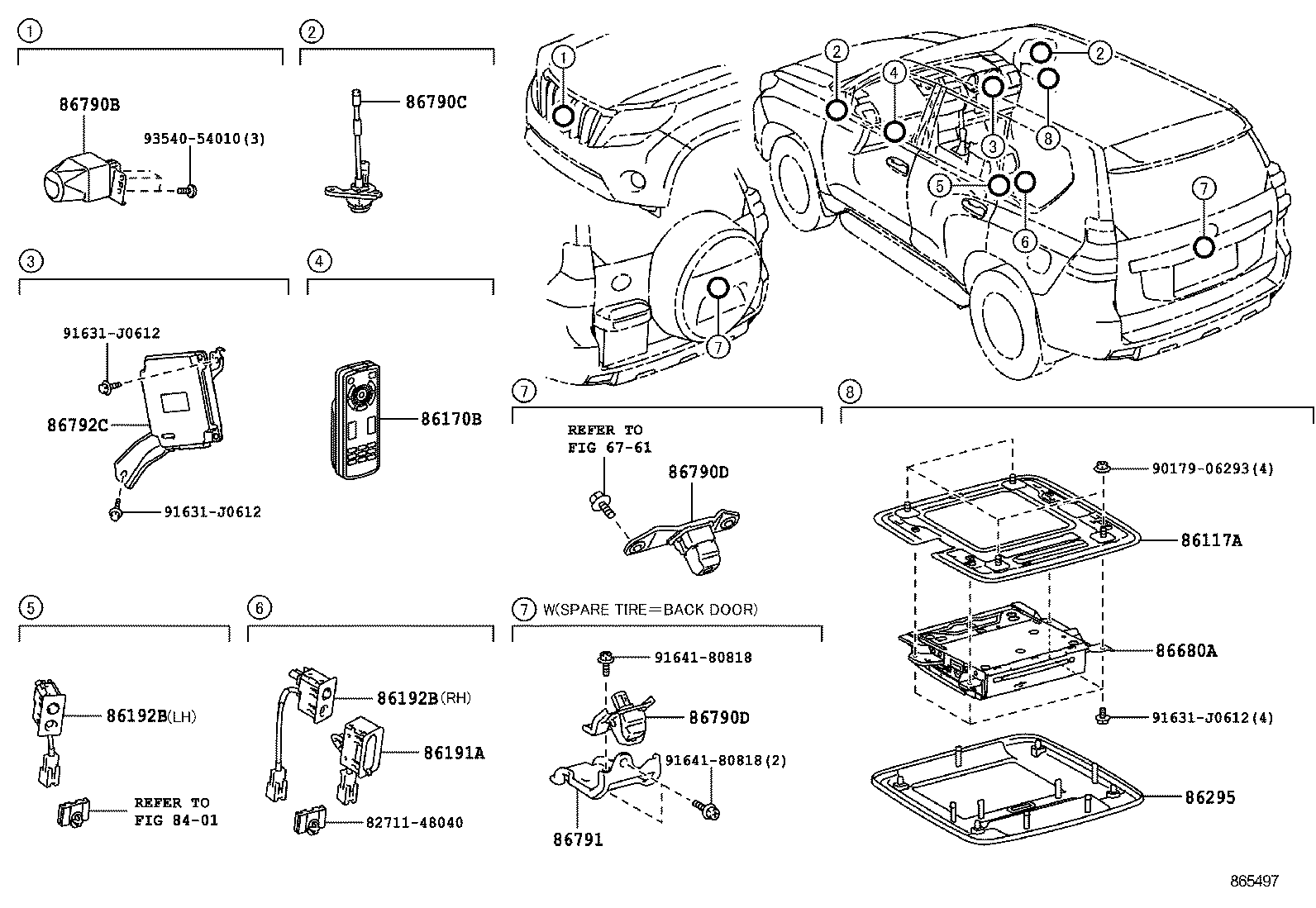

Camera & Rear Monitor Display
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86117A | Bracket, Television Display, A |
| 86170B | Switch & Volume Assy, Television |
| 86191A | Terminal, Video(VIDEO ADAPTER) |
| 86192B | Terminal, Headphone |
| 86295 | Base, Television |
| 86680A | Display Assy, Television |
| 86790B | Camera Assy, Television, FR |
| 86790C | Camera Assy, Television, Side |
| 86790D | Camera Assy, Television, RR |
| 86791 | Bracket, Television Camera |
| 86792C | Computer, Parking Assist |
| 86797B | Wire, Parking Assist |
| 86797C | Wire, Parking Assist |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
