Toyota Land Cruiser Prado

2009-08 → 2017-08 · chassis GDJ15#,GRJ150,KDJ15# · catalogue 781560 · Europe

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

57 part groups · 9 illustrations

Illustrations

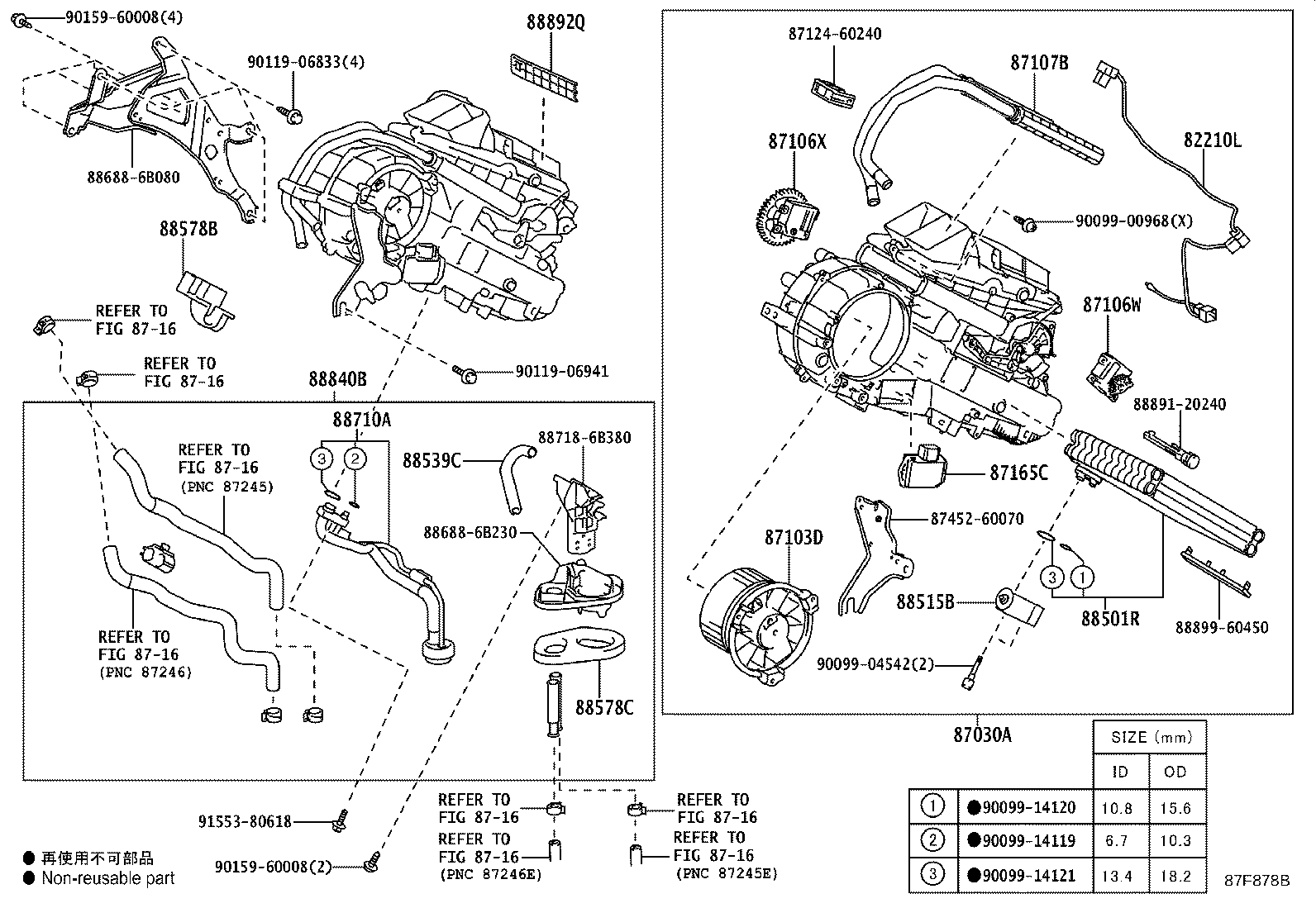

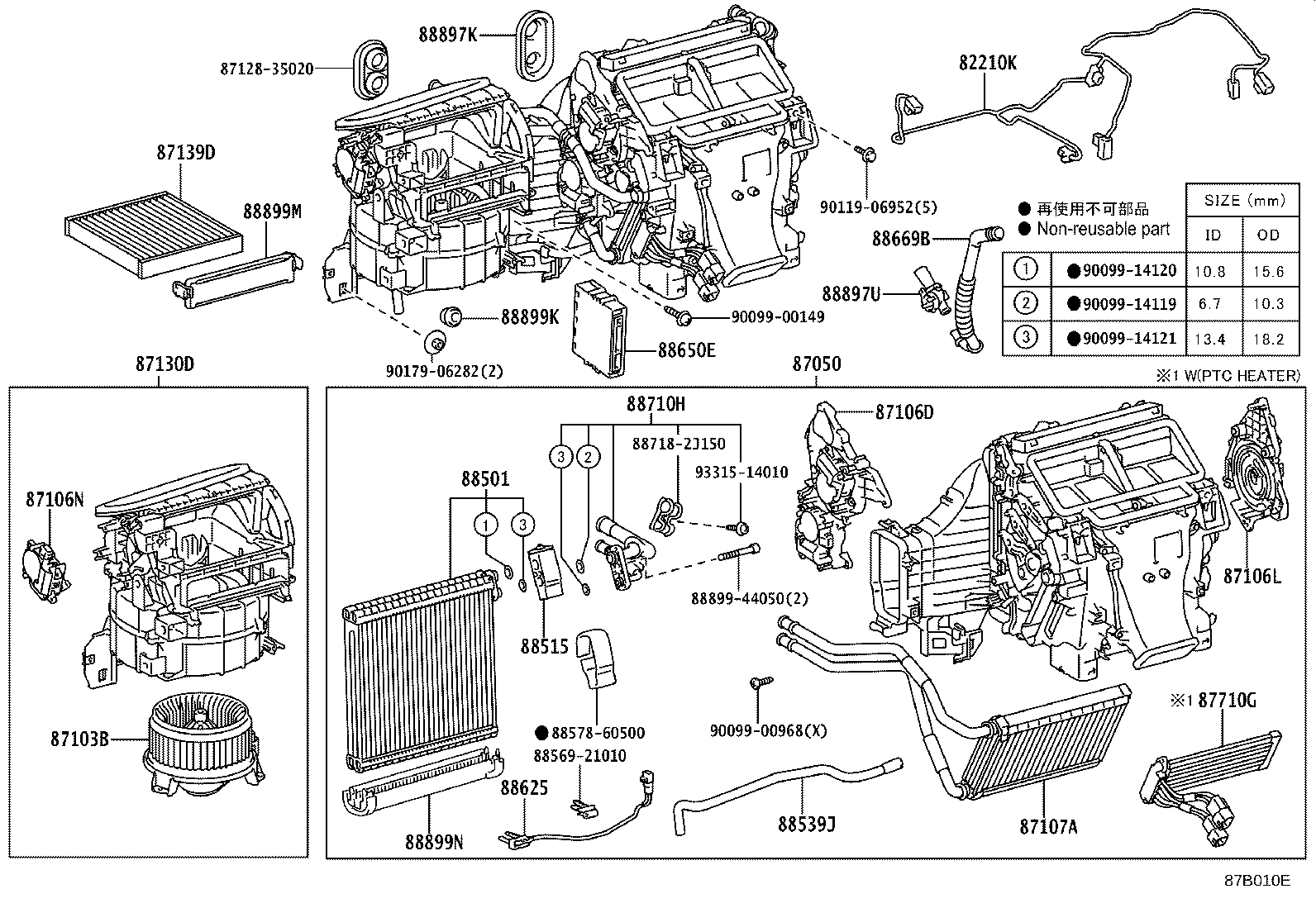

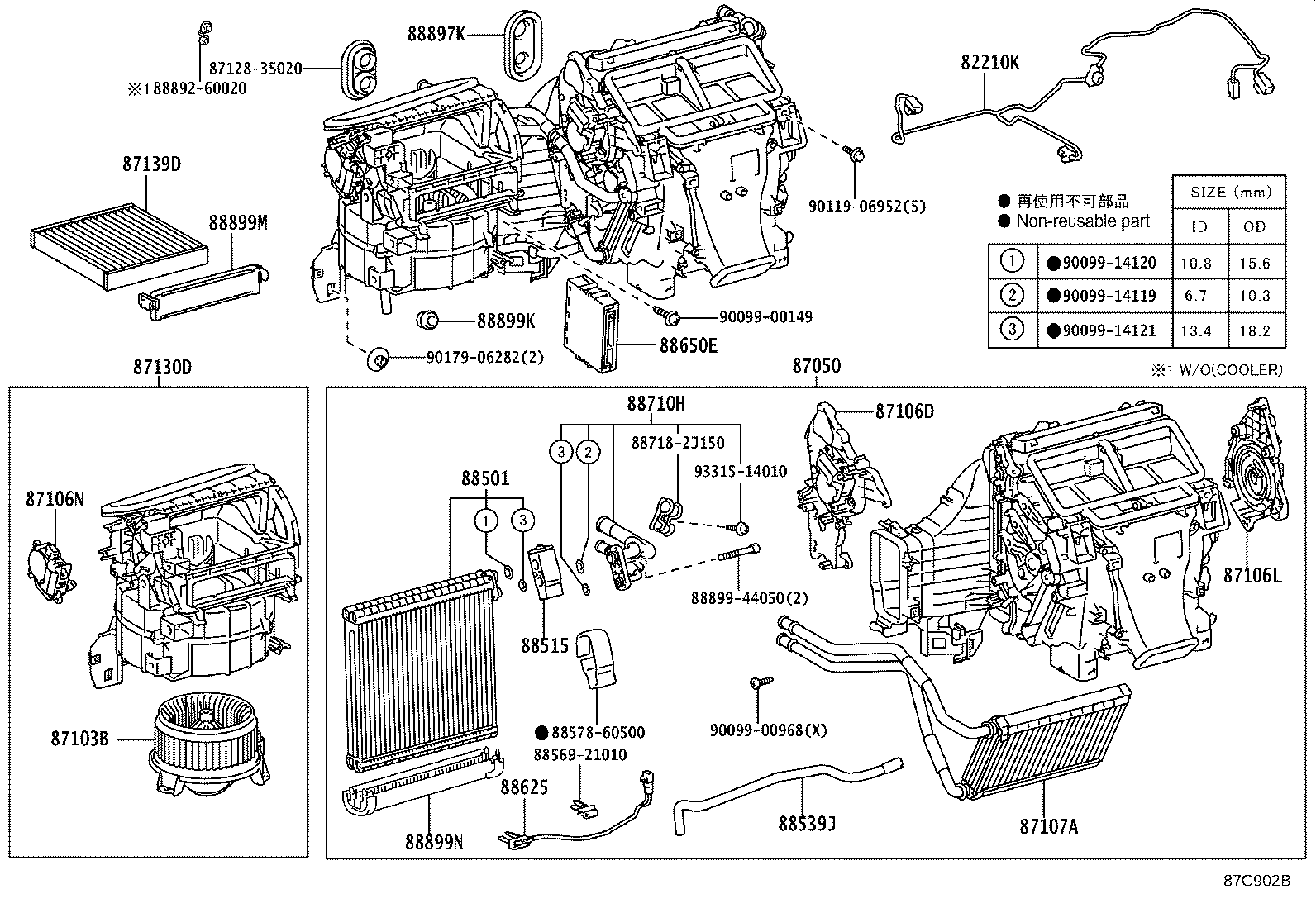

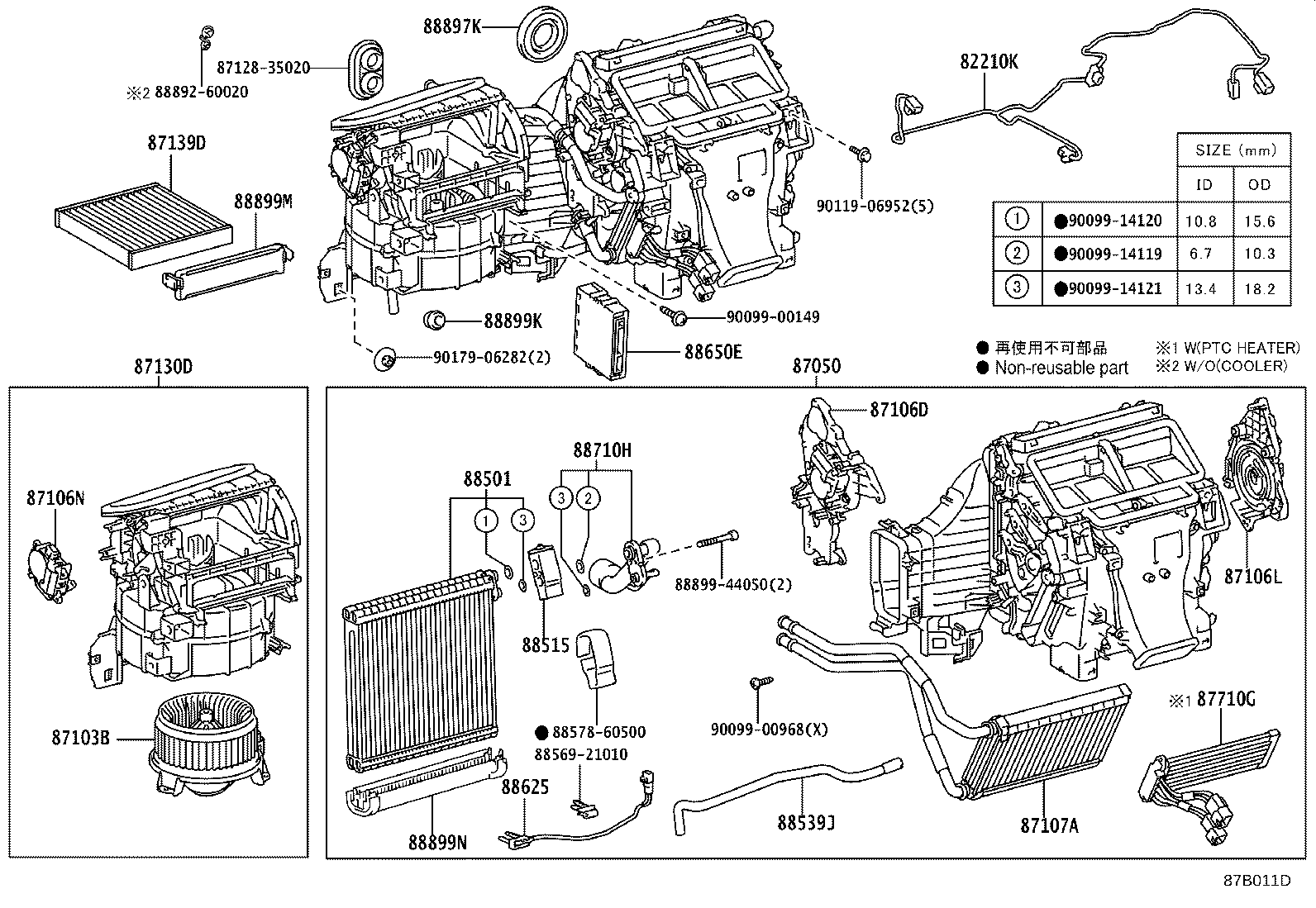

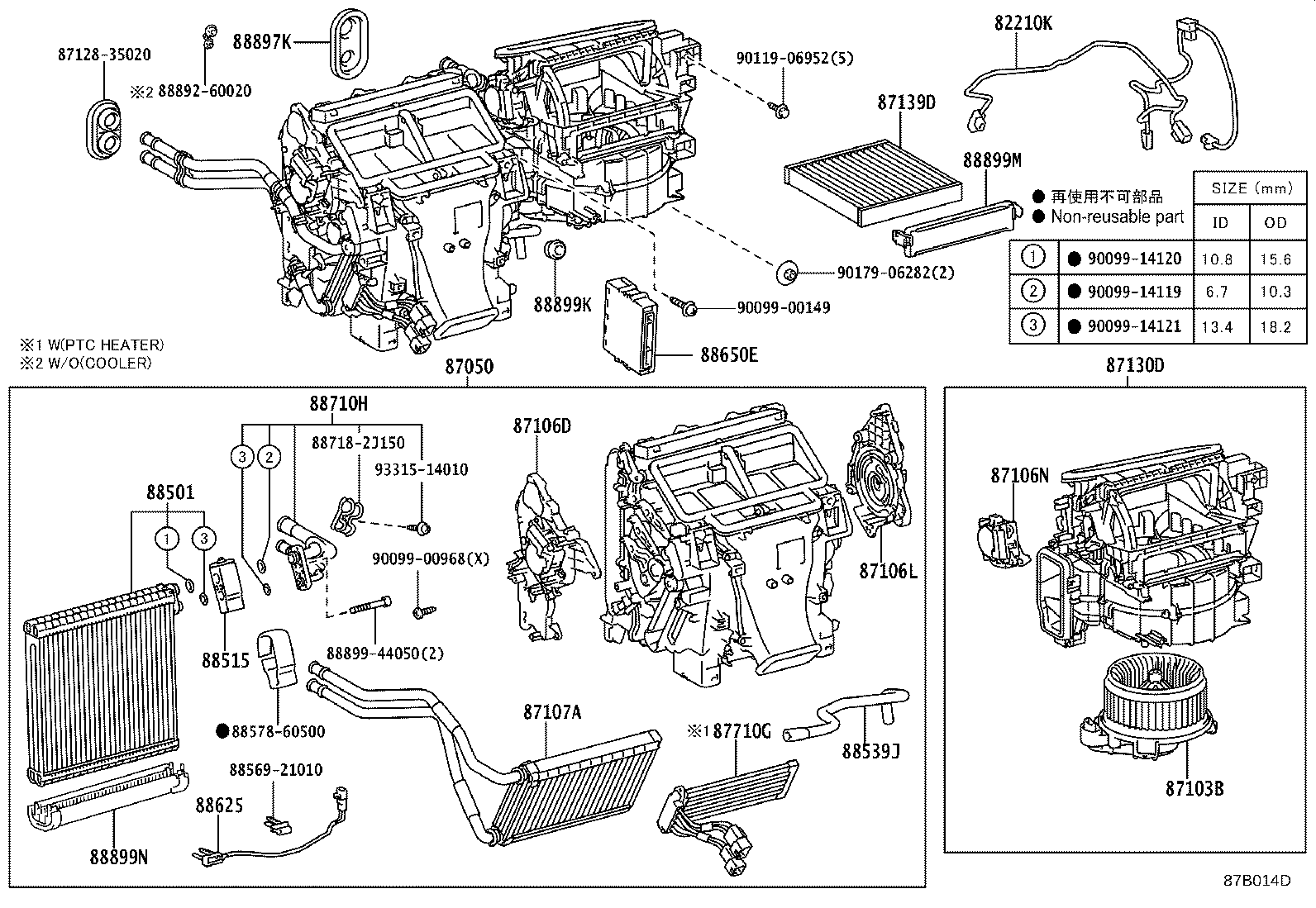

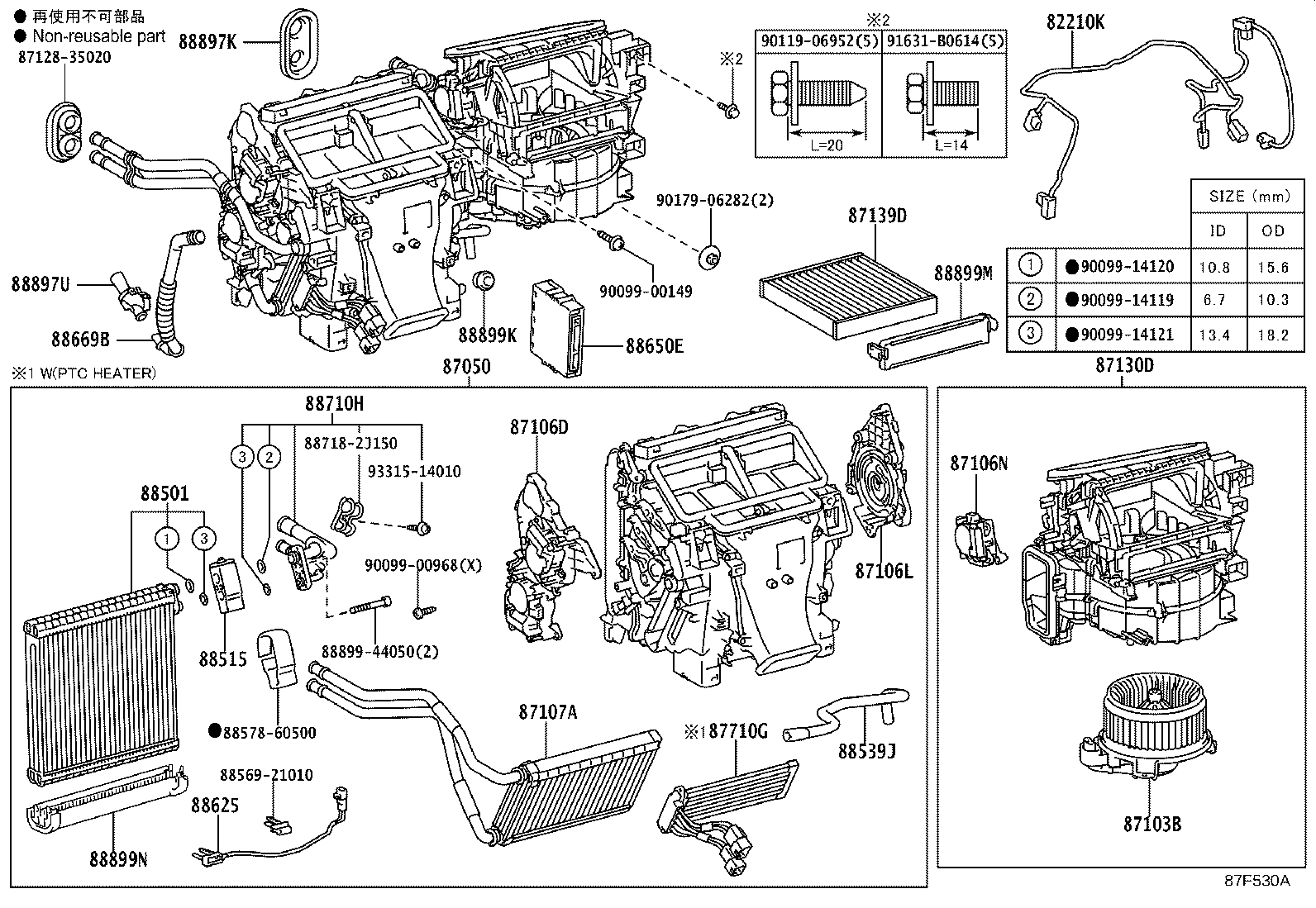

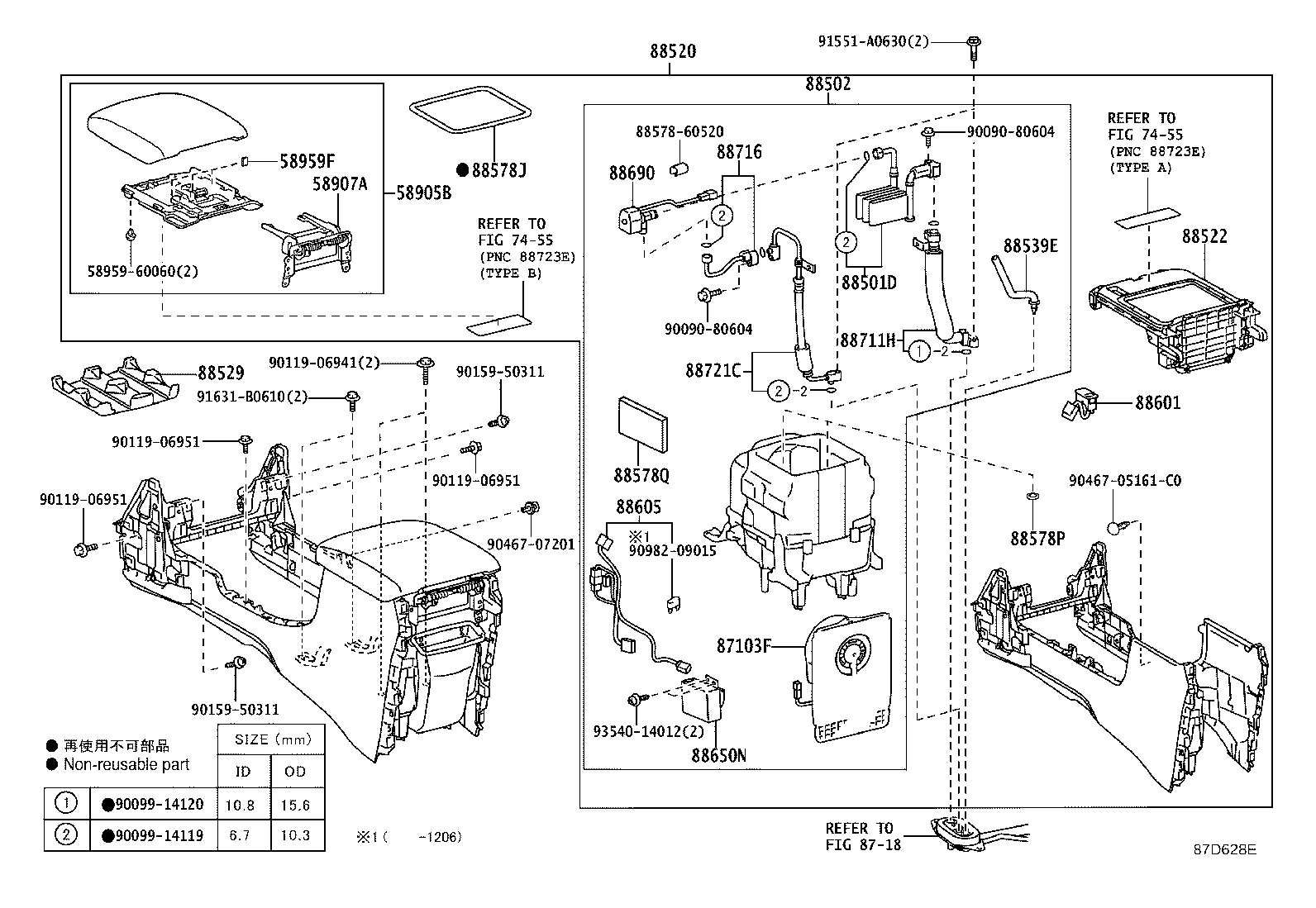

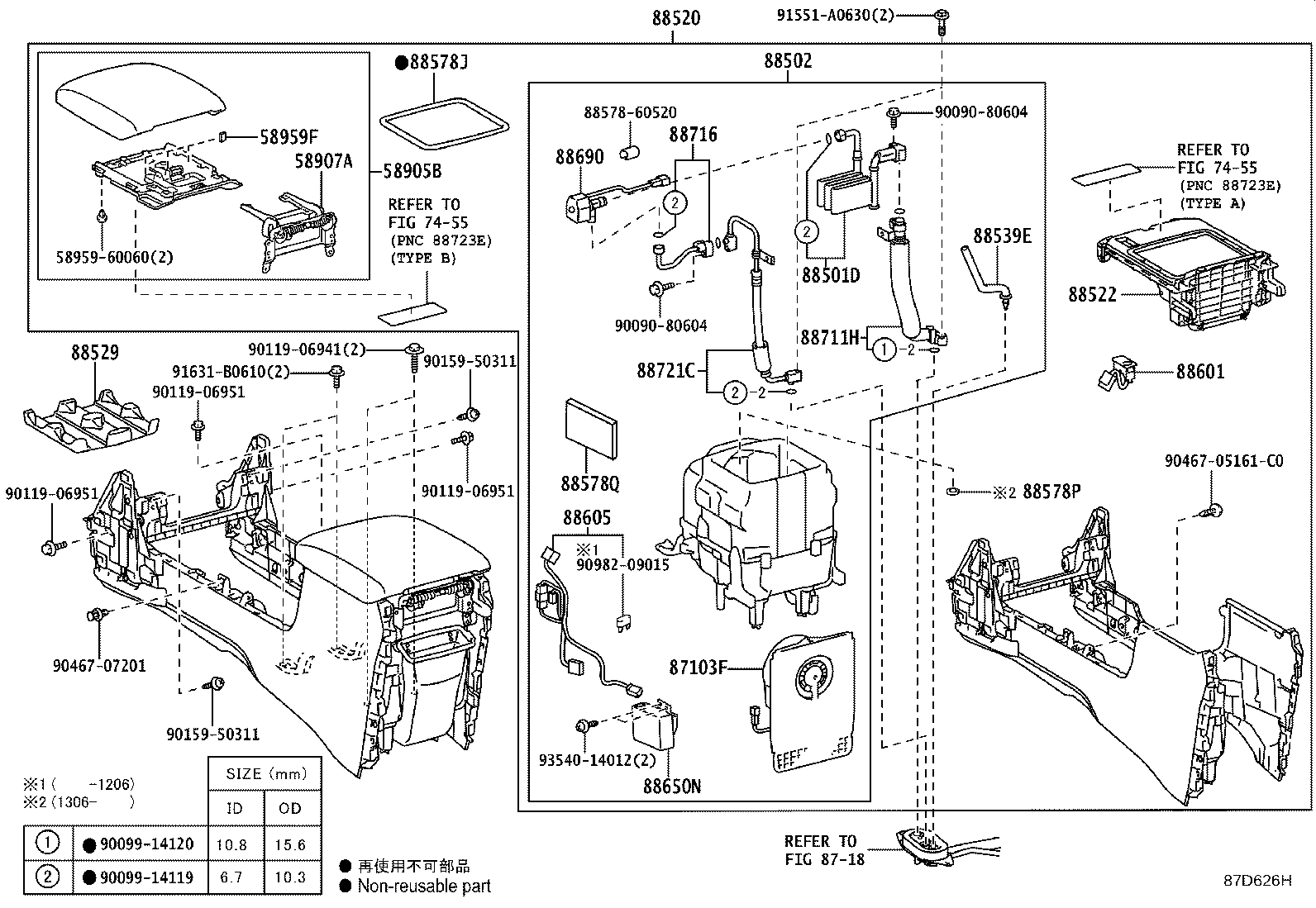

Figure 87B108E 87B108E 2009-08 → — Figure 87B010E 87B010E 2009-08 → 2015-06 Figure 87B011D 87B011D 2009-08 → — Figure 87C902B 87C902B 2009-08 → 2015-06 Figure 87F530A 87F530A 2009-08 → — Figure 87B014D 87B014D 2009-08 → — Figure 87F878B 87F878B 2009-08 → — Figure 87D626H 87D626H 2009-08 → — Figure 87D628E 87D628E 2009-08 → —

Part groups

PNCDescription
58905B Door Sub-assy, Console Compartment(FOR COOL BOX)
58907A Hinge Sub-assy, Cooling Box Door
58959F Cushion, Cooling Box Door
82210K Harness Assy, Air Conditioner
82210L Harness Assy, Air Conditioner, NO.2
87030A Unit Assy, Cooling, Rear
87050 Radiator Assy, Air Conditioner
87103B Motor Sub-assy, Blower W/Fan
87103D Motor Sub-assy, Blower W/Fan(FOR REAR)
87103F Motor Sub-assy, Blower W/Fan(FOR COOL BOX)
87106D Servo Sub-assy, Damper, NO.1
87106L Servo Sub-assy, Damper
87106N Servo Sub-assy, Damper(FOR RECIRCULATION)
87106W Servo Sub-assy, Damper(FOR AIRMIX REAR)
87106X Servo Sub-assy, Damper(FOR MODE REAR)
87107A Unit Sub-assy, Heater Radiator
87107B Unit Sub-assy, Heater Radiator
87130D Blower Assy
87139D Element, Air Refiner
87165C Control, Blower Motor
87710G Quick Heater Assy
88501 Evaporator Sub-assy, Cooler, NO.1
88501D Evaporator Sub-assy, Cooler, NO.2
88501R Evaporator Sub-assy (REAR)
88502 Case Sub-assy, Cooling Unit
88515 Valve, Cooler Expansion
88515B Valve, Rear Cooling Unit Expansion
88520 Box Assy, Cooling
88522 Door, Cooling Unit
88529 Tray, Cooling Box
88539C Hose, Cooler Unit Drain, NO.2
88539E Hose, Cooler Unit Drain, NO.3
88539J Hose, Drain Cooler
88578B Packing, Cooling Unit, NO.1
88578C Packing, Cooling Unit, NO.2
88578J Packing, Cool Box, NO.1
88578P Packing, Cool Box, NO.2
88578Q Packing, Cool Box, NO.3
88601 Switch Sub-assy, Cooler Control
88605 Harness Sub-assy, Cooler Wiring, NO.1
88625 Thermistor, Cooler, NO.1
88650E Amplifier Assy, Air Conditioner, NO.1
88650N Amplifier Assy, Air Conditioner
88669B Hose, Cooler Air
88690 Valve Assy, Cooler Magnet
88710A Tube Assy, Air Conditioner
88710H Tube & Accessory Assy, Air Conditioner
88711H Hose, Discharge
88716 Tube, Liquid
88721C Hose, Liquid
88840B Accessory Assy, Air Conditioner
88892Q Plate, Cooler
88897K Grommet, (FOR COOLER PIPE)
88897U Pipe, Aspirator
88899K Plate, Cover
88899M Plate, Cover(FOR AIR FILTER)
88899N Plate, Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
