Toyota Land Cruiser Prado

2009-08 → 2017-08 · chassis GDJ15#,GRJ150,KDJ15# · catalogue 781560 · Europe

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

7 part groups · 3 illustrations

Illustrations

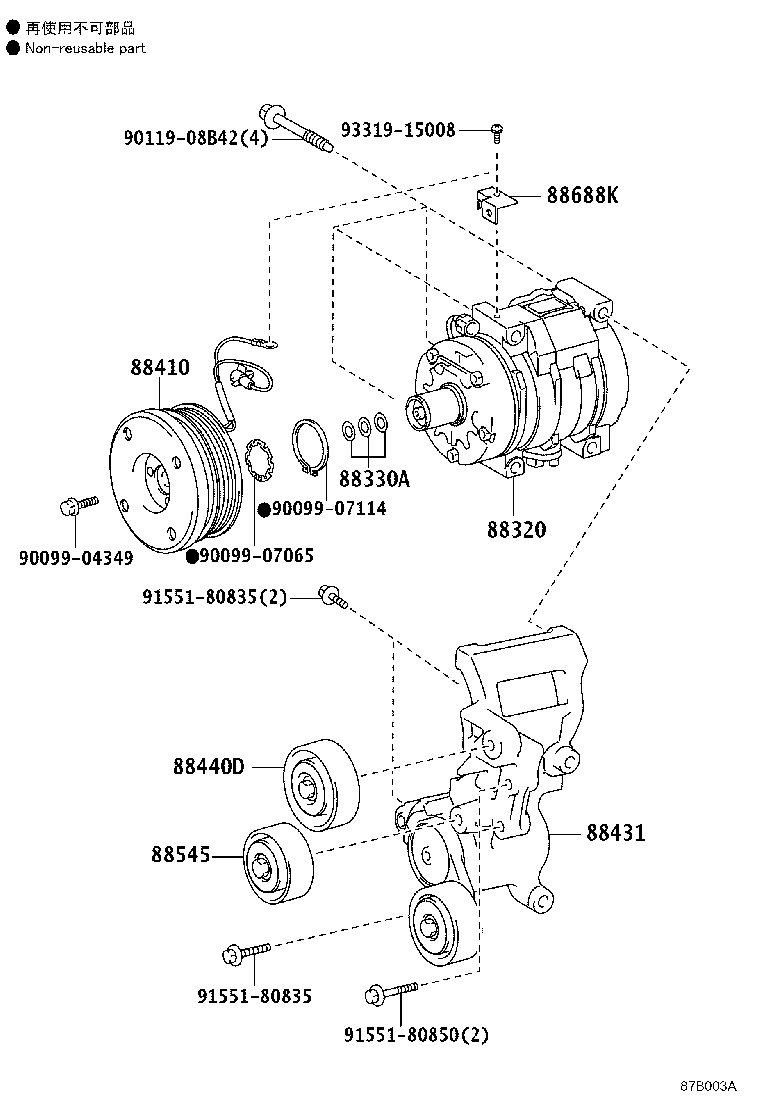

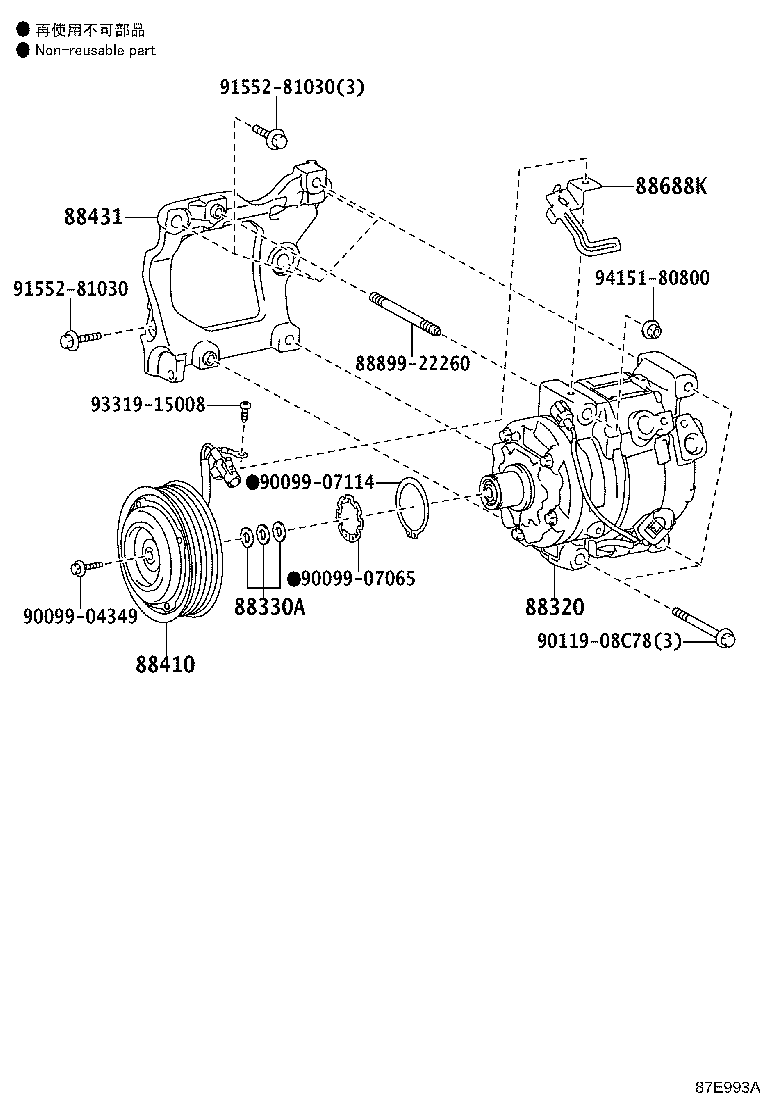

Figure 87A999A 87A999A 2009-08 → — Figure 87B003A 87B003A 2009-08 → — Figure 87E993A 87E993A 2015-06 → —

Part groups

PNCDescription
88320 Compressor Assy, Cooler
88330A Washer (FOR MAGNET CLUTCH)
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88440D Pulley Assy, Idle NO.2
88545 Pulley Assy, Idle
88688K Bracket, Cooler Compressor
