Toyota Land Cruiser
2017-08 → present · chassis GDJ15#,GRJ150,KDJ150,TRJ150 · catalogue 781580 · Europe
Supported model
Data version 2018-06

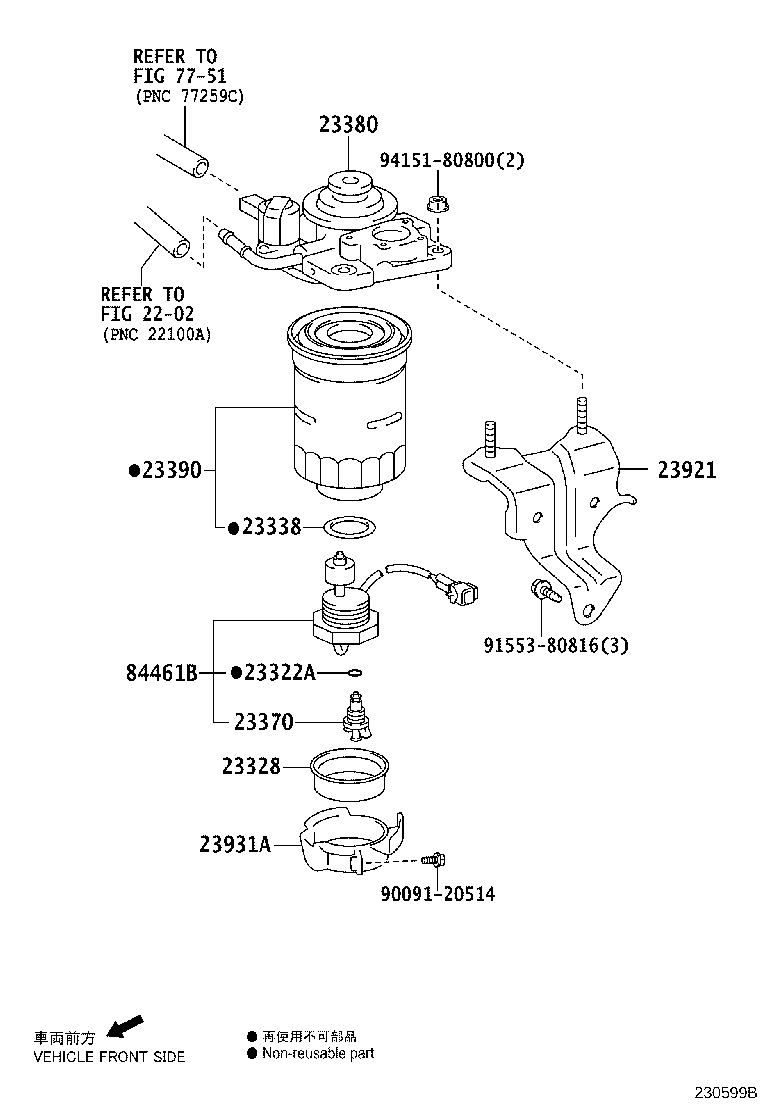

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 23322A — Ring, O(FOR DRAIN PLUG) | ||||
| 23344-54010 |
Ring, O(FOR DRAIN PLUG)
2017-08 → 2023-01
ended
|
1GDFTV GDJ15# | — | |
| 23344-54010 |
Ring, O(FOR DRAIN PLUG)
2017-08 → 2020-07
ended
|
1KDFTV KDJ150 | — | |
| 23385-30340 |
Ring, O(FOR DRAIN PLUG)
2023-01 → 2023-12
ended
|
1GDFTV GDJ15# | — | |
| 23328 — Gasket(FOR FUEL FILTER) | ||||
| 23385-30160 |
Gasket(FOR FUEL FILTER)
2017-08 → 2020-07
ended
|
1KDFTV KDJ150 | — | |
| 23385-30160 |
Gasket(FOR FUEL FILTER)
2017-08 → 2023-12
ended
|
1GDFTV GDJ15# | — | |
| 23338 — Gasket(FOR WARNING SWITCH) | ||||
| 23344-64010 |
Gasket(FOR WARNING SWITCH)
2017-08 → 2020-07
ended
|
1KDFTV KDJ150 | — | |
| 23344-64010 |
Gasket(FOR WARNING SWITCH)
2017-08 → 2023-01
ended
|
1GDFTV GDJ15# | — | |
| 23385-11320 |
Gasket(FOR WARNING SWITCH)
2023-01 → 2023-12
ended
|
1GDFTV GDJ15# | — | |
| 23370 — Cock Assy, Fuel Filter Drain | ||||
| 23370-30010 |
Cock Assy, Fuel Filter Drain
2017-08 → 2020-07
ended
|
1KDFTV KDJ150 | — | |
| 23370-30010 |
Cock Assy, Fuel Filter Drain
2017-08 → 2023-12
ended
|
1GDFTV GDJ15# | — | |
| 23380 — Cap Assy, Fuel Filter | ||||
| 23380-30301 |
Cap Assy, Fuel Filter
2017-08 → 2020-07
ended
|
1KDFTV KDJ150 | — | |
| 23380-30340 |
Cap Assy, Fuel Filter
2017-08 → 2023-01
ended
|
1GDFTV GDJ15# | — | |
| 23380-30420 |
Cap Assy, Fuel Filter
2023-01 → 2023-12
ended
|
1GDFTV GDJ15# | — | |
| 23390 — Element Assy, Fuel Filter | ||||
| 23390-30340 |
Element Assy, Fuel Filter
2017-08 → 2023-01
ended
|
1GDFTV GDJ15# | — | |
| 23390-30341 |
Element Assy, Fuel Filter
2023-01 → 2023-12
ended
|
1GDFTV GDJ15# | — | |
| 23390-36760 |
Element Assy, Fuel Filter
2017-08 → 2020-07
ended
|
1KDFTV KDJ150 | — | |
| 23921 — Support, Fuel Filter | ||||
| 23921-30070 |
Support, Fuel Filter
2017-08 → 2020-07
ended
|
1KDFTV KDJ150 | — | |
| 23921-30070 |
Support, Fuel Filter
2017-08 → 2023-12
ended
|
1GDFTV GDJ15# | — | |
| 23931A — Cover, Fuel Filter | ||||
| 23931-26031 |
Cover, Fuel Filter
2017-08 → 2020-07
ended
|
1KDFTV KDJ150 | — | |
| 23931-26031 |
Cover, Fuel Filter
2017-08 → 2023-12
ended
|
1GDFTV GDJ15# | — | |
| 84461B — Switch, Level Warning | ||||
| 84461-60101 |
Switch, Level Warning
2017-08 → 2019-09
ended
|
KDJ150 | — | |
| 84461-60101 |
Switch, Level Warning
2017-08 → 2019-10
ended
|
GDJ15# | — | |
| 84461-60102 |
Switch, Level Warning
2019-10 → 2020-07
ended
|
KDJ150 | — | |
| 84461-60102 |
Switch, Level Warning
2019-10 → 2023-01
ended
|
GDJ15# | — | |
| 84461-60120 |
Switch, Level Warning
2023-01 → 2023-12
ended
|
GDJ15# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
